# StableAWEModels
[](https://OpenSourceAWE.github.io/StableAWEModels.jl/dev)
[](https://github.com/OpenSourceAWE/StableAWEModels.jl/actions/workflows/CI.yml)
[](https://codecov.io/gh/OpenSourceAWE/StableAWEModels.jl)
[](https://github.com/JuliaTesting/Aqua.jl)
## StableAWEModels vs SymbolicAWEModels
This is a fork of [SymbolicAWEModels](https://github.com/OpenSourceAWE/SymbolicAWEModels.jl/tree/main) from July 2026 with the goal not to introduce any braking changes for at least a year.
## Overview
**StableAWEModels.jl** is a **compiler** for mechanical systems, built for
**Airborne Wind Energy** (AWE) modelling. It takes a structural description
of a system — defined in Julia code or a YAML file — and compiles it into
an efficient ODE problem using
[ModelingToolkit.jl](https://github.com/SciML/ModelingToolkit.jl).
```text
Define Components Assemble Compile Simulate
┌──────────────────┐ ┌──────────────┐ ┌─────────────────┐ ┌────────────┐
│ Point, Segment, │───▶│ System │────▶│ SymbolicAWE │────▶│ init!() │
│ Wing, Winch, ... │ │ Structure │ │ Model │ │ next_step! │
│ │ │ │ │ (symbolic eqs → │ │ sim!() │
│ Julia or YAML │ │ (resolves │ │ ODEProblem) │ │ │
│ │ │ references) │ │ │ │ │
└──────────────────┘ └──────────────┘ └─────────────────┘ └────────────┘
```
The first compilation is slow as ModelingToolkit generates and
simplifies the symbolic equations. The result is cached to a binary file,
making subsequent runs fast (seconds).
### What can it model?
StableAWEModels provides building blocks for flexible mechanical systems:
- **Point** masses — static, dynamic, or quasi-static nodes
- **Segment** spring-dampers — with per-unit-length stiffness, damping,
and drag
- **Tether**s — collections of segments controlled by a winch
- **Winch**es — torque-controlled motors with Coulomb and viscous friction
- **Pulley**s — equal-tension constraints between segments
- **Wing**s — rigid body quaternion dynamics with aerodynamic forces from
the [Vortex Step Method](https://github.com/Albatross-Kite-Transport/VortexStepMethod.jl)
- **Group**s — twist degrees of freedom for aeroelastic coupling
- **Transform**s — spherical coordinate positioning of components
These components can be combined to model a wide range of systems, from
simple hanging masses to complex kite power systems with multiple tethers,
bridles, and wings.
---
## Quick Start
Install Julia using [juliaup](https://github.com/JuliaLang/juliaup):
```bash
curl -fsSL https://install.julialang.org | sh
juliaup add 1.12
juliaup default 1.12
```
Create a project and add StableAWEModels:
```bash
mkdir my_project && cd my_project
julia --project="."
```
```julia
using Pkg
pkg"add StableAWEModels"
pkg"add GLMakie"
```
### Minimal example — a pendulum
```julia
using StableAWEModels
using StableAWEModels: Point
using GLMakie
using KiteUtils: init!, next_step!
StableAWEModels.copy_data()
set_data_path("data/base")
set = Settings("system.yaml")
set.v_wind = 0.0
# Define components using symbolic names
points = [
Point(:anchor, [0, 0, 0], STATIC; transform=:tf),
Point(:mass, [0, 0, -50], DYNAMIC; extra_mass=1.0, transform=:tf),
]
segments = [Segment(:spring, :anchor, :mass,
614600.0, 473.0, 0.004)]
transforms = [Transform(:tf, deg2rad(-70), 0.0, 0.0;
base_pos=[0, 0, 50], base_point=:anchor, rot_point=:mass)]
# Assemble and compile
sys = SystemStructure("pendulum", set; points, segments, transforms)
sam = SymbolicAWEModel(set, sys)
init!(sam)
plot(sam.sys_struct)
# Simulate with live visualization
dt = 0.05
for _ in 1:500
t_start = time()
next_step!(sam; dt)
plot!(sam.sys_struct)
sleep(max(0, dt - (time() - t_start)))
end
```
For YAML-based model definition, see
[Building a System using YAML](https://OpenSourceAWE.github.io/StableAWEModels.jl/dev/tutorial_yaml/).
> **Note:** The first run will be slow (several minutes) due to
> compilation. Subsequent runs will be much faster thanks to binary
> caching.
See the [Getting Started Guide](https://OpenSourceAWE.github.io/StableAWEModels.jl/dev/getting_started/)
for detailed instructions.
---
## Kite Models
StableAWEModels provides the building blocks for assembling kite models
from YAML or Julia constructors. Ready-to-use kite models live in dedicated
packages:
- **[RamAirKites.jl](https://github.com/OpenSourceAWE/RamAirKites.jl)** —
Ram air kite with bridle system, 4-tether steering, and deformable wing
groups
- **[V3Kite.jl](https://github.com/OpenSourceAWE/V3Kite.jl)** — TU Delft
V3 leading-edge-inflatable kite, YAML-based configuration

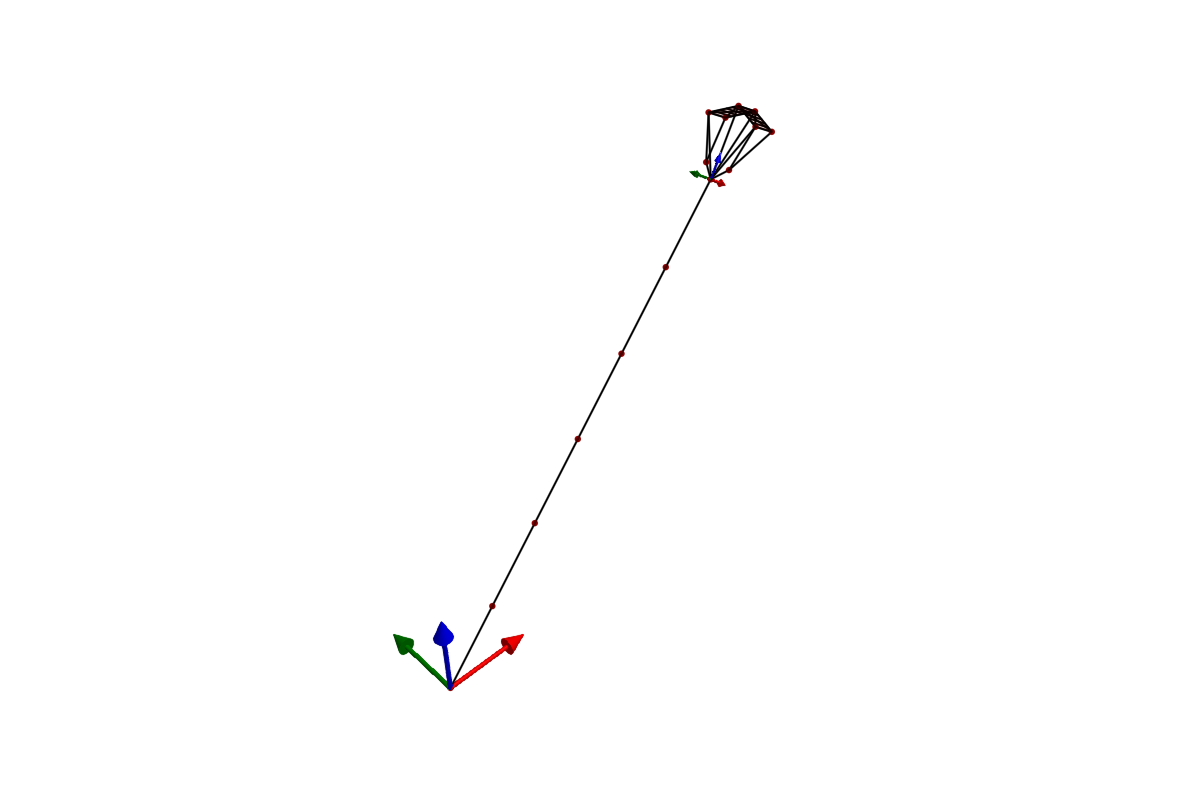

### 2-Plate Kite Example
A minimal coupled aero-structural model included in `data/2plate_kite/`:
```julia
using StableAWEModels, VortexStepMethod, GLMakie
using StableAWEModels: Point
using KiteUtils: init!, next_step!
StableAWEModels.copy_data()
set_data_path("data/2plate_kite")
struc_yaml = joinpath(get_data_path(),
"particle_structural_geometry.yaml")
# Load settings and VSM configuration
set = Settings("system.yaml")
vsm_set = VortexStepMethod.VSMSettings(
joinpath(get_data_path(), "vsm_settings.yaml");
data_prefix=false)
# Build system structure from YAML
sys = load_sys_struct_from_yaml(struc_yaml;
system_name="2plate_kite", set, vsm_set)
sys.segments[:kcu_steering_right].l0 += 0.1
sys.segments[:kcu_steering_left].l0 -= 0.1
sys.winches[:main_winch].brake = true
sam = SymbolicAWEModel(set, sys)
init!(sam; remake=false, lin_vsm=false)
plot(sam.sys_struct)
# Simulate with live visualization
dt = 0.01
for step in 1:1000
t_start = time()
next_step!(sam; dt, vsm_interval=1)
plot!(sam.sys_struct)
sleep(max(0, dt - (time() - t_start)))
end
```
### Running examples
Copy examples to your project and run the interactive menu:
```julia
using StableAWEModels
using GLMakie
StableAWEModels.copy_data()
StableAWEModels.copy_examples()
include("examples/menu.jl")
```
`using GLMakie` enables the built-in plotting extension.
See the [Examples](https://OpenSourceAWE.github.io/StableAWEModels.jl/dev/examples/)
page for details.
---
## Testing
Each component is tested in isolation using minimal models built from
constructors, with results verified against analytical solutions. This
proves that the underlying dynamics are physically correct — for
example, that angular momentum is conserved, that terminal velocity
matches the analytical prediction, and that spring-damper forces follow
the expected constitutive law.
```bash
# Run all tests
julia --project -e 'using Pkg; Pkg.test()'
# Run a specific test file
julia --project test/test_point.jl
```
| Test file | What it verifies |
| ----------- | ------------------ |
| `test_point` | Gravity free-fall, damping, quasi-static equilibrium |
| `test_segment` | Spring-damper forces, stiffness, drag |
| `test_wing` | RIGID_DYNAMICS and PARTICLE_DYNAMICS wing construction, VSM coupling |
| `test_wing_dynamics` | Rigid body torque response, precession, angular momentum |
| `test_tether_winch` | Reel-out, Coulomb/viscous friction, terminal velocity |
| `test_pulley` | Equal-tension constraints, multi-segment pulleys |
| `test_transform` | Spherical coordinate positioning |
| `test_quaternion_conversions` | Quaternion ↔ rotation matrix |
| `test_quaternion_auto_groups` | Auto-generated twist DOFs |
| `test_principal_body_frame` | Principal vs body frame separation |
| `test_heading_calculation` | Kite heading from tether geometry |
| `test_section_alignment` | VSM section ↔ structural point mapping |
| `test_match_aero_sections` | Asymmetric aero/structural section matching, polar interpolation |
| `test_profile_law` | Atmospheric wind profile verification |
| `test_bench` | Performance regression tracking |
---
## Ecosystem
Key related packages:
- [RamAirKite.jl](https://github.com/OpenSourceAWE/RamAirKite.jl) — ram
air kite model
- [V3Kite.jl](https://github.com/OpenSourceAWE/V3Kite.jl) — TU Delft V3
kite model
- [KiteUtils.jl](https://github.com/OpenSourceAWE/KiteUtils.jl) — shared
types and utilities
- [VortexStepMethod.jl](https://github.com/Albatross-Kite-Transport/VortexStepMethod.jl)
— aerodynamic solver
- [AtmosphericModels.jl](https://github.com/aenarete/AtmosphericModels.jl)
— wind profiles
- [KiteModels.jl](https://github.com/ufechner7/KiteModels.jl) —
non-symbolic, predefined kite models
- [KiteSimulators.jl](https://github.com/aenarete/KiteSimulators.jl) —
meta-package
- [KiteControllers.jl](https://github.com/aenarete/KiteControllers.jl) —
control algorithms
Visualisation uses the built-in GLMakie extension
(`ext/StableAWEModelsMakieExt.jl`) — just `using GLMakie` to enable
plotting.
- [Research Fechner](https://research.tudelft.nl/en/publications/?search=Fechner+wind&pageSize=50&ordering=rating&descending=true)
— scientific background for winches and tethers
---
## Questions?
- Submit an [issue](https://github.com/OpenSourceAWE/StableAWEModels.jl/issues/new)
- Start a [discussion](https://github.com/OpenSourceAWE/StableAWEModels.jl/discussions/new/choose)
- Ask on [Julia Discourse](https://discourse.julialang.org/)
- Email Uwe Fechner: [uwe.fechner.msc@gmail.com](mailto:uwe.fechner.msc@gmail.com)
**Authors:**
Bart van de Lint ([bart@vandelint.net](mailto:bart@vandelint.net))
Uwe Fechner ([uwe.fechner.msc@gmail.com](mailto:uwe.fechner.msc@gmail.com))
Jelle Poland
---
## License
This project is licensed under the [LGPL-3.0 License](LICENSE).
---
## Citing StableAWEModels
If you use StableAWEModels in your research, please cite this repository:
```bibtex
@misc{SymbolicAWEModels,
author = {Bart van de Lint, Uwe Fechner, Jelle Poland},
title = {{SymbolicAWEModels}: Symbolic airborne wind energy system models},
year = {2025},
publisher = {GitHub},
journal = {GitHub repository},
howpublished = {\url{[https://github.com/OpenSourceAWE/SymbolicAWEModels.jl]}},
}
```
## Copyright Notice
Technische Universiteit Delft hereby disclaims all copyright interest in the package "StableAWEModels.jl" (symbolic models for airborne wind energy systems) written by the Author(s).
Prof.dr. H.G.C. (Henri) Werij, Dean of Aerospace Engineering, Technische Universiteit Delft.
See copyright notices in the source files and the list of authors in [AUTHORS.md](AUTHORS.md).
