https://github.com/oracle-quickstart/oke-snyk
Snyk: the platform developers choose to build cloud native applications securely, providing a range of developer-first security products.
https://github.com/oracle-quickstart/oke-snyk
cloudnative kubernetes oke snyk
Last synced: 13 days ago
JSON representation
Snyk: the platform developers choose to build cloud native applications securely, providing a range of developer-first security products.
- Host: GitHub
- URL: https://github.com/oracle-quickstart/oke-snyk
- Owner: oracle-quickstart
- License: upl-1.0
- Created: 2021-11-18T17:28:33.000Z (over 3 years ago)
- Default Branch: main
- Last Pushed: 2022-05-31T19:31:18.000Z (almost 3 years ago)
- Last Synced: 2025-03-27T08:58:18.660Z (30 days ago)
- Topics: cloudnative, kubernetes, oke, snyk
- Language: HCL
- Homepage:
- Size: 151 KB
- Stars: 3
- Watchers: 4
- Forks: 3
- Open Issues: 0
-
Metadata Files:
- Readme: README.md
- License: LICENSE
Awesome Lists containing this project
README
#  [![Deploy to Oracle Cloud][magic_button]][magic_snyk_stack]
Snyk: the platform developers choose to build cloud native applications securely, providing a range of developer-first security products.
## Summary
This quickstart allows you deploy Snyk Monitor on an existent OKE Cluster. It optionally allows you to create a new OKE Kubernetes Cluster.
If you do not have any app to monitor and want to test, you can also deploy Snyk's goof test app.
## Prerequisites
- An [Oracle Cloud](https://cloud.oracle.com/) Account.
- A [Snyk](https://snyk.io) Business or Enterprise plan.
- If the Sysdig integration is enabled, you need the Sysdig agent configured and running on the same cluster.
## Deploying
### Using the magic button
You can deploy directly to your Oracle Cloud tenancy using this button: [![Deploy to Oracle Cloud][magic_button]][magic_snyk_stack] follow the wizard, include your Snyk integration ID and apply.
- Locate your Snyk Integration ID from the Snyk Integrations page (navigate to ) and copy it. The Snyk Integration ID is a UUID and looks similar to the following: `abcd1234-abcd-1234-abcd-1234abcd1234`
- Optionally enter the Container Private Registry credentials if you plan to use it and scan the container images
You can also enable the Sysdig Integration. The Sysdig agent must be installed and running on the same cluster. The scripts will clone the Sysdig secret to the Snyk namespace. If the secret has a different name from default or the Sysdig is in a different namespace, enter the new name.
Remember to select "Run Apply" when creating the stack. You can also do this later by clicking the button "apply" on the stack details.
### Using Terraform Scripts
You can use Terraform scripts to apply. If you are using Terraform (locally or via CloudShell), you need to copy the file `terraform.tfvars.example` to `terraform.tfvars` and populate the necessary variables.
## Using Snyk
Now that we have some workloads running on our OKE cluster and deployed Snyk, we can analyze these for insights into:
- Issues in open source libraries.
- Base image upgrade recommendations.
- Application misconfigurations.
As well as other features critical to running a secure environment available with [Snyk Container](https://snyk.io/product/container-vulnerability-management/).
### Scan Workloads
Login to [Snyk](https://snyk.co/udrgA) and navigate to the **Integrations** menu where you will click on the **Kubernetes** section. Select our cluster and desired namespace (in this case these are both named **goof**) then click the **Add selected workloads** button as shown below:
Detailed instructions on adding Kubernetes workloads are available in our [Documentation Pages](https://docs.snyk.io/products/snyk-container/image-scanning-library/kubernetes-workload-and-image-scanning/adding-kubernetes-workloads-for-security-scanning).
### Project Status
Once selected, you will be redirected to the main projects page where you will find a summary of the findings grouped by project as shown below:
From this view, you can drill into each category and examine the findings. Let's start with misconfigurations of our cluster.
Here we see that our application was deployed with various settings that were either not defined or incorrectly defined. For example, whether any containers in the workload have `container.securityContext.runAsNonRoot` set to `false`, or unset. These can be resolved by updating the Kubernetes manifest files for the deployment and can be resolved proactively with one of the many Snyk [Source Code Management (SCM) integrations](https://docs.snyk.io/features/integrations/git-repository-scm-integrations).

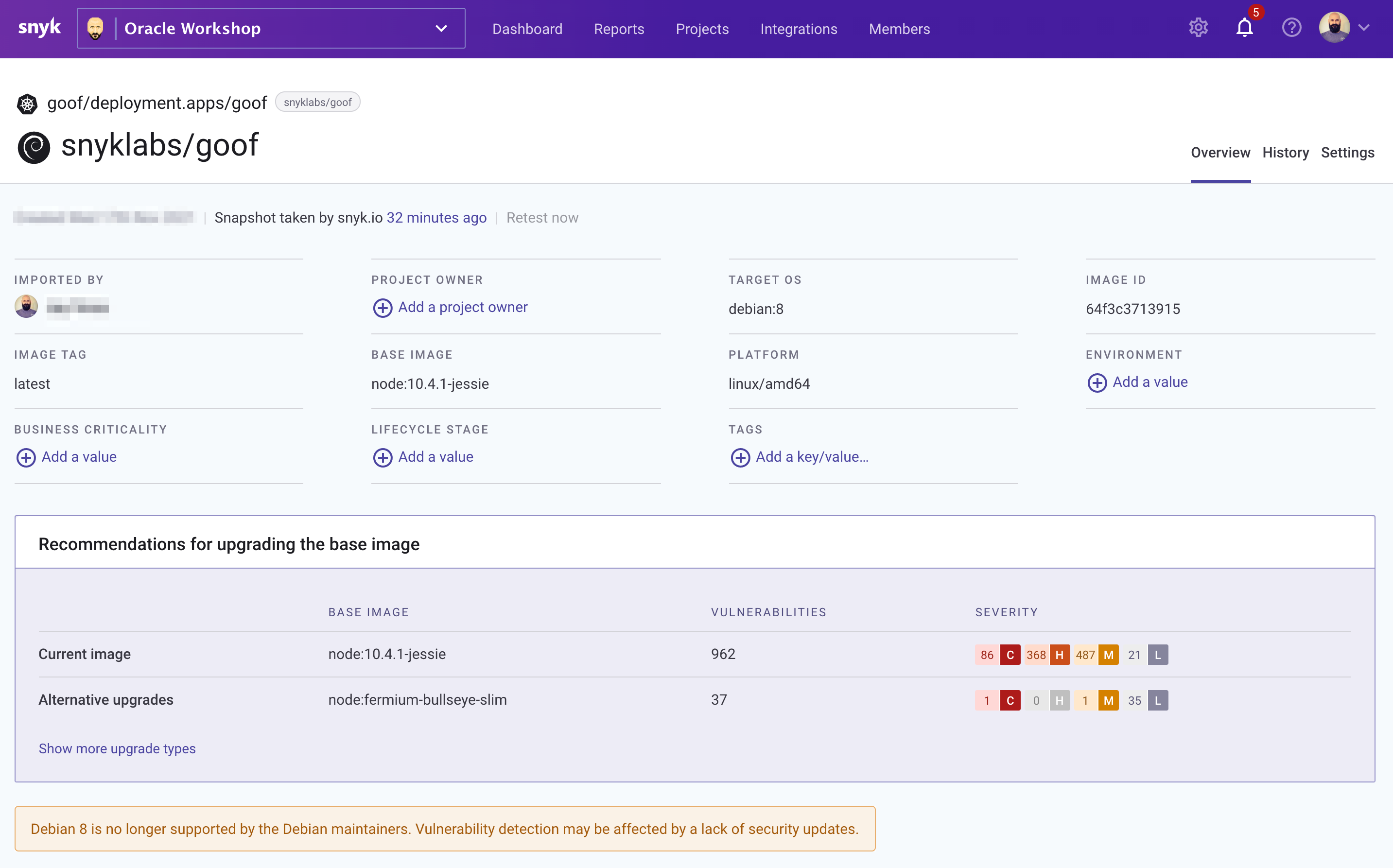

Next, let's examine our container image.
Here we are provided with a base image upgrade recommendation that takes into account which image is compatible with our application and reduces the number of vulnerabilities to improve our security posture.
Finally, let's examine our open source dependencies and found vulnerabilities.
In this view, we get detailed contextual data on found vulnerabilities along with [Snyk's Priority Score](https://snyk.io/blog/snyk-priority-score/) which helps to drastically simplify one of the biggest challenges in using open source securely: working out which vulnerabilities to tackle first.
## Questions
If you have an issue or a question, please [open an issue](https://github.com/oracle-quickstart/oke-snyk/issues/new).
[magic_button]: https://oci-resourcemanager-plugin.plugins.oci.oraclecloud.com/latest/deploy-to-oracle-cloud.svg
[magic_snyk_stack]: https://cloud.oracle.com/resourcemanager/stacks/create?zipUrl=https://github.com/oracle-quickstart/oke-snyk/releases/latest/download/oke-snyk-stack.zip
