README

## modplay

Simple tool for playing `.mod` files (and some other formats) with GPIO-based
visualization for Raspberry Pi.

Does not work on platforms where `RPi.GPIO` is not supported

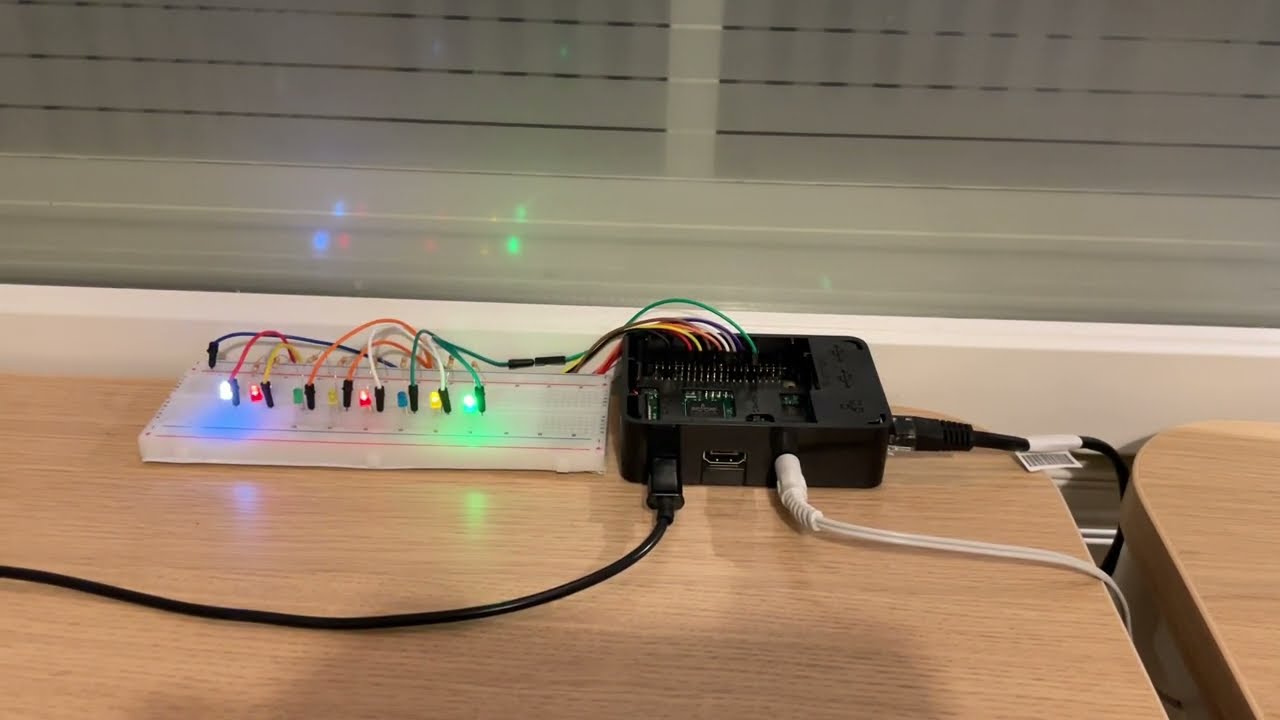

### What it looks like in action

(YouTube link. Module played is [`axelf_8.mod`](https://modarchive.org/index.php?request=view_by_moduleid&query=34469) by Scott Wilkins. Thank you!)

[![Modplayer with 8-channel Raspberry Pi LED visualization](https://img.youtube.com/vi/3TEI_KRq3IY/maxresdefault.jpg)](https://www.youtube.com/watch?v=3TEI_KRq3IY)

### Requirements

(Tested on Debian bookworm, i.e. not Raspbian, but should be fine there as
well.)

```bash
$ apt-get install python3-pip
$ pip install miniaudio libxmplite
```

### Use

`sudo` is unfortunately required for `/dev/kmem` access, needed by `RPi.GPIO`.

```bash
$ sudo ./modplay
```

### GPIO wireout

Only 8 channels are currently supported; it feels a bit exaggerated to connect
more GPIO pins than that to your breadboard. :) Theoretically, it should be
possible to extend this to a theoretical maximum of 28 channels, if I count the
number of GPIO pins correctly on https://pinout.xyz/

Remember to connect a suitable ground pin, e.g. GPIO pin 6, to the other
(positive) side of the breadboard, and **remember to use resistors**. You may
otherwise break both your LEDs and the components in your RPi.

- Channel 0: GPIO 18 (pin 12)
- Channel 1: GPIO 23 (pin 16)
- Channel 2: GPIO 24 (pin 18)
- Channel 3: GPIO 25 (pin 22)
- Channel 4: GPIO 8 (pin 24)
- Channel 5: GPIO 7 (pin 26)
- Channel 6: GPIO 1 (pin 28)
- Channel 7: GPIO 12 (pin 32)
