# Vertigo Project

The CoastWatch Vertigo Project is an earth science data viewing application that reads

data from NetCDF files and OPeNDAP connections and presents the data as coloured

images on a 3D sphere.  The goal of the project is to create a way to discover, view,

and use earth science data that is easy and intuitive.

# Screenshots

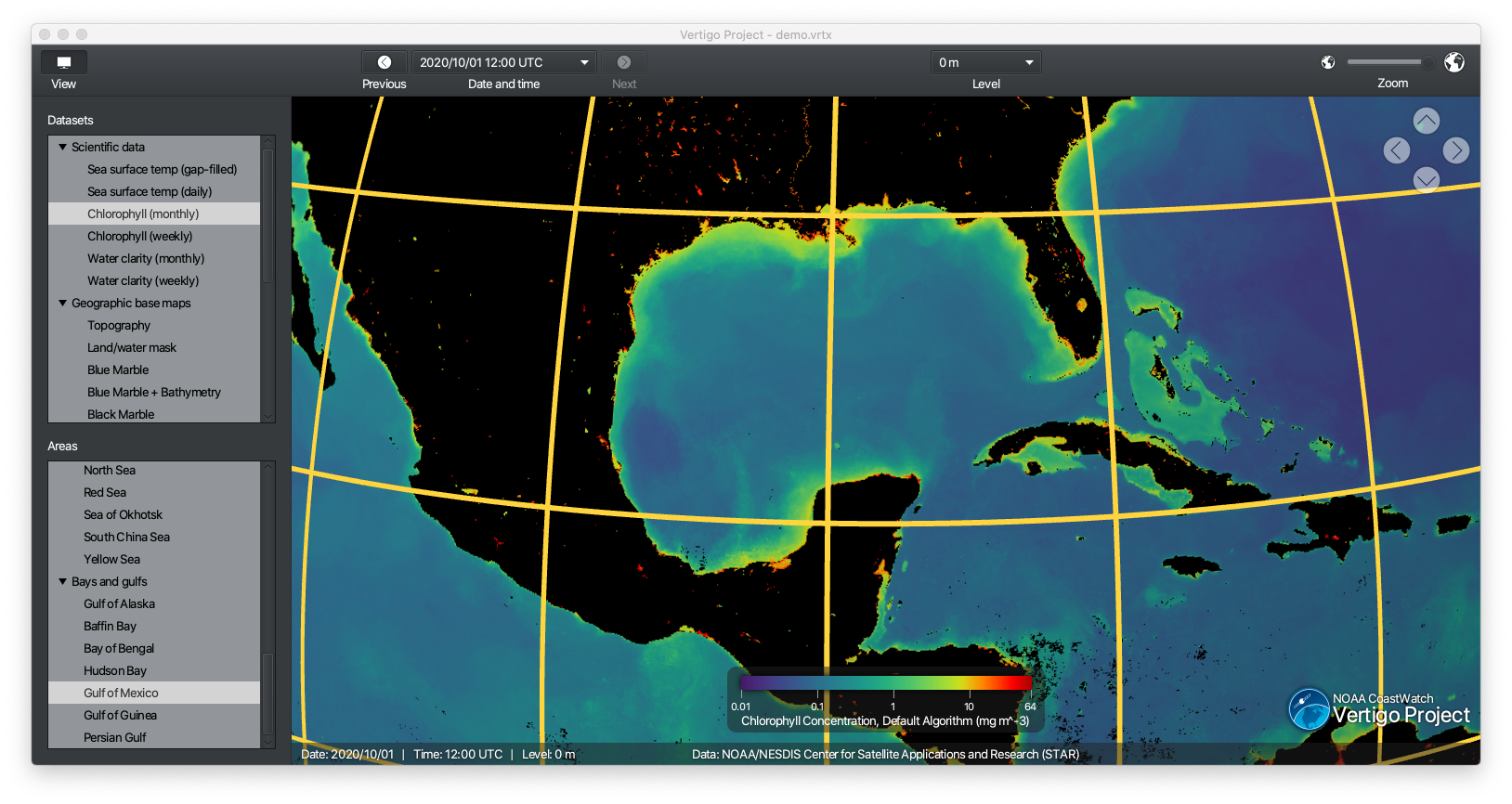

![Vertigo Screenshot - Chlorophyll](https://terrenus-storage.s3.amazonaws.com/vertigo/0.6/screenshot_01.png)

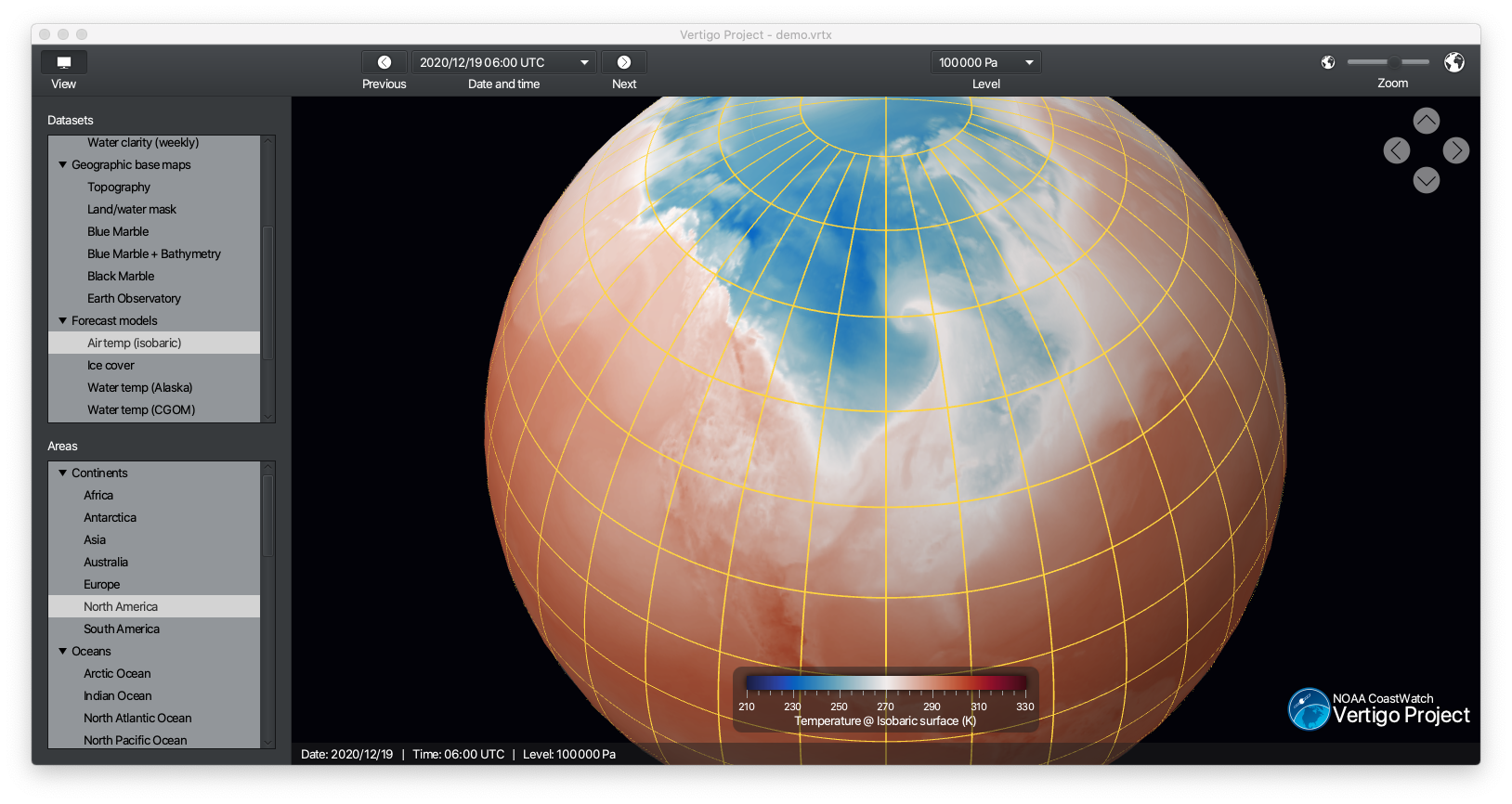

![Vertigo Screenshot - Air Temperature](https://terrenus-storage.s3.amazonaws.com/vertigo/0.6/screenshot_02.png)

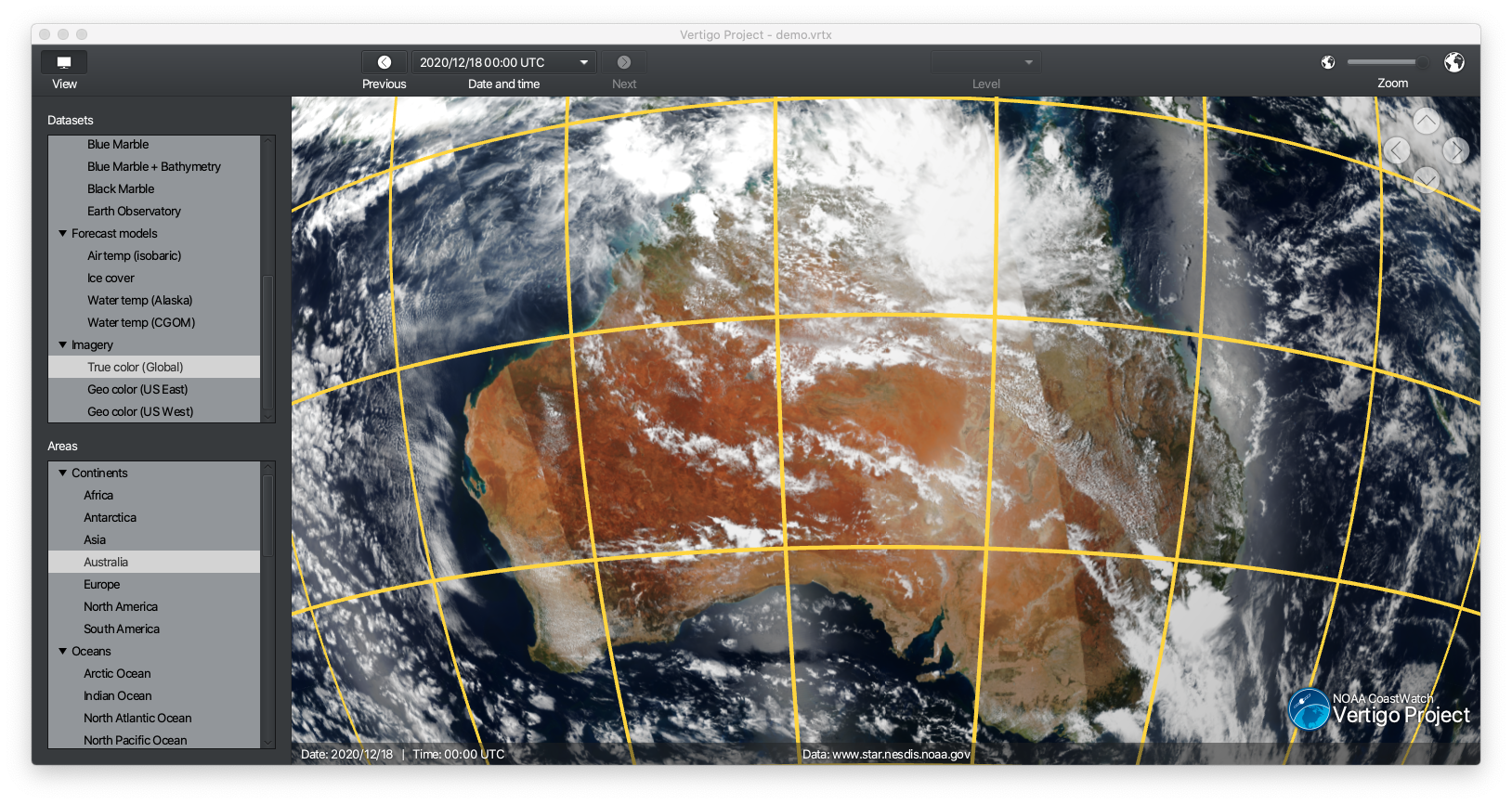

![Vertigo Screenshot - True Color](https://terrenus-storage.s3.amazonaws.com/vertigo/0.6/screenshot_03.png)

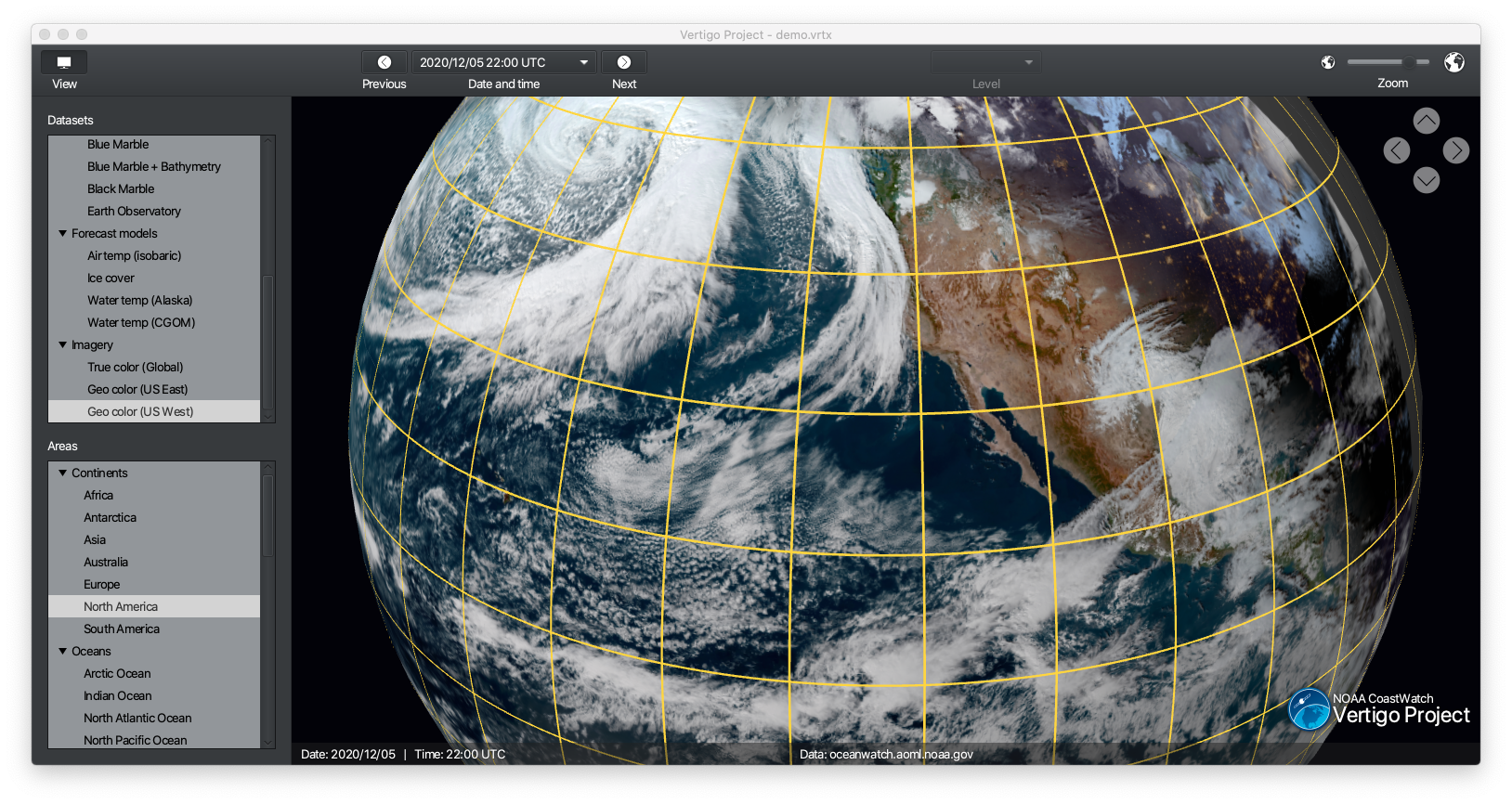

![Vertigo Screenshot - Geo Color](https://terrenus-storage.s3.amazonaws.com/vertigo/0.6/screenshot_04.png)

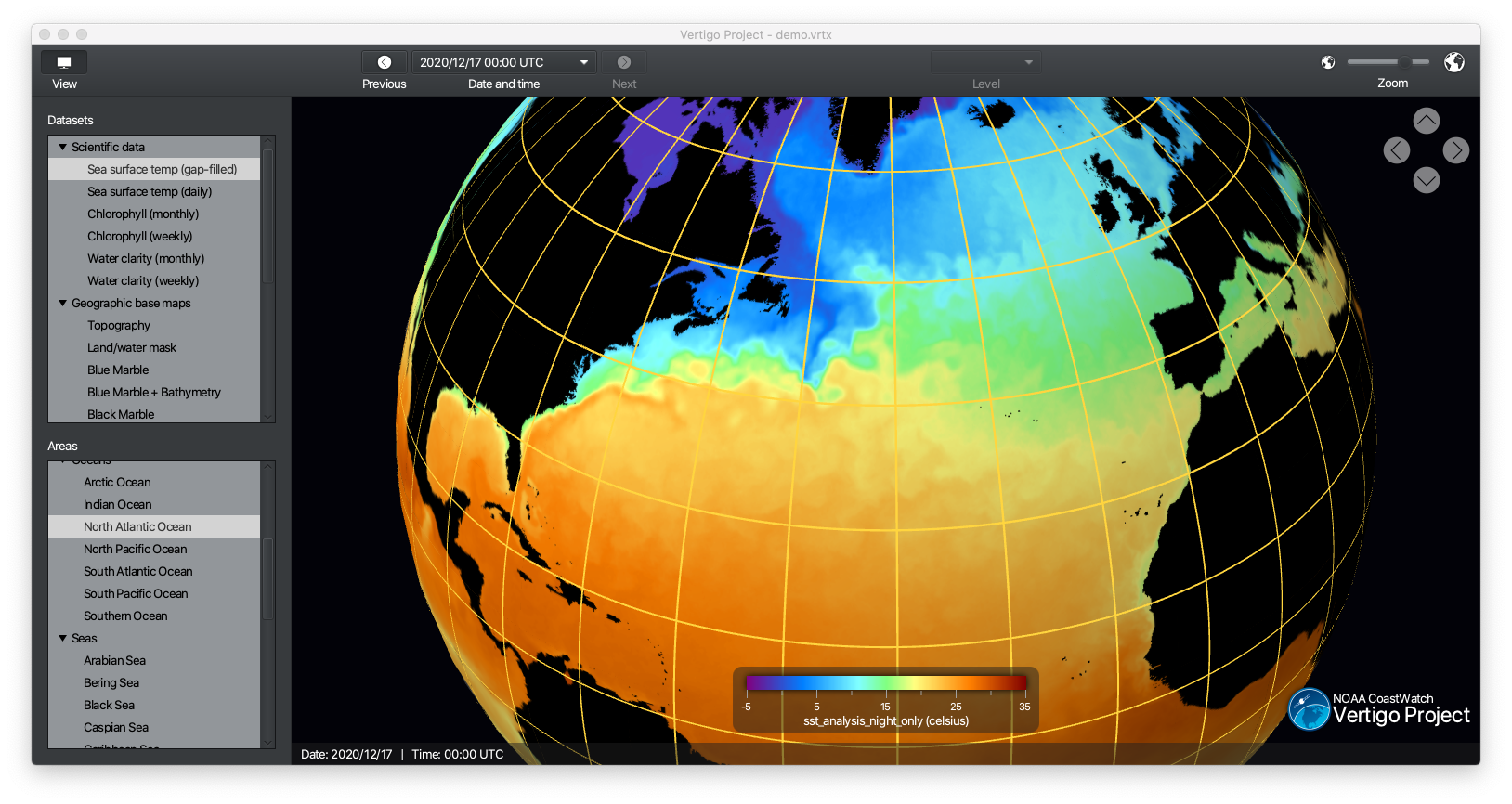

![Vertigo Screenshot - Sea Surface Temperature](https://terrenus-storage.s3.amazonaws.com/vertigo/0.6/screenshot_05.png)

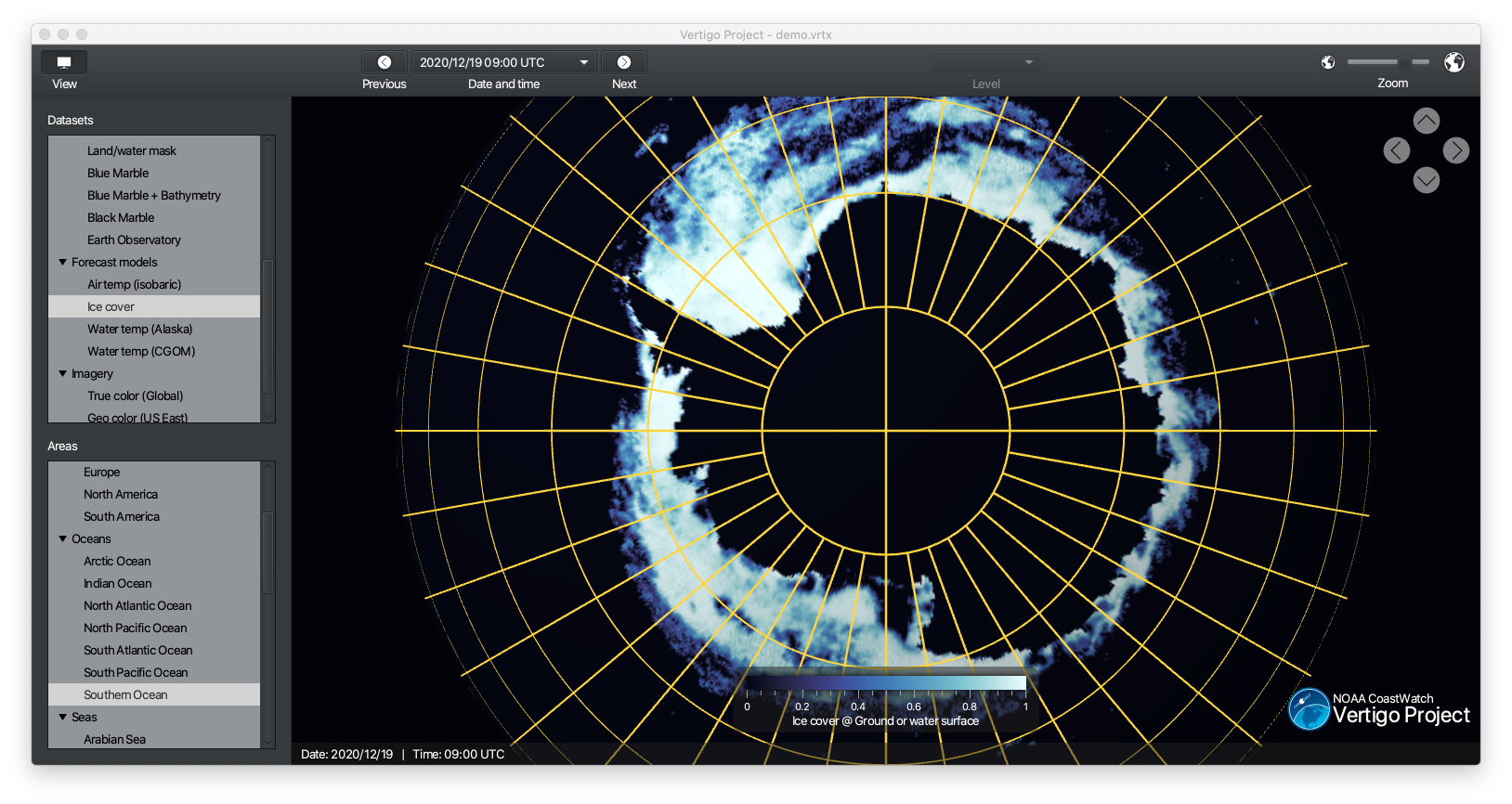

![Vertigo Screenshot - Ice Cover](https://terrenus-storage.s3.amazonaws.com/vertigo/0.6/screenshot_06.png)

# Packages

Pre-compiled installable packages starting with version 0.7 are available for

Windows, Mac, and Linux under [Releases](https://github.com/phollemans/vertigo/releases). Packages are also

available from the Terrenus [archive](https://terrenus-storage.s3.amazonaws.com/index.html#vertigo/).

# Videos

The YouTube [CoastWatch Vertigo Project](https://www.youtube.com/playlist?list=PL_-bsOLKMYJxlOTJn6E_EUvjBJtSwzYir) playlist contains videos

on installing and using Vertigo to view data, and on Vertigo development.

# Running

To run Vertigo, either install one of the packages listed above which may require

administrator access to your machine, or follow the instructions below for installing OpenJDK and setting `JAVA_HOME`, then skip directly to Step (4) to run Vertigo using the provided script.

# Building

#### Required software:

* OpenJDK 14.0.2 (https://jdk.java.net/archive) -- This can be installed either system-wide

or in a local home directory.

#### Optional software:

* install4j 8 (https://www.ej-technologies.com) -- This is to create and sign installable

packages.

#### Steps:

1) Download the project ZIP file, or clone the repository using Git.

2) Set `JAVA_HOME` to the base JDK directory, for example:

    - Linux / macOS: `export JAVA_HOME=${HOME}/jdk-14.0.2`

    - Windows: `set JAVA_HOME=C:\Users\%USERNAME%\jdk-14.0.2`

3) To build a runnable distribution file with all dependencies included, use either the

`distTar` or `distZip` Gradle tasks.  By default the distribution is built only for the

current platform -- to build for another platform specify

`-Pplatform=win`, `-Pplatform=mac`, or `-Pplatform=linux`.  After building, the

distribution file is available in the `vertigo/build/distributions` directory.  For

example:

    - Linux / macOS: `./gradlew distTar`

    - Windows: `.\gradlew distZip`

4) Alternatively, to compile and run Vertigo directly on the current platform:

    - Linux / macOS: `./gradlew run`

    - Windows: `.\gradlew run`

# Support

General comments and questions should be directed to peter@terrenusearth.com and

coastwatch.info@noaa.gov.
