README
[](https://img.shields.io/github/stars/qfcy/PyModuleHook)
[](https://github.com/qfcy/PyModuleHook/releases/latest)
[](https://github.com/qfcy/PyModuleHook/blob/main/LICENSE)
[English | [中文](README_zh.md)]
`pymodhook` is a library for recording arbitrary calls to Python modules, intended for Python reverse engineering and analysis.
The `pymodhook` library is similar to the Xposed framework for Android, but it not only records function call arguments and return values—it can also record arbitrary method calls of module classes, as well as access to any derived objects, based on the [pyobject.objproxy](https://github.com/qfcy/pyobject?tab=readme-ov-file#object-proxy-classes-objchain-and-proxiedobj) library.
## Installation
Just run the command `pip install pymodhook`.
## Example Usage
An example that hooks the `numpy` and `matplotlib` libraries:
```python
from pymodhook import *
init_hook()
hook_modules("numpy", "matplotlib.pyplot", for_=["__main__"]) # Record calls to numpy and matplotlib
enable_hook()
import numpy as np
import matplotlib.pyplot as plt
arr = np.array(range(1,11))
arr_squared = arr ** 2
mean = np.mean(arr)
std_dev = np.std(arr)
print(mean, std_dev)
plt.plot(arr, arr_squared)
plt.show()
# Display the recorded code
print(f"Raw call trace:\n{get_code()}\n")
print(f"Optimized code:\n{get_optimized_code()}")
```
After running, the output will be similar to that generated by tools like IDA:
```python
Raw call trace:
import numpy as np
matplotlib = __import__('matplotlib.pyplot')
var0 = matplotlib.pyplot
var1 = np.array
var2 = var1(range(1, 11))
var3 = var2 ** 2
var4 = np.mean
var5 = var4(var2)
var6 = var2.mean
var7 = var6(axis=None, dtype=None, out=None)
var8 = np.std
var9 = var8(var2)
var10 = var2.std
var11 = var10(axis=None, dtype=None, out=None, ddof=0)
ex_var12 = str(var5)
ex_var13 = str(var9)
var14 = var0.plot
var15 = var14(var2, var3)
var16 = var2.shape
var17 = var2.shape
var18 = var2[(slice(None, None, None), None)]
var19 = var18.ndim
var20 = var3.shape
var21 = var3.shape
var22 = var3[(slice(None, None, None), None)]
var23 = var22.ndim
var24 = var2.values
var25 = var2._data
var26 = var2.__array_struct__
var27 = var3.values
...
var51 = var41.__array_struct__
var52 = var0.show
var53 = var52()
Optimized code:
import numpy as np
import matplotlib.pyplot as plt
var2 = np.array(range(1, 11))
plt.plot(var2, var2 ** 2)
plt.show()
```
## Detailed Usage
- `init_hook(export_trivial_obj=True, hook_method_call=False, **kw)`
Initializes module hooking. This must be called before using `hook_module()` or `hook_modules()`.
- `export_trivial_obj`: Whether to *not* hook basic types (such as int, list, dict) returned by module functions.
- `hook_method_call`: Whether to hook internal method calls on module class instances (i.e., methods where `self` is a `ProxiedObj` instead of the original object).
- Other parameters are passed to `ObjChain` via `**kw`.
- `hook_module(module_name, for_=None, hook_once=False, deep_hook=False, deep_hook_internal=False, hook_reload=True)`
Hooks a module so that later imports will return the hooked version.
- `module_name`: The name of the module to hook (e.g., `"numpy"`).
- `for_`: Only applies the hook when imported from specific modules (e.g., `["__main__"]`), to avoid errors caused by dependencies between lower-level modules. If not specified, the hook is applied globally.
- `hook_once`: Only returns the hooked module the first time it is imported; subsequent imports return the original module.
- `deep_hook`: Whether to hook every function and class within the module instead of just the module itself. When `deep_hook` is `True`, the module is always hooked, and `for_`, `hook_once`, and `enable_hook` have no effect.
- `deep_hook_internal`: If `deep_hook` is `True`, determines whether to hook objects whose names start with an underscore (excluding double-underscore objects like `__loader__`).
- `hook_reload`: Whether hooking is still applied after `importlib.reload()` returns a new module.
- `hook_modules(*modules, **kw)`
Hook multiple modules at once, for example, `hook_modules("numpy","matplotlib")`. Other keyword parameters are the same as in `hook_module`.
- `unhook_module(module_name)`
Unhook a specified module, including those hooked with `deep_hook`.
- `module_name`: The name of the module to unhook.
- `enable_hook()`
Enables the global hook switch (off by default). Only when enabled will imports return the hooked module. Not required if `deep_hook=True`.
- `disable_hook()`
Disables the global hook switch. While disabled, imports will not return the hooked module unless `deep_hook=True` is used.
- `import_module(module_name)`
Imports and returns a submodule object rather than the root module.
- `module_name`: For example, `"matplotlib.pyplot"` will return the `pyplot` submodule.
- `get_code(*args, **kw)`
Generates Python code for the raw call trace, which can be used to reconstruct the current object dependency relationships and usage history.
- `get_optimized_code(*args, **kw)`
Generates optimized code, similar to `get_code`. (Code optimization internally uses a Directed Acyclic Graph, DAG, see details in [pyobject](https://github.com/qfcy/pyobject?tab=readme-ov-file#object-proxy-classes-objchain-and-proxiedobj) library.).
- `get_scope_dump()`
Returns a shallow copy of the variable namespace (scope) dictionary of the hook chain, commonly used for debugging and analysis.
- `dump_scope(file=None)`
Dumps the entire variable namespace dictionary to the stream `file` using `pprint`. If an object's `__repr__()` method encounters an error, the output will not be interrupted. The default for `file` is `sys.stdout`.
- `getchain()`
Returns the global `pyobject.ObjChain` instance used for module hooking, allowing manual manipulation. If `init_hook()` was not called, returns `None`.
## How It Works
Internally, the library uses the `ObjChain` class from the `pyobject.objproxy` library for dynamic code generation. `pymodhook` itself is a higher-level wrapper around `pyobject.objproxy`. For more details, see the [pyobject.objproxy documentation](https://github.com/qfcy/pyobject?tab=readme-ov-file#object-proxy-classes-objchain-and-proxiedobj).
#### The pymodhook-patches Directory
The `pymodhook-patches` directory contains multiple JSON files named after Python modules. These files define custom attributes and function names that should not be hooked, ensuring compatibility with specific Python libraries.
For example, the structure of `matplotlib.pyplot.json` is as follows:
```json5
{
// All keys are optional
"export_attrs": ["attr"], // Attribute names to export (i.e., `plt.attr` returns the original object instead of a `pyobject.ProxiedObj`)
"export_funcs": ["plot", "show"], // Function names to export (i.e., return values remain original objects instead of being wrapped)
"alias_name": "plt", // Common module alias (e.g., used for code generation formatting, such as `import matplotlib.pyplot as plt`)
"use_proxied_obj":["Figure"] // Functions/classes that require further tracking; if the output code lacks certain calls, this item can be modified (effective only when deep_hook=True).
}
```
## Usage of DLL Injection Tool
The repository directory [hook_win32](https://github.com/qfcy/PyModuleHook/tree/main/tools/hook_win32) contains a DLL injection tool. Since it only relies on loaded `python3x.dll`, it supports recording module calls of applications packaged with Nuitka/Cython, not just PyInstaller.
**Note: Do NOT use this tool to inject any unauthorized commercial softwares!**

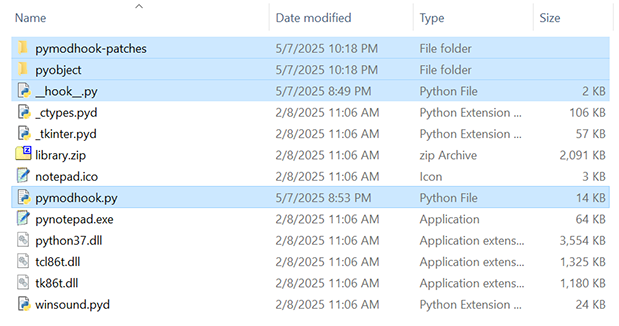

#### 1. Copy Module Files
Firstly, install `pymodhook` and its dependency `pyobject` using `pip install pymodhook`.
Then navigate to `/Lib/site-packages` (the Python installation directory may vary depending on the environment) and copy the `pyobject` package, `pymodhook.py`, the `pymodhook-patches` directory, and [\_\_hook\_\_.py](tools/templates/__hook__.py) into the directory:
Additionally, if using Python 3.8 or earlier, the `astor` module must also be copied.
#### 2. Modify \_\_hook\_\_.py
`__hook__.py` is the first piece of Python code executed by the injected DLL. The default `__hook__.py` is as follows:
```python
# Template for __hook__.py to be placed in the packaged program directory
import atexit, pprint, traceback
CODE_FILE = "hook_output.py"
OPTIMIZED_CODE_FILE = "optimized_hook_output.py"
VAR_DUMP_FILE = "var_dump.txt"
ERR_FILE = "hooktool_err.log"
def export_code():
try:
with open(CODE_FILE, "w", encoding="utf-8") as f:
f.write(get_code())
with open(VAR_DUMP_FILE, "w", encoding="utf-8") as f:
dump_scope(file=f)
with open(OPTIMIZED_CODE_FILE, "w", encoding="utf-8") as f:
f.write(get_optimized_code())
except Exception:
with open(ERR_FILE, "w", encoding="utf-8") as f:
traceback.print_exc(file=f)
try:
from pymodhook import *
from pyobject.objproxy import ReprFormatProxy
init_hook()
hook_modules("wx","matplotlib.pyplot","requests",deep_hook=True) # This line can be modified by your own
atexit.register(export_code)
except Exception:
with open(ERR_FILE, "w", encoding="utf-8") as f:
traceback.print_exc(file=f)
```
Generally, you only need to modify the line calling `hook_modules()` to include other custom modules. The `deep_hook=True` option is typically used for applications packaged with Cython/Nuitka and is optional for regular applications.
Additionally, for specific libraries, you may need to manually modify the [pymodhook-patches directory](pymodhook-patches directory).
#### 3. Inject the DLL
Download `DLLInject_win_amd64.zip` from the project's [Release](https://github.com/qfcy/PyModuleHook/releases/latest) page.
After downloading, extract and run `hook_win32.exe`, search for the target process, select it, and click the "Inject DLL" button:
If the injection is successful, you will see this prompt:
#### 4. Retrieve Injection Results
After successful injection, if the program exits normally (without forced termination), the module hook results—`hook_output.py`, `optimized_hook_output.py`, and `var_dump.txt`—will be generated in the working directory of the injected process.
- `hook_output.py` contains the raw, detailed call logs.
- `optimized_hook_output.py` contains the simplified module call code.
- `var_dump.txt` contains the dump of all variables.
If the result generation fails, an additional file `hooktool_err.log` will be created to record the error messages.
Example of `optimized_hook_output.py`:
```python
import tkinter as tk
Canvas = tk.Canvas
import matplotlib.pyplot as plt
import requests
var0 = tk.Tk()
ex_var1 = int(tk.wantobjects)
var15 = var0.tk
var0.title('Tk')
var0.withdraw()
var0.iconbitmap('paint.ico')
var0.geometry('400x300')
var0.overrideredirect(ex_var1)
var43 = Frame(var0, bg='gray92')
var43._last_child_ids = {}
var28 = Canvas(var43, bg='#d0d0d0', fg='#000000')
var28.pack(expand=ex_var1, fill='x')
var28._last_child_ids = {}
# external var53:
var0.bind('', var53)
var0.mainloop()
...
```
Example of `var_dump.txt`:
```python
{...,
'ex_var855': True,
'ex_var860': True,
'ex_var875': True,
...
'var123': ,
'var124': ,
'var125': {'command': >,
'text': 'Save',
'width': 4},
'var126': None,
'var127': ,
'var128': {'command': >,
'text': 'Save',
'width': 4},
...
'var146': '.!frame.!button3',
'var147': ,
'var148': '',
'var152': ,
'var153': ,
'var154': {'command': >,
'text': 'Clear',
'width': 4},
...
}
```
