# VPC
Virtual Private Cloud
# Core Steps:
(1) create VPC network
(2) set FW rule to VPC (permit icmp, ssh, rdp)
(3) create GCE VMs (under the subenet, both internal & external IPs will be deployed.)
(4) explore/expose connection between VM & VPC (using ping to check connectivity)
(5) create VM with its NICs (set up network property to VM)
> start from step 1:
create VPC network.

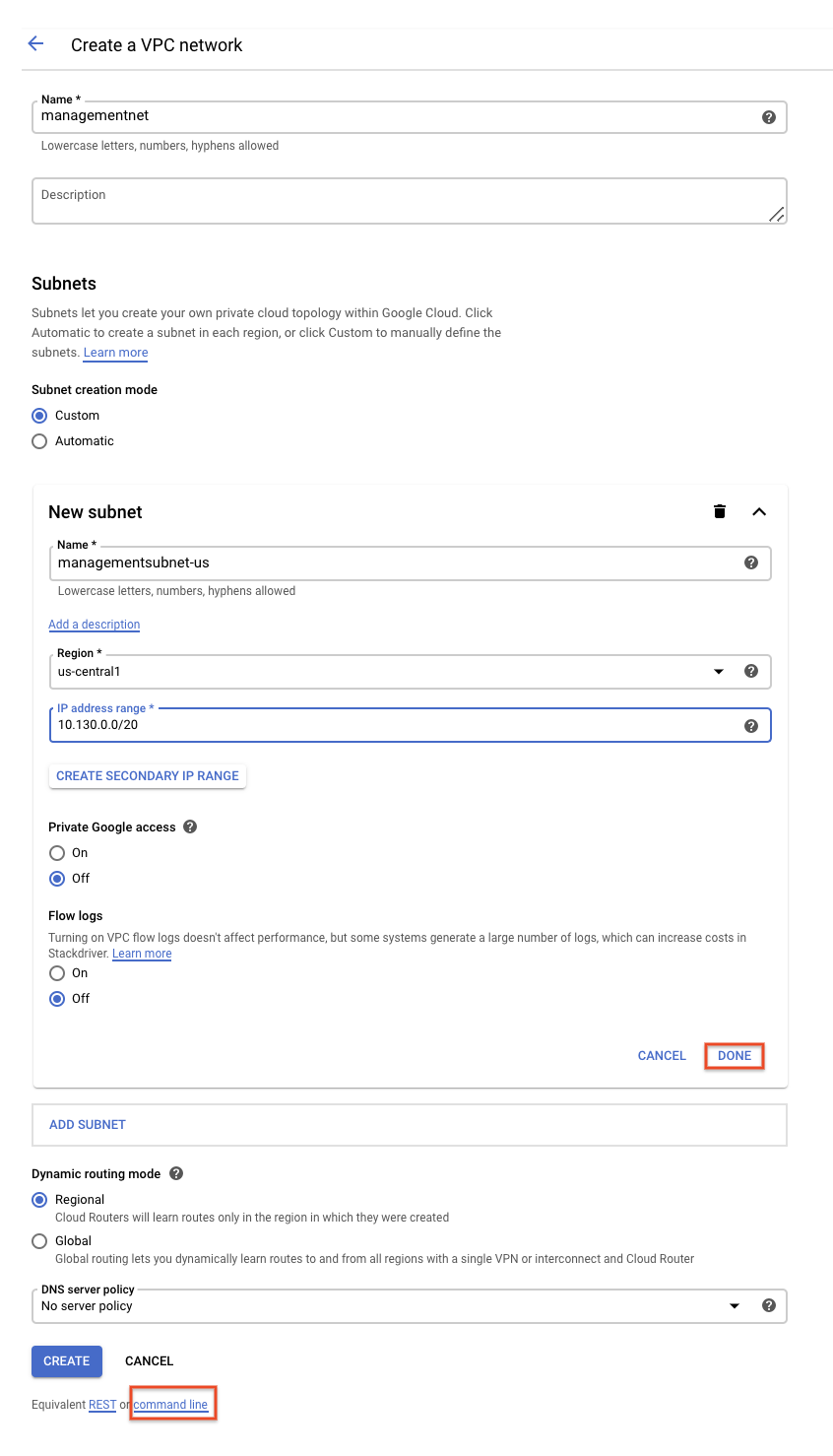

* 1.1, in cloud console, after using IAM to login and to set project ID, then got to navigation bar to click on "Networking" >> "VPC" >> type name >> set Subnet >> set Region.
* 1.2, use cloud shell to create VPC, click on cmdline bar while in step 1.1, and type following cmd line:
gcloud compute networks create [pvc name]
gcloud compute networks create pivatenet
gcloud compute networks create pivatenet --subnet-mode=custom
-----------------------------------------------------------
gcloud compute networks
gcloud compute networks subnet create [subnet name]
gcloud compute networks subnet create privatesubnet-us
gcloud compute networks subnet create privatesubnet-us --network=[vpc name]
--region=[]
--range=[subnet range]
-----------------------------------------------------------
gcloud compute networks subnet create privatenet-us
--network=privatenet
--region=us-central1
--range=172.16.0.0.24
* 1.3, type cmd line to list all availabe VPC.
gcloud compute networks list
[output]
Name Subnet-Mode BGP-Routing IPv4-Range GW-IPv4
default auto Regional
management custom Regional
privatenet custom Regional
* Tips & Attention:
default is auto mode networks (設定上本次課程略過), whereas, managementnet and privatenet are custom mode networks. Auto mode networks create subnets in each region automatically, while custom mode networks start with no subnets, giving you full control over subnet creation.
* 1.4, type cmd line to list all available VPC subnets.
gcloud compute networks
gcloud compute networks subnets list
gcloud compute networks subnets list --sort-by=NETWORK
// flag means subnets will be listed sorted by VPC Name
[output]
Name Region Network Range
deault [略] default
[略]
management-us us-central1 management
10.130.0.0/20
privatesubnet-us us-central1 privatenet
172.16.0.0/20
> start from step 2:
setup VPC FW.
* 2.1, in cloud console, click Navigation Bar >> Networking >> VPC >> VPC Networks >> Firewall >> + Create FW Rule.
Property Value (type value or select option as specified)
Name managementnet-allow-icmp-ssh-rdp
Network managementnet
Targets All instances in the network
Source filter IP Ranges
Source IP ranges 0.0.0.0/0
Protocols and ports Specified protocols and ports, and then check tcp, type: 22, 3389; and check Other protocols, type: icmp.
* 2.2, in cloud shell, type following cmd line to set up FW rules:
gcloud compute firewall-rules
gcloud compute firewall-rules create [fw name]
--network=[vpc name]
--direction=[]
--priority=[]
--action=ALLOW
--rules=icmp,tcp:22,tcp:3389
[output]
NAME NETWORK DIRECTION PRIORITY ALLOW DENY
privatenet-allow-icmp-ssh-rdp privatenet INGRESS 1000 icmp,tcp:22,tcp:3389
* 2.3, to check resulting fw rules.
gcloud compute firewall-rules list
gcloud compute firewall-rules list --sort-by=NETWORK
> start from step 3:
create VMs in the Region/Zone accoring with the VPC/Subnet it is located.
* 3.1, in cloud console, click on Navigation Bar >> GCE to create VM, and add some value to the optional properties as following:
Property Value (type value or select option as specified)
Network managementnet
Subnetwort managementsubnet-us
* 3.2, in cloud shell, type cmd line to create vm.
gcloud compute
gcloud compute instances
gcloud compute instances create [vm name]
--zone=[]
--machine-type=[]
--subnet=[]
[output]
Name Zone Machine Type Preemptible Internal IP External IP Status
private-us-vm us-central1 [略] 172.16.0.2 35.184.221.40 running
[自動配置] [BGP 配置]
* Tips & Attention:
port 22 == SSH
port 3385 == RDP
> start from step 4:
check connection using the providing IPs in step 3.2.
ping -c 3
// You are able to ping the external IP address of all VM instances, even though they are either in a different zone or VPC network.
// This confirms public access to those instances is only controlled by the ICMP firewall rules that you established earlier.
ping -c 3
// This should not work as indicated by a 100% packet loss!
> start from step 5:
create VM with its NICs.
* 5.1, Navigation Bar >> GCE, to create New VM.
- NIC0 -----> subent A
new VM - NIC1 -----> subnet B
- NIC2 -----> subnet C
the CIDR ranges of all those subnets do not overlap.
* 5.2, Navigation Bar >> GCE >> Network, Sec, and Disk >> Network, and set up it NIC (edit by its pencil icon).
Property Value (type value or select option as specified)
Network managementnet
Subnetwork managementsubnet-us
Property Value (type value or select option as specified)
Network default
Subnetwork mynetwork
Property Value (type value or select option as specified)
Network [vpc name]
Subnetwork [ ]
* 5.3, in cloud console, check connection result.
Go to Navigation Bar >> GCE, click on the instance you want to test.
click SSH icon to launch a terminal and connect.
* 5.4, in cloud shell, check connection result.
sudo ifconfig
[output]
eth0: flags=4163 mtu 1460
inet 172.16.0.3 netmask 255.255.255.255 broadcast 172.16.0.3
inet6 fe80::4001:acff:fe10:3 prefixlen 64 scopeid 0x20
ether 42:01:ac:10:00:03 txqueuelen 1000 (Ethernet)
RX packets 626 bytes 171556 (167.5 KiB)
RX errors 0 dropped 0 overruns 0 frame 0
TX packets 568 bytes 62294 (60.8 KiB)
TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0
eth1: flags=4163 mtu 1460
inet 10.130.0.3 netmask 255.255.255.255 broadcast 10.130.0.3
inet6 fe80::4001:aff:fe82:3 prefixlen 64 scopeid 0x20
ether 42:01:0a:82:00:03 txqueuelen 1000 (Ethernet)
RX packets 7 bytes 1222 (1.1 KiB)
RX errors 0 dropped 0 overruns 0 frame 0
TX packets 17 bytes 1842 (1.7 KiB)
TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0
eth2: flags=4163 mtu 1460
inet 10.128.0.3 netmask 255.255.255.255 broadcast 10.128.0.3
inet6 fe80::4001:aff:fe80:3 prefixlen 64 scopeid 0x20
ether 42:01:0a:80:00:03 txqueuelen 1000 (Ethernet)
RX packets 17 bytes 2014 (1.9 KiB)
RX errors 0 dropped 0 overruns 0 frame 0
TX packets 17 bytes 1862 (1.8 KiB)
TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0
# Ref Doc
https://cloud.google.com/vpc-service-controls/docs/use-access-levels
https://cloud.google.com/vpc
