# Anicetus



[![Go Reference](https://pkg.go.dev/badge/github.com/rafaeljusto/anicetus.svg)](https://pkg.go.dev/github.com/rafaeljusto/anicetus)

![Test](https://github.com/rafaeljusto/anicetus/actions/workflows/test.yml/badge.svg)



The [thundering herd problem](https://en.wikipedia.org/wiki/Thundering_herd_problem)

is a performance problem that occurs when a large number of processes or threads

wake up at the same time and compete for a limited resource.



This project attempts to resolve this by detecting the sittuation, and only

allowing a single request to pass through to the resource, while the others are

blocked. Once the resource is available, the blocked requests are released. The

reason is that allowing a single request to finish first creates a caching

effect, and the other requests can be served from the cache.



Out of the box, a web server (`anicetus-http`) is provided as a micro-service

for your network, but this library can be used in any Go project to plug-in with

an existing solution.

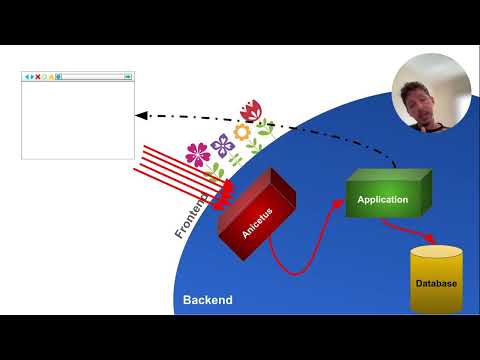

[![Anicetus Video](https://img.youtube.com/vi/vInKlTQMKBc/0.jpg)](https://www.youtube.com/watch?v=vInKlTQMKBc)



## Design



```mermaid

flowchart LR

  A((Start)):::start --> B[Fingerprint]

  B[Fingerprint]:::fingerprint --> C[Detector]

  C[Detector]:::detector --> D{Cooldown?}:::detector

  D:::detector -->|yes| F(((Backend))):::success

  D:::detector -->|no| E{Thundering herd?}:::detector

  E:::detector -->|yes| G[Gatekeeper]:::gatekeeper

  E:::detector -->|no| F(((Backend))):::success

  G[Gatekeeper]:::gatekeeper --> H{First request?}:::gatekeeper

  H:::gatekeeper -->|yes| F(((Backend))):::success

  H:::gatekeeper -->|no| I{First request finished?}:::gatekeeper

  I:::gatekeeper -->|yes| F(((Backend))):::success

  I:::gatekeeper -->|no| J(((Block))):::error



  classDef start fill:#092c9e,stroke:#333,stroke-width:2px;

  classDef fingerprint fill:#a1880d,stroke:#333,stroke-width:2px;

  classDef detector fill:#4c147a,stroke:#333,stroke-width:2px;

  classDef gatekeeper fill:#0a6e6c,stroke:#333,stroke-width:2px;

  classDef success fill:#118f0d,stroke:#333,stroke-width:2px;

  classDef error fill:#a30303,stroke:#333,stroke-width:2px;

```



There are some key concepts for this project that will be explained in the next

sections.



### Fingerprint



The fingerprint is a unique identifier for the request. It is used to identify a

group of requests that are considered the same. For example, in a web

application, depending on the use case, the fingerprint could be the URL, some

specific HTTP headers, or a combination of both.



Allowing to configure how the fingerprint is generated gives the flexibility to

target specific users or not.



> [!IMPORTANT]

> Defining the correct fingerprint that matches the backend caching group is

> crucial for this solution to work. If the backend application cannot cache the

> incoming requests from the group of requests identified by the fingerprint,

> the thundering herd will still be a problem.



### Detector



Once the fingerprint is generated, the detector will check if there are other

requests with the same fingerprint. Different algorithms can be used to detect a

thundeting herd, and this library provides the

[token bucket](https://en.wikipedia.org/wiki/Token_bucket) out-of-the-box. When

using the token bucket algorithm the detector needs to know how many same

fingerprint occurences are allowed in a time window.



After the thundering herd is handled, the detector will stop analysing the

requests for a while (cooldown period). This is to avoid the thundering herd to

be detected again in a short period of time. The cooldown period shoud be

configured taking the stale cache risk of the backend into account.



### Gatekeeper



After a thundering herd is detected, the gatekeeping will allow the first

request to pass through, and block the others. The blocked requests will be

allowed to hit the backend once the first request execution is done.



> [!IMPORTANT]

> The backend MUST create a cache response for requests with the same

> fingerprint to avoid the thundering herd to hit the infrastructure.



## Library



The library is the core of the project. It provides the necessary functions to

be used in any Go project. The library is designed to be flexible so you can

implement your own detector and gatekeeper storage.



```go

package main



import (

  "context"

  "net/http"

  "time"



  "github.com/rafaeljusto/anicetus"

  "github.com/rafaeljusto/anicetus/detector"

  "github.com/rafaeljusto/anicetus/storage"

)



func main() {

  detector := detector.NewTokenBucketInMemory(

    detector.WithLimitersBurst(1000),

    detector.WithLimitersInterval(time.Minute),

    detector.WithCoolDownInterval(10*time.Minute),

  )



  gatekeeperStorage := storage.NewInMemory()



  anicetus := anicetus.NewAnicetus[fingerprint.HTTPRequest](detector, gatekeeperStorage)



  // ...



  // For each request in your application (here we simulate an HTTP request)

  requestFingerprint := fingerprint.NewHTTPRequest(&http.Request{})

  status, err := anicetus.Evaluate(requestFingerprint)

  if err != nil {

    // handle error

  }



  switch status {

  case anicetus.StatusProcess:

    // thundering herd detected, allowing this single request to pass through

  case anicetus.StatusWait:

    // thundering herd detected, blocking this request

  case anicetus.StatusOpenGates:

    // business as usual

  case anicetus.StatusFailed:

    // something went wrong while evaluating the request



    // you can optionally cleanup the request fingerprint state

    if err := aniceuts.Cleanup(requestFingerprint); err != nil {

      // handle error

    }

  }



  // the single request needs to inform the gatekeeper that it finished

  // processing the request

  if err := anicetus.RequestDone(requestFingerprint); err != nil {

    // handle error

  }

}

```



## FAQ



You will find here some common questions and answers.



**Q: Is this a load balancer?**



A: No, this is not a load balancer. This works as a semaphore service allowing

requests to pass through.



**Q: Does it cache the responses?**



A: No, it does not cache the responses. It only allows a single request to pass

through. It's the responsibility of the backend application to cache the

responses and serve them from the cache. This solution will just give enough

time for the cache to be populated.



**Q: Why Anicetus?**



A: Anicetus comes from the Greek word Ἀνίκητος (Aníkētos, literally

"Unconquerable"). A god and one of the guardians and gatekeepers of the gates of

Mount Olympus. It's a metaphor for the protector of the backend application. 😄🤞



**Q: Why there are not too many options for detectors, gatekeeper storages and

fingerprints in this library?**



A: At first we are trying to minimize the number of Go dependencies to make this

library lightweight. We may in the near future add support for Redis storages,

creating dependencies to other third-party libraries.
