barnacles-sparkplug

===================



__barnacles-sparkplug__ distributes ambient IoT sensor data via MQTT observing the Eclipse Sparkplug specification.

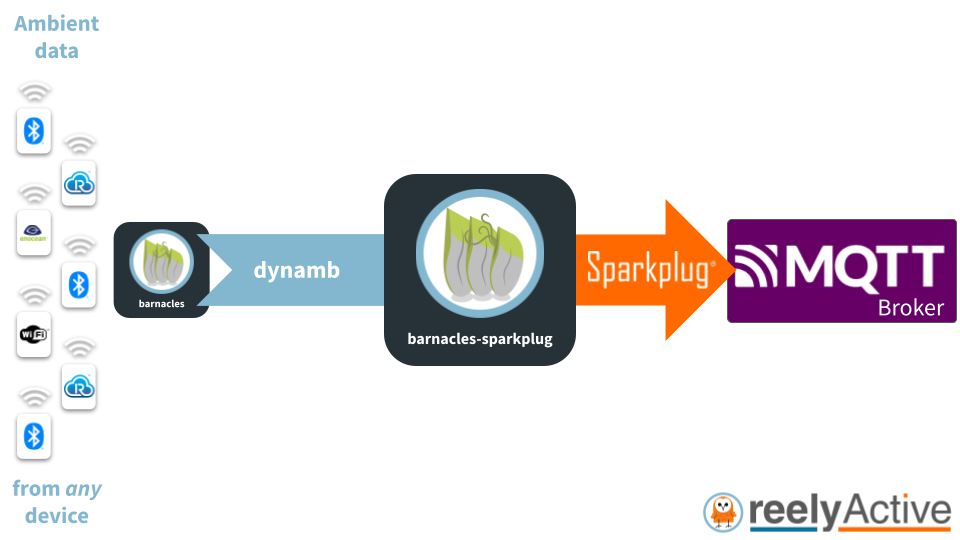

![Overview of barnacles-sparkplug](https://reelyactive.github.io/barnacles-sparkplug/images/overview.png)



__barnacles-sparkplug__ ingests a real-time stream of _dynamb_ objects from [barnacles](https://github.com/reelyactive/barnacles/) which it publishes via MQTT as Sparkplug B payloads.  It couples seamlessly with reelyActive's [Pareto Anywhere](https://www.reelyactive.com/pareto/anywhere/) open source IoT middleware.



__barnacles-sparkplug__ is a lightweight [Node.js package](https://www.npmjs.com/package/barnacles-sparkplug) that can run on resource-constrained edge devices as well as on powerful cloud servers and anything in between.



Pareto Anywhere integration

---------------------------



A common application of __barnacles-sparkplug__ is to publish IoT data from [pareto-anywhere](https://github.com/reelyactive/pareto-anywhere) as Sparkplug B payloads via MQTT.  Simply follow our [Create a Pareto Anywhere startup script](https://reelyactive.github.io/diy/pareto-anywhere-startup-script/) tutorial using the script below:



```javascript

#!/usr/bin/env node



const ParetoAnywhere = require('../lib/paretoanywhere.js');



// Edit the options to customise the server

const BARNACLES_SPARKPLUG_OPTIONS = {};



// ----- Exit gracefully if the optional dependency is not found -----

let BarnaclesSparkplug;

try {

  BarnaclesSparkplug = require('barnacles-sparkplug');

}

catch(err) {

  console.log('This script requires barnacles-sparkplug.  Install with:');

  console.log('\r\n    "npm install barnacles-sparkplug"\r\n');

  return console.log('and then run this script again.');

}

// -------------------------------------------------------------------



let pa = new ParetoAnywhere();

pa.barnacles.addInterface(BarnaclesSparkplug, BARNACLES_SPARKPLUG_OPTIONS);

```



Quick Start

-----------



Clone this repository, then from its root folder, install dependencies with `npm install`.  Start the Sparkplug client with the following command:



    npm start



If a MQTT broker is running on localhost, the client should connect (without authentication) and publish a NBIRTH message.  For convenience, a script to subscribe to Sparkplug messages (topic: spBv1.0/#) on localhost and print these to the console is provided, and can be started with the following command:



    npm run subscribe



When both programs are run simultaneously, the latter will echo all Sparkplug messages to the console, starting with the NBIRTH message which will have the following format:



    Topic: spBv1.0/iot/NBIRTH/paretoanywhere

    {

      timestamp: Long { low: 1735707600, high: 404, unsigned: true },

      metrics: [],

      seq: Long { low: 0, high: 0, unsigned: true }

    }



Simulated Data

--------------



The following simulated devices/sensors are supported for interface testing.



### Minew S1



To simulate a [Minew S1](https://www.minew.com/product/s1-ble-temperature-and-humidity-sensor/) temperature/humidity sensor, start __barnacles-sparkplug__ with the following command:



    npm run minew-s1



Simulated sensor `c30000000051` will expose the following metrics:



| name              | type   |

|:------------------|:-------|

| temperature       | Double |

| relativeHumidity  | Double |

| batteryPercentage | Double |



Supported dynamb properties

---------------------------



__barnacles-sparkplug__ converts standard [dynamb](https://reelyactive.github.io/diy/cheatsheet/#dynamb) properties into the following Protobuf data types:



| Property                     | Data Type          | Conversion              |

|:-----------------------------|:-------------------|:------------------------|

| acceleration                 | DataSet of Double  | 1, 2 or 3-column (xyz)  |

| amperage                     | Double             | none                    |

| ammoniaConcentration         | Double             | none                    |

| angleOfRotation              | Double             | none                    |

| amperages                    | DataSet of Double  | Multi-column (0..n)     |

| batteryPercentage            | Double             | none                    |

| batteryVoltage               | Double             | none                    |

| carbonDioxideConcentration   | Double             | none                    |

| carbonMonoxideConcentration  | Double             | none                    |

| distance                     | Double             | none                    |

| elevation                    | Double             | none                    |

| heading                      | Double             | none                    |

| heartRate                    | Double             | none                    |

| illuminance                  | Double             | none                    |

| isButtonPressed              | Boolean            | Logical OR (if many)    |

| isContactDetected            | Boolean            | Logical OR (if many)    |

| isHealthy                    | Boolean            | none                    |

| isMotionDetected             | Boolean            | Logical OR (if many)    |

| isLiquidDetected             | Boolean            | Logical OR (if many)    |

| levelPercentage              | Double             | none                    |

| magneticField                | DataSet of Double  | 1, 2 or 3-column (xyz)  |

| methaneConcentration         | Double             | none                    |

| nitrogenDioxideConcentration | Double             | none                    |

| numberOfOccupants            | UInt32             | none                    |

| passageCounts                | DataSet of UInt32  | 1 or 2-column           |

| pressure                     | Double             | none                    |

| pressures                    | DataSet of Double  | Multi-column (0..n)     |

| relativeHumidity             | Double             | none                    |

| speed                        | Double             | none                    |

| temperature                  | Double             | none                    |

| temperatures                 | DataSet of Double  | Multi-column (0..n)     |

| txCount                      | UInt32             | none                    |

| uptime                       | UInt32             | none                    |

| volatileOrganicCompoundsConcentration | Double    | none                    |

| voltage                      | Double             | none                    |

| voltages                     | DataSet of Double  | Multi-column (0..n)     |



Integrations

------------



The [Eclipse Sparkplug](https://sparkplug.eclipse.org/) specification "ensures open and interoperable IIoT" enabling __barnacles-sparkplug__, and hence [Pareto Anywhere](https://www.reelyactive.com/pareto/anywhere/), to integrate seamlessly with the following platforms.



### ThingsBoard



__barnacles-sparkplug__ will automatically publish data to the MQTT broker of a [ThingsBoard](https://thingsboard.io/) instance running on localhost (on port 1883).  Configure the [MQTT Sparkplug API](https://thingsboard.io/docs/reference/mqtt-sparkplug-api/) with a device profile that uses MQTT ClientId `ParetoAnywhereEdgeNode` to receive the data in ThingsBoard.



For advanced integrations with ThingsBoard, configure the __barnacles-sparkplug__ options, listed below.



Options

-------



__barnacles-sparkplug__ supports the following options:



| Property    | Default                  | Description                      |

|:------------|:-------------------------|:---------------------------------|

| url         | "mqtt://localhost"       | Local MQTT broker                |

| groupId     | "iot"                    | See Sparkplug specification      |

| edgeNodeId  | "paretoanywhere"         | See Sparkplug specification      |

| clientId    | "ParetoAnywhereEdgeNode" | Unique id of MQTT client         |

| username    | null                     | Optional for MQTT authentication |

| password    | null                     | Optional for MQTT authentication |

| deviceTimeoutMilliseconds | 60000      | Activity timeout for DDEATH      |

| printErrors | false                    | Print MQTT errors?               |



Acknowledgements

----------------



__barnacles-sparkplug__ is based on the [sparkplug-client](https://www.npmjs.com/package/sparkplug-client) open source Node.js package of the [Eclipse Tahu](https://github.com/eclipse-tahu/tahu/) project which is licensed under the [Eclipse Public License v2.0](https://www.eclipse.org/legal/epl-2.0/) (EPL-2.0), and which we invite you to consider supporting at [sparkplug.eclipse.org](https://sparkplug.eclipse.org/).



Contributing

------------



Discover [how to contribute](CONTRIBUTING.md) to this open source project which upholds a standard [code of conduct](CODE_OF_CONDUCT.md).



Security

--------



Consult our [security policy](SECURITY.md) for best practices using this open source software and to report vulnerabilities.
