nicla-vision-gauge-reader
=========================
Read analogue gauges using machine vision and relay the data wirelessly via Bluetooth Low Energy.
Getting Started
---------------
Follow our step-by-step tutorial to get started with the Nicla Vision and then to configure it as a gauge reader:
- [Nicla Vision Development Guide](https://reelyactive.github.io/diy/nicla-vision-dev/)
- [Configure a Nicla Vision Gauge Reader](https://reelyactive.github.io/diy/nicla-vision-gauge-reader-config/)
BLE Advertising Data
--------------------
The [nicla/ra_ble.py](nicla/ra_ble.py) file specifies the Bluetooth Low Energy advertising packet data. The gauge value is encoded as 16-bit Service Data of the __Generic Level__ characteristic, a unitless value ranging from 0-65535, as specified in the Bluetooth GATT Specification Supplement.
This service data is formatted in the _ADV_PAYLOAD byte array as follows:
| Byte offset | Value | Description |
|:------------|:-------------|:------------------------------------------------|
| 0 | 0x05 | Length in bytes (self-excluded) |
| 1 | 0x16 | 16-bit Service Data (from GAP) |
| 2 | 0xf9 | LSB of Generic Level characteristic ID (0x2af9) |
| 3 | 0x2a | MSB of Generic Level characteristic ID (0x2af9) |
| 4 | Variable | LSB of Generic Level (Gauge Read) |
| 5 | Variable | MSB of Generic Level (Gauge Read) |
The __Generic Level__ characteristic is interpreted as the __levelPercentage__ property in [Pareto Anywhere](https://www.reelyactive.com/pareto/anywhere/) open source IoT middleware, as processed by its [advlib-ble-services](https://github.com/reelyactive/advlib-ble-services) library, ranging from 0-100.
### Battery Level ###
_If available,_ the battery level of the Nicla Vision can also be included in the same BLE advertising packet. In this case it is encoded as 16-bit Service Data of the __Battery Level__ characteristic, an integer value ranging from 0-100, as specified in the Bluetooth GATT Specification Supplement.
This service data would be appended to the _ADV_PAYLOAD byte array as follows:
| Byte offset | Value | Description |
|:------------|:-------------|:------------------------------------------------|
| 6 | 0x04 | Length in bytes (self-excluded) |
| 7 | 0x16 | 16-bit Service Data (from GAP) |
| 8 | 0x19 | LSB of Battery Level characteristic ID (0x2a19) |
| 9 | 0x2a | MSB of Battery Level characteristic ID (0x2a19) |
| 10 | Variable | Battery level (0 = min, 100 = max) |
The __Battery Level__ characteristic is interpreted as the __batteryPercentage__ property in [Pareto Anywhere](https://www.reelyactive.com/pareto/anywhere/) open source IoT middleware, as processed by its [advlib-ble-services](https://github.com/reelyactive/advlib-ble-services) library, ranging from 0-100.
See our [Best practices for BLE advertising data](https://reelyactive.github.io/diy/best-practices-ble-advertising-data/) tutorial for more details, and for guidance on including additional data types either in the same payload or in separate packets.
Installing OpenMV
-----------------
[Download OpenMV](https://openmv.io/pages/download) for your operating system and then follow the [Getting Started with Nicla Vision](https://docs.arduino.cc/tutorials/nicla-vision/getting-started) tutorial. Do not skip the part where it says "***Before proceeding with the tutorial, please update the board's bootloader following the instructions below.***"
### dfu-utils errors
Sometimes you'll be invited but OpenMV to upgrade the firmware on the Nicla. When you do this, on some OSes (ex: an older Mac laptop running Big Sur), you might get errors like:
"**Upgrading nicla firmware…. Error updating firmware: dfu-util: Invalid DFU suffix signature dfu-util: A valid DFU suffix will be required in a future dfu-util release!!! dfu-util: dfuse_download: libusb_control_transfer returned -9**"
The only workaround found was to switch to a more modern Mac, in this case a 2020 Mac laptop running Monterey.
Installing the Gauge Reader Software
------------------------------------
When the Nicla is attached, it should show up as an attached storage device, like a USB drive. You can add files to the Nicla just by copying files to this drive.
Clone this repository and copy the contents of the folder `nicla` to the Nicla. Ensure that the files ra_config.py and ra_functions.py are on the Nicla, if not, when you run main-gauge1.py, it won't find these dependencies.
Once you've done this, you can run main-gauge1.py in OpenMV.
NOTE: you can run main-gauge1.py from anywhere, it doesn't have to be the version currently loaded on the Nicla itself. This can lead to confusion, so try to be clear about which version you're using.
### Serial Monitor

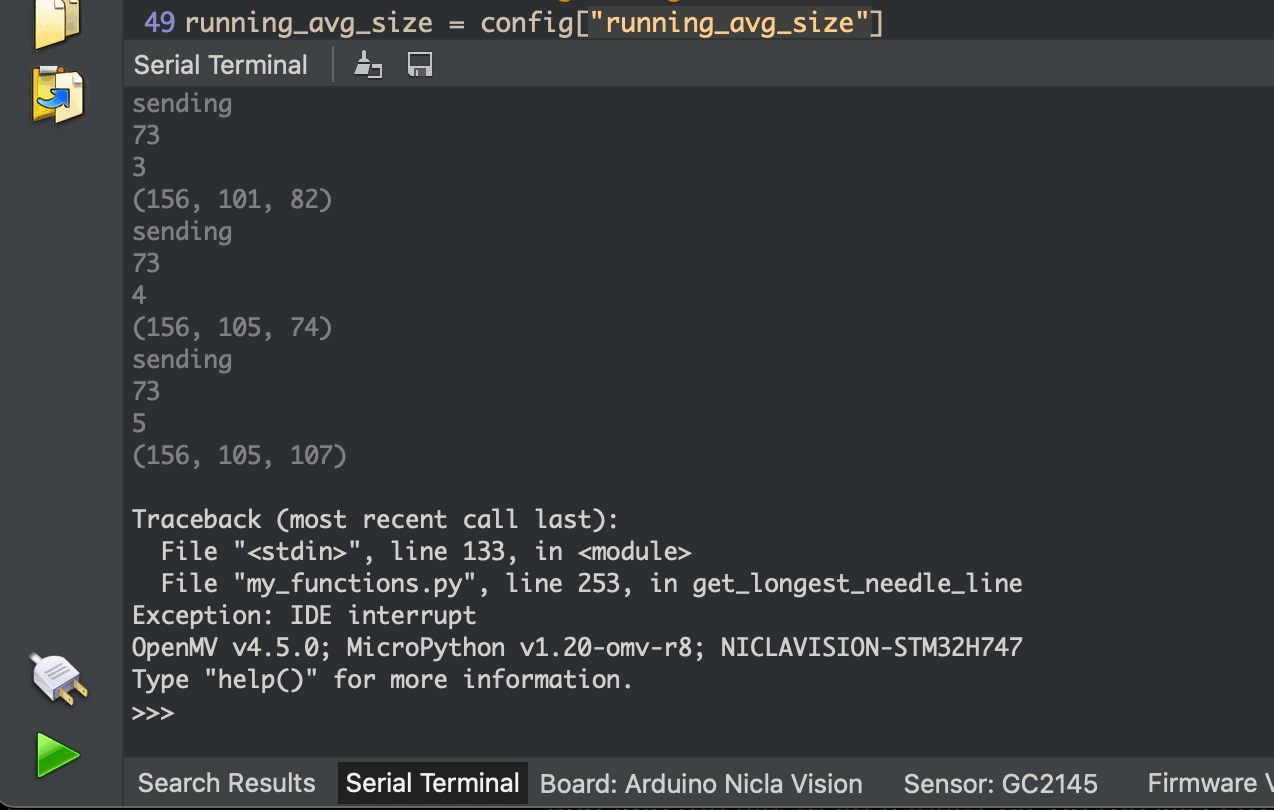

If the nicla is running while attached to OpenMV, you can see any `print` statements in the Serial Terminal:

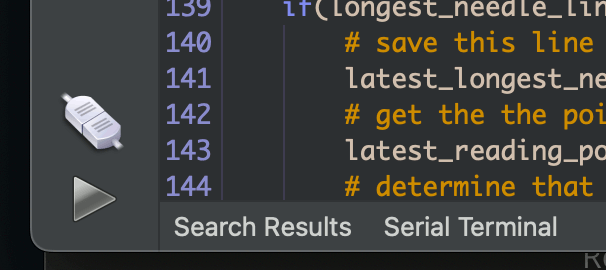

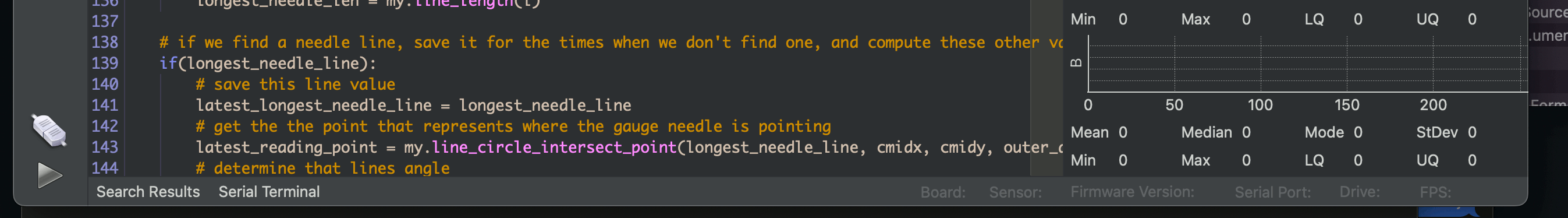

Click on "Serial Terminal" to open the Serial Terminal:
(note the values in the Parentheses, we'll come back to that)
### Running standalone on the Nicla
Rename the file main-gauge1.py on the Nicla to main.py
When the Nicla starts up on its own, it will run the file main.py
### Frame Buffer

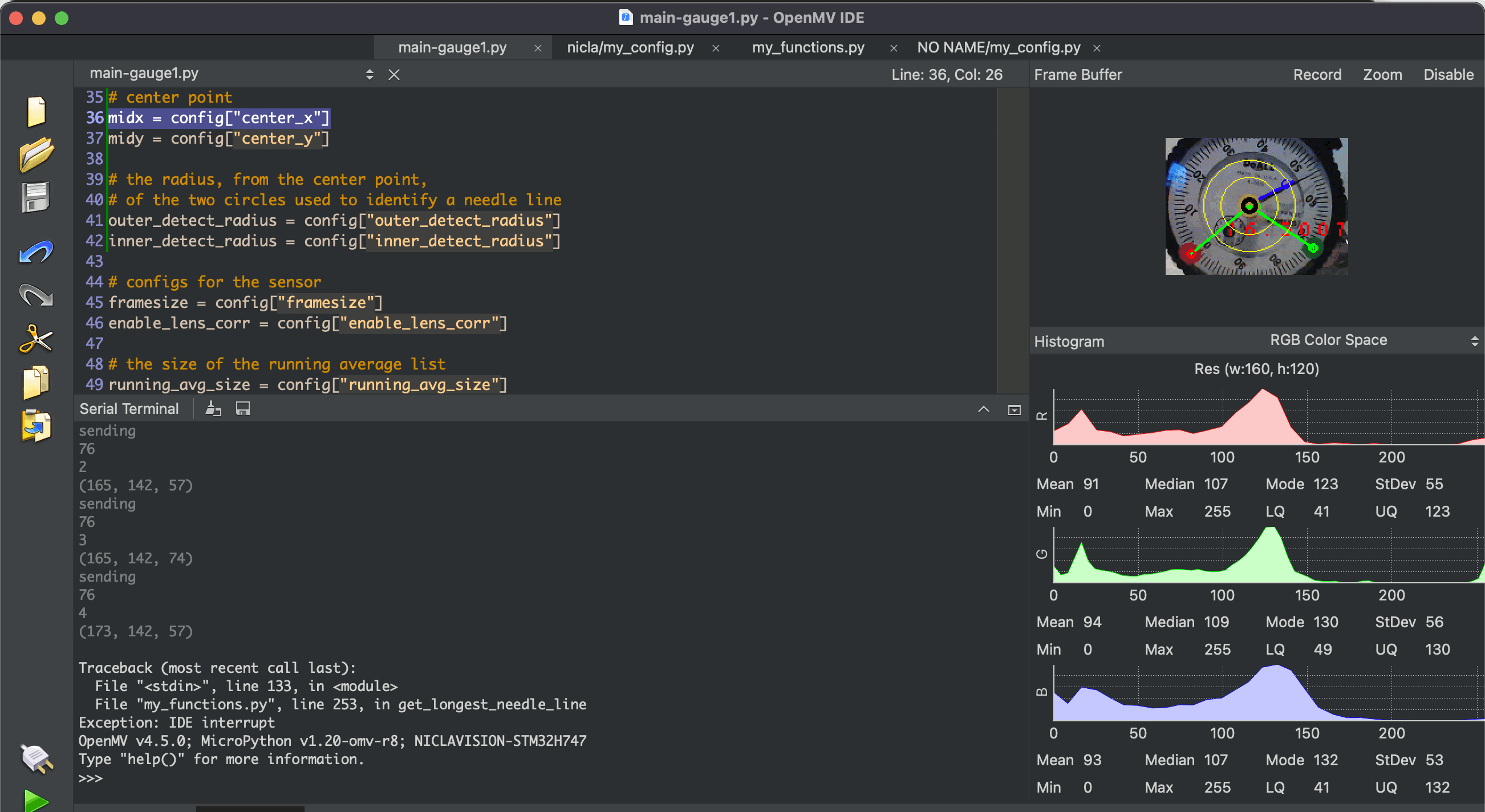

The Frame Buffer on the right of the UI shows what the Nicla is looking at, along with additional graphics we've drawn on the captured image. This is important for setting up the device.
### Tweaking the gauge reader
ra_config.py should be the only file you need to edit, depending on your installation requirements. The file is heavily commented. Make sure you're editing the ra_config.py that's on the Nicla itself
Physical setup
--------------
The nicla should be setup while attached to a laptop running OpenMV, so you can see what the nicla sees in the Frame Buffer.
Set it up so that the gauge fills the screen:
### What the graphics on the gauge mean
### A Note about the framebuffer output
You'll notice that the graphics seem to pop in an out. That's because in each detection loop, the sensor doesn't always detect all the parts. The goal is to get it setup so that it detects the RIGHT values most of the time, NO value sometimes, and WRONG values almost never.
### Physical configurations
**There are two ways to set up the Nicla to look at the gauge:**
1. Position it really carefully so that the center of the gauge and the minimum and maximum gauge values are at known positions. Then define those positions in the ra_config.py file. You can iterate toward correct values by looking at the graphics drawn over the framebuffer image
2. Use colored dots to indicate the minimum and maximum gauge values and the center of the gauge. Currently the colors are
1. **Red**: minimum gauge value
2. **Green**: maximum gauge value
3. **Yellow**: Center of the gauge
### Setting up Color Dots
Depending on lighting conditions, configuration of the color detection configurations may need to be tweaked.
These colors are defined in terms of a RANGE in the LAB colorspace, defined in an array that looks like this:
`(LMin, LMax, AMin, Amax, BMin, BMax)`
Any pixel that is within that range will be identified as that color. In real world situations, the same physical color might require a different threshold set, depending on lighting or other conditions.
**If a colored dot is not being detected correctly, try creating a new threshold**
- Turn on the Serial Terminal
- Start the code running when the nicla is pointed at the gauge in the intended setup. It's important to START it with the nicla in the right place, because the camera calibrates itself to it's starting conditions
- Point the small green circle in the center of the Frame Buffer view at the colored dot you want to match
- Take note of the 3-value array being output in the Serial Terminal
- This is the LAB value of the pixel in the center of the image
- create na RANGE array, with values about +/- 10 from the given value, so eg
- (52, -1, 13) becomes (42, 62, -9,11, 3, 23 )
- NOTE that the first value is LIGHTNESS, so you could try a wider range on that.
- Plug this new range array into the ra_config.py, following the instructions there.
- Run the code again and see if it works!
