https://github.com/reelyactive/node-red-pareto-anywhere

Prototype event-driven applications with Pareto Anywhere open source IoT middleware in Node-RED. We believe in an open Internet of Things.
https://github.com/reelyactive/node-red-pareto-anywhere

node-red pareto-anywhere rfid rtls

Last synced: 21 days ago
JSON representation

Prototype event-driven applications with Pareto Anywhere open source IoT middleware in Node-RED. We believe in an open Internet of Things.

Awesome Lists containing this project

README


node-red-pareto-anywhere

========================



Prototype event-driven applications with [Pareto Anywhere](https://www.reelyactive.com/pareto/anywhere/) open source IoT middleware in [Node-RED](https://nodered.org/).



![Pareto Anywhere screenshot in Node-RED](https://reelyactive.github.io/node-red-pareto-anywhere/images/socketio-screenshot.png)



Installation

------------



Install __@reelyactive/node-red-pareto-anywhere__ from the [Palette Manager](https://nodered.org/docs/user-guide/editor/palette/manager) in Node-RED.  A __pareto-anywhere-socketio__ node will become available.



Configuration

-------------



In the case where Node-RED and Pareto Anywhere are running locally on the same machine, zero configuration is required: the __pareto-anywhere-socketio__ node will attempt to connect via Socket.IO to a Pareto Anywhere instance running at the default [localhost:3001](http://localhost:3001).

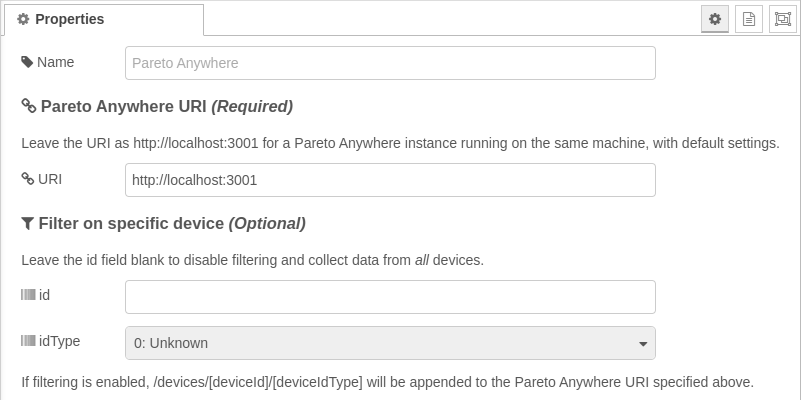

In the case where Pareto Anywhere is running remotely, edit the _URI_ in the __pareto-anywhere-socketio__ node properties (ex: http://192.168.0.123:3001).



![Pareto Anywhere Node-RED configuration](https://reelyactive.github.io/node-red-pareto-anywhere/images/configure-all-devices.png)



Leaving the __id__ field blank will disable filtering, and data from _all_ devices will be available as output.



### Filter on specific device

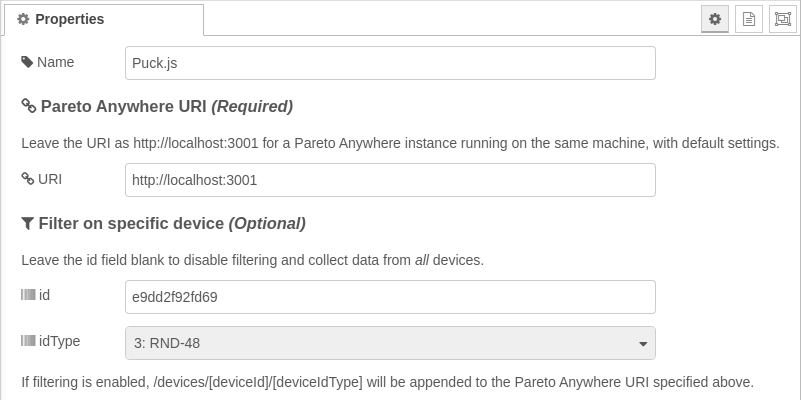

To filter on a specific device, enter the __id__ of the device as a hexadecimal string and select the __idType__ from the pull-down.



![Pareto Anywhere Node-RED filter on specific device](https://reelyactive.github.io/node-red-pareto-anywhere/images/configure-specific-device.png)



The identifier of a device can often be found printed on the device itself.  Otherwise, lookup the __id__/__idType__ from the [Pareto Anywhere Apps](https://reelyactive.github.io/pareto-anywhere-apps/) and/or APIs.



Data Manipulation

-----------------



The __pareto-anywhere-socketio__ node provides three real-time outputs:

- raddec (RADio DECoding)

- dynamb (DYNamic AMBient data)

- spatem (SPAtial-TEMporal data)



The [raddec](https://github.com/reelyactive/raddec/) and/or spatem stream is typically used for real-time location applications (i.e. who/what is _where?_)



The dynamb stream observes [these standard properties](https://github.com/reelyactive/advlib/#standard-properties) is typically used for timeseries and event-driven applications (i.e. who/what is _how?_)



See the [reelyActive Developer's Cheatsheet](https://reelyactive.github.io/diy/cheatsheet/) to learn "owl" about the __raddec__, __dynamb__ and __spatem__ JSON data structures.



Examples

--------



__node-red-pareto-anywhere__ includes examples which facilitate getting up and running quickly.  Import (Ctrl + i) and select Examples, then expand the __@reelyactive/node-red-pareto-anywhere__ folder to choose from the following examples:



![Import Pareto Anywhere examples in Node-RED](https://reelyactive.github.io/node-red-pareto-anywhere/images/import-examples.png)



### Socket.IO Examples



| Example                    | Tutorial |

|:---------------------------|:---------|

| SocketIO-Hello             | n/a      |

| SocketIO-Espruino-PuckJS   | [Puck.js Development Guide](https://reelyactive.github.io/diy/puckjs-dev/) |

| SocketIO-Minew-MSP01       | [Configure a Minew MSP01 PIR Sensor](https://reelyactive.github.io/diy/minew-msp01-config/) |

| SocketIO-Minew-B10         | [Configure a Minew B10 Wristband](https://reelyactive.github.io/diy/minew-b10-config/) |



Contributing

------------



Discover [how to contribute](CONTRIBUTING.md) to this open source project which upholds a standard [code of conduct](CODE_OF_CONDUCT.md).



Security

--------



Consult our [security policy](SECURITY.md) for best practices using this open source software and to report vulnerabilities.
