# Angular Highcharts
Application example built with [Angular](https://angular.io/) 15 and adding the charts using the [highcharts](https://www.npmjs.com/package/highcharts) library.
This tutorial was posted on my [blog](https://rodrigo.kamada.com.br/blog/adicionando-graficos-usando-a-biblioteca-highcharts-em-uma-aplicacao-angular) in portuguese and on the [DEV Community](https://dev.to/rodrigokamada/adding-charts-using-the-highcharts-library-to-an-angular-application-2bbl) in english.
[](https://rodrigo.kamada.com.br)
[](https://www.linkedin.com/in/rodrigokamada)
[](https://twitter.com/rodrigokamada)
[](https://www.instagram.com/rodrigokamada)
## Prerequisites
Before you start, you need to install and configure the tools:
* [git](https://git-scm.com/)
* [Node.js and npm](https://nodejs.org/)
* [Angular CLI](https://angular.io/cli)
* IDE (e.g. [Visual Studio Code](https://code.visualstudio.com/))
## Getting started
### Create the Angular application
**1.** Let's create the application with the Angular base structure using the `@angular/cli` with the route file and the SCSS style format.
```shell
ng new angular-highcharts
? Would you like to add Angular routing? Yes
? Which stylesheet format would you like to use? SCSS [ https://sass-lang.com/documentation/syntax#scss ]
CREATE angular-highcharts/README.md (1063 bytes)
CREATE angular-highcharts/.editorconfig (274 bytes)
CREATE angular-highcharts/.gitignore (604 bytes)
CREATE angular-highcharts/angular.json (3279 bytes)
CREATE angular-highcharts/package.json (1080 bytes)
CREATE angular-highcharts/tsconfig.json (783 bytes)
CREATE angular-highcharts/.browserslistrc (703 bytes)
CREATE angular-highcharts/karma.conf.js (1435 bytes)
CREATE angular-highcharts/tsconfig.app.json (287 bytes)
CREATE angular-highcharts/tsconfig.spec.json (333 bytes)
CREATE angular-highcharts/src/favicon.ico (948 bytes)
CREATE angular-highcharts/src/index.html (303 bytes)
CREATE angular-highcharts/src/main.ts (372 bytes)
CREATE angular-highcharts/src/polyfills.ts (2820 bytes)
CREATE angular-highcharts/src/styles.scss (80 bytes)
CREATE angular-highcharts/src/test.ts (788 bytes)
CREATE angular-highcharts/src/assets/.gitkeep (0 bytes)
CREATE angular-highcharts/src/environments/environment.prod.ts (51 bytes)
CREATE angular-highcharts/src/environments/environment.ts (658 bytes)
CREATE angular-highcharts/src/app/app-routing.module.ts (245 bytes)
CREATE angular-highcharts/src/app/app.module.ts (393 bytes)
CREATE angular-highcharts/src/app/app.component.scss (0 bytes)
CREATE angular-highcharts/src/app/app.component.html (24617 bytes)
CREATE angular-highcharts/src/app/app.component.spec.ts (1109 bytes)
CREATE angular-highcharts/src/app/app.component.ts (223 bytes)
✔ Packages installed successfully.
```
**2.** Install and configure the Bootstrap CSS framework. Do steps 2 and 3 of the post *[Adding the Bootstrap CSS framework to an Angular application](https://github.com/rodrigokamada/angular-bootstrap)*.
**3.** Install the `highcharts` library.
```shell
npm install highcharts
```
**4.** Remove the contents of the `AppComponent` class from the `src/app/app.component.ts` file. Import the `Highcharts`, `HighchartsMore` and `HighchartsSolidGauge` services and create the `createChartGauge`, `createChartPie`, `createChartColumn` and `createChartLine` methods as below.
```typescript
import { AfterViewInit, Component } from '@angular/core';
import * as Highcharts from 'highcharts';
import HighchartsMore from 'highcharts/highcharts-more';
import HighchartsSolidGauge from 'highcharts/modules/solid-gauge';
HighchartsMore(Highcharts);
HighchartsSolidGauge(Highcharts);
@Component({
selector: 'app-root',
templateUrl: './app.component.html',
styleUrls: ['./app.component.scss'],
})
export class AppComponent implements AfterViewInit {
public ngAfterViewInit(): void {
this.createChartGauge();
this.createChartPie();
this.createChartColumn();
this.createChartLine();
}
private getRandomNumber(min: number, max: number): number {
return Math.floor(Math.random() * (max - min + 1) + min)
}
private createChartGauge(): void {
const chart = Highcharts.chart('chart-gauge', {
chart: {
type: 'solidgauge',
},
title: {
text: 'Gauge Chart',
},
credits: {
enabled: false,
},
pane: {
startAngle: -90,
endAngle: 90,
center: ['50%', '85%'],
size: '160%',
background: {
innerRadius: '60%',
outerRadius: '100%',
shape: 'arc',
},
},
yAxis: {
min: 0,
max: 100,
stops: [
[0.1, '#55BF3B'], // green
[0.5, '#DDDF0D'], // yellow
[0.9, '#DF5353'], // red
],
minorTickInterval: null,
tickAmount: 2,
labels: {
y: 16,
},
},
plotOptions: {
solidgauge: {
dataLabels: {
y: -25,
borderWidth: 0,
useHTML: true,
},
},
},
tooltip: {
enabled: false,
},
series: [{
name: null,
data: [this.getRandomNumber(0, 100)],
dataLabels: {
format: '
{y}',
},
}],
} as any);
setInterval(() => {
chart.series[0].points[0].update(this.getRandomNumber(0, 100));
}, 1000);
}
private createChartPie(): void {
let date = new Date();
const data: any[] = [];
for (let i = 0; i < 5; i++) {
date.setDate(new Date().getDate() + i);
data.push({
name: `${date.getDate()}/${date.getMonth() + 1}`,
y: this.getRandomNumber(0, 1000),
});
}
const chart = Highcharts.chart('chart-pie', {
chart: {
type: 'pie',
},
title: {
text: 'Pie Chart',
},
credits: {
enabled: false,
},
tooltip: {
headerFormat: `Date: {point.key}
`,
pointFormat: 'Amount: {point.y}',
useHTML: true,
},
series: [{
name: null,
innerSize: '50%',
data,
}],
} as any);
setInterval(() => {
date.setDate(date.getDate() + 1);
chart.series[0].addPoint({
name: `${date.getDate()}/${date.getMonth() + 1}`,
y: this.getRandomNumber(0, 1000),
}, true, true);
}, 1500);
}
private createChartColumn(): void {
let date = new Date();
const data: any[] = [];
for (let i = 0; i < 10; i++) {
date.setDate(new Date().getDate() + i);
data.push({
name: `${date.getDate()}/${date.getMonth() + 1}`,
y: this.getRandomNumber(0, 1000),
});
}
const chart = Highcharts.chart('chart-column' as any, {
chart: {
type: 'column',
},
title: {
text: 'Column Chart',
},
credits: {
enabled: false,
},
legend: {
enabled: false,
},
yAxis: {
min: 0,
title: undefined,
},
xAxis: {
type: 'category',
},
tooltip: {
headerFormat: `
Date: {point.key}`,
pointFormat: `{series.name}: {point.y}`,
shared: true,
useHTML: true,
},
plotOptions: {
bar: {
dataLabels: {
enabled: true,
},
},
},
series: [{
name: 'Amount',
data,
}],
} as any);
setInterval(() => {
date.setDate(date.getDate() + 1);
chart.series[0].addPoint({
name: `${date.getDate()}/${date.getMonth() + 1}`,
y: this.getRandomNumber(0, 1000),
}, true, true);
}, 1500);
}
private createChartLine(): void {
let date = new Date();
const data: any[] = [];
for (let i = 0; i < 10; i++) {
date.setDate(new Date().getDate() + i);
data.push([`${date.getDate()}/${date.getMonth() + 1}`, this.getRandomNumber(0, 1000)]);
}
const chart = Highcharts.chart('chart-line', {
chart: {
type: 'line',
},
title: {
text: 'Line Chart',
},
credits: {
enabled: false,
},
legend: {
enabled: false,
},
yAxis: {
title: {
text: null,
}
},
xAxis: {
type: 'category',
},
tooltip: {
headerFormat: `
Date: {point.key}`,
pointFormat: `{series.name}: {point.y}`,
shared: true,
useHTML: true,
},
series: [{
name: 'Amount',
data,
}],
} as any);
setInterval(() => {
date.setDate(date.getDate() + 1);
chart.series[0].addPoint([`${date.getDate()}/${date.getMonth() + 1}`, this.getRandomNumber(0, 1000)], true, true);
}, 1500);
}
}
```
**5.** Remove the contents of the `src/app/app.component.html` file. Add the `div` tags for each chart as below.
```html
Angular Highcharts
```
**6.** Add the style in the `src/app/app.component.scss` file as below.
```css
#chart-gauge, #chart-pie, #chart-column, #chart-line {
display: block;
min-width: 150px;
max-width: 400px;
height: 200px;
margin: 0 auto;
}
```
**7.** Run the application with the command below.
```shell
npm start
> [email protected] start
> ng serve
✔ Browser application bundle generation complete.
Initial Chunk Files | Names | Size
vendor.js | vendor | 2.79 MB
styles.css | styles | 266.63 kB
polyfills.js | polyfills | 128.52 kB
scripts.js | scripts | 77.06 kB
main.js | main | 18.40 kB
runtime.js | runtime | 6.64 kB
| Initial Total | 3.28 MB
Build at: 2021-09-09T01:25:33.291Z - Hash: 2495029c373d88bd55c1 - Time: 27953ms
** Angular Live Development Server is listening on localhost:4200, open your browser on http://localhost:4200/ **
✔ Compiled successfully.
```

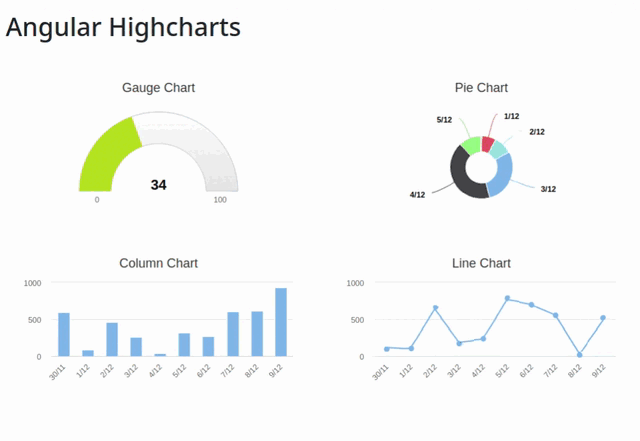

**8.** Ready! Access the URL `http://localhost:4200/` and check if the application is working. See the application working on [GitHub Pages](https://rodrigokamada.github.io/angular-highcharts/) and [Stackblitz](https://stackblitz.com/edit/angular15-highcharts).
## Cloning the application
**1.** Clone the repository.
```shell
git clone [email protected]:rodrigokamada/angular-highcharts.git
```
**2.** Install the dependencies.
```shell
npm ci
```
**3.** Run the application.
```shell
npm start
```
