# Angular Leaflet
Application example built with [Angular](https://angular.io/) 15 and adding the map Leaflet component using the [leaflet](https://www.npmjs.com/package/leaflet) library.
This tutorial was posted on my [blog](https://rodrigo.kamada.com.br/blog/adicionando-o-componente-de-mapa-leaflet-em-uma-aplicacao-angular) in portuguese and on the [DEV Community](https://dev.to/rodrigokamada/adding-the-map-leaflet-component-to-an-angular-application-d13) in english.
[](https://rodrigo.kamada.com.br)
[](https://www.linkedin.com/in/rodrigokamada)
[](https://twitter.com/rodrigokamada)
[](https://www.instagram.com/rodrigokamada/)
## Prerequisites
Before you start, you need to install and configure the tools:
* [git](https://git-scm.com/)
* [Node.js and npm](https://nodejs.org/)
* [Angular CLI](https://angular.io/cli)
* IDE (e.g. [Visual Studio Code](https://code.visualstudio.com/) or [WebStorm](https://www.jetbrains.com/webstorm/))
## Getting started
### Create and configure the account on the Mapbox

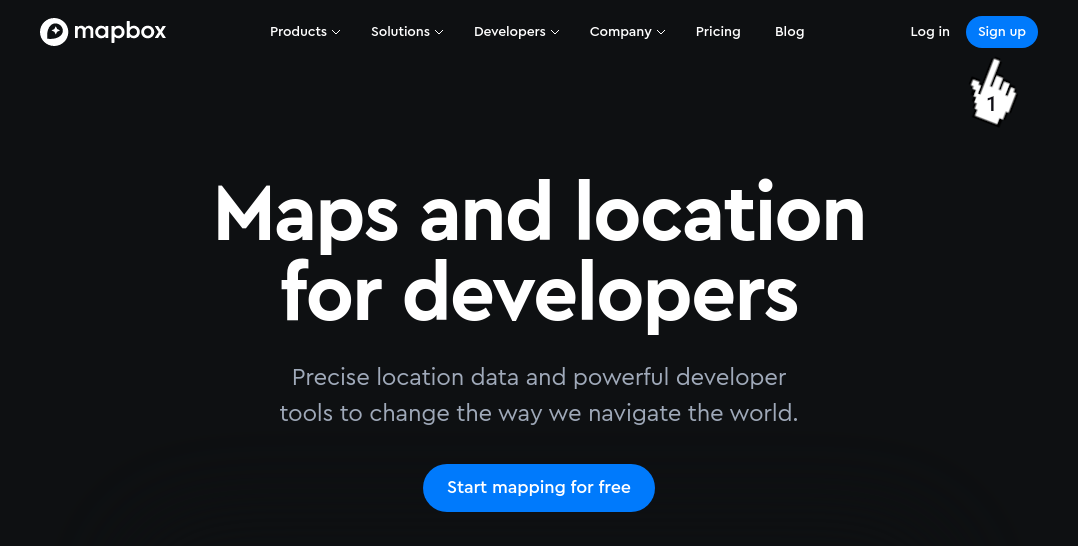

**1.** Let's create the account. Access the site [https://www.mapbox.com/](https://www.mapbox.com/) and click on the button *Sign up*.

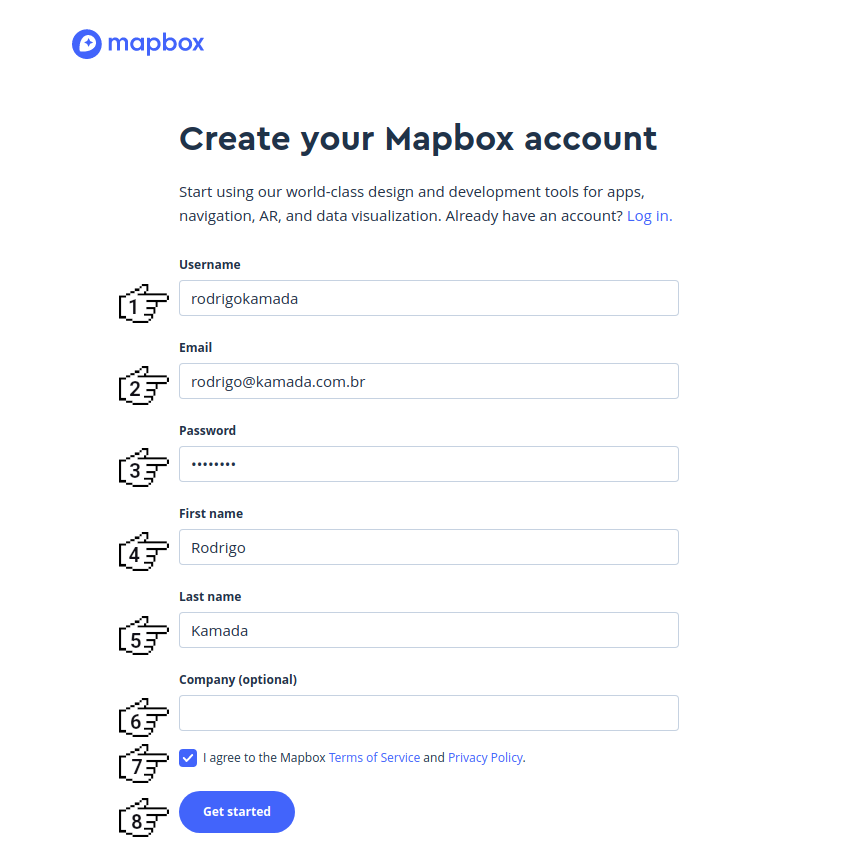

**2.** Fill in the fields *Username*, *Email*, *Password*, *First name*, *Last name*, click on the checkbox *I agree to the Mapbox Terms of Service and Privacy Policy.* and click on the button *Get started*.
**3.** Check the registered email.
**4.** Click on the link in the email sent.
**5.** Copy the token displayed in the *Dashboard* menu and, in my case, the token was displayed `pk.eyJ1IjoiYnJhc2thbSIsImEiOiJja3NqcXBzbWoyZ3ZvMm5ybzA4N2dzaDR6In0.RUAYJFnNgOnnZAw` because this token will be configured in the Angular application.
**6.** Ready! Account created and token generated.
### Create the Angular application
**1.** Let's create the application with the Angular base structure using the `@angular/cli` with the route file and the SCSS style format.
```powershell
ng new angular-leaflet
? Would you like to add Angular routing? Yes
? Which stylesheet format would you like to use? SCSS [ https://sass-lang.com/documentation/syntax#scss ]
CREATE angular-leaflet/README.md (1073 bytes)
CREATE angular-leaflet/.editorconfig (274 bytes)
CREATE angular-leaflet/.gitignore (604 bytes)
CREATE angular-leaflet/angular.json (3339 bytes)
CREATE angular-leaflet/package.json (1090 bytes)
CREATE angular-leaflet/tsconfig.json (783 bytes)
CREATE angular-leaflet/.browserslistrc (703 bytes)
CREATE angular-leaflet/karma.conf.js (1445 bytes)
CREATE angular-leaflet/tsconfig.app.json (287 bytes)
CREATE angular-leaflet/tsconfig.spec.json (333 bytes)
CREATE angular-leaflet/src/favicon.ico (948 bytes)
CREATE angular-leaflet/src/index.html (313 bytes)
CREATE angular-leaflet/src/main.ts (372 bytes)
CREATE angular-leaflet/src/polyfills.ts (2820 bytes)
CREATE angular-leaflet/src/styles.scss (80 bytes)
CREATE angular-leaflet/src/test.ts (788 bytes)
CREATE angular-leaflet/src/assets/.gitkeep (0 bytes)
CREATE angular-leaflet/src/environments/environment.prod.ts (51 bytes)
CREATE angular-leaflet/src/environments/environment.ts (658 bytes)
CREATE angular-leaflet/src/app/app-routing.module.ts (245 bytes)
CREATE angular-leaflet/src/app/app.module.ts (393 bytes)
CREATE angular-leaflet/src/app/app.component.scss (0 bytes)
CREATE angular-leaflet/src/app/app.component.html (24617 bytes)
CREATE angular-leaflet/src/app/app.component.spec.ts (1139 bytes)
CREATE angular-leaflet/src/app/app.component.ts (233 bytes)
✔ Packages installed successfully.
Successfully initialized git.
```
**2.** Install and configure the Bootstrap CSS framework. Do steps 2 and 3 of the post *[Adding the Bootstrap CSS framework to an Angular application](https://github.com/rodrigokamada/angular-bootstrap)*.
**3.** Configure the Mapbox token in the `src/environments/environment.ts` and `src/environments/environment.prod.ts` files as below.
```typescript
mapbox: {
accessToken: 'pk.eyJ1IjoiYnJhc2thbSIsImEiOiJja3NqcXBzbWoyZ3ZvMm5ybzA4N2dzaDR6In0.RUAYJFnNgOnn80wXkrV9ZA',
},
```
**4.** Create the `src/assets/images` folder and copy the `marker-icon.png` and `marker-shadow.png` files.
**5.** Install the `leaflet` and `@types/leaflet` libraries.
```powershell
npm install leaflet @types/leaflet
```
**6.** Configure the `leaflet` library. Change the `angular.json` file and add the `leaflet.css` file as below.
```json
"styles": [
"node_modules/bootstrap/scss/bootstrap.scss",
"node_modules/bootstrap-icons/font/bootstrap-icons.css",
"node_modules/leaflet/dist/leaflet.css",
"src/styles.scss"
],
```
**7.** Remove the contents of the `AppComponent` class from the `src/app/app.component.ts` file. Import the `leaflet` service and create the `getCurrentPosition`, `loadMap` methods as below.
```typescript
import { AfterViewInit, Component } from '@angular/core';
import { Observable, Subscriber } from 'rxjs';
import * as L from 'leaflet';
import { environment } from '../environments/environment';
@Component({
selector: 'app-root',
templateUrl: './app.component.html',
styleUrls: ['./app.component.scss'],
})
export class AppComponent implements AfterViewInit {
map: any;
constructor() {
}
public ngAfterViewInit(): void {
this.loadMap();
}
private getCurrentPosition(): any {
return new Observable((observer: Subscriber) => {
if (navigator.geolocation) {
navigator.geolocation.getCurrentPosition((position: any) => {
observer.next({
latitude: position.coords.latitude,
longitude: position.coords.longitude,
});
observer.complete();
});
} else {
observer.error();
}
});
}
private loadMap(): void {
this.map = L.map('map').setView([0, 0], 1);
L.tileLayer('https://api.mapbox.com/styles/v1/{id}/tiles/{z}/{x}/{y}?access_token={accessToken}', {
attribution: 'Map data © OpenStreetMap contributors, Imagery © Mapbox',
maxZoom: 18,
id: 'mapbox/streets-v11',
tileSize: 512,
zoomOffset: -1,
accessToken: environment.mapbox.accessToken,
}).addTo(this.map);
this.getCurrentPosition()
.subscribe((position: any) => {
this.map.flyTo([position.latitude, position.longitude], 13);
const icon = L.icon({
iconUrl: 'assets/images/marker-icon.png',
shadowUrl: 'assets/images/marker-shadow.png',
popupAnchor: [13, 0],
});
const marker = L.marker([position.latitude, position.longitude], { icon }).bindPopup('Angular Leaflet');
marker.addTo(this.map);
});
}
}
```
**8.** Remove the contents of the `src/app/app.component.html` file. Add the map `div` tag as below.
```html
Angular Leaflet
```
**9.** Add the style in the `src/app/app.component.scss` file as below.
```css
#map {
height: 400px;
width: 100%;
max-width: 600px;
}
```
**10.** Run the application with the command below.
```powershell
npm start
> [email protected] start
> ng serve
✔ Browser application bundle generation complete.
Initial Chunk Files | Names | Size
vendor.js | vendor | 2.81 MB
styles.css | styles | 280.54 kB
polyfills.js | polyfills | 128.51 kB
scripts.js | scripts | 76.67 kB
main.js | main | 12.03 kB
runtime.js | runtime | 6.63 kB
| Initial Total | 3.30 MB
Build at: 2021-08-20T10:40:47.188Z - Hash: 030dfe6c9ea7ff5d80c2 - Time: 12256ms
** Angular Live Development Server is listening on localhost:4200, open your browser on http://localhost:4200/ **
✔ Compiled successfully.
```
**11.** Ready! Access the URL `http://localhost:4200/` and check if the application is working. See the application working on [GitHub Pages](https://rodrigokamada.github.io/angular-leaflet/) and [Stackblitz](https://stackblitz.com/edit/angular15-leaflet).
## Cloning the application
**1.** Clone the repository.
```powershell
git clone [email protected]:rodrigokamada/angular-leaflet.git
```
**2.** Install the dependencies.
```powershell
npm ci
```
**3.** Run the application.
```powershell
npm start
```
