https://github.com/rosedblabs/wal

Write Ahead Log for LSM or bitcask storage(or any append-only write).
https://github.com/rosedblabs/wal

bitcask database kv-store lsm-tree storage write-ahead-log

Last synced: 3 days ago
JSON representation

Write Ahead Log for LSM or bitcask storage(or any append-only write).

• Host: GitHub
• URL: https://github.com/rosedblabs/wal
• Owner: rosedblabs
• License: apache-2.0
• Created: 2023-05-03T03:24:01.000Z (over 1 year ago)
• Default Branch: main
• Last Pushed: 2024-07-06T06:47:30.000Z (4 months ago)
• Last Synced: 2024-07-06T07:45:09.607Z (4 months ago)
• Topics: bitcask, database, kv-store, lsm-tree, storage, write-ahead-log
• Language: Go
• Homepage:
• Size: 94.7 KB
• Stars: 220
• Watchers: 4
• Forks: 36
• Open Issues: 1
• Metadata Files:
  • Readme: README.md
  • Changelog: CHANGELOG.md
  • License: LICENSE

Awesome Lists containing this project

README


# wal

Write Ahead Log for LSM or bitcask storage.

## Key Features

* Disk based, support large data volume

* Append only write, high performance

* Fast read, one disk seek to retrieve any value

* Support batch write, all data in a batch will be written in a single disk seek

* Iterate all data in wal with `NewReader` function

* Extremely fast read

* Support concurrent write and read, all functions are thread safe

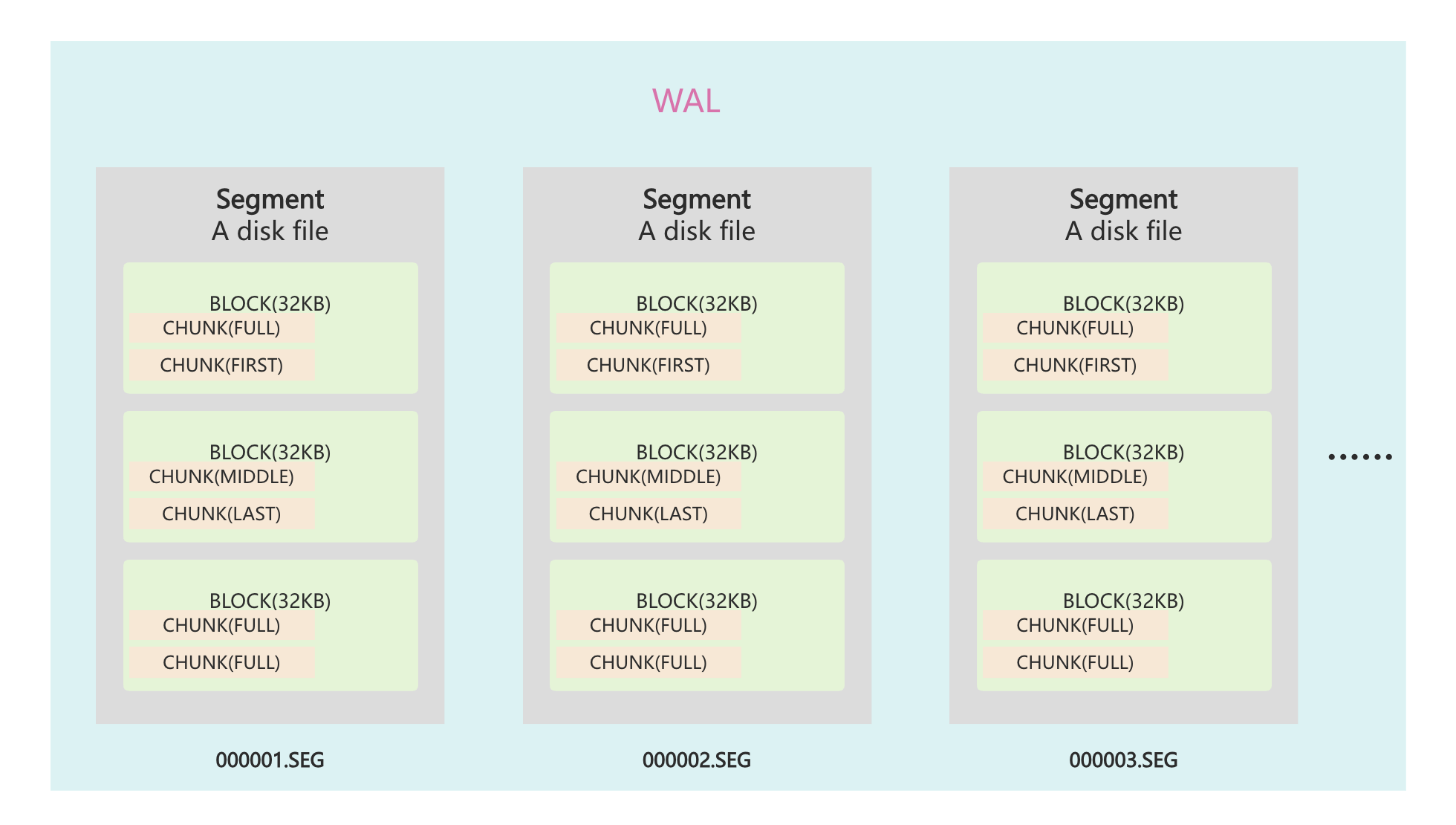

## Design Overview

![wal-logo.png](https://s2.loli.net/2024/05/19/Iz4JML2SokFdrfN.png)

## Format

**Format of a single segment file:**

```

       +-----+-------------+--+----+----------+------+-- ... ----+

 File  | r0  |      r1     |P | r2 |    r3    |  r4  |           |

       +-----+-------------+--+----+----------+------+-- ... ----+

       |<---- BlockSize ----->|<---- BlockSize ----->|

  rn = variable size records

  P = Padding

  BlockSize = 32KB

```

**Format of a single record:**

```

+----------+-------------+-----------+--- ... ---+

| CRC (4B) | Length (2B) | Type (1B) |  Payload  |

+----------+-------------+-----------+--- ... ---+

CRC = 32-bit hash computed over the payload using CRC

Length = Length of the payload data

Type = Type of record

       (FullType, FirstType, MiddleType, LastType)

       The type is used to group a bunch of records together to represent

       blocks that are larger than BlockSize

Payload = Byte stream as long as specified by the payload size

```

## Getting Started

```go

func main() {

	wal, _ := wal.Open(wal.DefaultOptions)

	// write some data

	chunkPosition, _ := wal.Write([]byte("some data 1"))

	// read by the position

	val, _ := wal.Read(chunkPosition)

	fmt.Println(string(val))

	wal.Write([]byte("some data 2"))

	wal.Write([]byte("some data 3"))

	// iterate all data in wal

	reader := wal.NewReader()

	for {

		val, pos, err := reader.Next()

		if err == io.EOF {

			break

		}

		fmt.Println(string(val))

		fmt.Println(pos) // get position of the data for next read

	}

}

```
