# RSSelectionMenu



An elegant selection list or dropdown menu for iOS with single or multiple selections.

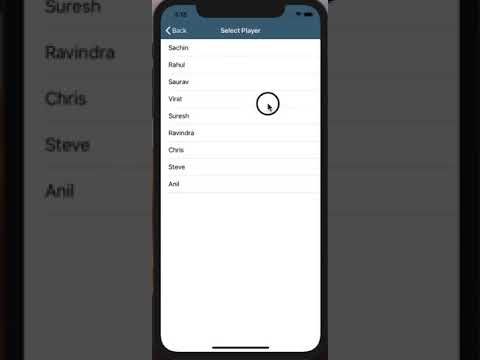

[![https://github.com/rushisangani/RSSelectionMenu/blob/master/Images/multi1.gif](http://img.youtube.com/vi/9Br-3GnxDSo/0.jpg)](http://www.youtube.com/watch?v=9Br-3GnxDSo "RSSelectionMenu Demo")



[Demo Video](http://www.youtube.com/watch?v=9Br-3GnxDSo)



## Features



- **Single** and **Multiple** selection.

- Show menu with presentation styles like **Present**, **Push**, **Popover**, **Formsheet**, **Alert**, **Actionsheet**

- Set UITableViewCell types like **Basic**, **Subtitle**, **Right Detail**

- Set UITableViewCell selection style **Tickmark** or **Checkbox**

- Search Items from the list

- Works with Custom UITableViewCells

- Works with Custom model classes and structs

- Set Maximum selection limit

- Provide Empty data set text

- Provide header row as **Empty**, **All**, **None** or **Custom Text**

- Customizable design for UINavigationBar and UISearchBar



## What's new in 7.1.3

- Popover Style Improvements

- Now you can specify UITableView.Style while initializing



## Already using? Migrate to 7.1.3

- Remove all references of `UniquePropertyDelegate`,  `uniquePropertyName`, and `getUniquePropertyName()`

- Conform to `Equatable` in your model classes (if required)



## Requirements

```swift

iOS 9.0+ | Xcode 8.3+ | Swift 3.0+

```



## Installation



### CocoaPods



```ruby

pod 'RSSelectionMenu' or pod 'RSSelectionMenu', '~> 7.1.3'

```



### Carthage



[Carthage](https://github.com/Carthage/Carthage) is a decentralized dependency manager that builds your dependencies and provides you with binary frameworks.



You can install Carthage with [Homebrew](https://brew.sh/) using the following command:



```bash

$ brew update

$ brew install carthage

```



To integrate RSSelectionMenu into your Xcode project using Carthage, specify it in your `Cartfile`:



```ogdl

github "rushisangani/RSSelectionMenu" ~> 7.1

```

Then follow below steps:

- Run `carthage update` to build the framework.

- Set Framework search path in target build settings : Build Settings  -> Framework Search Paths  :  `$(PROJECT_DIR)/Carthage/Build/iOS`

- Add  RSSelectionMenu.framework in `Embedded Binaries`.

- Add  RSSelectionMenu.framework in `Linked Frameworks and Libraries`.



## Usage



### Simple Selection List

```swift

let simpleDataArray = ["Sachin", "Rahul", "Saurav", "Virat", "Suresh", "Ravindra", "Chris"]

var simpleSelectedArray = [String]()



// Show menu with datasource array - Default SelectionStyle = single

// Here you'll get cell configuration where you'll get array item for each index

// Cell configuration following parameters.

// 1. UITableViewCell   2. Item of type T   3. IndexPath



let selectionMenu = RSSelectionMenu(dataSource: simpleDataArray) { (cell, item, indexPath) in

    cell.textLabel?.text = item

}



// set default selected items when menu present on screen.

// here you'll get handler each time you select a row

// 1. Selected Item  2. Index of Selected Item  3. Selected or Deselected  4. All Selected Items



selectionMenu.setSelectedItems(items: simpleSelectedArray) { [weak self] (item, index, isSelected, selectedItems) in



    // update your existing array with updated selected items, so when menu show menu next time, updated items will be default selected.

    self?.simpleSelectedArray = selectedItems

}



// show as PresentationStyle = push

selectionMenu.show(style: .push, from: self)

```



### Multiple Selection List

```swift

let selectionMenu = RSSelectionMenu(selectionStyle: .multiple, dataSource: simpleDataArray) { (cell, name, indexPath) in



    cell.textLabel?.text = name



    // customization

    // set image

    cell.imageView?.image = #imageLiteral(resourceName: "profile")

    cell.tintColor = #colorLiteral(red: 0.2745098174, green: 0.4862745106, blue: 0.1411764771, alpha: 1)

}

```



- Set Maximum selection limit (Optional)

```swift

selectionMenu.setSelectedItems(items: selectedDataArray, maxSelected: 3) { (item, selected, selectedItems) in

}

// or

selectionMenu.maxSelectionLimit = 3

```



### Cell Selection Style

```swift

selectionMenu.cellSelectionStyle = .tickmark

// or

selectionMenu.cellSelectionStyle = .checkbox

```



### Presentation Style - Formsheet, Popover, Alert, Actionsheet

```swift

// show as formSheet

selectionMenu.show(style: .formSheet, from: self)



// show as popover

selectionMenu.show(style: .popover(sourceView: sourceView, size: nil), from: self)



// or specify popover size

selectionMenu.show(style: .popover(sourceView: sender, size: CGSize(width: 200, height: 300)), from: self)



// show as alert

selectionMenu.show(style: .alert(title: "Select", action: nil, height: nil), from: self)



// or specify alert button title

selectionMenu.show(style: .alert(title: "Select", action: "Done", height: nil), from: self)



// show as actionsheet

selectionMenu.show(style: .actionSheet(title: nil, action: "Done", height: nil), from: self)

```



### Auto Dismissal

Prevent auto dismissal for single selection

```swift

selectionMenu.dismissAutomatically = false

```



### Event Handlers



#### On Dismiss

```swift

selectionMenu.onDismiss = { [weak self] selectedItems in

    self?.selectedDataArray = selectedItems



    // perform any operation once you get selected items

}

```



#### On WillAppear

```swift

selectionMenu.onWillAppear = {

    /// do something..

}

```



### Customization



#### SearchBar

- You'll get notified via handler, when user starts typing in searchbar.

```swift

// show searchbar

selectionMenu.showSearchBar { [weak self] (searchText) -> ([String]) in



  // return filtered array based on any condition

  // here let's return array where name starts with specified search text



  return self?.dataArray.filter({ $0.lowercased().hasPrefix(searchText.lowercased()) }) ?? []

}

```



#### Cell Style - Right Detail or Sub Title

```swift

let selectionMenu = RSSelectionMenu(selectionType: .single, dataSource: dataArray, cellType: .rightDetail) { (cell, item, indexPath) in



    // here you can set any text from object

    // let's set firstname in title and lastname as right detail



    let firstName = item(separatedBy: " ").first

    let lastName = item.components(separatedBy: " ").last



    cell.textLabel?.text = firstName

    cell.detailTextLabel?.text = lastName

}



selectionMenu.setSelectedItems(items: selectedDataArray) { [weak self] (item, selected, selectedItems) in

    self?.selectedDataArray = selectedItems

}



// show as default

selectionMenu.show(from: self)

```



#### Custom Cells

- Provide custom cell with xib file name and cell identifier.

```swift

let cellNibName = "CustomTableViewCell"

let cellIdentifier = "cell"



// create menu with multi selection and custom cell



let selectionMenu =  RSSelectionMenu(selectionStyle: .multiple, dataSource: customDataArray, cellType: .custom(nibName: cellNibName, cellIdentifier: cellIdentifier)) { (cell, person, indexPath) in



    // cast cell to your custom cell type

    let customCell = cell as! CustomTableViewCell



    // here you'll get specified model object

    // set data based on your need

    customCell.setData(person)

}

```



#### Header Row - Empty, None, All, or Custom

```swift

// To show first row as Empty, when dropdown as no value selected by default

// add first row as empty -> Allow empty selection



let isEmpty = (selectedDataArray.count == 0)

selectionMenu.addFirstRowAs(rowType: .empty, showSelected: isEmpty) { (text, selected) in



    /// do some stuff...

    if selected {

        print("Empty Option Selected")

    }

}

```



#### Empty Data String

```swift

// show message 'No data found'

menu.showEmptyDataLabel()



// or

menu.showEmptyDataLabel(text: "No players found")

```



### DataSource - Equatable conformance

```swift

struct Employee: Equatable {



    let empId: Int?

    let name: String?

}

```

or

```swift

class Person: NSObject {



    let id: Int

    let firstName: String

    let lastName: String



    init(id: Int, firstName: String, lastName: String) {

        self.id = id

        self.firstName = firstName

        self.lastName = lastName

    }

}

```



### UI Customization



#### NavigationBar

- Set Title, BarButton Titles, TintColor, and Title Color

```swift

// set navigation bar title and attributes

selectionMenu.setNavigationBar(title: "Select Player", attributes: [NSAttributedString.Key.foregroundColor: UIColor.white], barTintColor: #colorLiteral(red: 0.1019607857, green: 0.2784313858, blue: 0.400000006, alpha: 1), tintColor: UIColor.white)



// right barbutton title - Default is 'Done'

selectionMenu.rightBarButtonTitle = "Submit"



// left barbutton title - Default is 'Cancel'

selectionMenu.leftBarButtonTitle = "Close"

```



#### SearchBar

- Set Placeholder, Tint Color

```swift

// show searchbar with placeholder and barTintColor

selectionMenu.showSearchBar(withPlaceHolder: "Search Player", barTintColor: UIColor.lightGray.withAlphaComponent(0.2)) { [weak self] (searchText) -> ([String]) in



    return self?.dataArray.filter({ $0.lowercased().starts(with: searchText.lowercased()) }) ?? []

}

```



### Example

See [Example](https://github.com/rushisangani/RSSelectionMenu/tree/master/RSSelectionMenuExample) for more details.



## License



RSSelectionMenu is released under the MIT license. [See LICENSE](https://github.com/rushisangani/RSSelectionMenu/blob/master/LICENSE) for details.
