https://github.com/sanand0/smartart

A lightweight, responsive CSS library for creating smart-art. Pure CSS implementation with no JavaScript dependencies.
https://github.com/sanand0/smartart

library

Last synced: 9 months ago
JSON representation

A lightweight, responsive CSS library for creating smart-art. Pure CSS implementation with no JavaScript dependencies.

• Host: GitHub
• URL: https://github.com/sanand0/smartart
• Owner: sanand0
• License: mit
• Created: 2025-07-29T11:42:24.000Z (11 months ago)
• Default Branch: main
• Last Pushed: 2025-08-12T06:46:18.000Z (11 months ago)
• Last Synced: 2025-08-30T13:54:54.416Z (10 months ago)
• Topics: library
• Language: CSS
• Homepage: https://sanand0.github.io/smartart/
• Size: 886 KB
• Stars: 1
• Watchers: 0
• Forks: 1
• Open Issues: 1
• Metadata Files:
  • Readme: README.md
  • License: LICENSE

Awesome Lists containing this project

README


# Smart Art CSS Library

[![npm version](https://img.shields.io/npm/v/smartart.svg)](https://www.npmjs.com/package/smartart)

[![license](https://img.shields.io/npm/l/smartart.svg)](https://github.com/sanand0/smartart/blob/main/LICENSE)

A lightweight, responsive CSS library for creating smart-art. Pure CSS implementation with no JavaScript dependencies.

::hr{.border-muted}

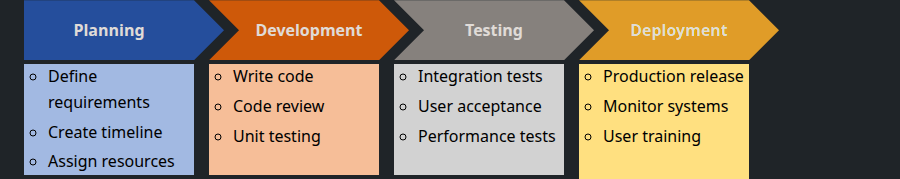

## Chevron

Process flows showing sequential elements. **[Read Chevron Docs »](chevron.md)**

[![Chevron Example](https://raw.githubusercontent.com/sanand0/smartart/main/docs/chevron-builtin-theme.webp)](chevron.md)

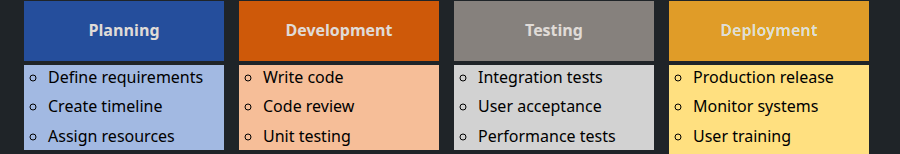

## Column

Lists of items with headers. **[Read Column Docs »](column.md)**

[![Column Example](https://raw.githubusercontent.com/sanand0/smartart/main/docs/column-builtin-theme.webp)](column.md)

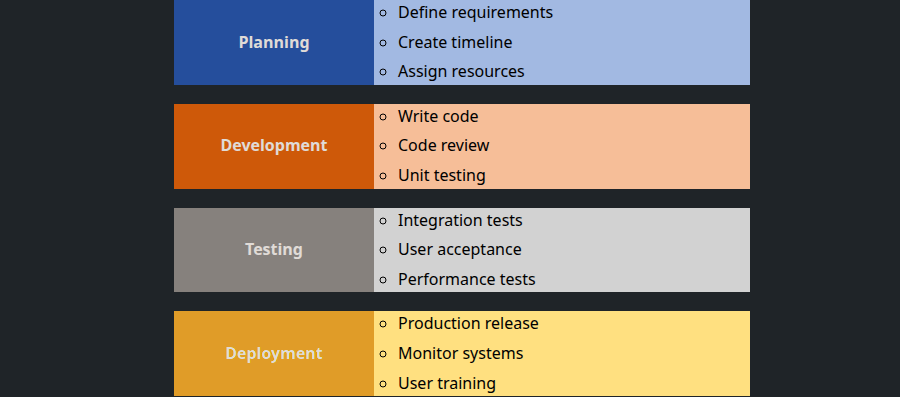

## Stack

Lists of items with headers, oriented horizontally. **[Read Stack Docs »](stack.md)**

[![Stack Example](https://raw.githubusercontent.com/sanand0/smartart/main/docs/stack-builtin-theme.webp)](stack.md)

## Themes

A dozen themes for a professional look. **[Read Themes Docs »](themes.md)**

[![Themes Example](https://raw.githubusercontent.com/sanand0/smartart/main/docs/chevron-builtin-theme.webp)](themes.md)

## Development

File structure:

- Component CSS are in /: `chevron.css`, `column.css`, `stack.css`, `themes.css`, ...

- Docs site: `index.html` (Docsify) and `script.js` (ESM renderer tweaks)

- Docs pages: `chevron.md`, `column.md`, `stack.md`, `themes.md`, ...; images in `docs/`

- Build output: `dist/` (minified `.min.css` bundles)

- Tests: `tests/*.spec.ts` and `tests/utils.ts` (Playwright)

- Tools: `screenshot.js` (generate `.webp` examples), `playwright.config.ts`

```bash

git clone https://github.com/sanand0/smartart.git

cd smartart

npm install

npm run lint # oxlint, prettier for JS/MD, HTML beautifier

npm run build # bundle + minify CSS into dist/ via esbuild

npm test # Playwright tests with local server

npm run screenshot # capture docs examples to docs/*.webp via Playwright

npm publish

git commit . -m"$COMMIT_MSG"; git tag $VERSION; git push --follow-tags

```

## Release notes

- [1.1.0](https://npmjs.com/package/smartart/v/1.1.0): 30 Jul 2025. Standardized package.json & README.md, switch to ESM

- [1.0.0](https://npmjs.com/package/smartart/v/1.0.0): 29 Jul 2025. Initial release

## License

[MIT](LICENSE)
