#stm32f401cdu6_Audio
stm32 green pill usb sound card
last one (press on image for video):

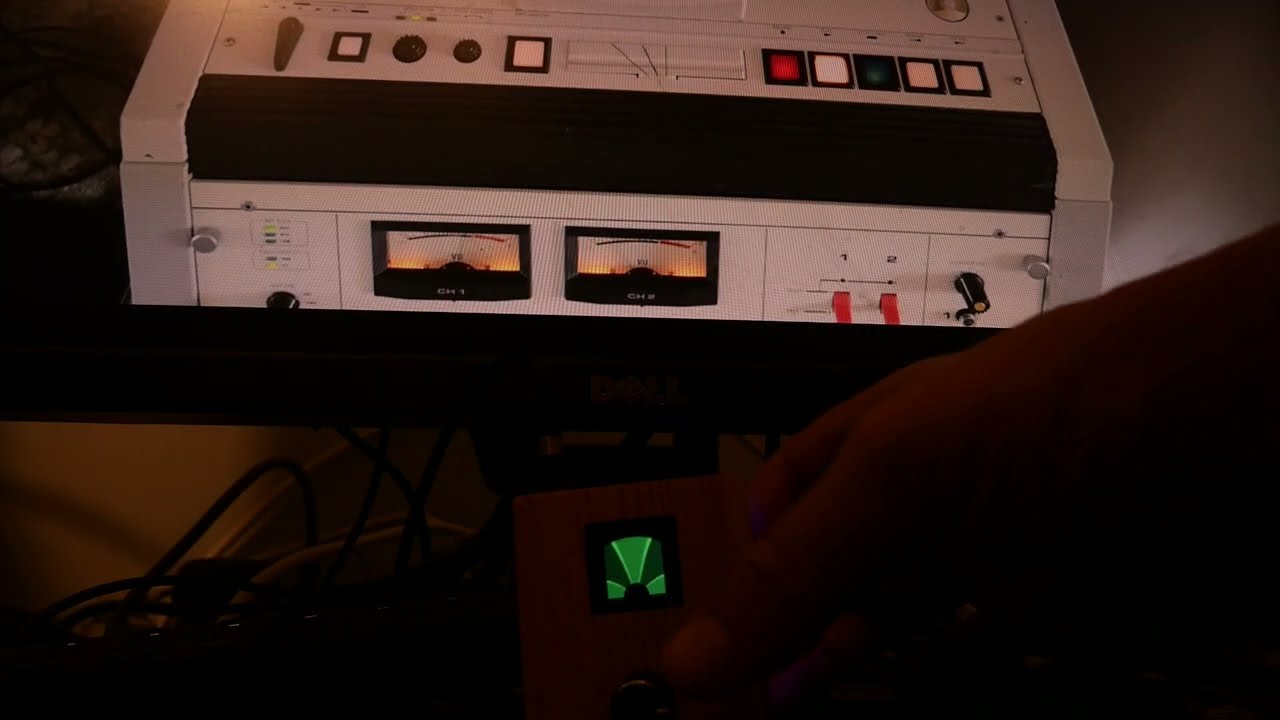

[](https://www.youtube.com/watch?v=8jB26_xrSuw)

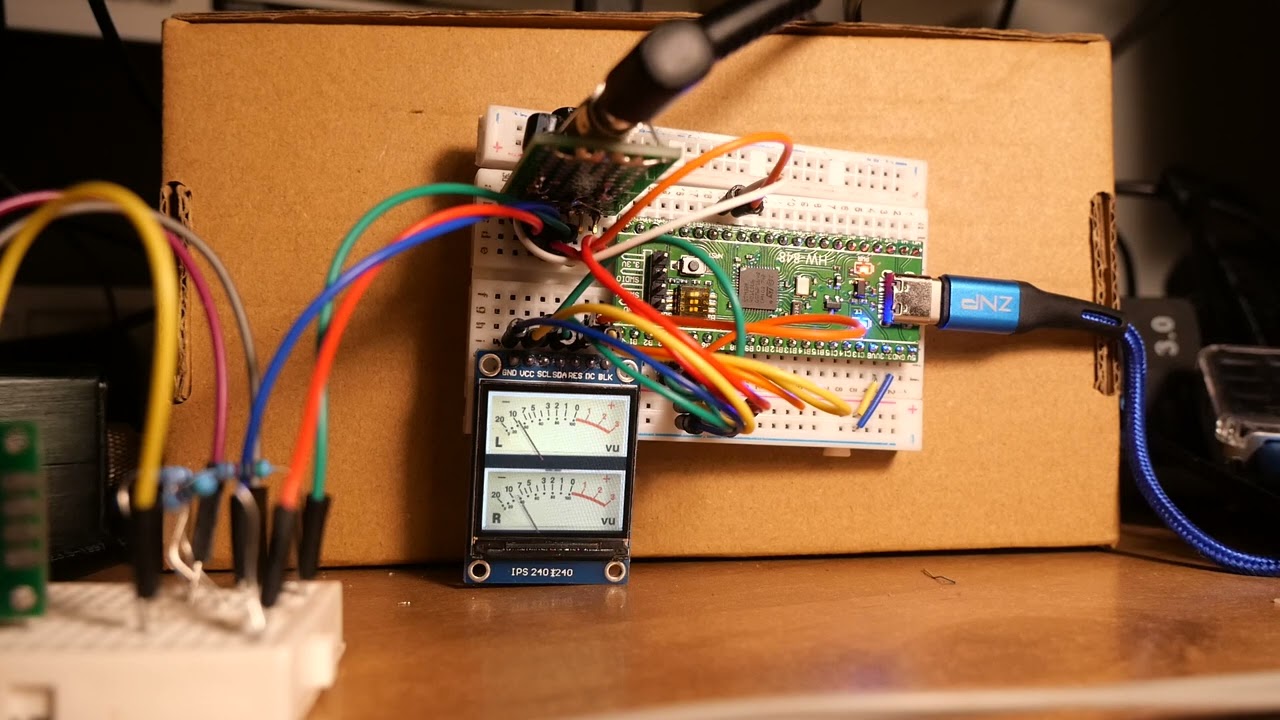

[](https://www.youtube.com/watch?v=KB1A08Pj6nc)
https://www.youtube.com/watch?v=0MmWp3HdV2A
https://www.youtube.com/watch?v=GbiTxVYopDI
https://www.youtube.com/watch?v=TnEBuS5ONsY
High quality, low noise DAC based on 2 PWM timer channels with virtual software Sigma Delta ADC between stream from usb and PWM output.
There is implemented "sigma-delta floating point encoder" workaround of native stm32f401 limit 10.5 bits on 44100 Hz (1904 levels=84MHz/44.1KHz )
So, we can have for only $3 ,very low noise , high sound quality solution, which better then most onboard sound cards !
There is implemented virtual software second order sigma delta adc for the shift quantization noise to high frequency.
see here (it [provide useful links too at the end of document):
https://www.analog.com/media/en/training-seminars/tutorials/MT-022.pdf
But instead one bit ( two levels ) i use more bits (0-MAX_LEVELS) Same technology can be used for esp32 high quality sound rendering.
14.04.2022 :
Added second order sigma-delta
number of LCD from zero to 2
minor bugs fixed
optional external i2s module
21.04.2022 :
-- Change to open drain timer1 PWM outputs( PA8 PA9 ) config for better noise supression.
27.04.2022
-- pll bug fix
-- up pwm freq to 384KHz - significant sound quality improvment
-- add tty output
30.04.2022
-- cheeper!!! green pill (stm32f401cdu6)version. Can buy here ( US $2.63 ) https://www.aliexpress.com/item/4001062944589.html
02.05.2022
-- detected problems with new STM32Cube_FW_F4_V1.27.0 audio driver. please build with <=STM32Cube_FW_F4_V1.26.0 . WIP
26.06.2022
-- add spdif output via i2s data pin
