# ZiggySynth

ZiggySynth is a SoundFont MIDI synthesizer written in pure Zig, ported from [MeltySynth for C#](https://github.com/sinshu/meltysynth).

## Features

* Suitable for both real-time and offline synthesis.

* Support for standard MIDI files.

* No dependencies other than the standard library.

* All the functionality is in [a single file](src/ziggysynth.zig).

## Installation

* Zig v0.13.x is required.

* Copy [ziggysynth.zig](src/ziggysynth.zig) to your project.

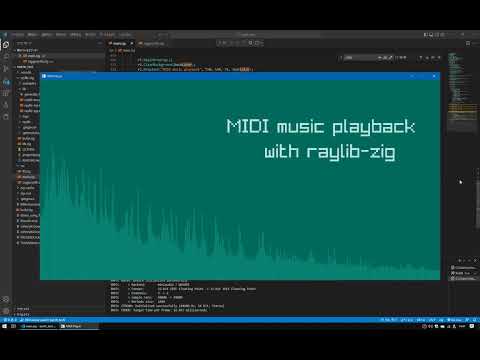

## Demo

https://www.youtube.com/watch?v=GQj3tF8OdPw

[![Youtube video](https://img.youtube.com/vi/GQj3tF8OdPw/0.jpg)](https://www.youtube.com/watch?v=GQj3tF8OdPw)

## Examples

Some useful aliases:

```zig

const ziggysynth = @import("ziggysynth.zig");

const SoundFont = ziggysynth.SoundFont;

const Synthesizer = ziggysynth.Synthesizer;

const SynthesizerSettings = ziggysynth.SynthesizerSettings;

const MidiFile = ziggysynth.MidiFile;

const MidiFileSequencer = ziggysynth.MidiFileSequencer;

```

An example code to synthesize a simple chord:

```zig

// Load the SoundFont.

var sf2 = try fs.cwd().openFile("TimGM6mb.sf2", .{});

defer sf2.close();

var sound_font = try SoundFont.init(allocator, sf2.reader());

defer sound_font.deinit();

// Create the synthesizer.

var settings = SynthesizerSettings.init(44100);

var synthesizer = try Synthesizer.init(allocator, &sound_font, &settings);

defer synthesizer.deinit();

// Play some notes (middle C, E, G).

synthesizer.noteOn(0, 60, 100);

synthesizer.noteOn(0, 64, 100);

synthesizer.noteOn(0, 67, 100);

// The output buffer (3 seconds).

const sample_count: usize = @intCast(3 * settings.sample_rate);

var left: []f32 = try allocator.alloc(f32, sample_count);

defer allocator.free(left);

var right: []f32 = try allocator.alloc(f32, sample_count);

defer allocator.free(right);

// Render the waveform.

synthesizer.render(left, right);

```

Another example code to synthesize a MIDI file:

```zig

// Load the SoundFont.

var sf2 = try fs.cwd().openFile("TimGM6mb.sf2", .{});

defer sf2.close();

var sound_font = try SoundFont.init(allocator, sf2.reader());

defer sound_font.deinit();

// Create the synthesizer.

var settings = SynthesizerSettings.init(44100);

var synthesizer = try Synthesizer.init(allocator, &sound_font, &settings);

defer synthesizer.deinit();

// Load the MIDI file.

var mid = try fs.cwd().openFile("flourish.mid", .{});

defer mid.close();

var midi_file = try MidiFile.init(allocator, mid.reader());

defer midi_file.deinit();

// Create the sequencer.

var sequencer = MidiFileSequencer.init(&synthesizer);

// Play the MIDI file.

sequencer.play(&midi_file, false);

// The output buffer.

const sample_count = @as(f64, @floatFromInt(settings.sample_rate)) * midi_file.getLength();

var left: []f32 = try allocator.alloc(f32, @intFromFloat(sample_count));

defer allocator.free(left);

var right: []f32 = try allocator.alloc(f32, @intFromFloat(sample_count));

defer allocator.free(right);

// Render the waveform.

sequencer.render(left, right);

```

## Todo

* __Wave synthesis__

    - [x] SoundFont reader

    - [x] Waveform generator

    - [x] Envelope generator

    - [x] Low-pass filter

    - [x] Vibrato LFO

    - [x] Modulation LFO

* __MIDI message processing__

    - [x] Note on/off

    - [x] Bank selection

    - [x] Modulation

    - [x] Volume control

    - [x] Pan

    - [x] Expression

    - [x] Hold pedal

    - [x] Program change

    - [x] Pitch bend

    - [x] Tuning

* __Effects__

    - [x] Reverb

    - [x] Chorus

* __Other things__

    - [x] Standard MIDI file support

    - [x] Performace optimization

## License

ZiggySynth is available under [the MIT license](LICENSE.txt).
