# Using the RaspiCam interface on Raspberry Pi 4 for computer vision and compiling with Cinder (C++) and OpenCV

This tutorial is based on the open-sourced art work [Extension du Vide](https://www.mariejuliebourgeois.fr/projets/extension-du-vide/) developed for French artist [Marie-Julie Bourgeois](https://www.mariejuliebourgeois.fr).



![Extension du Vide](https://www.mariejuliebourgeois.fr/wp-content/uploads/2021/10/EDV5.png)



### Why a Pi?

Why use a Pi board, for something that could easily run on a Mac mini with a lot less hassle? Raspberry Pi's are much cheaper, much lighter, much smaller, much less energy-consuming, all things that make them the platform of choice for interactive installations when their processing power will be enough… and OpenGL ES3 will do what you need it to do.



### Then why a RaspiCam?

The Raspberry Pi built-in camera interface is efficient, well documented and avoids the USB bus which is a plus on the hardware level of things as well as on the software side of things.



### Limitations!

When speaking of OpenGL ES3, do keep in mind that it bears limits, compared with the standard version. Make sure you read through the limitations before you embark on a "Pi-OpenGL" journey. And be sure to check out what can be done with shaders — limited to their V100 brew as well.



## Required devices



* a "Pi" board: [Raspberry Pi 4 Model B (with at least 4Gb of RAM)](https://www.raspberrypi.com/products/raspberry-pi-4-model-b/)

* a micro SD card of 8Gb minimum

* a power outlet for the Raspberry Pi

* a "RaspiCam", preferably infrared-enhanced because they work better in low light conditions: [Raspberry Pi Camera Module 2 NoIR](https://www.raspberrypi.com/products/pi-noir-camera-v2/)

* a video projector with a resolution of at least 1024 × 576px



## Raspbian OS setup



Start by installing Raspbian OS in its Buster flavor (version 10) and **not** in its latest release. Follow the link: https://www.raspberrypi.com/software/ to download the "Raspberry Pi Imager". When selecting the right version, obviously prefer the GUI-enabled version, you'll need to be able display something in the end.



Then update & upgrade packages with the `apt-get` command:



```

sudo apt-get update

sudo apt-get upgrade

```



## OpenCV 3.2 install



`sudo apt-get install libopencv-dev`



OpenCV must be installed in version 3.2.0 for this program: don't try and install the latest!



That's all there is to it: if this works fine then you've got OpenCV running on your machine, almost for free. Yay.



## RaspiCam setup



What's called a RaspiCam is a webcam that uses the special camera interface on the Pi board. It's a very appropriate kind of device when you need to create a Computer Vision enabled installation with the Pi.



### Plug & play

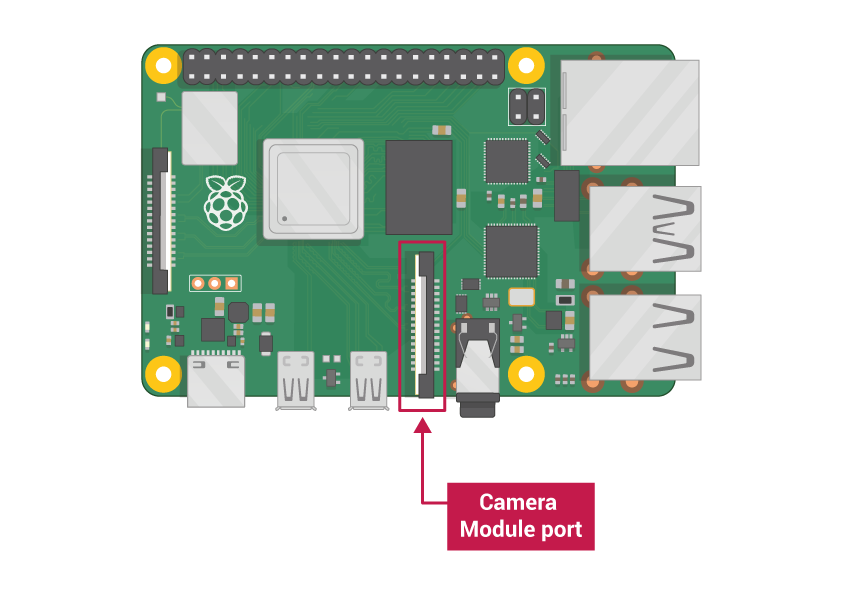

*image from [Camera setup on Raspberry Pi 4](https://medium.com/geekculture/camera-setup-on-raspberry-pi-4-912e7d415cdf)* \

![Pi4 camera port](https://miro.medium.com/max/1400/1*xriFCyDMv-I4zmae08o-WA.png)



Start by **allowing the use of the special camera interface on the Pi**. To do so via the Terminal, type `sudo raspi-config` and then choose Interfaces, Camera, and say that you want it enabled. Via the GUI open the raspberry menu, choose Preferences, Interfaces, Camera and click on the "enabled" radio button. You will need to `sudo reboot` in order for these changes to take effect.



If you want to learn more about the official Pi camera and its use, follow the [official RaspiCam guide](https://projects.raspberrypi.org/en/projects/getting-started-with-picamera/1).



### Use with C++



A research group specialized in AI and computer vision has created a very [neat library that lets us use the RaspiCam in a C++ project](http://www.uco.es/investiga/grupos/ava/node/40), with or without involving OpenCV.



Start by installing Cmake with `sudo apt-get install cmake`.



Start by downloading the code that you will need to compile from [their SourceForge repository](https://sourceforge.net/projects/raspicam/files/?).



Unzip that file to a folder in your Pi's Documents folder (well that's actually up to you), fire up a Terminal window, navigate to that newly created folder with `cd ~/Documents/your_complicated_path_to_raspicam` and then `mkdir build && cd build && cmake ..`.



If that all worked, you're ready to compile the raspicam lib. Go for it:



```

make

sudo make install

sudo ldconfig

```



Finally, [update the lib path](https://raspberrypi.stackexchange.com/questions/24394/raspicam-c-api-mmal-linking):



`export LIBRARY_PATH=/opt/vc/lib`



**Please note that to simply run an app that was previously compiled on a specific Pi (i.e. your dev Pi) and copy-pasted to a new Pi (i.e. your target, production Pi), that’s all that needs to be installed on that new Pi.**



Jump to the [App autostart](#appautostart) section below to keep going after copying your app folder on the production Pi's desktop.



## Cinder



Cinder is a creative coding framework made in C++: it does what [Processing](https://processing.org/) does, but faster and using less resources. It is similar to [OpenFrameworks](https://openframeworks.cc/), but better consolidated and packaged, more professional.



### Installing Cinder on the Pi



Let's not get into the details of what line comes from what comment, but the following apt-get installs, target details and cmake file updates come from these four links:

* [LibCinder docs](https://libcinder.org/docs/branch/master/guides/linux-notes/rpi3.html)

* [LibCinder discourse](https://discourse.libcinder.org/t/running-on-a-rapberry-pi-4-solved/1595/2)

* [Github](https://github.com/go-vgo/robotgo/issues/19)

* [StackOverflow](https://stackoverflow.com/questions/61953106/compilation-fail-with-stdfilesystem-on-raspberry?noredirect=1&lq=1)



Let's start by installing cmake:



`sudo apt-get install cmake`



And then libs that will be linked when building Cinder:



```

sudo apt-get install libxcursor-dev \

libgles2-mesa-dev \

zlib1g-dev \

libfontconfig1-dev \

libmpg123-dev \

libsndfile1 \

libsndfile1-dev \

libpulse-dev \

libasound2-dev \

libcurl4-gnutls-dev \

libgstreamer1.0-dev \

libgstreamer-plugins-bad1.0-dev \

libgstreamer-plugins-base1.0-dev \

gstreamer1.0-libav \

gstreamer1.0-alsa \

gstreamer1.0-pulseaudio \

gstreamer1.0-plugins-bad \

libboost-filesystem-dev

```



```

sudo apt install libxrandr-dev \

libxinerama-dev \

libxi-dev

```



```

sudo apt-get install xcb libxcb-xkb-dev x11-xkb-utils libx11-xcb-dev libxkbcommon-x11-dev

sudo apt-get install libxtst-dev

```



You're now ready to clone Cinder and build it, using the right flag to only target OpenGL ES3 in order to fit with the Pi:



```

git clone --recursive https://github.com/cinder/Cinder.git

cd Cinder

mkdir build && cd build

cmake .. -DCINDER_TARGET_GL=es3-rpi

make -j 3

```



You're done compiling Cinder? Time to use it. Let' head to the `/samples`.



In order to compile the samples without a system path error, change line 136 in the `proj/cmake/modules/cinderMakeApp.cmake` file by adding the `-lstdc++fs` flag to notify the Linker it should use that file system lib:



`target_link_libraries( ${ARG_APP_NAME} PUBLIC cinder ${ARG_LIBRARIES} -lstdc++fs )`



As of now, Cinder's samples should compile: try the Cinder/samples/BasicApp using its CMake setup:



```

cd Cinder/samples/BasicApp/proj/cmake && mkdir build && cd build

cmake .. -DCINDER_TARGET_GL=es3-rpi

make

./Debug/BasicApp/BasicApp

```

Got a window where you can draw with your mouse? It works!



![BasicApp screen print](https://dash.files.user.io/f/project/cKAALj3XihJ3KDZKY/basicapp-screenprint.png?show&v2)



### Using OpenCV and a RaspiCam from within a Cinder-based app



#### The CMake side of things

Easiest way to start a Cinder project on Raspbian Linux is to duplicate the `Cinder/samples/BasicApp` folder. Do that and name it whichever way you want (here we'll call it `your_folder_name`). Then CMake the project and manually add links to the compilation routine in order to include OpenCV and RaspiCam to the package:



`mkdir build && cd build` \

`cmake .. -DCINDER_TARGET_GL=es3-rpi`



When that's done, open the `your_folder_name/proj/cmake/build/CMakeFiles/BasicApp.dir/link.txt` file and at the end of the line, after `-ldl -lpthread` :



add the following links: \

`-lraspicam -lraspicam_cv -lopencv_core -lopencv_imgcodecs -lopencv_imgproc`



Then:



`make && ./Debug/BasicApp/BasicApp`



It works again! Definitely give yourself a high five 🙌 or even a hug 🤗.



#### The OpenCV side of things

In order to be able to use the `cv::Mat` images produced by OpenCV from within a Cinder app, you need to snatch the Cinder method `fromOcv()` and its encapsulating class from [CinderOpenCV.h](https://github.com/cinder/Cinder-OpenCV/blob/master/include/CinderOpenCV.h):



```

class ImageSourceCvMat : public ImageSource {

  public:

	ImageSourceCvMat( const cv::Mat &mat )

		: ImageSource()

	{

		mWidth = mat.cols;

		mHeight = mat.rows;

		if( (mat.channels() == 3) || (mat.channels() == 4) ) {

			setColorModel( ImageIo::CM_RGB );

			if( mat.channels() == 4 )

				setChannelOrder( ImageIo::BGRA );

			else

				setChannelOrder( ImageIo::BGR );

		}

		else if( mat.channels() == 1 ) {

			setColorModel( ImageIo::CM_GRAY );

			setChannelOrder( ImageIo::Y );

		}



		switch( mat.depth() ) {

			case CV_8U: setDataType( ImageIo::UINT8 ); break;

			case CV_16U: setDataType( ImageIo::UINT16 ); break;

			case CV_32F: setDataType( ImageIo::FLOAT32 ); break;

			default:

				throw ImageIoExceptionIllegalDataType();

		}



		mRowBytes = mat.step;

		mData = reinterpret_cast( mat.data );

	}



	void load( ImageTargetRef target ) {

		// get a pointer to the ImageSource function appropriate for handling our data configuration

		ImageSource::RowFunc func = setupRowFunc( target );



		const uint8_t *data = mData;

		for( int32_t row = 0; row < mHeight; ++row ) {

			((*this).*func)( target, row, data );

			data += mRowBytes;

		}

	}



	const uint8_t		*mData;

	int32_t				mRowBytes;

};



inline ImageSourceRef fromOcv( cv::Mat &mat )

{

	return ImageSourceRef( new ImageSourceCvMat( mat ) );

}

```





## App autostart



To run art pieces in art spaces where you're not sitting all day to monitor power cuts, you'd better create an autostart routine. Good thing that the Pi is built for that: it doesn't have a start button, it just starts as soon as it gets the right kind of electricity flowing in it veins.



Start by installing a window controller app: `sudo apt-get install wmctrl`.



Then create a first shell script with `nano ~/Desktop/startup.sh`, type the following and save:



```

#!/bin/sh

echo your_folder_name

cd /home/pi/Desktop/your_folder_name

sleep 5

./BasicApp

```



Don't forget to make that shell script executable with `sudo chmod +x ~/Desktop/startup.sh`.



Create a second script with `nano ~/Desktop/focus.sh`, type the following and save:



```

#!/bin/sh

sleep 10

wmctrl -R BasicApp

```



Again, make that executable with `sudo chmod +x ~/Desktop/focus.sh`.



Finally create/open the autostart routine file with `sudo nano /etc/xdg/lxsession/LXDE-pi/autostart` and type and save:



```

@lxpanel —profile LXDE-pi

@pxmanfm —desktop —profile LXDE-pi

@xscreensaver -no-splash

/home/pi/Desktop/startup.sh

/home/pi/Desktop/focus.sh

```



You're all set, ready to `sudo reboot` and give it a shot.



*Post scriptum: again, if you're planning on "permanently" running your app on a different Pi than your dev Pi (i.e. a production Pi) make sure to copy-paste the compiled BasicApp and copy-paste the resources folder and the assets folder **right besides** that compiled BasicApp. Once pasted on the new Pi, make the BasicApp executable with `sudo chmod +x ~/Desktop/your_folder_name/BasicApp`.*
