README
SparkFun AP3429A Buck Regulator Breakouts
========================================

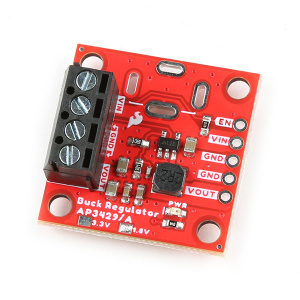

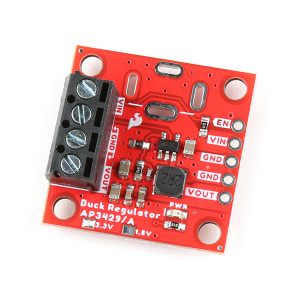

| [3.3V Buck Regulator (COM-21337)](https://www.sparkfun.com/products/21337) | [1.8V Buck Regulator (COM-21338)](https://www.sparkfun.com/products/21338) |
| --- | --- |
| [](https://www.sparkfun.com/products/21337) | [](https://www.sparkfun.com/products/21338) |
These buck regulator boards feature the AP3429A from [Diodes Inc.](https://www.diodes.com/), a 2A DC-DC buck converter with a wide input voltage range of 2.7V to 5.5V. The boards are configured to provide a regulated **3.3V** or **1.8V** output, which is controlled by an `EN` *(enable)* pin and indicated by a red power LED. A pre-assembled screw terminal and 0.1" spaced PTH pins are available to connect the input and output power of the boards. Additionally, there is the option to solder on a [barrel jack](https://www.sparkfun.com/products/119) for an [external power supply](https://www.sparkfun.com/categories/308). To dissipate excess heat, a copper pad is provided to attach a heat sink to the bottom of the board.
*The primary differences between these boards are their regulated output voltage (**1.8V** and **3.3V**) and the configured UVLO (**2.7V** and **3.9V**, respectively).*
Repository Contents
-------------------
* **[/docs](/docs/)** - Online documentation files
* [board_files](/docs/board_files/) - Files for the product design
* [Eagle design files](/docs/board_files/eagle_files.zip) (.zip)
* [Schematic](/docs/board_files/schematic.pdf) (.pdf)
* [Dimensions](/docs/board_files/dimensions.pdf) (.pdf)
* [component_documentation](/docs/component_documentation/) - Datasheets for hardware components
* [img/hookup_guide/](/docs/img/hookup_guide/) - Images for hookup guide documentation
* **[/Hardware](/Hardware/)** - Eagle design files (.brd, .sch)
Documentation
--------------
* **[Hookup Guide (mkdocs)](http://docs.sparkfun.com/SparkFun_Buck_Regulator_AP3429A/)** - Hookup Guide for the AP3429A Buck Regulator Breakouts
Product Variants
----------------
* **AP63357** - 5V Buck Regulators
* COM-21255: [SparkFun Buck Regulator Breakout - 5V (AP63357DV)](https://www.sparkfun.com/products/21255)
* COM-21256: [SparkFun BabyBuck Regulator Breakout - 5V (AP63357DV)](https://www.sparkfun.com/products/21256)
* **AP63203** - 3.3V Buck Regulators
* COM-18356: [SparkFun Buck Regulator Breakout - 3.3V (AP63203)](https://www.sparkfun.com/products/18356)
* COM-18357: [SparkFun BabyBuck Regulator Breakout - 3.3V (AP63203)](https://www.sparkfun.com/products/18357)
* **AP3429A** - 3.3V & 1.8V Buck Regulators
* COM-21337: [SparkFun Buck Regulator Breakout - 3.3V (AP3429A)](https://www.sparkfun.com/products/21337)
* COM-21338: [SparkFun Buck Regulator Breakout - 1.8V (AP3429A)](https://www.sparkfun.com/products/21338)
Version History
---------------
* [v01](https://github.com/sparkfun/SparkFun_Buck_Regulator_AP3429A/releases/tag/v01) - Initial Release
License Information
-------------------
This product is _**open source**_!
Please review the LICENSE.md file for license information.
If you have any questions or concerns about licensing, please contact technical support on our [SparkFun forums](https://forum.sparkfun.com/viewforum.php?f=152).
Distributed as-is; no warranty is given.
- Your friends at SparkFun.
