SparkFun Human Presence and Motion Sensor - STHS34PF80
========================================

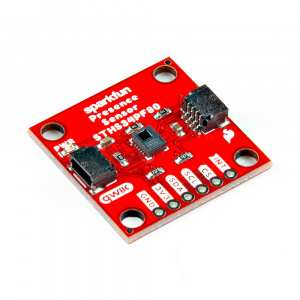

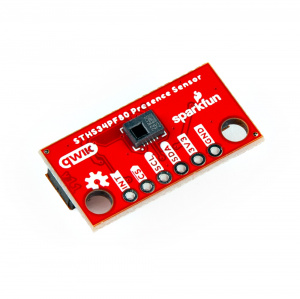

| [SparkFun Human Presence and Motion Sensor - STHS34PF80 (Qwiic) *(SEN-22494)*](https://www.sparkfun.com/products/22494) | [SparkFun Qwiic Mini Human Presence and Motion Sensor - STHS34PF80 *(SEN-23253)*](https://www.sparkfun.com/products/23253) |
| --- | --- |
| [](https://www.sparkfun.com/products/22494) | [](https://www.sparkfun.com/products/23253) |
The STHS34PF80 sensor, from [ST Microelectronics](https://www.st.com/), is designed to measure the precise [black-body radiation](https://en.wikipedia.org/wiki/Black-body_radiation) *(as described by [Plank's law](https://en.wikipedia.org/wiki/Planck%27s_law))* of an object; as well as monitor ambient temperature conditions within its 80° field of view. The sensor is composed of a matrix of floating vacuum thermal transistors MOS split into two parts, one exposed to IR radiation and the other one shielded. The differential reading between the segments, allows the sensor to remove self-heating effects. The STHS34PF80 also incorporates algorithms to detect and discriminate between stationary and moving objects. These features enable the sensor to work as a human presence and motion sensor in different applications such as alarm systems, anti-intruder systems, smart lighting, and room occupancy.
The sensor can operate in multiple lighting conditions and is unaffected by visible light or other bands thanks to the 5 to 20µm optical band-pass filter. The STHS34PF80 has an output data rates between 0.25 to 30 Hz and an available single-shot, which are accessed through its I²C/SPI interface.
*These products are available in both the standard 1"x1" and mini Qwiic breakout boards. The mini is panel mount compatible for use in enclosures.*
Repository Contents
-------------------
* **[/docs](/docs/)** - Online documentation files
* [assets](/docs/assets/) - Assets files
* [board_files](/docs/assets/board_files/) - Files for the product design
* [Eagle design files](/docs/assets/board_files/eagle_files.zip) (.zip)
* [Schematic](/docs/assets/board_files/schematic.pdf) (.pdf)
* [Dimensions](/docs/assets/board_files/dimensions.pdf) (.pdf)
* [component_documentation](/docs/assets/component_documentation/) - Datasheets for hardware components
* [img/hookup_guide/](/docs/assets/img/hookup_guide/) - Images for hookup guide documentation
* **[/Hardware](/Hardware/)** - Eagle design files (.brd, .sch)
* **[/1U](/Hardware/1U/)** - 1"x1" Form Factor
* **[/Production](/Hardware/1U/Production/)** - Production files
* **[/Mini](/Hardware/Mini/)** - Mini Form Factor
* **[/Production](/Hardware/Mini/Production/)** - Production files
Documentation
--------------
* **[Hookup Guide (mkdocs)](http://docs.sparkfun.com/SparkFun_Qwiic_Human_Presence_Sensor-STHS34PF80/)** - Hookup guide for the mosaic-X5 GNSS Breakout hosted by GitHub pages.
* [Arduino Library](https://github.com/sparkfun/SparkFun_STHS34PF80_Arduino_Library/tree/main)
*Need to download or print our hookup guide?*
* [Print *(Print to PDF)* from Single-Page View](http://docs.sparkfun.com/SparkFun_Qwiic_Human_Presence_Sensor-STHS34PF80/print_view)
Product Variants
----------------
* [SEN-22494](https://www.sparkfun.com/products/22494)- v1.0, Initial Release *(1"x1" Form Factor)*
* [SEN-23253](https://www.sparkfun.com/products/23253)- v1.0, Initial Release *(Mini Form Factor)*
Version History
---------------
* [v10](https://github.com/sparkfun/SparkFun_Qwiic_Human_Presence_Sensor-STHS34PF80/releases/tag/v10) - Initial Release
License Information
-------------------
This product is ***open source***!
Please review the [`LICENSE.md`](./LICENSE.md) file for license information.
If you have any questions or concerns about licensing, please contact technical support on our [SparkFun forums](https://forum.sparkfun.com/viewforum.php?f=152).
Distributed as-is; no warranty is given.
- Your friends at SparkFun.
