# SgOgl
[](https://app.codacy.com/app/stwe/SgOgl?utm_source=github.com&utm_medium=referral&utm_content=stwe/SgOgl&utm_campaign=Badge_Grade_Dashboard)

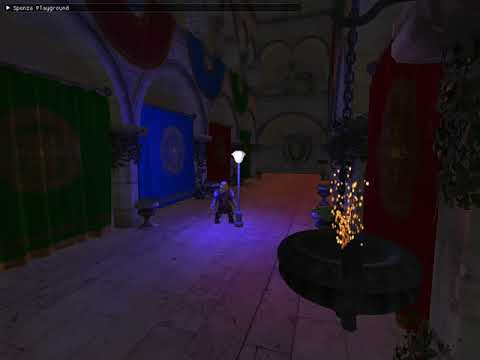

[](http://www.youtube.com/watch?v=LKAUq4dDoZE "SgOgl Sponza Playground with an animated model.")
***
1. [What is does](#1-what-is-does)
2. [Installing](#2-installing)
3. [Features](#3-features)
4. [Getting started](#4-getting-started)
5. [Create scene objects with Lua](#5-create-scene-objects-with-lua)
***
## 1. What it does
A GameEngine library for OpenGL developed for educational purposes - a hobby project that I program in my free time.
The original goal was only to create a large terrain with a kind of LOD technique. Over time, elements have been added that can be found in GameEngines. But of course there is still a lot missing to create a real game with this library. However, a scene with appealing lighting can be created in just a few steps. Models can be loaded and a beautiful water surface can be generated. To keep things as simple as possible, all game objects can be configured with Lua.
**You just have to:**
* Create an `Application` and a `State` class.
* Use a Lua file for the description of all the scene objects (Models, Cameras, Lights etc), which is then loaded with our `State` class.
There are some examples in the Sandbox:
[Start example](https://github.com/stwe/SgOgl/blob/master/Sandbox/res/scene/start.lua)
[Sponza Scene](https://github.com/stwe/SgOgl/blob/master/Sandbox/res/scene/sponza.lua)
[Water](https://github.com/stwe/SgOgl/blob/master/Sandbox/res/scene/water.lua)
[Terrain](https://github.com/stwe/SgOgl/blob/master/Sandbox/res/scene/terrain.lua)
[Particles](https://github.com/stwe/SgOgl/blob/master/Sandbox/res/scene/particles.lua)
## 2. Installing
#### Vs2019 && Premake
First: Use the Conan Package Manager to install the thirdparty libraries. The project already includes a `conanfile.txt`.
It is important that `premake` is specified as a generator in this file.
```txt
#conanfile.txt
# ...
[generators]
premake
```
For a release build:
```bash
conan install . -s build_type=Release
```
Or when need to debug:
```bash
conan install . -s build_type=Debug
```
After that use Premake5 and the `premake5.lua` file to create the project files.
```bash
premake5 vs2019
```
#### Gcc && CMake
I work with Win10 and MinGW and have created two new Conan profiles.
```txt
# debug_gcc
[settings]
os=Windows
os_build=Windows
arch=x86_64
arch_build=x86_64
compiler=gcc
compiler.version=9.3
compiler.libcxx=libstdc++11
build_type=Debug
[options]
[build_requires]
[env]
```
```txt
# release_gcc
[settings]
os=Windows
os_build=Windows
arch=x86_64
arch_build=x86_64
compiler=gcc
compiler.version=9.3
compiler.libcxx=libstdc++11
build_type=Release
[options]
[build_requires]
[env]
```
CLion users can now, for example, assign the Conan profiles to the CLion profiles.
The Conan plugin does the rest. Before that the generator has to be changed.
```txt
#conanfile.txt
# ...
[generators]
cmake
```
***It may be necessary to compile the packages. Do this with `--build missing`.***
## 3. Features
- Configuration of the scene and all entities with Lua
- Entity component system from [EnTT](https://github.com/skypjack/entt)
- Deferred rendering / Forward rendering
- Advanced Terrain rendering (Quadtree and Tessellation, 16-bit Heightmaps)
- Water rendering
- Gui rendering
- Skydome / Skybox
- Particle systems
- Instanced rendering
- Mouse picking
- Model file loading
- Animations loading
- Different camera types (Third person, First person)
- Different light types (Ambient, Point, Directional)
- Normal mapping
## 4. Getting started
The project already contains a Sandbox and it is a good idea to start with it.
If you want to create it yourself, do this as follows:
We need to create a class that inherits from `sg::ogl::Application`. Here we call this class `Sandbox`.
The header `SgOgl.h` must be included.
```cpp
// File: Sandbox.cpp
#include "SgOgl.h"
class Sandbox final : public sg::ogl::Application
{
public:
Sandbox() = delete;
explicit Sandbox(const std::string& t_configFileName)
: Application{ t_configFileName }
{
}
protected:
void RegisterStates() override
{
// ...
}
void Init() override
{
// ...
}
private:
};
```
Next, a game state must be created. The class is named `GameState` and inherits from `sg::ogl::state::State`.
```cpp
// File: GameState.h
#pragma once
#include "SgOgl.h"
class GameState : public sg::ogl::state::State
{
public:
using LuaScriptUniquePtr = std::unique_ptr;
GameState() = delete;
explicit GameState(sg::ogl::state::StateStack* t_stateStack)
: State{ t_stateStack, "GameState" }
{
Init();
}
bool Input() override;
bool Update(double t_dt) override;
void Render() override;
protected:
private:
LuaScriptUniquePtr m_luaScript;
void Init();
};
```
The cpp file contains nothing special so far.
```cpp
// File: GameState.cpp
#include "GameState.h"
bool GameState::Input()
{
return true;
}
bool GameState::Update(const double t_dt)
{
return true;
}
void GameState::Render()
{
}
void GameState::Init()
{
}
```
The newly created game state must be registered. This is done by the `Sandbox` class in the `RegisterStates()` function.
In addition, the game state must be pushed to the state stack. We do this in the `Init()` function of the `Sandbox` class.
The `RegisterStates()` and `Init()` functions are called later before the game loop.
```cpp
// File: Sandbox.cpp
#include "SgOgl.h"
#include "GameState.h"
class Sandbox final : public sg::ogl::Application
{
public:
// ...
protected:
void RegisterStates() override
{
GetStateStack().RegisterState(sg::ogl::state::GAME);
}
void Init() override
{
GetStateStack().PushState(sg::ogl::state::GAME);
}
private:
};
```
The `main()` function of the lib calls `sg::ogl::create_application()` to create an `sg::ogl::Application`.
In our case, an instance of the `Sandbox` class should be created.
In the `Sandbox` class, the header `SgOglEntryPoint.h` must be included as well.
```cpp
// File: Sandbox.cpp
#include "SgOgl.h"
#include "SgOglEntryPoint.h"
#include "GameState.h"
class Sandbox final : public sg::ogl::Application
{
public:
// ...
protected:
// ...
private:
};
std::unique_ptr sg::ogl::create_application()
{
return std::make_unique("res/config/Config.lua");
}
```
We can see that the constructor of the `Application` class or `Sandbox` class takes the path to a config lua-file as an argument.
The config file can look like this.
The `libResFolder` option contains the full path to the library's built-in assets.
```lua
-- File: Config.lua
libResFolder = "E:/Dev/SgOgl/SgOglLib/res"
window = {
title = "Sandbox",
compatibleProfile = false,
debugContext = true,
antialiasing = true,
printFrameRate = true,
glMajor = 4,
glMinor = 3,
fps = 60.0
}
projection = {
fovDeg = 70.0,
width = 1024,
height = 768,
near = 0.1,
far = 10000.0
}
```
## 5. Create scene objects with Lua
Here is an example:
```lua
------------------
-- Create Scene --
------------------
scene = Scene.new(applicationContext)
-----------------------------
-- Create and add Renderer --
-----------------------------
-- forward with skybox
SkyboxRenderer.new(4, scene)
SunRenderer.new(3, scene)
ForwardRenderer.new(2, scene)
SkeletalModelRenderer.new(1, scene)
GuiRenderer.new(0, scene)
TextRenderer.new(0, scene, "res/font/calibri.ttf")
-- deferred with skybox
--[[
DeferredRenderer.new(3, scene)
SkyboxRenderer.new(2, scene)
SunRenderer.new(1, scene)
GuiRenderer.new(0, scene)
]]
-- forward with skydome
--[[
SkydomeRenderer.new(4, scene)
SunRenderer.new(3, scene)
ForwardRenderer.new(2, scene)
SkeletalModelRenderer.new(1, scene)
GuiRenderer.new(0, scene)
]]
-- deferred with skydome
--[[
DeferredRenderer.new(3, scene)
SkydomeRenderer.new(2, scene)
SunRenderer.new(1, scene)
GuiRenderer.new(0, scene)
TextRenderer.new(0, scene, "res/font/calibri.ttf")
]]
----------------------------
-- Create and add Cameras --
----------------------------
firstPersonCamera = FirstPersonCamera.new("first_person_camera1", applicationContext, Vec3.new(-375.0, 313.0, -417.0), -147.0, -16.0, scene)
firstPersonCamera:SetCameraVelocity(128.0)
firstPersonCamera:SetMouseSensitivity(0.025)
--print(firstPersonCamera:GetCameraVelocity())
--print(firstPersonCamera:GetMouseSensitivity())
thirdPersonCamera = ThirdPersonCamera.new("third_person_camera1", applicationContext, Vec3.new(1334.0, 820.0, 227.0), scene)
thirdPersonCamera:SetPlayerRotationY(45.0)
--print(thirdPersonCamera:GetPlayerRotationY())
------------------
-- Config Scene --
------------------
scene:SetCurrentCamera("first_person_camera1")
--scene:SetCurrentCamera("third_person_camera1")
scene:SetAmbientIntensity(Vec3.new(0.2, 0.2, 0.2))
--------------------
-- Load resources --
--------------------
plane = modelManager:GetModel("res/primitive/plane1/plane1.obj")
sphere = modelManager:GetModel("res/primitive/sphere/sphere.obj")
dome = modelManager:GetModel("res/model/Dome/dome.obj")
lamp = modelManager:GetModel("res/model/Streetlamp/streetlamp.obj")
jade = modelManager:GetMaterialByName("jade")
gold = modelManager:GetMaterialByName("gold")
sunTextureId = textureManager:LoadTexture("res/sun/sun.png")
foodGuiId = textureManager:LoadTexture("res/gui/foodIcon.png")
healthGuiId = textureManager:LoadTexture("res/gui/healthIcon.png")
hero = modelManager:GetSkeletalModel("res/model/CastleGuard01/Idle.dae")
a = {}
a[1] = "res/skybox/sky1/sRight.png"
a[2] = "res/skybox/sky1/sLeft.png"
a[3] = "res/skybox/sky1/sUp.png"
a[4] = "res/skybox/sky1/sDown.png"
a[5] = "res/skybox/sky1/sBack.png"
a[6] = "res/skybox/sky1/sFront.png"
skyboxCubemapId = textureManager:GetCubemapId(a)
---------------------
-- Create Entities --
---------------------
-- plane
planeEntity = ecs:CreateEntity()
ecs:AddModelComponent(planeEntity, plane, false)
ecs:AddTransformComponent(planeEntity, Vec3.new(0.0, 150.0, 0.0), Vec3.new(0.0, 0.0, 0.0), Vec3.new(5000.0, 1.0, 5000.0))
-- hero
heroEntity = ecs:CreateEntity()
ecs:AddSkeletalModelComponent(heroEntity, hero, false)
ecs:AddTransformComponent(heroEntity, Vec3.new(-500.0, 150.0, -500.0), Vec3.new(0.0, 0.0, 0.0), Vec3.new(1.0, 1.0, 1.0))
-- sphere
sphereEntity = ecs:CreateEntity()
ecs:AddModelComponent(sphereEntity, sphere, false)
ecs:AddTransformComponent(sphereEntity, Vec3.new(0.0, 240.0, 380.0), Vec3.new(0.0, 0.0, 0.0), Vec3.new(4.0, 4.0, 4.0))
ecs:AddMaterialComponent(sphereEntity, gold)
-- skydome
skydomeEntity = ecs:CreateEntity()
ecs:AddModelComponent(skydomeEntity, dome, false)
ecs:AddTransformComponent(skydomeEntity, Vec3.new(0.0, 0.0, 0.0), Vec3.new(0.0, 0.0, 0.0), Vec3.new(5000.0, 5000.0, 5000.0))
ecs:AddSkydomeComponent(skydomeEntity, "skydome")
-- a point light
plightEntity0 = ecs:CreateEntity()
ecs:AddPointLightComponent(plightEntity0,
Vec3.new(30.0, 240.0, 657.0), -- position
Vec3.new(0.2, 0.2, 0.2), -- ambientIntensity
Vec3.new(10.0, 1.0, 1.0), -- diffuseIntensity
Vec3.new(1.0, 1.0, 1.0), -- specularIntensity
1.0, 0.0014, 0.000007 -- constant, linear, quadratic
)
ecs:AddUpdateComponent(plightEntity0, "UpdatePointLight")
-- another point light
plightEntity1 = ecs:CreateEntity()
ecs:AddPointLightComponent(plightEntity1,
Vec3.new(204.0, 240.0, -319.0), -- position
Vec3.new(0.2, 0.2, 0.2), -- ambientIntensity
Vec3.new(1.0, 1.0, 10.0), -- diffuseIntensity
Vec3.new(1.0, 1.0, 1.0), -- specularIntensity
1.0, 0.0014, 0.000007 -- constant, linear, quadratic
)
ecs:AddUpdateComponent(plightEntity1, "UpdatePointLight")
-- the sun
--[[
dlightEntity = ecs:CreateEntity()
ecs:AddDirectionalLightComponent(dlightEntity,
Vec3.new(1.0, -0.2, -0.4), -- direction
Vec3.new(1.0, 0.8, 0.6), -- diffuseIntensity
Vec3.new(1.0, 0.8, 0.6) -- specularIntensity
)
]]
sunEntity = ecs:CreateEntity()
ecs:AddSunComponent(sunEntity,
Vec3.new(1.0, -0.2, -0.4), -- direction
Vec3.new(1.0, 0.8, 0.6), -- diffuseIntensity
Vec3.new(1.0, 0.8, 0.6), -- specularIntensity
sunTextureId,
10.0
)
-- skybox
skyboxEntity = ecs:CreateEntity()
ecs:AddCubemapComponent(skyboxEntity, skyboxCubemapId)
-- gui
foodEntity = ecs:CreateEntity()
ecs:AddGuiComponent(foodEntity, foodGuiId)
ecs:AddTransformComponent(foodEntity, Vec3.new(0.9, 0.9, 0.0), Vec3.new(0.0, 0.0, 0.0), Vec3.new(0.031, 0.031, 1.0))
-- another gui
healthEntity = ecs:CreateEntity()
ecs:AddGuiComponent(healthEntity, healthGuiId)
ecs:AddTransformComponent(healthEntity, Vec3.new(0.9, 0.8, 0.0), Vec3.new(0.0, 0.0, 0.0), Vec3.new(0.031, 0.031, 1.0))
-- point light with model
plightModelEntity = ecs:CreateEntity()
ecs:AddModelComponent(plightModelEntity, lamp, false)
ecs:AddTransformComponent(plightModelEntity, Vec3.new(-1400.0, 150.0, 11.0), Vec3.new(0.0, 0.0, 0.0), Vec3.new(40.0, 40.0, 40.0))
ecs:AddPointLightComponent(plightModelEntity,
Vec3.new(-1400.0, 400.0, 11.0), -- position
Vec3.new(0.2, 0.2, 0.2), -- ambientIntensity
Vec3.new(1.0, 1.0, 10.0), -- diffuseIntensity
Vec3.new(1.0, 1.0, 1.0), -- specularIntensity
1.0, 0.0014, 0.000007 -- constant, linear, quadratic
)
-- text
textEntity0 = ecs:CreateEntity()
ecs:AddTextComponent(textEntity0, "SgOgl Test", 40.0, 750.0, 0.35, Vec3.new(0.1, 0.2, 0.2))
textEntity1 = ecs:CreateEntity()
ecs:AddTextComponent(textEntity1, "Version: dev-master", 40.0, 730.0, 0.35, Vec3.new(0.1, 0.2, 0.2))
---------------
-- Functions --
---------------
val = 0.0
function UpdatePointLight(entity, dt)
val = val + dt
p = ecs:GetPointLightComponent(entity)
p.position.x = p.position.x + (math.sin(val) * 4.0)
end
```
In our GameState now a `LuaScript` object has to be created. The script creates a Scene object that can be reached via `GetApplicationContext()->currentScene`.
```cpp
// File: GameState.cpp
bool GameState::Input()
{
if (GetApplicationContext()->currentScene)
{
GetApplicationContext()->currentScene->Input();
}
return true;
}
bool GameState::Update(const double t_dt)
{
if (GetApplicationContext()->currentScene)
{
GetApplicationContext()->currentScene->Update(t_dt);
}
return true;
}
void GameState::Render()
{
if (GetApplicationContext()->currentScene)
{
GetApplicationContext()->currentScene->Render();
}
RenderImGui();
}
void GameState::Init()
{
// ...
m_luaScript = std::make_unique(GetApplicationContext(), "res/scene/start.lua");
}
```
