  Lattice AI




  AI Workspace OS for local-first graph, memory, agents, workflows, skills, and timelines.






[![PyPI](https://img.shields.io/pypi/v/ltcai?label=PyPI&color=blue)](https://pypi.org/project/ltcai/)

[![PyPI Downloads](https://img.shields.io/pypi/dm/ltcai?label=PyPI%20downloads)](https://pypi.org/project/ltcai/)

[![npm](https://img.shields.io/npm/v/ltcai?label=npm)](https://www.npmjs.com/package/ltcai)

[![VS Code](https://vsmarketplacebadges.dev/version-short/parktaesoo.ltcai.svg)](https://marketplace.visualstudio.com/items?itemName=parktaesoo.ltcai)

[![Open VSX](https://img.shields.io/open-vsx/v/parktaesoo/ltcai?label=Open%20VSX)](https://open-vsx.org/extension/parktaesoo/ltcai)

[![CI](https://github.com/TaeSooPark-PTS/LatticeAI/actions/workflows/ci.yml/badge.svg)](https://github.com/TaeSooPark-PTS/LatticeAI/actions/workflows/ci.yml)

[![License: MIT](https://img.shields.io/badge/License-MIT-green)](./LICENSE)

[![Python 3.11+](https://img.shields.io/badge/python-3.11+-blue)](https://www.python.org/)

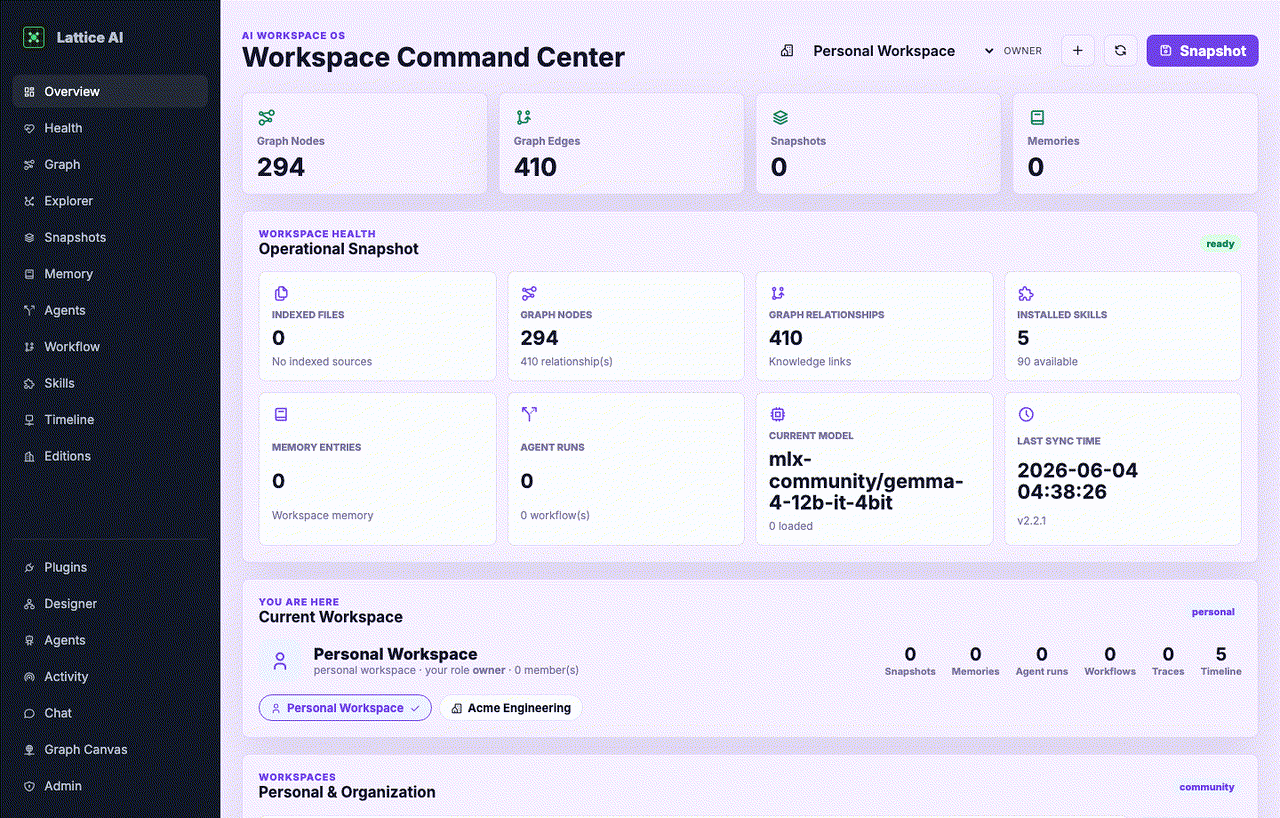

  Lattice AI demo showing chat, knowledge graph, and admin dashboard




---



## What is Lattice AI?



Most AI tools answer one chat at a time. They do not remember your folders, your project history, your previous decisions, or how your files relate to each other.



**Lattice AI turns your local workspace into an AI Workspace OS.**



It reads approved local folders, indexes chats and documents, builds a searchable knowledge graph, and connects the graph to snapshots, personal memory, agent runs, workflow history, skills, and an auditable timeline.



```text

Local files + chats + folders

          ↓

Automatic knowledge graph

          ↓

Graph-aware chat, snapshots, memory, agents, workflows, skills, and timeline

```



### New in 1.4.0: Server App Final Decomposition



- **server_app.py final decomposition** — the app shell is now FastAPI assembly,

  lifespan, middleware, static mounting, and router wiring only

  (~5,381 → 1,303 lines)

- **Chat / model / tools extraction** — chat/history/agent, model runtime and

  provider helpers, tools, local files, computer-use, permissions, upload,

  garden/setup/static UI, MCP, and KG glue now live in API routers and services

- **AppContext and dependency cleanup** — routers receive explicit dependencies

  and do not import the FastAPI app; service modules own runtime and dispatch

  business logic

- **Safety validation suite** — route compatibility, import/startup, streaming,

  model endpoint, tools/local/CU, release-artifact, and documentation stale

  checks guard the split

- **Compatibility preserved** — all public API paths, request/response schemas,

  `server:app`, CLI, UI, Knowledge Graph, Admin/Security, Workspace OS, and

  VS Code expectations remain unchanged



### New in 1.2.0: Server App Modularization



- **server_app.py modularized** — Workspace/Organization and health/engine

  endpoints extracted into dedicated routers (`latticeai/api/*`) backed by a

  service layer (`latticeai/services/*`); `server_app` is now app assembly +

  router include (~6,585 → ~5,948 lines)

- **Routers / services split** — `create_workspace_router`,

  `create_health_router`, `WorkspaceService`, `ModelService`, `ChatService`

- **Workspace API service layer** — scope resolution and role/permission checks

  centralized in `WorkspaceService`

- **Workspace / org guardrails** — non-members can't read/write org data,

  viewers can't write, owners/admins manage members; no-auth local owner

  fallback preserved

- **Health / model / chat modularization** — `/health`, `/mode`,

  `/runtime_features`, `/engines` via the health router; chat trace recording

  via the chat service (streaming behavior unchanged)

- **Compatibility preserved** — `server:app` import path, all API routes, CLI,

  Knowledge Graph / Admin / Security routers, and VS Code integration unchanged



### New in 1.1.0: Organization Workspace Foundation



- **Organization Workspace** alongside Personal Workspace — create shared org

  workspaces, list/switch between them, and archive (non-destructively)

- **Workspace roles & permissions** — `owner`, `admin`, `member`, `viewer`

  mapped to read / write / manage-members / manage-workspace

- **Workspace-scoped data** — snapshots, memory, agent runs, workflows, traces,

  and timeline carry a `workspace_id`; reads scope via the `X-Workspace-Id` header

- **CI / release hardening** — Node.js 24 ready workflow, version-scoped

  artifact upload (never `dist/*`), and a release artifact validator

- **Enterprise extension foundation (open-core)** — a stable seam for a future

  Enterprise plugin; Community ships everything it has today, unrestricted

  (see [docs/ENTERPRISE.md](docs/ENTERPRISE.md) and

  [docs/EDITION_STRATEGY.md](docs/EDITION_STRATEGY.md))



### New in 1.0.0: AI Workspace OS



- Workspace OS command center at `/workspace`

- First-run onboarding state API and UI

- Graph RAG answer traces with sources, nodes, edges, confidence, and jump links

- Local indexing dashboard with watcher state, success/failure counts, pause/resume/remove

- Workspace snapshots, Time Machine views, export, and Knowledge Diff

- Personal memory CRUD/search linked back to the graph

- Multi-agent graph entities and agent run history

- Relationship Explorer for inbound, outbound, related entities, and shortest path

- Local Computer Memory remains OFF by default and requires explicit approval

- Skill Marketplace registry with install, uninstall, update, enable, disable, and version state

- Workflow Graph for upload -> summarize -> generate -> export style work histories

- VS Code commands for Explain Selection, Refactor Selection, Generate Tests, Send To Lattice, and Ask About Current File



### Built for people who want



- a private AI workspace that runs from their own machine

- local model setup without hunting through many tools

- folder indexing that becomes useful AI memory

- a visual knowledge graph instead of disconnected files and chats

- optional team/admin controls for audit, permissions, and sensitive-data monitoring



---



## Quick Start



### Python / PyPI



```bash

pip install ltcai

LTCAI

# open http://localhost:4825

```



### Apple Silicon local models



```bash

pip install "ltcai[local]"

LTCAI

```



### Node / npm



```bash

npm install -g ltcai

LTCAI

```



### VS Code / Cursor



1. Install **Lattice AI** from the [VS Code Marketplace](https://marketplace.visualstudio.com/items?itemName=parktaesoo.ltcai) or [Open VSX](https://open-vsx.org/extension/parktaesoo/ltcai)

2. Start the local server with `LTCAI`

3. Press `Cmd+Shift+A` to open the chat panel



**First run:** create an account -> the first account becomes admin -> open `/workspace` -> complete onboarding -> choose a model -> connect folders -> start asking questions.



---



## The 3-minute workflow



```text

1. Install

   pip install ltcai && LTCAI



2. Detect hardware

   CPU, GPU, RAM are detected and a suitable local model is recommended.



3. Connect folders

   Pick the local folders you want Lattice AI to index.



4. Build knowledge

   Files and chats become nodes and edges in a local knowledge graph.



5. Ask questions

   “What did I decide about the auth migration last week?”



6. Keep working

   Use the same local knowledge from the web UI, VS Code, Telegram, or MCP clients.

```



---



## Product Preview

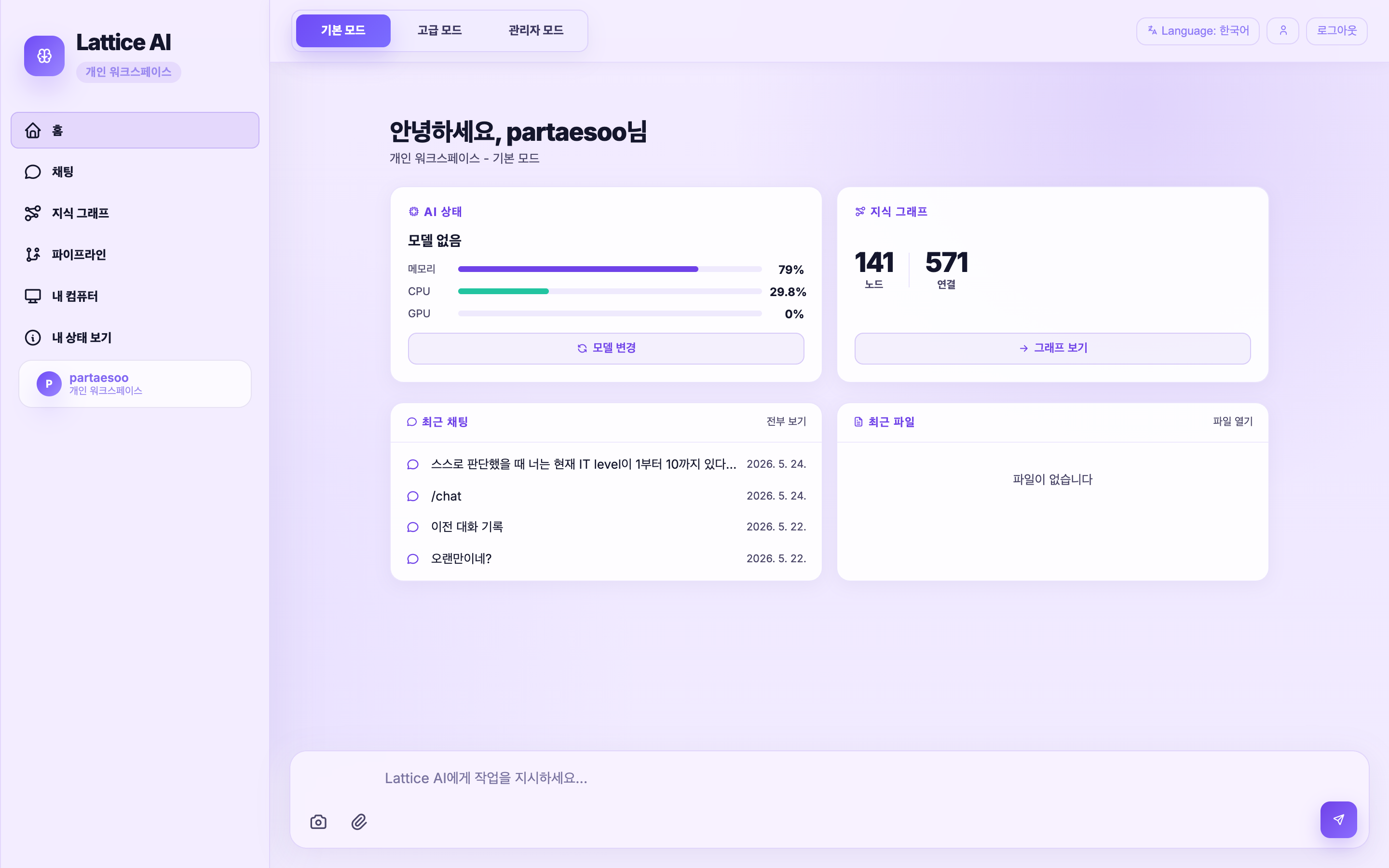

  Workspace Chat


  Lattice AI workspace chat

  Chat with local/cloud models, upload files, and control pipelines.

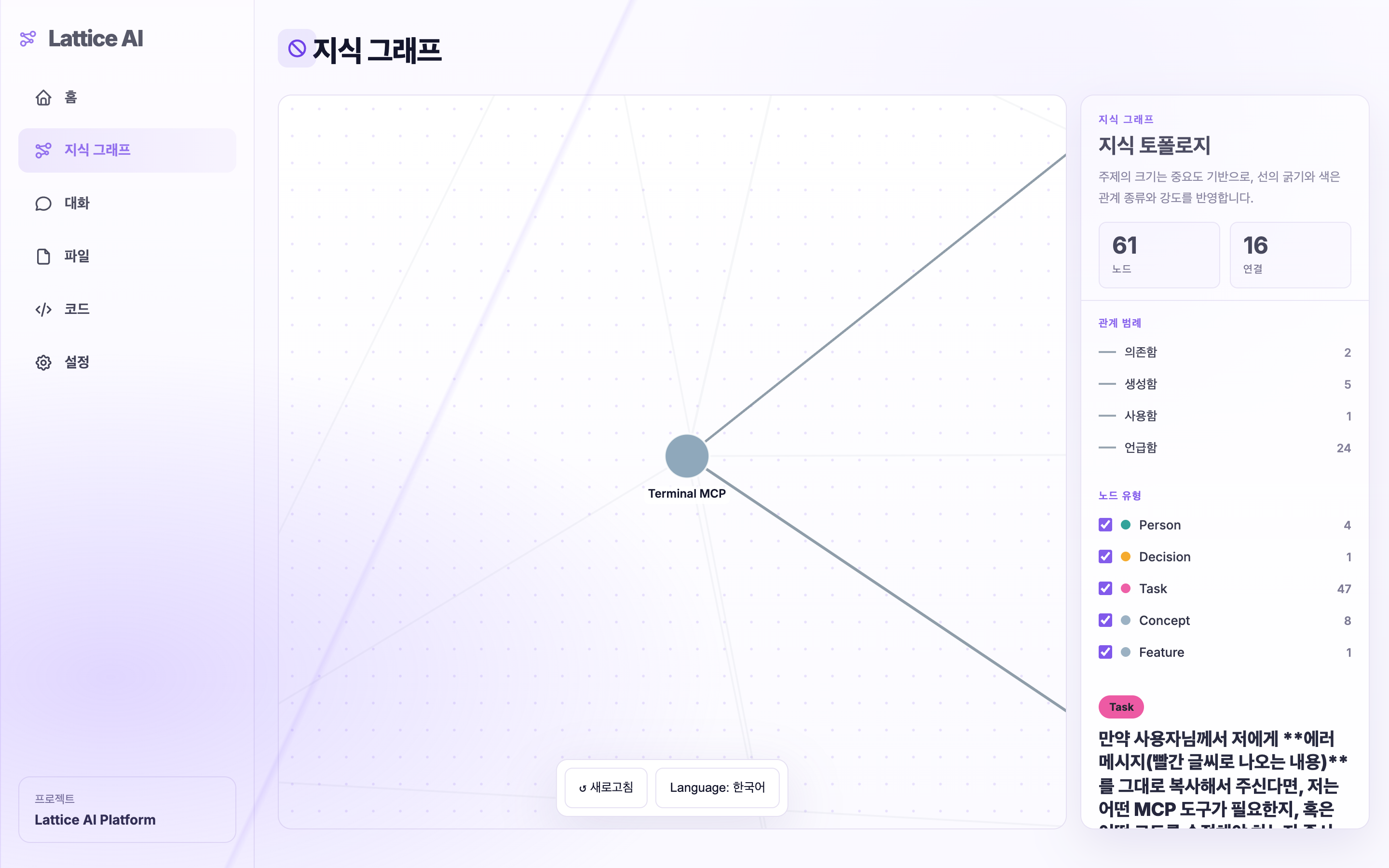

  Knowledge Graph


  Lattice AI knowledge graph

  Automatically built from chats, files, folders, and project context.

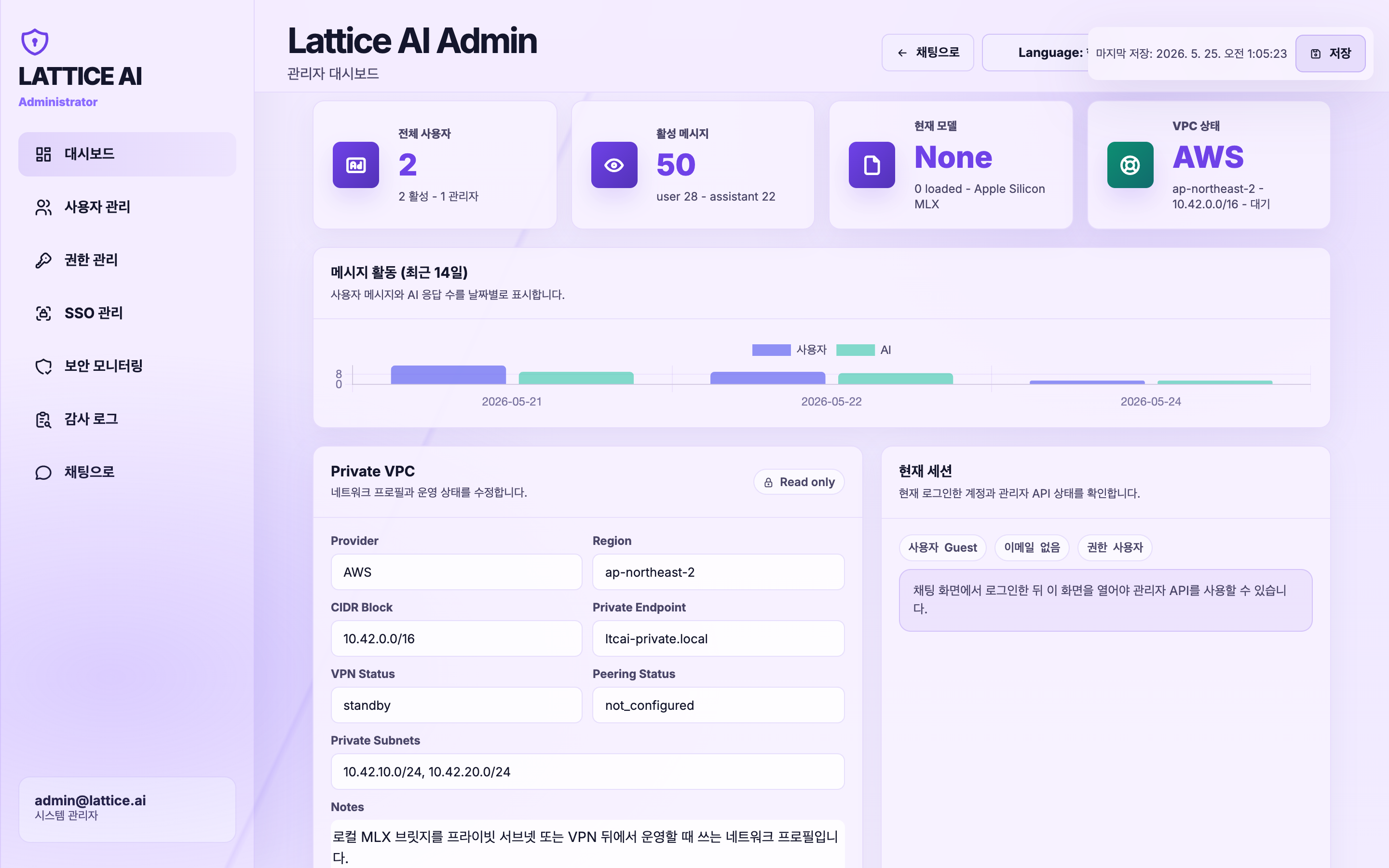

  Admin Dashboard


  Lattice AI admin dashboard

  User management, audit logs, permissions, and security monitoring.



---



## Why it is different



| Problem | Lattice AI approach |

|---|---|

| AI forgets every conversation | Chats and files are indexed into persistent local memory |

| Files are scattered across folders | Approved folders become searchable graph context |

| Local model setup is confusing | Hardware detection recommends and loads a suitable model |

| Graph tools require manual node editing | Nodes and edges are created automatically from real work |

| Cloud AI may expose private data | Local models keep data on your machine; cloud is opt-in |

| Teams need visibility | Admin dashboard, audit logs, role controls, and sensitive-data monitoring |



---



## Core Features



### Local-first AI workspace



- Web UI running from a local server

- Local SQLite storage under `~/.ltcai/`

- Local folder indexing with explicit approval

- File upload, chat history, graph search, and document generation

- Optional cloud providers when you choose to use them



### Automatic knowledge graph



Lattice AI turns your work into structure automatically.



**Nodes** can represent:



| Node type | Examples |

|---|---|

| Document | PDF, DOCX, PPTX, XLSX, Markdown, code files |

| Concept | technologies, project names, ideas, architecture topics |

| Person | you, teammates, mentioned people |

| Chat | previous conversations and sessions |

| Task | TODOs, action items, follow-ups |

| Decision | choices made during discussions |



**Edges** describe relationships such as:



`mentions` · `contains` · `depends on` · `explains` · `uses` · `replaces` · `supports` · `related to`



The graph is curated automatically: noisy tokens, file extensions, generic words, and hard secrets are filtered before promotion.



### Model loading that users can trust



Lattice AI keeps model identity consistent across recommendation, download, load, backend router state, and frontend display.



- unified model resolution

- local model smoke test after load

- `ok` / `degraded` / `failed` compatibility status

- per-family compatibility profiles for GPT-OSS, Gemma, Qwen, Llama, Mistral, Phi, Deepseek, and more

- fast post-processing path during normal chat

- recovery path only when output looks broken



### Admin and security command center



For team or organization usage, Lattice AI includes admin-facing controls:



- user management and roles

- permission approvals for local file access

- audit event timeline

- sensitive chat/file detection

- risk overview by user

- raw data explorer with hard-secret redaction

- export to JSON, CSV, XLSX, TXT, or PDF



Hard secrets such as API keys, tokens, passwords, private keys, and common cloud credentials are redacted from security responses.



---



## Supported Models



### Local on Apple Silicon MLX



| Model | Best for | Approx. size | Suggested RAM |

|---|---|---:|---:|

| Qwen3-VL 4B | Multimodal / low spec | ~2.7 GB | 8 GB |

| Qwen3-VL 8B | Multimodal / balanced | ~4.8 GB | 16 GB |

| GPT-OSS 20B | Reasoning / open-weight | ~12.1 GB | 32 GB |

| Gemma 4 26B | Multimodal / large | ~15.6 GB | 32 GB |

| Gemma 4 31B | Multimodal / latest Gemma 4 | ~18.4 GB | 48 GB |

| Qwen3-VL 30B A3B | Multimodal / top local | ~18 GB | 48 GB |

| GPT-OSS 120B | Large reasoning model | ~62.3 GB | 128 GB |

| Phi 4 Mini | Fast coding/general chat | ~2.2 GB | 8 GB |

| Llama 3.1 8B | General chat | ~4.7 GB | 8 GB |

| Mistral 7B v0.3 | General / Apache | ~4.1 GB | 8 GB |



### Cross-platform engines



Lattice AI can also work with models served by:



- Ollama

- LM Studio

- llama.cpp

- vLLM

- OpenAI-compatible local or remote endpoints



### Cloud providers



Cloud models are optional. When enabled, prompts are sent to the selected provider.



Supported routes include OpenAI-compatible APIs, OpenRouter, Groq, Together, xAI, and other compatible endpoints.



---



## Privacy and data storage



| Area | Default behavior |

|---|---|

| Storage | Data is stored locally under `~/.ltcai/` |

| Default binding | `127.0.0.1:4825` local server |

| Telemetry | No built-in product telemetry by default |

| Folder access | Explicit approval per folder/action scope |

| Sensitive files | `.env`, credentials, keys, certificates, and similar files are auto-excluded |

| Cloud models | Off unless configured; cloud prompts go to the selected provider |

| Delete controls | Remove chats, graph nodes, indexed folders, and local data |



---



## Comparison



| Capability | Lattice AI | Open WebUI | Continue.dev | GitHub Copilot |

|---|:---:|:---:|:---:|:---:|

| Local model workflow | Yes | Yes | Yes | No |

| Local folder indexing | Yes | Limited | Workspace-focused | Limited |

| Automatic knowledge graph | Yes | No | No | No |

| Chat + file memory | Yes | Partial | Partial | Partial |

| VS Code / Cursor extension | Yes | No | Yes | Yes |

| Admin dashboard | Yes | Yes | No | No |

| Security audit exports | Yes | Limited | No | No |

| Optional cloud models | Yes | Yes | Yes | Yes |

| Local-first by default | Yes | Self-hosted | Local/dev focused | No |



---



## Current release



**1.4.0** completes the Server App Final Decomposition release:



- `server.py` remains the thin compatibility entrypoint and

  `latticeai/server_app.py` is now a compact app assembly shell

- chat/history/agent, model runtime/provider helpers, tools/local/CU/

  permissions/upload, garden/setup/static pages, MCP, and KG router wiring are

  extracted into `latticeai/api/*` and `latticeai/services/*`

- route compatibility, streaming, model endpoint, tools/local/CU,

  import/startup, build, packaging, and documentation stale-reference checks

  are part of the release validation

- Python package, npm package, VS Code extension, FastAPI app, and `/health`

  version metadata are aligned at `1.4.0`



See the full [changelog](docs/CHANGELOG.md).



---



All Features



### Core experience



| Feature | Description |

|---|---|

| Web UI | Chat, file upload, model picker, graph view, admin pages |

| Auto setup wizard | Detect hardware, recommend model, install dependencies, verify load |

| Graph RAG | Retrieve context from indexed chats, files, and graph relationships |

| Local folder indexing | Browse, audit, approve, index, and optionally watch folders |

| Document generation | Use graph context to generate reports, summaries, and structured drafts |



### Developer tools



| Feature | Description |

|---|---|

| VS Code / Cursor | Chat panel, edit selection, explain code, generate code |

| Multi-step agent | File edit/create, grep, todo, and terminal workflow with human-in-the-loop |

| Multi-LLM pipeline | Plan, execute, and review with different models |

| MCP server | Expose Lattice tools to MCP-compatible clients |

| MCP registry | Install MCP servers from supported registries |

| Skills browser | Browse and install optional skills |

| Plugin browser | Browse compatible open-source plugins |



### Access and communication



| Feature | Description |

|---|---|

| Telegram bot | Chat, upload files, and manage models remotely |

| PWA | Install the web UI on mobile/tablet home screens |

| Public tunnel | `LTCAI --tunnel` for a temporary Cloudflare HTTPS URL |



### Administration



| Feature | Description |

|---|---|

| User management | Roles, permissions, account enable/disable |

| SSO | Entra ID / Okta OIDC configuration |

| Audit dashboard | AI usage, sensitive-data events, file access, exports |

| Security monitoring | Rate limits, approval logs, raw explorer, redaction |



Security



| Property | Detail |

|---|---|

| Binding | Default `127.0.0.1:4825` local only |

| Auth | Session required when network-exposed or public mode |

| Cookies | `HttpOnly + SameSite=Lax`; no localStorage token |

| Local file access | Approval-token gated by path, user, and action scope |

| Package install | Admin-only with audit trail for MCP, skills, pip, npm |

| CORS | Localhost only by default; configurable via `LATTICEAI_CORS_ALLOWED_ORIGINS` |

| File upload | Magic-number signature checks for extension spoofing defense |

| Rate limits | `/chat` 30/min · `/agent` 6/min · `/upload` 12/min per user |

| Telemetry | No built-in product telemetry by default |



Report vulnerabilities in [SECURITY.md](SECURITY.md).



Setup & Configuration



### VS Code shortcuts



| Shortcut | Action |

|---|---|

| `Cmd+Shift+A` | Open chat |

| `Cmd+Shift+E` | Edit selected code |

| `Cmd+Shift+M` | Load or switch model |

| Right-click | Explain / Save to Knowledge Garden |



### Telegram bot



```bash

LATTICEAI_TELEGRAM_BOT_TOKEN=your-token LTCAI

```



### Public server



```bash

LATTICEAI_MODE=public \

LATTICEAI_PUBLIC_MODEL=openai:gpt-4o-mini \

OPENAI_API_KEY=sk-... \

LATTICEAI_INVITE_CODE=my-secret \

LTCAI

```



### Public tunnel



```bash

LTCAI --tunnel

# → https://xxxx.trycloudflare.com

```



### Auto-start on macOS



```bash

cat > ~/Library/LaunchAgents/com.ltcai.plist << 'EOF'



  Labelcom.ltcai

  ProgramArguments/usr/local/bin/LTCAI

  RunAtLoad

  KeepAlive

  StandardOutPath/tmp/ltcai.log

  StandardErrorPath/tmp/ltcai.err



EOF

launchctl load ~/Library/LaunchAgents/com.ltcai.plist

```



API Reference



| Method | Path | Description |

|---|---|---|

| GET | `/health` | Server status and current model |

| GET | `/models` | Model list and load state |

| POST | `/models/load` | Load a model |

| POST | `/chat` | Chat with streaming or non-streaming output |

| POST | `/agent` | Multi-step file agent |

| GET | `/knowledge-graph/stats` | Graph statistics |

| GET | `/knowledge-graph/search?q=` | Search the knowledge graph |

| GET | `/knowledge-graph/local/roots` | Discover local drives and folders |

| POST | `/knowledge-graph/local/audit` | Audit a folder before indexing |

| POST | `/knowledge-graph/local/index` | Index a folder into Graph RAG |

| GET | `/mcp/installed` | Installed MCP servers |

| POST | `/mcp/install` | Install MCP server as admin |

| GET | `/skills/marketplace` | Skills marketplace |

| POST | `/skills/install` | Install a skill as admin |

| GET | `/admin/audit` | Audit report |

| GET | `/permissions/pending` | Pending file-access approvals |



Full reference: [docs/mcp-tools.md](docs/mcp-tools.md)



Troubleshooting



| Symptom | Fix |

|---|---|

| Port 4825 is already in use | `lsof -i :4825` then `kill `, or run `LTCAI --port 4826` |

| `ModuleNotFoundError: mlx` | Install local extras with `pip install "ltcai[local]"` on Apple Silicon |

| Python version is too old | Use Python 3.11 or newer |

| No API key warning | Set a provider key or use a local model |

| Cannot reach from iPad | Use `LATTICEAI_HOST=0.0.0.0 LTCAI` or `LTCAI --tunnel` |

| Model loads but chat looks broken | Check compatibility status; try another engine or model family |



---



## Platform Support



| Feature | macOS Apple Silicon | macOS Intel / Windows / Linux |

|---|:---:|:---:|

| Web UI + cloud models | Yes | Yes |

| VS Code / Cursor extension | Yes | Yes |

| Telegram bot | Yes | Yes |

| MLX local models | Yes | No |

| Ollama / LM Studio / vLLM / llama.cpp | Yes | Yes |



---



## Distribution



| Channel | Link |

|---|---|

| PyPI | [pypi.org/project/ltcai](https://pypi.org/project/ltcai/) |

| npm | [npmjs.com/package/ltcai](https://www.npmjs.com/package/ltcai) |

| VS Code Marketplace | [marketplace.visualstudio.com](https://marketplace.visualstudio.com/items?itemName=parktaesoo.ltcai) |

| Open VSX | [open-vsx.org](https://open-vsx.org/extension/parktaesoo/ltcai) |



---



## Contributing



See [CONTRIBUTING.md](CONTRIBUTING.md). Issues and pull requests are welcome.



## License



MIT — [TaeSoo Park](https://github.com/TaeSooPark-PTS)



---



한국어 안내 (Korean)



## Lattice AI



**내 PC의 파일, 대화, 폴더를 기억하고 연결하는 로컬 우선 AI 워크스페이스**



대부분의 AI 도구는 대화가 끝나면 맥락을 잊습니다. Lattice AI는 승인한 로컬 폴더와 대화를 인덱싱하고, 사람·프로젝트·개념·문서를 자동으로 지식 그래프로 연결합니다.



```text

로컬 파일 + 대화 + 폴더

        ↓

자동 지식 그래프

        ↓

그래프 기반 AI 검색, 채팅, 문서 생성, 관리자 감사

```



### 설치



```bash

pip install ltcai

LTCAI

# http://localhost:4825

```



Apple Silicon에서 로컬 모델까지 쓰려면:



```bash

pip install "ltcai[local]"

LTCAI

```



### 사용 흐름



```text

1. 설치한다.

2. CPU, GPU, RAM을 감지해서 적합한 로컬 모델을 추천받는다.

3. 연결할 로컬 폴더를 선택한다.

4. 파일과 대화가 자동으로 지식 그래프가 된다.

5. “지난주 인증 마이그레이션에서 결정한 게 뭐였지?”처럼 질문한다.

6. 같은 지식을 웹 UI, VS Code, Telegram, MCP에서 사용한다.

```



### 핵심 차별점



- **내 데이터가 AI의 기억이 됨** — 채팅과 파일을 자동으로 구조화

- **로컬 우선** — 기본 데이터는 `~/.ltcai/`에 저장

- **자동 그래프** — 사용자가 노드와 엣지를 직접 만들 필요 없음

- **모델 추천/로드 흐름** — 하드웨어 감지 후 적합한 모델 추천

- **선택형 클라우드** — 클라우드 모델은 사용자가 설정한 경우에만 사용

- **관리자/보안 기능** — 권한, 감사 로그, 민감정보 감지, export 지원



자세한 내용은 [docs/CHANGELOG.md](docs/CHANGELOG.md), [SECURITY.md](SECURITY.md), [CONTRIBUTING.md](CONTRIBUTING.md)를 참고하세요.
