# Trail
_School project built during the 168h "codecamp"._
## Goal
Create a painless web tail for containers based on logstash / fluentbit
See [the subject](./index.html) for further description.
## Usage
### Start the project
In order to bring the whole stack up:
```
docker-compose up -d
```
### Deploying agents
The ansible role `trail` will deploy a docker-enabled filebeat container with the required permissions (read capability on the docker socket and container directories).
An [example playbook](./playbook.yml) demonstrates a basic usage of this role. The `LOGSTASH_TARGET` is required, as it is used in the [filebeat config file](./roles/trail/templates/filebeat.yml.j2).
The `trail` role will:
1. Template the filebeat configuration in `/etc/filebeat.yml`
2. Ensure `pip` is available on the remote host
3. Ensure the python docker package is available on the remote host and install it if necessary
4. Run a container named `filebeat_agent` on the remote host
### Running the frontend
By running `docker-compose up -d`, you will have the api on your local port `3000` and the frontend on the port `8080`.

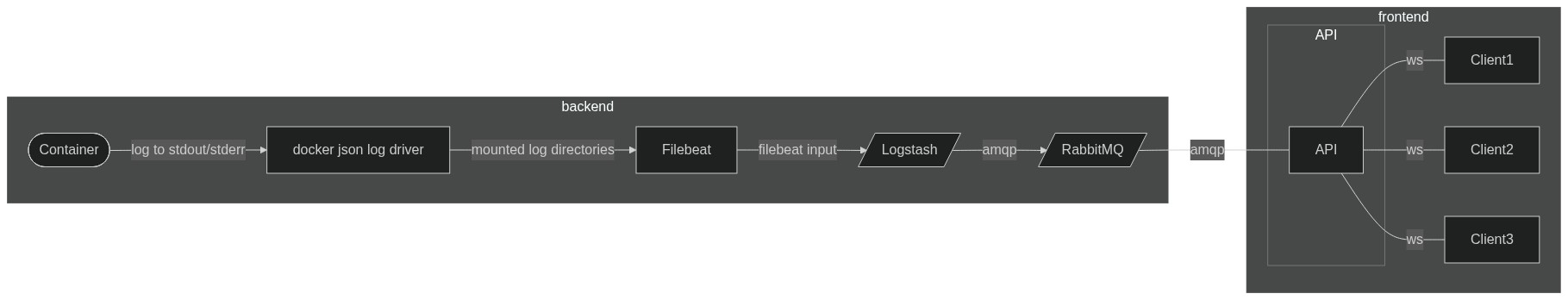

## Architecture
[](https://mermaid-js.github.io/mermaid-live-editor/#/edit/eyJjb2RlIjoiZ3JhcGggTFJcbiAgc3ViZ3JhcGggYmFja2VuZFxuICAgIEMoW0NvbnRhaW5lcl0pIC0tPnxsb2cgdG8gc3Rkb3V0L3N0ZGVycnwgQltkb2NrZXIganNvbiBsb2cgZHJpdmVyXVxuICAgIEIgLS0-fG1vdW50ZWQgbG9nIGRpcmVjdG9yaWVzfCBGW0ZpbGViZWF0XSAtLT58ZmlsZWJlYXQgaW5wdXR8IExbL0xvZ3N0YXNoL11cbiAgICBMIC0tPnxhbXFwfCBSWy9SYWJiaXRNUS9dXG4gIGVuZFxuICBzdWJncmFwaCBmcm9udGVuZFxuICAgIHN1YmdyYXBoIEFQSVxuICAgICAgUiAtLS18YW1xcHwgQVtBUEldXG4gICAgZW5kXG4gICAgQSAtLS18d3N8QzFbQ2xpZW50MV1cbiAgICBBIC0tLXx3c3xDMltDbGllbnQyXVxuICAgIEEgLS0tfHdzfEMzW0NsaWVudDNdXG4gIGVuZFxuIiwibWVybWFpZCI6eyJ0aGVtZSI6ImRhcmsifSwidXBkYXRlRWRpdG9yIjpmYWxzZX0)
## Example projects
A [Vagrantfile](./Vagrantfile) is provided to experiment with `trail`. It will create 5 VMs with multiple docker-based example projects (`wordpress`, `rails`, `django`, a failing `nginx` configuration and a `flog` container).
### Configuration
Install the required `ansible` role (docker installation and configuration) by running the following:
```bash
ansible-galaxy install -r requirements.yml
```
The `LOGSTASH_TARGET` variable in [the provisioning playbook](./provisioning.playbook.yml) is supposed to be modified to suit your needs.
### Running the example projects
In order to use the provisioning part of the [Vagrantfile](./Vagrantfile), simply bring the VMs up and Vagrant will automatically run the corresponding playbook based on the node name.
```bash
vagrant up
```
## Backend
### Stack
name | role
------|------
filebeat | log collection - fetch logs from containers, either by mapping the docker sockets/directories to filebeat, or deploy as a kubernetes pod
logstash | centralize, parse and enrich logs
rabbitmq | access point for logs through the [topic exchange](https://www.rabbitmq.com/tutorials/amqp-concepts.html#exchange-topic) called `logs`
flog | open source log generation tool
mongodb | short term storage (6h)
### Running the backend only
I highly advise running each items one after the other, to ensure everything is running smooth.
1. `docker-compose up -d broker`
2. `docker-compose up -d logstash`
3. `docker-compose up -d filebeat`
4. `docker-compose up -d storage`
5. `docker-compose up log-generator` (in order to have it in the foreground)
### How to consume logs from the broker
The Exchange is automatically created by Logstash at startup time, based on the
- Connect to RabbitMQ
- Create a Queue (_NOTE: define if queue have to be exclusive and/or durable_)
- Bind your Queue to the Exchange, specify if needed a *routing key*
- Consume the messages from your Queue
### Short term log retention
The logstash pipeline will, in addition to forwarding the logs in RabbitMQ, store the logs in MongoDB.
As seen in the [mongoscripts configuration directory](./mongoscripts/logs.js), an unoptimized index based on the `@timestamp` field will enable the deletion of each log after 6 hours.
Querying these logs through the frontend was not implemented, a helper script [search.py](./search.py) was added instead as a lightweight replacement.
_Note: Implementing this in the frontend should be quite quick_
#### Example usage
```bash
# install pymongo
pip install --user -r requirements.txt
```
```bash
export MONGODB_URI=mongodb://localhost:27017/trail # This script uses the environment variable MONGODB_URI to connect to MongoDB
python search.py term
# ...
# <@timestamp>,
```
## Logs
### Schema
See the [log schema](./log-schema.md).
