Android Studio Version:
Android Studio Koala Feature Drop | 2024.1.2 Beta 1
]
Custom Recycler View in Android Java By Thirdy Gayares
======================================================
Android Java | RecyclerView Episode #1
Welcome to this tutorial on creating a Custom Recycler View in Android Java. This guide is designed to be simple and easy to follow, helping you step by step in understanding and implementing a custom Recycler View in your Android projects using Android Studio.
What You Will Learn
===================
In this tutorial, you will learn how to:
1. Set up a Recycler View in Android.
2. Create an adapter and model classes.
3. Design the layout for your Recycler View items.

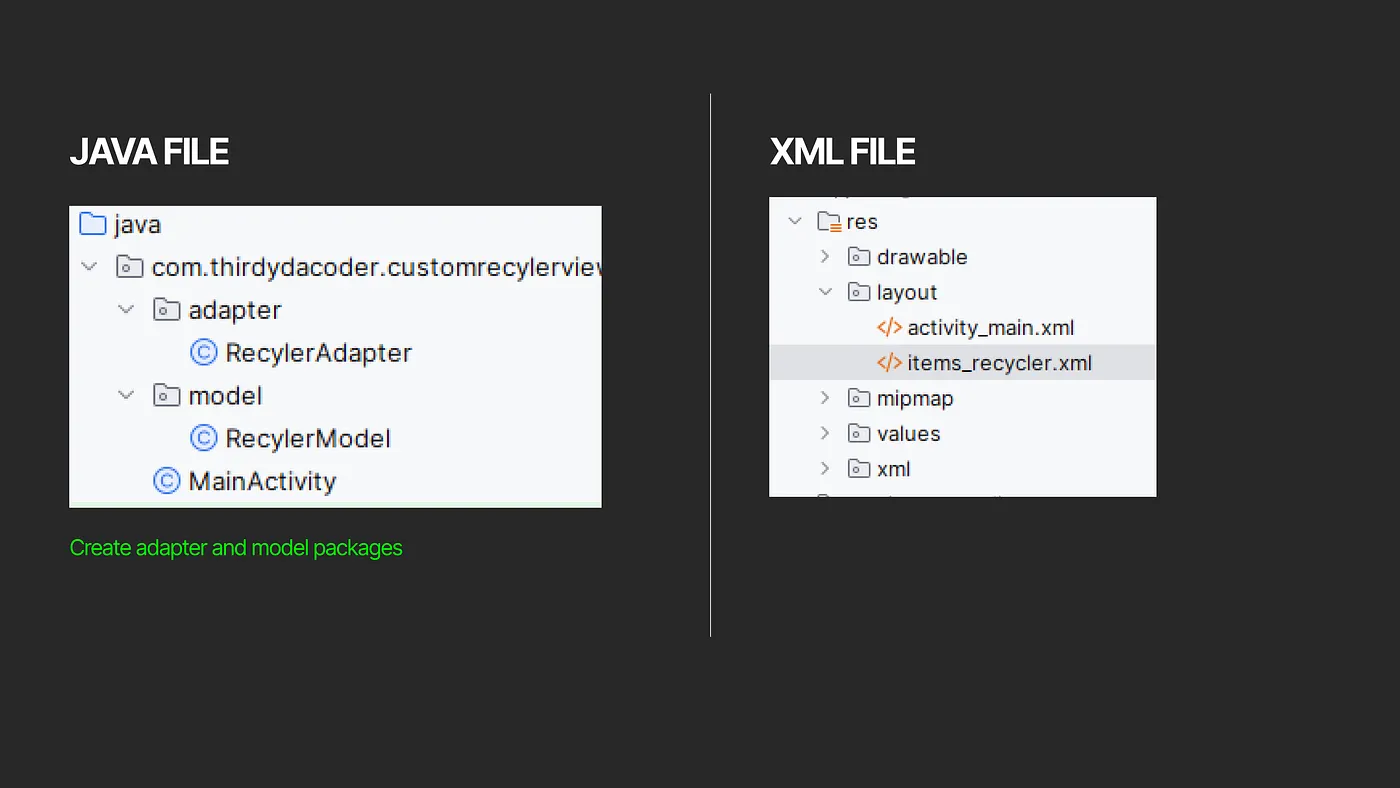

Step 1: Create File Structure
-----------------------------
Create the necessary file structure for your project. You will need to create adapter and model packages, along with the necessary XML files for the layouts.
**Step 2: Build the two XML File**
----------------------------------

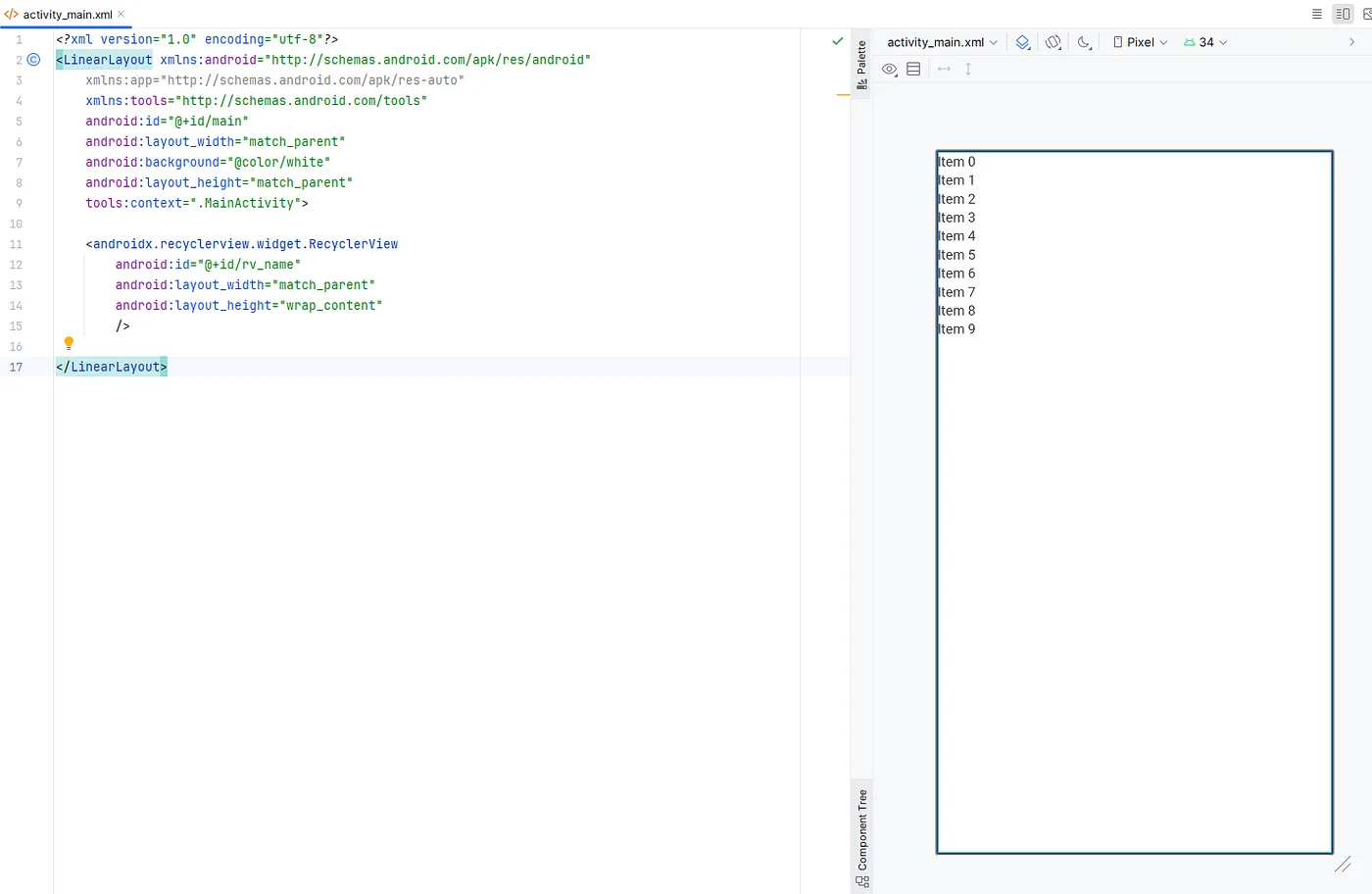

1. **activity_main.xml**
* This file contains the main layout for your activity, including the Recycler View.
```
```

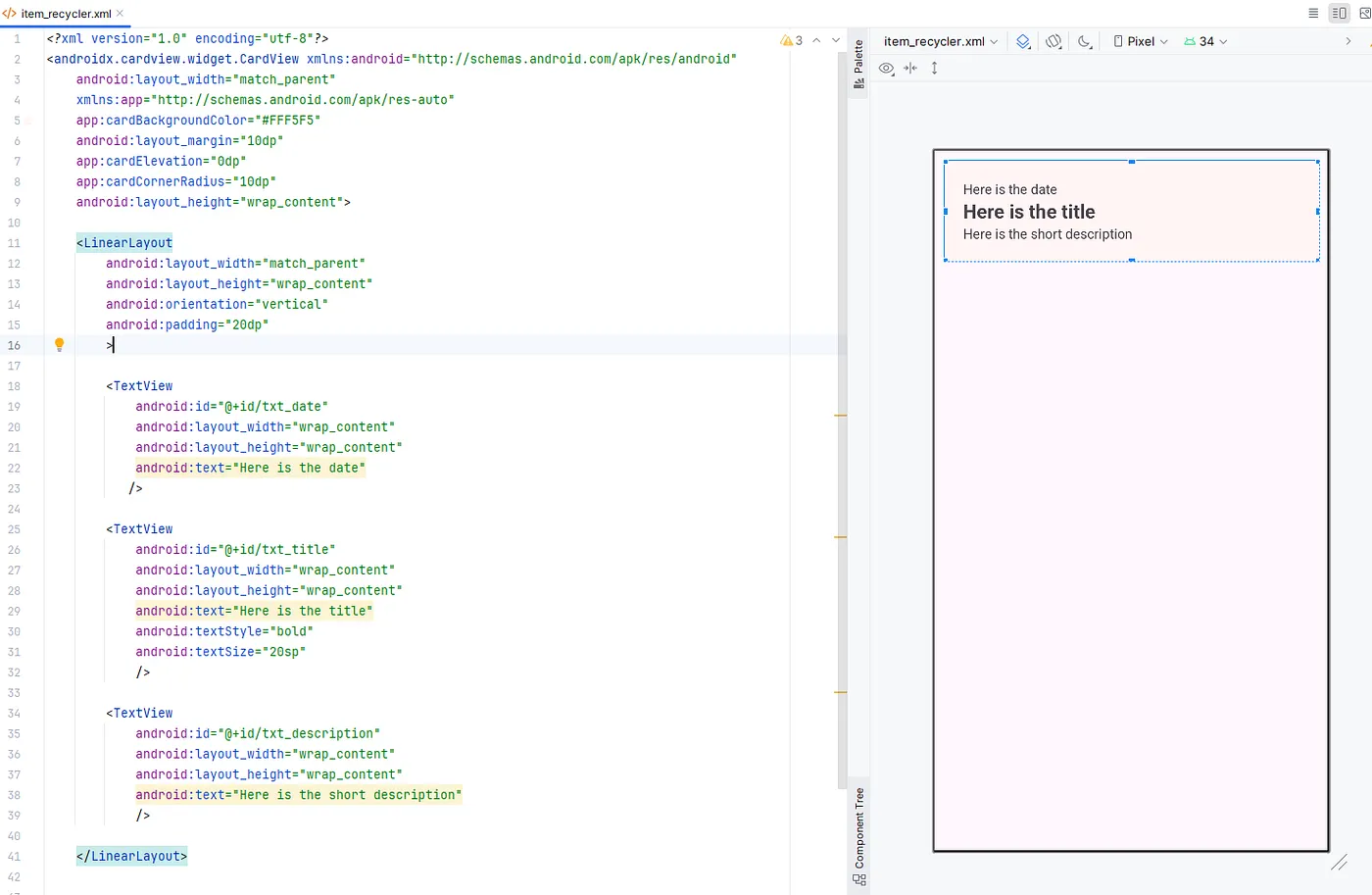

**2. item_recyler.xml**
This file defines the layout for each item in the Recycler View.
```
```
Important Note:
---------------
Remember the variable names used in these XML files (`rv_name`, `txt_date`, `txt_title`, and `txt_description`). These will be crucial for connecting the XML layout and the Recycler View adapter.

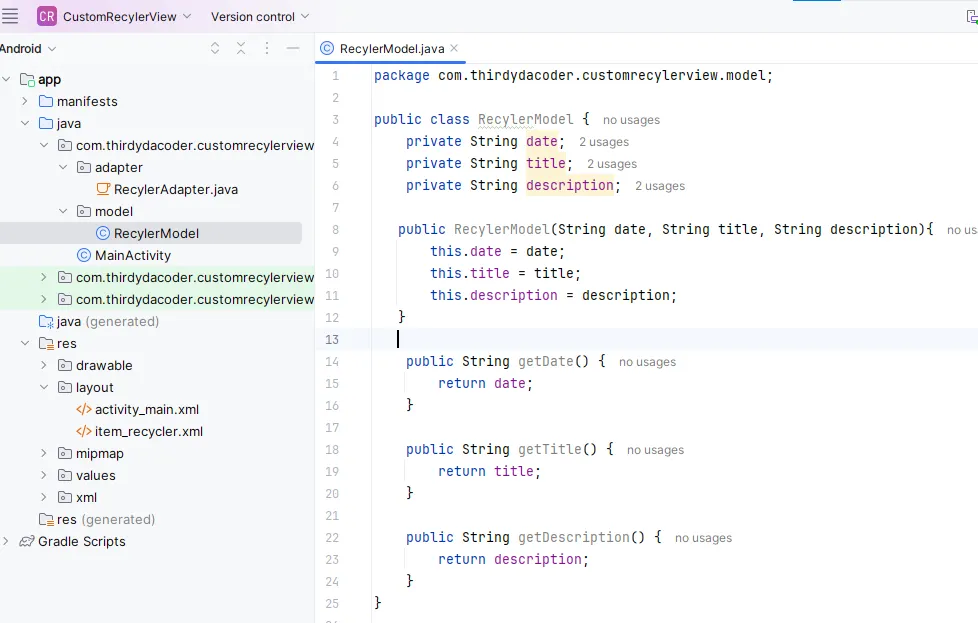

Step 3: Code the RecylerModel
-----------------------------
Using a model is effective because it keeps data organized and clear, making the code easier to understand and manage.
* **Private Variables**: `date`, `title`, and `description` hold data for each item.
* **Constructor**: Initializes `date`, `title`, and `description`.
* **Getters**: `getDate()`, `getTitle()`, and `getDescription()` return their values.
```
public class RecylerModel {
private String date;
private String title;
private String description;
public RecylerModel(String date, String title, String description){
this.date = date;
this.title = title;
this.description = description;
}
public String getDate() {
return date;
}
public String getTitle() {
return title;
}
public String getDescription() {
return description;
}
}
```
**Step 4: Code the Adapter**
----------------------------
An adapter in Android is a bridge between the data source and the user interface (UI) components like RecyclerView. It helps in binding the data to the UI components.
Explanation on adapter:
-----------------------
```
Context context;
List recylerModels;
public RecylerAdapter(Context context, List recylerModels) {
this.context = context;
this.recylerModels = recylerModels;
}
```
**Context:** is a reference to the current state of the application.
**List :** This list contains the data that will be displayed in the RecyclerView.
**public RecyclerAdapter(Context context, List recyclerModels)**: It is called when a new instance of the adapter is created.
```
@NonNull
@Override
public RecylerAdapter.ViewHolder onCreateViewHolder(@NonNull ViewGroup parent, int viewType) {
LayoutInflater inflater =LayoutInflater.from(context);
View view = inflater.inflate(R.layout.item_recycler, parent, false);
return new ViewHolder(view);
}
```
It inflates the `item_recycler.xml` layout using the provided context to create a view for each item. This ensures that each item in the RecyclerView has a corresponding view to display its data.
```
@Override
public void onBindViewHolder(@NonNull RecylerAdapter.ViewHolder holder, int position) {
holder.txtDate.setText(recylerModels.get(position).getDate());
holder.txtTitle.setText(recylerModels.get(position).getTitle());
holder.txtDescription.setText(recylerModels.get(position).getDescription());
}
```
This method sets the data for each item in the RecyclerView. It updates the text for date, title, and description based on the position of the item in the list.
```
@Override
public int getItemCount() {
return recylerModels.size();
}
```
This method returns the total number of items in the list. It tells the RecyclerView how many items to display.
```
public class ViewHolder extends RecyclerView.ViewHolder {
TextView txtDate, txtTitle, txtDescription;
public ViewHolder(@NonNull View itemView) {
super(itemView);
txtDate = itemView.findViewById(R.id.txt_date);
txtTitle = itemView.findViewById(R.id.txt_title);
txtDescription = itemView.findViewById(R.id.txt_description);
}
}
```
The `ViewHolder` class holds references to the TextViews for the date, title, and description of each item in the RecyclerView. It initializes these references in the constructor by finding the corresponding views in the item layout. This helps to efficiently manage and bind data to the views for each item.

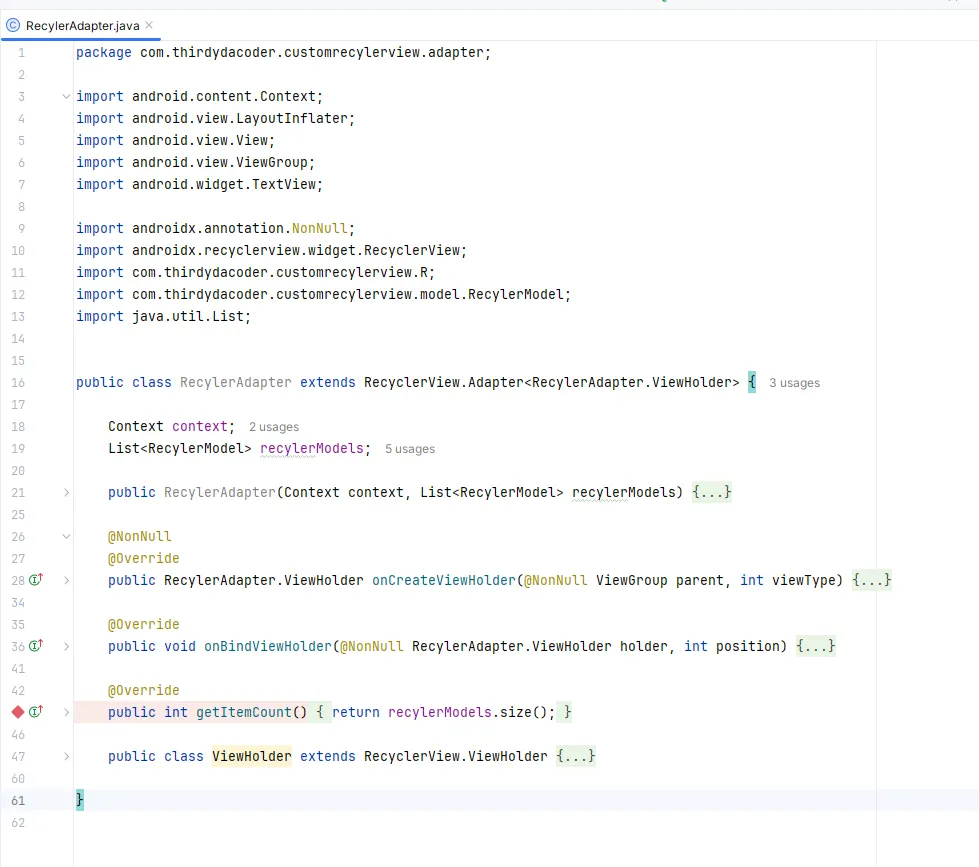

WHOLE RECYLERADAPTER CODE
-------------------------
```
package com.thirdydacoder.customrecylerview.adapter;
import android.content.Context;
import android.view.LayoutInflater;
import android.view.View;
import android.view.ViewGroup;
import android.widget.TextView;
import androidx.annotation.NonNull;
import androidx.recyclerview.widget.RecyclerView;
import com.thirdydacoder.customrecylerview.R;
import com.thirdydacoder.customrecylerview.model.RecylerModel;
import java.util.List;
public class RecylerAdapter extends RecyclerView.Adapter {
Context context;
List recylerModels;
public RecylerAdapter(Context context, List recylerModels) {
this.context = context;
this.recylerModels = recylerModels;
}
@NonNull
@Override
public RecylerAdapter.ViewHolder onCreateViewHolder(@NonNull ViewGroup parent, int viewType) {
LayoutInflater inflater =LayoutInflater.from(context);
View view = inflater.inflate(R.layout.item_recycler, parent, false);
return new ViewHolder(view);
}
@Override
public void onBindViewHolder(@NonNull RecylerAdapter.ViewHolder holder, int position) {
holder.txtDate.setText(recylerModels.get(position).getDate());
holder.txtTitle.setText(recylerModels.get(position).getTitle());
holder.txtDescription.setText(recylerModels.get(position).getDescription());
}
@Override
public int getItemCount() {
return recylerModels.size();
}
public class ViewHolder extends RecyclerView.ViewHolder {
TextView txtDate, txtTitle, txtDescription;
public ViewHolder(@NonNull View itemView) {
super(itemView);
txtDate = itemView.findViewById(R.id.txt_date);
txtTitle = itemView.findViewById(R.id.txt_title);
txtDescription = itemView.findViewById(R.id.txt_description);
}
}
}
```
Step 4: Code the MainActivity
-----------------------------
```
package com.thirdydacoder.customrecylerview;
import android.os.Bundle;
import androidx.appcompat.app.AppCompatActivity;
import androidx.recyclerview.widget.LinearLayoutManager;
import androidx.recyclerview.widget.RecyclerView;
import com.thirdydacoder.customrecylerview.adapter.RecylerAdapter;
import com.thirdydacoder.customrecylerview.model.RecylerModel;
import java.util.ArrayList;
import java.util.List;
public class MainActivity extends AppCompatActivity {
private RecyclerView recyclerView;
private List recylerModel = new ArrayList<>();
private RecylerAdapter recylerAdapter;
@Override
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.activity_main);
recyclerView = findViewById(R.id.rv_name);
//create data on recyclermodel list
recylerModel.add(new RecylerModel("July 23 2024", "My Memory Title 1", "Here is my description in my memories #1"));
recylerModel.add(new RecylerModel("July 22 2024", "My Memory Title 2", "Here is my description in my memories #2"));
recylerModel.add(new RecylerModel("July 21 2024", "My Memory Title 3", "Here is my description in my memories #3"));
recylerModel.add(new RecylerModel("July 20 2024", "My Memory Title 4", "Here is my description in my memories #4"));
recylerModel.add(new RecylerModel("July 19 2024", "My Memory Title 5", "Here is my description in my memories #5"));
//call adapter
recylerAdapter = new RecylerAdapter(this, recylerModel);
//Set adapter on recyler view
recyclerView.setAdapter(recylerAdapter);
recyclerView.setLayoutManager(new LinearLayoutManager(this));
}
}
```
In the final step, we set up `MainActivity` to show data in the custom RecyclerView. We declare a `RecyclerView`, a list of `RecyclerModel` items, and a `RecyclerAdapter`. In the `onCreate` method, we initialize the `RecyclerView` and fill the list with sample data. We then create the `RecyclerAdapter` with the context and data list and set this adapter to the `RecyclerView`. Lastly, we set a `LinearLayoutManager` to arrange the items vertically. This setup makes the RecyclerView display our data.

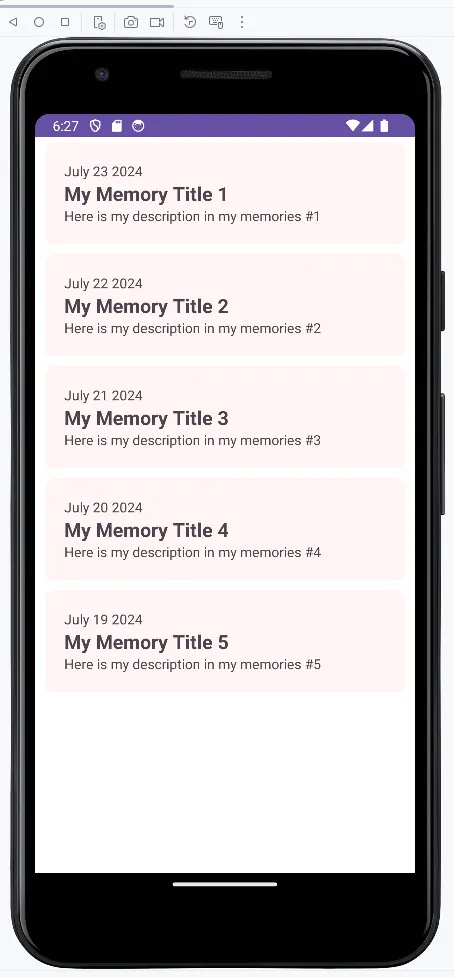

OUTPUT:
-------
