# Real-time Visual Saliency by Division of Gaussians - Reference Implementation
Tested using Python 3.8.2 and [OpenCV 4.8.0](http://www.opencv.org)
|
Exemplar Real-time Salient Object Detection Using DOG Saliency
## Abstract:
_"This paper introduces a novel method for deriving visual saliency maps in real-time without compromising the quality of
the output. This is achieved by replacing the computationally
expensive centre-surround filters with a simpler mathematical
model named Division of Gaussians (DIVoG). The results are
compared to five other approaches, demonstrating at least six
times faster execution than the current state-of-the-art whilst
maintaining high detection accuracy. Given the multitude of
computer vision applications that make use of visual saliency
algorithms such a reduction in computational complexity is
essential for improving their real-time performance."_
[[Katramados, Breckon, In Proc. International Conference on Image Processing, IEEE, 2011](https://breckon.org/toby/publications/papers/katramados11salient.pdf)]
---
## Reference implementation:
This Saliency Map generator uses the Division of Gaussians (DIVoG / DoG) approach to produce real-time saliency maps. Put simply this algorithm performs the following three steps (as set out in the original DIVoG research paper):
- Bottom-up construction of Gaussian pyramid
- Top-down construction of Gaussian pyramid based on the output of Step 1
- Element-by element division of the input image with the output of Step 2
This repository contains `saliencyDoG.py` which corresponds to the Division of Gaussians algortihm as defined in [Katramados / Breckon, 2011]. `demo.py` is simply an example of usage of the SaliencyDoG library (supported by `camera_stream.py`, providing an unbuffered video feed from a live camera input), which demonstrates saliencyDoG using either live or input video, and a live result. Each frame is processed sequentially, producing the real-time saliency map. `test.py` should be used to verify correct versions of libraries are installed, before using the library.
`saliencyDoG.py` contains class `SaliencyDoG`. An object for a salience mapper can be created (with specific options), and used on various images, e.g.
```python
from saliencyDoG import SaliencyDoG
import cv2
img = cv2.imread('dog.png')
saliency_mapper = SaliencyDoG(pyramid_height=5, shift=5, ch_3=False,
low_pass_filter=False, multi_layer_map=False)
img_saliency_map = saliency_mapper.generate_saliency(img)
```
where parameters:
- `pyramid_height` - n as defined in [Katramados / Breckon 2011] - default = 5
- `shift` - k as defined in [Katramados / Breckon 2011] - default = 5
- `ch_3` - process colour image on every channel (approximetly 3x slower) - default = False
- `low_pass_filter` - toggle low pass filter - default = False
- `multi_layer_map` - the second version of the algortihm as defined in [Katramados / Breckon 2011] (significantly slower, with simmilar results) - default = False
The SaliencyDoG class makes use of the [Transparent API (T-API)](https://www.learnopencv.com/opencv-transparent-api/), to make use of any possible hardware acceleration
---
## Instructions to use:
To download and test the supplied code do:
```
$ git clone https://github.com/tobybreckon/DoG-saliency.git
$ cd DoG-saliency
$ python3.x -m pip install -r requirements.txt
$ pytest test.py
```
Ensure that all tests are passed before proceeding. If any tests fail, ensure you have installed the modules from `requirements.txt` and are using at least python 3.7.5 and OpenCv 4.2.0.
Subsequently run the following command to obtain real-time saliency output from a connected camera or video file specified on the command line:
```
$ python3.x demo.py [-h] [-c CAMERA_TO_USE] [-r RESCALE] [-fs] [-g] [-l] [-m] [video_file]
```
positional arguments:
- `video_file` specify optional video file
optional arguments:
- `-h` show help message and exit
- `-c CAMERA_TO_USE` specify camera to use (int) - default = 0
- `-r RESCALE` rescale image by this factor (float) - default = 1.0
- `-fs` optionally run in full screen mode
- `-g` optionally process frames as grayscale
- `-l` optionally apply a low_pass_filter to saliency map
- `-m` optionally use every pyramid layer in the production of the saliency map
During run-time, keyboard commands `x` will quit the program, `f` will toggle fullscreen, `s` will toggle between saliency mapping and the original input image frames and `t` will toggle the speed/fps info display.
---

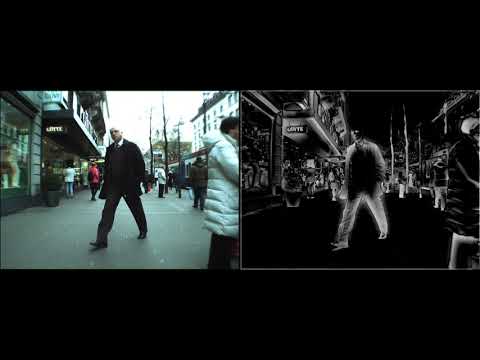

## Example video:
[](https://www.youtube.com/watch?v=3oeuWO7SlvQ)
Video Example - click image above to [play](https://www.youtube.com/watch?v=3oeuWO7SlvQ).
---
## References:
If you are making use of this work in any way please reference the following articles in any report, publication, presentation, software release or any other associated materials:
[Real-time Visual Saliency by Division of Gaussians](https://breckon.org/toby/publications/papers/katramados11salient.pdf)
(Katramados, Breckon), In Proc. International Conference on Image Processing, IEEE, 2011.
```
@InProceedings{katramados11salient,
author = {Katramados, I. and Breckon, T.P.},
title = {Real-time Visual Saliency by Division of Gaussians},
booktitle = {Proc. Int. Conf. on Image Processing},
pages = {1741-1744},
year = {2011},
month = {September},
publisher = {IEEE},
url = {https://breckon.org/toby/publications/papers/katramados11salient.pdf},
doi = {10.1109/ICIP.2011.6115785},
}
```
Free for commercial use and non-commercial use (i.e. academic, non-for-profit and research) under the (very permissive) terms of the MIT free software [LICENSE](LICENSE) that must be adhered to.
The Division of Gaussians (DIVoG / DoG) saliency detection algorithm was filed as a patent (WIPO reference: [WO2013034878A2](https://patents.google.com/patent/WO2013034878A2/) by [Cranfield University](https://www.cranfield.ac.uk/), 2013/14) but this patent application has now lasped.
### Acknowledgements:
Ryan Lail, this reference implementation of [Katramados / Breckon, 2011], Durham University, July 2020.
---
