README




    BounCA logo






    Donate Button




# BounCA PKI - Personal Key Management



Protect your Data, Protect your Communication,

Protect your Business, BounCA!



BounCA as a Service: [https://app.bounca.org](https://app.bounca.org)



Main repo is hosted at Gitlab:

- Source: [https://gitlab.com/bounca/bounca](https://gitlab.com/bounca/bounca)

- Packages: [https://gitlab.com/bounca/bounca/-/packages](https://gitlab.com/bounca/bounca/-/packages)

- Issue tracker: [https://gitlab.com/bounca/bounca/-/issues](https://gitlab.com/bounca/bounca/-/issues)



Don't forget to support us: [Donate here](https://www.paypal.com/donate/?hosted_button_id=5C4W8F7XYQDZ4)!



## Introduction



Create a PKI, sign and revoke server and client X.509 v3 SSL certificates.

Setting up a trusted encrypted communication network with your peers is a matter of minutes with BounCA.

BounCA lets you  secure your web applications and OpenVPN connections without passwords,

and secure access to your private cloud services with your own HTTPS scheme.

Setting up a provisioning service for your Internet of Things devices was never so easy.

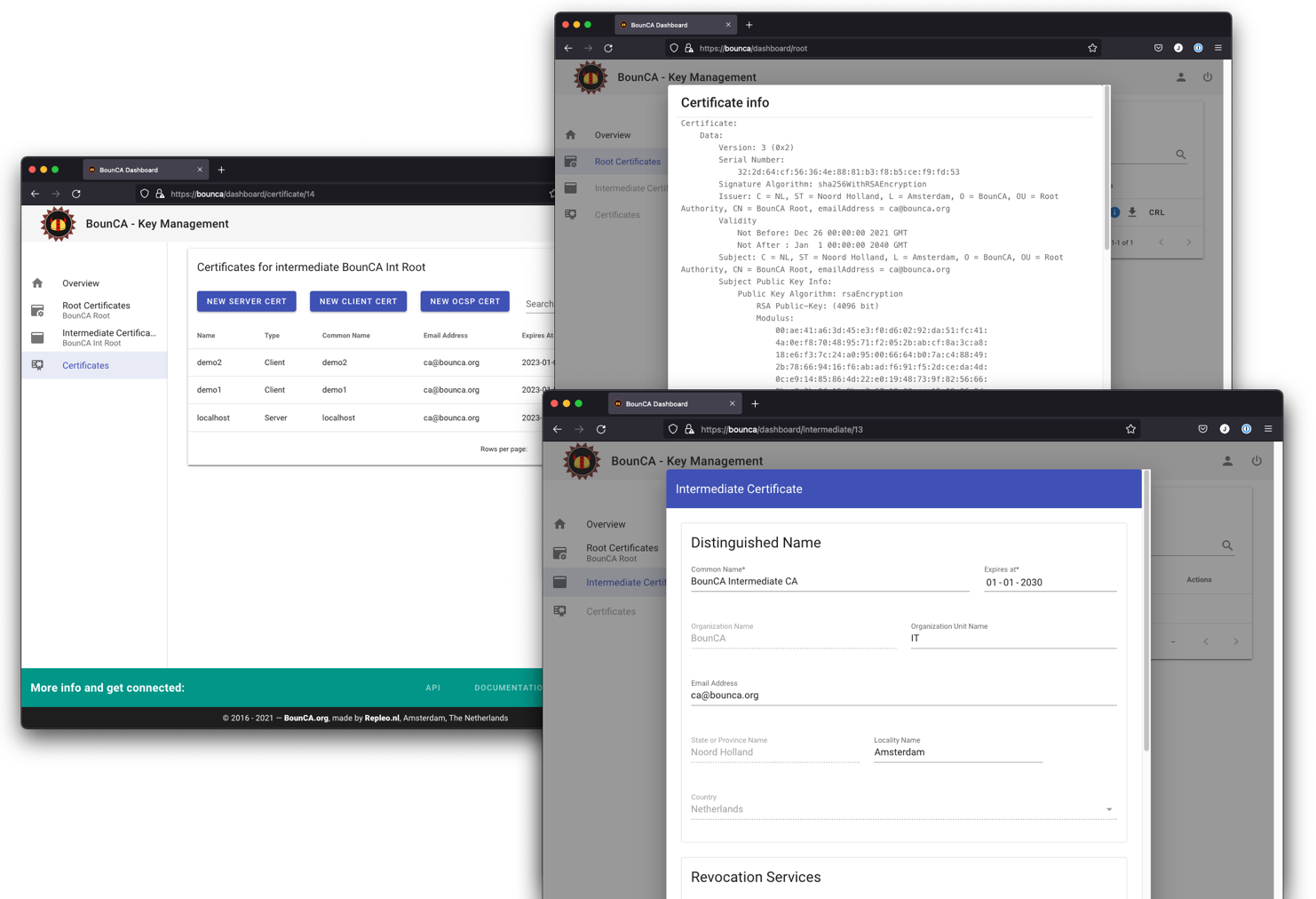

[![BounCA](https://www.bounca.org/_images/ssl_dashboard_bounca.png)](https://www.bounca.org)



### Your Own Certificate Authority



Use cases:



* Trusted encrypted communication with your peers (man-in-the-middle attack prevention)

* Secure your internal REST micro-services and internal API's

* Client-certificate based login for web services, web applications and OpenVPN connections

* Secure S/MIME-based encrypted e-mail

* Secure access to your private cloud services with your own HTTPS scheme

* Secure your Internet of Things (IoT) network with your certificates and provision them via the BounCA API



Advantages:



* No single point of failure: Decoupled and decentralized authentication management

* You are in control of your complete trust chain: Spoofing nearly impossible as no third party is involved

* Rocket fast authentication: SSL off-loading can be performed by your webservers



### Features



* Create and manage your own root certificates and certificate authorities

* Create intermediate certificates for grouping of certificates

* Create server side certificates for setting up trusted and encrypted connections

* Create client side certificates for authentication and authorization

* Support for advanced v3 certificates containing subject alt names

* Revoke certificates within one mouse click and download Certificate Revoke Lists (CRL)

* Download certificates, keys, and keystore packages for your webserver and installation

* Protect your certificates via passphrases

* Evaluate your certificates via the info button

* Use the API to automate certificate provisioning



# Installation



BounCA is a Python Django based webapplication, with a Vuetify frontend, and

can be hosted on every platform capable of running python3 applications.

This tutorial describes how to deploy BounCA on a Debian 11 server.

Some commands need the `root` permission level, prefix them with `sudo` if necessary.



### Server prerequisites



On a fresh Debian 11 machine, first update your repositories:

`sudo apt update`



install the following packages via apt:



  - gettext

  - nginx

  - python3

  - python3-dev

  - python3-setuptools

  - python-setuptools

  - python-is-python3

  - uwsgi

  - uwsgi-plugin-python3

  - virtualenv

  - python3-virtualenv

  - python3-pip

  - postgresql

  - postgresql-contrib



```

sudo apt install \

    gettext \

    nginx \

    python3 \

    python3-dev \

    python3-setuptools \

    python-setuptools \

    python-is-python3 \

    uwsgi \

    uwsgi-plugin-python3 \

    virtualenv \

    python3-virtualenv \

    python3-pip \

    postgresql \

    postgresql-contrib

```



### Create database



Create user and database for Postgres

```

sudo su - postgres

createuser bounca

createdb --owner=bounca bounca --encoding=UTF8 --template=template0

psql -c "ALTER USER bounca WITH createdb" postgres

```



Optionally, set a password for the `bounca` user.

```

psql -c "ALTER USER bounca PASSWORD ''"

```



Don't forget to go back to your normal user, for example by using the command `exit`.



### Create directories



Create directory for logging:

```

mkdir /var/log/bounca

chown -R www-data:www-data /var/log/bounca

mkdir -p /srv/www/

```



### Download BounCA



Get the newest BounCA release from [the packages repo](https://gitlab.com/bounca/bounca/-/packages).

Unpack it to a location where your web app will be stored, like `/srv/www/`.

Make sure the directory is owned by the nginx user:

```



cd /srv/www/

tar -xvzf bounca-.tar.gz

chown www-data:www-data -R /srv/www/bounca

```



### Configuration



To run BounCA you need to configure nginx, uwsgi and BounCA.

First copy the files:



```

cp /srv/www/bounca/etc/nginx/bounca /etc/nginx/sites-available/bounca

ln -s /etc/nginx/sites-available/bounca /etc/nginx/sites-enabled/bounca



cp /srv/www/bounca/etc/uwsgi/bounca.ini /etc/uwsgi/apps-available/bounca.ini

ln -s /etc/uwsgi/apps-available/bounca.ini /etc/uwsgi/apps-enabled/bounca.ini



mkdir /etc/bounca

cp /srv/www/bounca/etc/bounca/services.yaml.example /etc/bounca/services.yaml

```



You need to change the files `/etc/bounca/services.yaml` and `/etc/nginx/sites-available/bounca` for your situation.



### Install virtualenv and python packages



Create the virtualenv and install python dependencies:



```

cd /srv/www/bounca

virtualenv env -p python3

source env/bin/activate

pip install -r requirements.txt

```



### Setup BounCA app and initialize database



The following commands will initialize the database, initialize the folder with

static files. Also the fully qualified hostname must be configured, without protocol prefix.

Optionally, create a super user for the admin interface.



```

cd /srv/www/bounca

source env/bin/activate

python3 manage.py migrate

python3 manage.py collectstatic

python3 manage.py site



```



In case the commands give you a db connection error, make sure you start the database:



```

service postgresql start

```



### Check permissions



Check the permissions of ``/var/log/bounca``. The uwsgi user, in case of debian www-data, should have

write permissions.

In case you face the error ``` no python application found, check your startup logs for errors ``` when

starting uwsgi, it is probably related to the permission of the log file, directory.



### Starting the application



Finally restart uwsgi and nginx.

```

service uwsgi restart

service nginx restart

```



The admin interface can be found at:

[http:///admin](http://example.com/admin).



To access the admin interface you need an super user account. You can also create the super user via a webform, or via the commandline.

You need to have enabled `superuser_signup` in your config file to enable the webform to create a super user. The signup form can be reached at

this URI: [http:///accounts/signup/](http://example.com/accounts/signup/).



```

python manage.py createsuperuser --username myAdminUser --email [email protected]

```

(Optionally: Set DJANGO_SUPERUSER_PASSWORD Environment variable to set new passwords for `python manage.py createsuperuser` command, and execute with `python manage.py createsuperuser --noinput --username myAdminUser --email [email protected]`)



The admin interface can be found at:

[http:///admin](http://example.com/admin).



BounCA should be up and running. Browse to the hostname of your BounCA machine.

Enjoy generating keys.



## License



Apache License v2 - (c) 2016-2021, Repleo, Amsterdam



## Author Information



Jeroen Arnoldus ([email protected])



Repleo, Amsterdam, Holland -- [www.repleo.nl](www.repleo.nl)
