*( Wrote [a blog post about this here](https://www.thanassis.space/miniforth.html) )*

It was raining hard, a week ago.

And what could you possibly do on a rainy Saturday afternoon?

Well...

You can make a Forth interpreter/compiler from scratch...

...then put it inside a 1.5$ Blue Pill microcontroller...

...and finally, inside an Arduino UNO...

... within its tiny 2K RAM!

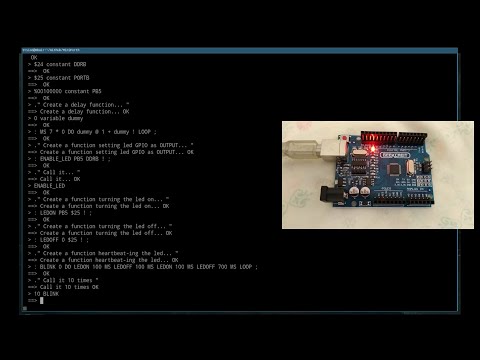

Click on the image to watch it blinking the LED of my Arduino:

[![Here's a video of it action, blinking my Arduino :-)](https://img.youtube.com/vi/xePollbCzow/0.jpg)](https://www.youtube.com/watch?v=xePollbCzow)

I haven't done anything even *remotely* close to this in decades...

I *loved* building it.

The rainy afternoon turned into a week-long hackfest *(was looking

forward every day to the post-work FORTH-tinkering in the afternoon...)*

The result: a tiny, mini, micro Forth. In portable C++ :-)


It has...

- basic arithmetic

- star-slash (double-word accurate muldiv)

- literals

- constants

- variables

- direct memory access

- string printing

- reseting

- comments

- nested DO/LOOP

- comparisons

- nested IF/ELSE/THEN

- ...and of course, functions (Forth words)

Here's an ascii-cast recording of it in action:

[![Recording of building and uploading on an Arduino UNO](https://asciinema.org/a/423649.svg)](https://asciinema.org/a/423649?autoplay=1)

Read the test scenario below to see my supported Forth constructs.

# Portability, ArduinoSTL and Valgrind/AddressSanitizer checks

I meant it when I said "portable". Part of my reasoning was, that

in addition to targeting multiple platforms (e.g. BluePill and

Arduino) I wanted to be able to use Valgrind and AddressSanitizer

to detect - in the host! - any issues I have with my memory handling.

Since I had embedded targets in mind, I tried ArduinoSTL - but it was too

wasteful memory-wise. It also made the build process significantly slower.

I therefore built my own [memory pool, as well as list, tuple and string-like

C++ templates](https://github.com/ttsiodras/MiniForth/tree/master/src/mini_stl.h). It was a nice challenge, re-inventing a tiny C++ STL...

And I understand STL a lot better now, after building small pieces of it myself :-)

# Simulation / Debugging

I setup simulation via [simavr](https://github.com/buserror/simavr.git).

This tremendously improved my developing speed, since a simulator

spawns and runs much faster than the real board. Due to the code

being portable, debugging took place mostly in the host GDB;

and after Valgrind and AddressSanitizer gave their blessing, I usually

found out that the simulator (and the real board) worked fine as well.

# BluePill vs Arduino UNO

Thanks to ArduinoSTL, I quickly reached the point of running inside the

BluePill. The 1.5$ mini-monster has 10 times more SRAM than an Arduino UNO;

so in a couple of days, I had a [working branch](https://github.com/ttsiodras/MiniForth/tree/BluePill-STM32F103C).

![The 1.5$ 'Beast'](contrib/BluePill.jpg "The 1.5$ 'Beast'")

But as said above, that wasn't nearly enough to make it work in my

Arduino UNO. That required far more work *(see below)*.

As for the BluePill, I should note that, as in all my other embedded targets,

I prefer a development workflow that is based on normal bootloaders

*(not on programmers)*.  I therefore burned the

[stm32duino](https://github.com/rogerclarkmelbourne/STM32duino-bootloader)

bootloader on the BluePill, which allowed me to easily program it

in subsequent iterations via the USB connection (and a simple `make upload`).

The same USB connection would then function as a serial port immediately

afterwards - allowing me to interact with the newly uploaded Forth in the

BluePill.

The screenshot below is from a `tmux`: on the left, the output from `make upload`;

and on the right, I used `picocom` to interact with my mini-Forth

over the serial port:

![Compiling, uploading and testing](contrib/itworks.jpg "Compiling, uploading and testing")

# Memory - the final frontier

That covered the first two days.

But when I tried compiling for the Arduino UNO, I realised that the ArduinoSTL

was not enough. I run out of memory...

So I built my own [mini-STL](https://github.com/ttsiodras/MiniForth/tree/master/src/mini_stl.h),

and tightly controlled *all* memory utilisation.

I also used macro-magic to move all strings to Flash at compile-time

(see `dprintf` in the code)... And saved memory everywhere I could,

re-using error messages across various operations - and storing the

entire array of native operations in Flash.

Nothing flexes your coding muscles as much as optimising; whether it is

for speed or for space. See the implementation of ".S" for example,

where the (obvious) stack reversal code is also the most wasteful...

Changing it to a slower but memory-preserving algorithm allowed me

to use ".S" even when almost all my memory is full.

# C++ vs C

I know that many developers hate C++. I even wrote a

[blog post](https://www.thanassis.space/cpp.html) about it.

And I understand why - they see code like this...

    #include "mini_stl.h"



    template

    typename forward_list::box *forward_list::_freeList = NULL;



...and they start screaming - "what the hell is that", "incomprehensible

madness", etc.

But there are very important benefits in using C++ - and templates

in particular. You write less code, with no additional run-time or

memory overhead compared to C, and with a lot more compile-time checks

that watch your back (for things that would otherwise blow up in your face).

See my Optional for example, that emulates (badly) the optional

type of Rust/OCaml/F#/Scala/Kotlin etc. It **forces** you to check

your returned error codes:

    Optional Forth::needs_a_number(const __FlashStringHelper *msg)

    {

        if (_stack.empty())

            return error(emptyMsgFlash, msg);

        auto topVal = *_stack.begin();

        if (topVal._kind == StackNode::LIT)

            return topVal._u.intVal;

        else

            return FAILURE;

    }

You can't "forget" to check the potential for a failure coded inside

your returned value - because your code has to "unwrap" it. I could have

done this better, but I chose to implement it via simple tuples

(this was a one-weeks-afternoons hack, after all :-)

As for the template "magic" incantation above - it *is* true magic: My

`forward_list` template is using free-lists to store the `pop_front`-ed

elements and reuse them in subsequent allocations. I wanted these free-lists to

be global (i.e. static members) because lists of the same type must re-use a

single, commonly-shared free-list. The magic spell tells the compiler I want to

instantiate these globals *once*, for each type T that I use in any

lists in my code.

# My Forth test scenario - including a FizzBuzz!

Yep, FizzBuzz - we are fully Turing complete. And would surely pass

Joel's interview :-)

    ." Reset... " RESET

    ." Check comments... " \ Yes, we support the new-style comments :-)

    ." Computing simple addition of 3 + 4... " 3 4 + .

    ." Is 1 = 2 ?... " 1 2 = .

    ." Is 1 > 2 ?... " 1 2 > .

    ." Is 1 < 2 ?... " 1 2 < .

    ." Define pi at double-word precision... " : pi 355 113 */ ;

    ." Use definition to compute 10K times PI... " 10000 pi .

    ." Check: 23 mod 7... " 23 7 MOD .

    ." Defining 1st level function1... " : x2 2 * ;

    ." Defining 1st level function2... " : p4 4 + ;

    ." 2nd level word using both - must print 24... " 10 x2 p4 .

    ." Defining a variable with value 123... " 123 variable ot3

    ." Printing variable's value... " ot3 @ .

    ." Defining The Constant (TM)... " 42 constant lifeUniverse

    ." Printing The Constant (TM)... " lifeUniverse .

    ." Setting the variable to The Constant (TM)... " lifeUniverse ot3 !

    ." Printing variable's value... " ot3 @ .

    ." Setting the variable to hex 0x11... " $11 ot3 !

    ." Printing variable's value... " ot3 @ .

    ." Setting the variable to binary 10100101... " %10100101 ot3 !

    ." Printing variable's value... " ot3 @ .

    ." Defining helper... " : p5 5 U.R . ;

    ." Defining 3 times loop... " : x3lp 3 0 DO I p5 LOOP ;

    ." Calling loop... " x3lp

    ." Defining loop calling loop 2 times... " : x6lp 2 0 DO x3lp LOOP ;

    ." Nested-looping 2x3 times... " x6lp

    ." Inline: " : m 3 1 DO 3 1 DO CR J p5 I p5 ." = " J I * p5 LOOP LOOP ;

    ." Use inline loops with two indexes... " m

    ." Make multiples of 7 via DUP... " : m7s 10 0 DO DUP I * . LOOP DROP ;

    ." Print them and DROP the 7... " 7 m7s

    ." Reset... " RESET

    \ Time for Turing completeness...

    ." Let's do Fizz-Buzz! " \ Turing Completeness check...

    \ fizz ( n -- 0_or_1 n )

    ." Define fizz... " : fizz DUP 3 MOD 0 = IF ." fizz " 1 ELSE 0 THEN SWAP ;

    \ buzz ( n -- 0_or_1 n )

    ." Define buzz... " : buzz DUP 5 MOD 0 = IF ." buzz " 1 ELSE 0 THEN SWAP ;

    \ emitNum ( 0_or_1 0_or_1 n -- )

    ." Define emitNum... " : emitNum ROT ROT + 0 = if . ELSE DROP THEN ;

    \ mainloop ( n -- )

    ." Define mainloop... " : mainloop ." ( " fizz buzz emitNum ." ) " ;

    \ fb ( -- )

    ." Define fizzbuzz... " : fb 37 1 DO I mainloop LOOP ;

    ." Run it! " fb

    ." Report memory usage... " .S

    ." All done! "

# Automation

I am a strong believer in automation. The final form of my `Makefile`

therefore has many rules - e.g. `make arduino-sim` - that automate

various parts of the workflow.

Here's what they do:

- **arduino**: Compiles the code for Arduino UNO - builds `src/tmp/myforth.ino.{elf,hex}`

- **arduino-sim**: After building, launches the compiled mini-Forth in `simduino`.

- **upload**: After building, uploads to an Arduino attached to the port

	      configured inside `config.mk`.

- **terminal**: After uploading, launches a `picocom` terminal with

	        all appropriate settings to interact with my Forth.

- **x86**: Builds for x86. Actually, should easily build for any native target (ARM, etc).

- **test-address-sanitizer**: Uses the x86 binary to test the code, executing

	all steps of the scenario shown above. The binary is built with the

	address sanitizer enabled (to detect memory issues).

- **test-valgrind**: Same, but with Valgrind.

- **test-simulator**: Spawns `simavr` and sends the entire test scenario shown

	              above to it - while showing the responses received from it.

- **test-arduino**: Sends the entire test scenario shown above to an

	            Arduino Uno connected to the port specified in `config.mk`

	            and shows the responses received over that serial port.

- **blink-arduino**: Sends the "hello word" of the HW world: a tiny

	             [Forth program](testing/blinky.fs) blinking the Arduino's LED.

Another example of automation - the complete test scenario shown in the

previous section, is not just an example in the documentation; it is

extracted automatically from this README and fed into the Valgrind and

AddressSanitizer tests... and also into the Python testing script that

sends the data to the board in real-time.

[DRY](https://en.wikipedia.org/wiki/Don%27t_repeat_yourself), folks.

# Conclusion

I thoroughly enjoyed building this. I know full well that Forths are not

supposed to be built in C++; they are supposed to be built in assembly,

and also, utilise the Flash to store the user-compiled code at run-time.

But that wasn't the point of this - the point was to have fun and learn Forth.

And what better way to learn a language than to actually implement it! :-)

And... as a child of the 80s...  I now know first-hand what

[Jupiter Ace](https://en.wikipedia.org/wiki/Jupiter_Ace) was about :-)

Fork the code, and enjoy tinkering with it!

Thanassis.
