# Agentic GraphRAG



**One Neo4j graph. Two knowledge modes. Answers that flat RAG cannot reliably give.**



## Demos

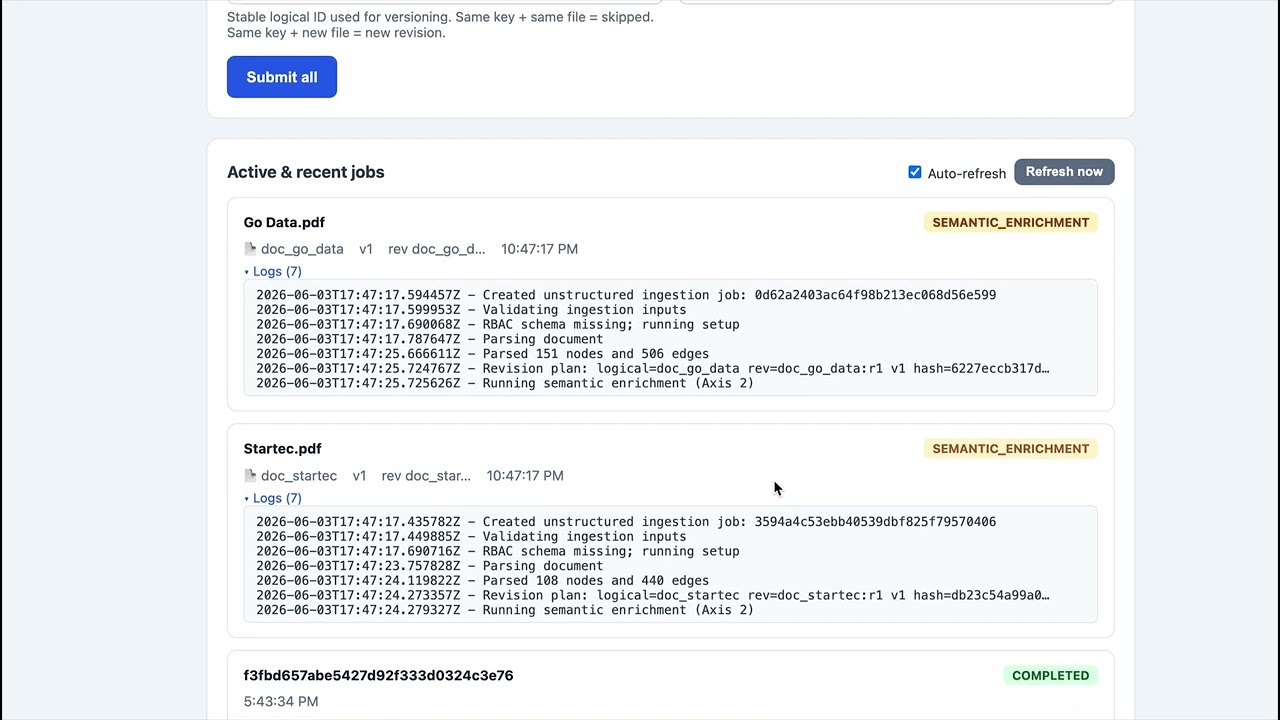

**1. Ingestion pipeline** — drop PDFs in the bulk-upload UI and watch them become a versioned Neo4j knowledge graph (lightweight parser, parallel NER + LLM extraction, batched writes, live job status).



[![Agentic GraphRAG ingestion pipeline](https://img.youtube.com/vi/K4XIat6xpEw/maxresdefault.jpg)](https://youtu.be/K4XIat6xpEw)



> ▶️ Watch: https://youtu.be/K4XIat6xpEw

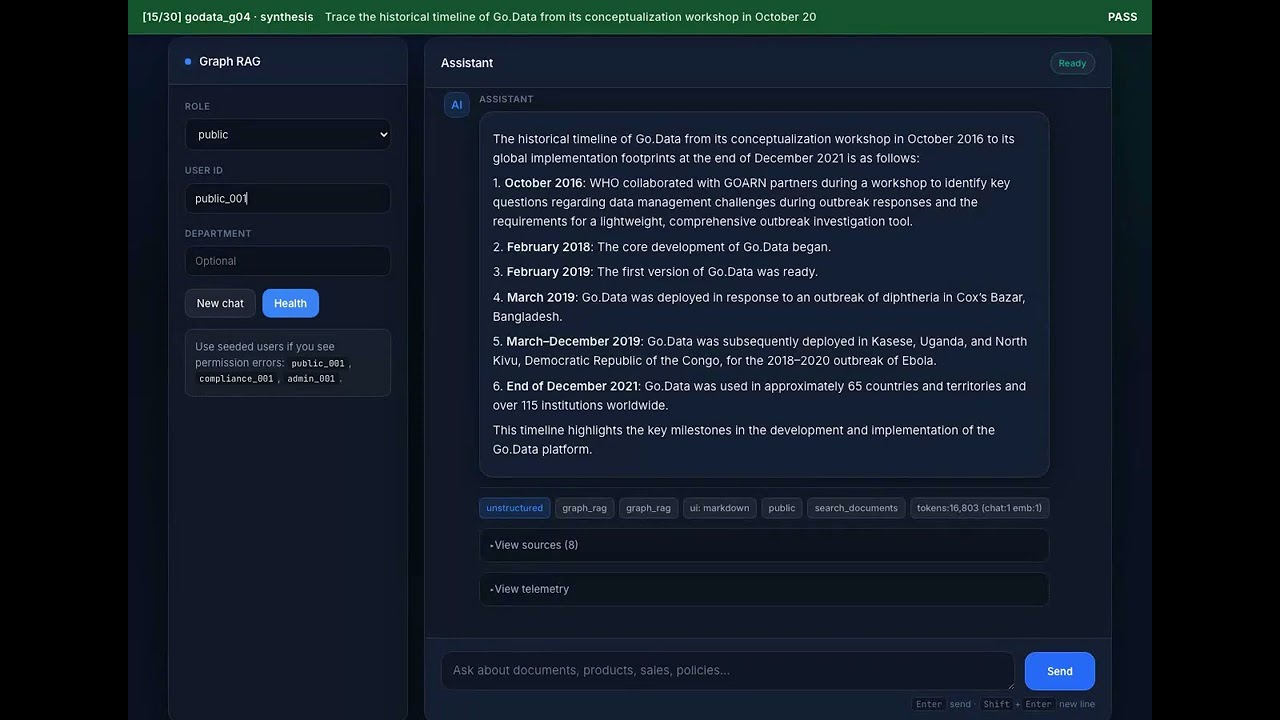

**2. Retrieval + eval run** — the **30-case eval suite** answered live in the chat UI: 20 unstructured document questions + 10 structured analytics questions (bar/line/doughnut charts), each validated with an on-screen PASS/FAIL banner. Final score: **30/30**.



[![Agentic GraphRAG demo — 30/30 eval pass](https://img.youtube.com/vi/7011-xkI1RI/maxresdefault.jpg)](https://youtu.be/7011-xkI1RI)



> ▶️ Watch: https://youtu.be/7011-xkI1RI



---



Agentic GraphRAG is a production-oriented **Graph RAG** stack that keeps **structured business data** and **unstructured documents** in the same graph database, then routes each question to the right retrieval strategy—or combines both. You get SQL-grade analytics on Northwind-style entities *and* multi-hop reasoning over WHO reports, policies, and manuals—without maintaining separate vector DBs, ETL pipelines, and ad-hoc orchestration glue.



Built with **Neo4j · FastAPI · LangGraph · OpenAI**.



---



## Current status



The core platform is **feature-complete** for a production-oriented v1:



| Area | Status |

|------|--------|

| Dual-graph RAG (structured + documents + hybrid) | ✅ |

| Scalable ingestion (Redis + RQ workers, versioning) | ✅ |

| Google OIDC auth, RBAC, per-user thread isolation | ✅ |

| Streaming answers (`/query/stream`) with charts | ✅ |

| Retrieval feedback loop + ops dashboard (`/feedback`) | ✅ |

| Regression eval suites | ✅ |



### Roadmap (future)



| Planned | Description |

|---------|-------------|

| **Short memory (per user)** | Recent turns and session context across a thread — beyond today's single last-turn snapshot |

| **Long memory (per user)** | Durable facts and preferences retrieved at query time (graph-backed or dedicated store) |

| **Multi-language** | Query and answer in multiple languages (detection, prompts, and UI i18n) |



---



## Why this is different



| Typical flat RAG | Agentic GraphRAG |

|------------------|------------------|

| One chunk index for everything | **Dedicated graphs** for tables vs. documents |

| Similarity search only | **Cypher** for metrics + **hybrid retrieval** for PDFs |

| Weak on counts, joins, time series | **Aggregations, rankings, charts** from live Neo4j |

| Loses document structure | **Hierarchy**: Document → Chapter → Section → Page → Region |

| Single-hop Q&A | **Multi-hop** paths across entities, networks, and field stories |

| Guesses when context is missing | **Eval suite** includes anti-hallucination and empty-result cases |



**Unique in practice:** the same user session can ask *“Top 5 products by revenue in 1997”* (structured) and *“Which field epidemiology network deployed fellows to Greece and Kosovo?”* (unstructured, 2–3 hop)—with an **LLM MCP router** choosing `query_data` vs. `search_documents`, RBAC enforcing who sees what, and the chat UI rendering **tables, bar/line/doughnut charts**, or narrative answers as appropriate.



---



## What it does



```mermaid

flowchart TB

  Q[User question] --> R[MCP router]

  R -->|metrics / SQL-like| S[Structured agent]

  R -->|policies / PDFs| U[Unstructured agent]

  R -->|both| H[Hybrid answer]

  S --> C[Text-to-Cypher → Neo4j]

  U --> V[Vector + full-text + graph expand]

  U --> T[TOC / page / fact lookup]

  C --> N[(Neo4j)]

  V --> N

  T --> N

  S --> UI[Charts + tables + narrative]

  U --> UI

  H --> UI

```



| Mode | Best for | Examples |

|------|----------|----------|

| **Structured** | Counts, filters, rankings, time series, BI | *“Monthly order count in 1997”* · *“Revenue share by category”* |

| **Unstructured** | Facts, relationships, timelines, synthesis over PDFs | *“ISBN of the annual report”* · *“Network that deployed fellows to Malta and Moldova”* |

| **Hybrid** | Incidents + policy context in one answer | *“Show compliance incidents and summarize related policy guidance”* |



**Unstructured retrieval is not “vector-only.”** It layers semantic search, lexical match, graph expansion from extracted entities, structural TOC/page fetch, and phrase-based fact lookup (URLs, licenses, abbreviations)—so complex questions anchor on the right section before synthesis.



**Structured retrieval is not “text-to-SQL on CSV.”** It uses your **Neo4j schema** (Northwind demo or your own Cypher ingest), schema-aware repair, multistep plans for hard questions, and automatic chart selection (bar, horizontal bar, line, pie/doughnut).



---



## Complex questions this stack is built for



Try these in chat, or run the bundled eval suites (`python3 scripts/run_rag_eval.py --help`):



| Complexity | Structured (Northwind · `regular_001` / `regular_office`) | Unstructured (Go.Data · `public_001`) |

|------------|-----------------------------------------------------------|----------------------------------------|

| **Lookup** | Which supplier provides Chai? | What is the electronic version ISBN of the Go.Data annual report 2021? |

| **Aggregation** | How many products exist in each category? | How many countries and territories were supported during 2020–2021? |

| **Multi-hop** | Which customers purchased products in the Seafood category? | Which network deployed alumni to Greece, Malta, Moldova, and Kosovo? |

| **Temporal** | Show monthly order count in 1997. | Which deployment came first: Cox's Bazar or Kasese, Uganda? |

| **Compare / synthesize** | Revenue share by category (doughnut). | Contrast proximity tracing tools vs. Go.Data as categorized by WHO. |

| **Anti-hallucination** | Which categories have never appeared in an order? | Which Silicon Valley firm wrote the Go.Data iOS app? *(should deny—not invent)* |



---



## Tech stack



| Layer | Technology |

|-------|------------|

| Graph database | Neo4j 5.x |

| AI orchestration | LangGraph |

| API | FastAPI + Uvicorn |

| LLM / Embeddings | OpenAI (gpt-4o-mini, text-embedding-3-small) |

| PDF parsing | PyMuPDF + pdfplumber |

| Job queue | Redis + RQ *(optional — in-process fallback when unset)* |

| Containers | Docker / Docker Compose |



---



## Quick start



```bash

git clone https://github.com/umerjavaidkh/agentic_graph_rag.git

cd agentic_graph_rag

cp .env.example .env          # add OPENAI_API_KEY

docker compose up --build

```



Open:



| Page | URL |

|------|-----|

| **Chat** | http://localhost:8000/chat |

| **Upload** | http://localhost:8000/upload |

| **Feedback monitor** | http://localhost:8000/feedback |

| **API docs** | http://localhost:8000/docs |

| **Health** | http://localhost:8000/health |



> Do **not** set `NEO4J_URI` in `.env` when using the bundled Docker Neo4j — it is wired automatically.



### Enable Redis workers (parallel ingestion)



Add to `.env`:



```env

REDIS_URL=redis://redis:6379/0

```



Then:



```bash

docker compose up --build              # starts Neo4j + Redis + API + 1 worker

docker compose up --scale worker=3    # scale to 3 parallel workers

```



Without `REDIS_URL`, jobs run inside FastAPI via `BackgroundTasks` — fine for local dev.



---



## Uploading documents



Go to **http://localhost:8000/upload**:



- **Drop multiple PDFs** onto the drop zone — they are submitted concurrently.

- Each file appears as a live job card with status, dispatch mode (`WORKER` / `IN-PROCESS`), version, and expandable logs.

- The **queue status bar** shows Redis connectivity, queue depth, and failed job count.



Or via `curl`:



```bash

# Single PDF

curl -X POST http://localhost:8000/ingest/unstructured \

  -F "file=@sample_data_to_test/unstructured/rag_document.pdf" \

  -F "doc_key=rag-document"



# Cypher data (requires ALLOW_CYPHER_INGEST=true + admin Google sign-in)

curl -X POST http://localhost:8000/ingest/cypher \

  -H "Authorization: Bearer $GOOGLE_ID_TOKEN" \

  -F "file=@sample_data_to_test/structured/northwind-data.cypher"

```



`doc_key` controls versioning: same key + same file → skipped; same key + changed file → new revision.



**Ingestion requires Google sign-in as an admin** — see [Authentication & roles](#authentication--roles). Use `/upload` in the browser (Sign in with Google) or pass the ID token from GIS as `Authorization: Bearer `.



---



## Try it in chat



### With Google sign-in (`AUTH_ENABLED=true`)



1. Set `GOOGLE_CLIENT_ID` in `.env` and register `http://localhost:8000` as an **Authorized JavaScript origin** in Google Cloud Console.

2. Open `/chat` → **Sign in with Google**.

3. Default signed-in users get **`compliance_officer`** (documents + structured). Emails listed in `AUTH_EMAIL_ROLE_MAP` with `=admin` can use `/upload` for ingestion.



| Track | Prerequisite | Signed-in role |

|-------|--------------|----------------|

| **Structured** | Northwind loaded via `/upload` (admin) | `compliance_officer` or `admin` |

| **Unstructured** | PDF ingested via `/upload` (admin) | `compliance_officer` or `admin` |

| **Hybrid** | Both loaded | `compliance_officer` or `admin` |

| **Ingestion** | Admin email in `AUTH_EMAIL_ROLE_MAP` | `admin` only |



### Dev / eval without Google (`AUTH_ENABLED=false`, or `AUTH_ALLOW_BODY_FALLBACK=true` while unsigned in)



| Track | Prerequisite | User ID | Role |

|-------|--------------|---------|------|

| **Structured** | Northwind loaded | `regular_001` | `regular_office` |

| **Unstructured** | PDF ingested | `public_001` | `public` |

| **Hybrid** | Both loaded | `compliance_001` | `compliance_officer` |



**Structured quick checks:**

```

Which customers ordered the most?

Top 5 products by sales revenue in 1997?

```



**Unstructured quick checks:**

```

List all the table of contents from the Go.Data document.

What is the URL for the Go.Data Community of Practice portal?

```



**Hybrid:**

```

Show compliance incidents and summarize the related policy guidance.

```



### Regression eval (optional)



Smoke suites under `eval/` exercise routing, answers, charts, and anti-hallucination cases against `/query`. Corpus-specific expectations live in JSON only — not in retriever code.



```bash

python3 scripts/run_rag_eval.py --suite all          # document + structured + advanced

python3 scripts/run_rag_eval.py --attach-feedback    # label pass/fail for feedback loop

pytest tests/test_rag_eval_validators.py -q

```



Set `EVAL_BASE_URL` (default `http://localhost:8000`) and `EVAL_TIMEOUT` (default `180`) for slow LLM calls.



---



## Feedback monitor



A dedicated **ops window** at **http://localhost:8000/feedback** shows how the feedback loop is performing — separate from chat, read-only, auto-refreshes every 30 seconds.



Requires `RETRIEVAL_FEEDBACK_ENABLED=true` in `.env` (and `docker compose up -d --build app` after changes).



### What you see



| Panel | Purpose |

|-------|---------|

| **KPI cards** | Recording on/off, routing apply on/off, store type (Redis or JSONL), event and label counts |

| **Label coverage chart** | Pass / fail / unlabeled breakdown |

| **Pass rate by mode** | Which retrieval modes (`graph_rag_lexical`, `text2cypher`, etc.) perform best |

| **Patterns table** | Learned question buckets, pass rates, retrieval + route hints, whether routing **would apply** |

| **Recent events** | Last queries: `request_id`, mode, route, outcome, whether `feedback.routing` ran |

| **Question probe** | Type any question to inspect pattern stats via `/feedback/stats` |



### Chat thumbs (👍 / 👎)



When `RETRIEVAL_FEEDBACK_ENABLED=true`, each assistant reply in `/chat` shows **Helpful?** buttons. A click posts to `POST /feedback/outcome` with that message’s `request_id` (same path as eval labeling). Votes appear on the dashboard after refresh.



### Typical workflow



1. Enable feedback in `.env`:

   ```env

   RETRIEVAL_FEEDBACK_ENABLED=true

   RETRIEVAL_FEEDBACK_ROUTING=false   # observe first; set true when labels are ready

   RETRIEVAL_FEEDBACK_STORE_QUESTION=false

   REDIS_URL=redis://redis:6379/0

   ```

2. Use **chat** or run eval with `--attach-feedback` to label pass/fail.

3. Open **/feedback** in a second browser tab while testing.

4. When patterns have enough labeled samples (`RETRIEVAL_FEEDBACK_MIN_SAMPLES`), enable `RETRIEVAL_FEEDBACK_ROUTING=true` and watch **Routing applied** in recent events.



### API



| Endpoint | Description |

|----------|-------------|

| `GET /feedback` | Dashboard UI |

| `GET /feedback/dashboard` | JSON aggregate (powers the UI) |

| `GET /feedback/stats?question=…` | Stats + hint for one question pattern |

| `POST /feedback/outcome` | Attach pass/fail to a prior `request_id` |



Feedback shares the same Redis instance as ingestion (different key namespaces). Fine for current scale; see architecture notes if you outgrow a single Redis.



---



## Architecture



**Query path**



```

User Query → MCP Router (routing.py + feedback_loop resolver)

                 ├─ Structured Agent → Text-to-Cypher / multistep → Neo4j → charts/tables

                 ├─ Unstructured Agent → hybrid retrieval → Neo4j → narrative + sources

                 └─ Hybrid (compliance role) → both paths → merged answer

                      │

                      ▼

              feedback_loop (observe → label → learn → optional apply)

```



**Feedback loop** (`src/feedback_loop/`) — observe pipeline telemetry, label outcomes, optionally improve routing:



| Stage | What happens |

|-------|----------------|

| **Observe** | After `/query` and `/query/stream`, persist compact telemetry (Redis stream or JSONL) |

| **Label** | `POST /feedback/outcome` or eval `--attach-feedback` marks pass/fail per `request_id` |

| **Learn** | Aggregate pass rates by question **pattern** (intent flags) + retrieval mode or route tool |

| **Apply** | When `RETRIEVAL_FEEDBACK_ROUTING=true`, `FeedbackRoutingService` adjusts multistep vs text2cypher, document hybrid mode, or MCP route — only after enough labeled samples |



See **[Feedback monitor](#feedback-monitor)** below for the ops UI. Application code imports from `src/feedback_loop`; `src/telemetry/feedback/` is a deprecated shim.



**Unstructured retrieval modes** (selected per question): vector similarity · full-text · graph expand from NER · TOC structural fetch · page-by-number · phrase/fact lookup (URLs, licenses).



**Ingestion write path:**



```

PDF → LightPdfParser

        │

        ├── Axis 1: Document → Chapter → Section → Page → Region

        ├── Page vision (optional, ENABLE_PAGE_VISION=true)

        └── Axis 2: Embeddings · NER · Clustering · LLM relationship pass

                      (parallel thread pools)

              │

              └── Neo4jExporter (UNWIND batched writes) → Neo4j

```



**With Redis workers:**



```

POST /ingest  →  API  →  Redis queue

                              │

                    ┌─────────┴─────────┐

                 Worker 1           Worker N

                    │                   │

             per-doc Redis lock (same doc serialised, different docs parallel)

             parse → Axis 2 → batched Neo4j writes → update job in Redis

                              │

GET /ingest/jobs/{id}  →  reads from Redis  →  200

```



---



## Configuration



Copy `.env.example` → `.env`. Key variables:



### Core



| Variable | Default | Description |

|----------|---------|-------------|

| `OPENAI_API_KEY` | **required** | LLM, embeddings, routing |

| `NEO4J_USER` | `neo4j` | Neo4j username |

| `NEO4J_PASSWORD` | `password123` | Neo4j password |

| `CHAT_MODEL` | `gpt-4o-mini` | Document RAG synthesis; default for other stages |

| `STRUCTURED_MODEL` | *(CHAT_MODEL)* | Text-to-Cypher + structured answers |

| `ROUTING_MODEL` | *(CHAT_MODEL)* | MCP routing (`search_documents` vs `query_data`) |

| `AXIS2_MODEL` | *(CHAT_MODEL)* | Ingestion NER + relationship LLM pass |

| `EMBEDDING_MODEL` | `text-embedding-3-small` | Retrieval + ingest embeddings |

| `VISION_MODEL` | `gpt-4o-mini` | Page vision (`ENABLE_PAGE_VISION=true`) |



| `APP_PORT` | `8000` | API port |



Active model resolution: `GET /config/models`



### Authentication & roles



| Variable | Default | Description |

|----------|---------|-------------|

| `AUTH_ENABLED` | `false` | `true` → chat/upload require Google (or OIDC) for production paths |

| `GOOGLE_CLIENT_ID` | *(empty)* | OAuth 2.0 Web client ID (GIS button in `/chat` and `/upload`) |

| `AUTH_DEFAULT_ROLE` | `compliance_officer` | Role assigned to new Google users (chat: documents + structured) |

| `AUTH_EMAIL_ROLE_MAP` | *(empty)* | Comma-separated `email=role` overrides, e.g. `you@corp.com=admin` |

| `AUTH_JIT_PROVISION` | `true` | On each login, sync User + `HAS_ROLE` in Neo4j from config/maps |

| `AUTH_ALLOW_BODY_FALLBACK` | `true` when auth off | `true` → unsigned `/query` may send `user_id`/`role` in JSON (eval/dev). Set **`false` in production**. |

| `AUTH_PROVIDER` | `google` | `google` or `oidc` (corporate IdP via `OIDC_ISSUER`, `OIDC_AUDIENCE`) |

| `AUTH_CLAIM_ROLE_MAP` | *(empty)* | Optional IdP group → role map (JSON or `Group=role` pairs) |



**Admin configuration (ingestion):** map operator Google emails to `admin` in `.env`:



```env

AUTH_ENABLED=true

GOOGLE_CLIENT_ID=your-client-id.apps.googleusercontent.com

AUTH_DEFAULT_ROLE=compliance_officer

AUTH_EMAIL_ROLE_MAP=you@company.com=admin

AUTH_ALLOW_BODY_FALLBACK=false   # production: Google only for /query

```



- **`admin`** — ingestion (`/upload`, `/ingest/*`), `/admin/reset-neo4j`, full RBAC.

- **`compliance_officer`** — chat only (`/query`, `/query/stream`): documents + structured data.

- **`regular_office`** — structured data only (demo user `regular_001`).

- **`public`** — document graph only (demo user `public_001`).



When a Bearer JWT is present, the server **ignores** sidebar/body `user_id` and `role` — identity comes from Google claims + maps above.



Public config for the UI: `GET /auth/config` · current principal: `GET /auth/me` (with `Authorization: Bearer …`).



### Ingestion & scalability



| Variable | Default | Description |

|----------|---------|-------------|

| `REDIS_URL` | *(unset = in-process)* | Set to `redis://redis:6379/0` for workers |

| `INGEST_QUEUE_NAME` | `ingest` | RQ queue name |

| `AXIS2_NER_CONCURRENCY` | `8` | Parallel NER calls per doc |

| `AXIS2_LLM_PAIR_CONCURRENCY` | `6` | Parallel LLM relationship calls per doc |

| `AXIS2_MAX_LLM_PAIRS` | `300` | Cap on candidate pairs sent to LLM |

| `NEO4J_WRITE_BATCH` | `2000` | UNWIND chunk size for bulk writes |

| `DOC_SKIP_DUPLICATE_HASH` | `true` | Skip ingest when same file already active |

| `DOC_VERSION_RETAIN_METADATA` | `true` | Keep expired `DocRevision` nodes for audit |

| `ENABLE_PAGE_VISION` | `false` | Vision model descriptions for PDF pages |

| `ALLOW_CYPHER_INGEST` | `false` | Enable `.cypher` file upload endpoint |

| `ALLOW_DB_RESET` | `false` | Enable `/admin/reset-neo4j` |



### Retrieval feedback loop



| Variable | Default | Description |

|----------|---------|-------------|

| `RETRIEVAL_FEEDBACK_ENABLED` | `false` | Record pipeline telemetry after queries (no behavior change) |

| `RETRIEVAL_FEEDBACK_ROUTING` | `false` | Apply labeled hints to routing/retrieval (`true` = self-improvement) |

| `RETRIEVAL_FEEDBACK_STORE_QUESTION` | `false` | Store first 120 chars of question in feedback events (privacy: keep `false` in prod) |

| `RETRIEVAL_FEEDBACK_MIN_SAMPLES` | `30` | Minimum labeled outcomes before a hint can apply |

| `RETRIEVAL_FEEDBACK_MIN_MARGIN` | `0.15` | Required pass-rate gap between best and second-best mode |

| `REDIS_URL` | *(unset)* | Recommended for production feedback aggregates (same Redis as ingestion) |



```bash

# Label a prior query (e.g. from eval or thumbs)

curl -X POST http://localhost:8000/feedback/outcome \

  -H "Content-Type: application/json" \

  -d '{"request_id": "abc123", "passed": true}'



# Inspect pattern stats + suggested hint (read-only)

curl "http://localhost:8000/feedback/stats?question=Top%205%20products%20by%20revenue&agent=structured"



# Full ops dashboard JSON (powers /feedback UI)

curl http://localhost:8000/feedback/dashboard

```



### NEO4J_URI — when to set it



| Setup | Value |

|-------|-------|

| Docker + bundled Neo4j | **Leave unset** |

| Docker + Neo4j on your Mac | `bolt://host.docker.internal:7687` |

| API on Mac + Neo4j in Docker | `bolt://localhost:17687` |

| API on Mac + local Neo4j | `bolt://localhost:7687` |



---



## API reference



```bash

# Query (dev — body user_id/role when AUTH_ALLOW_BODY_FALLBACK=true)

curl -X POST http://localhost:8000/query \

  -H "Content-Type: application/json" \

  -d '{"question": "Which customers ordered the most?", "user_id": "regular_001", "role": "regular_office"}'



# Query (production — Google ID token)

curl -X POST http://localhost:8000/query \

  -H "Content-Type: application/json" \

  -H "Authorization: Bearer $GOOGLE_ID_TOKEN" \

  -d '{"question": "List all table of contents for the Go.Data document."}'



# Upload PDF (admin JWT required)

curl -X POST http://localhost:8000/ingest/unstructured \

  -H "Authorization: Bearer $GOOGLE_ID_TOKEN" \

  -F "file=@doc.pdf" -F "doc_key=my-doc"



# Job status (admin JWT required)

curl -H "Authorization: Bearer $GOOGLE_ID_TOKEN" \

  http://localhost:8000/ingest/jobs/{job_id}

curl -H "Authorization: Bearer $GOOGLE_ID_TOKEN" \

  "http://localhost:8000/ingest/jobs?limit=20"

curl -H "Authorization: Bearer $GOOGLE_ID_TOKEN" \

  http://localhost:8000/ingest/queue/status



# Auth helpers

curl http://localhost:8000/auth/config

curl -H "Authorization: Bearer $GOOGLE_ID_TOKEN" http://localhost:8000/auth/me



# Health / active models

curl http://localhost:8000/health

curl http://localhost:8000/config/models



# Feedback loop (requires RETRIEVAL_FEEDBACK_ENABLED=true)

curl -X POST http://localhost:8000/feedback/outcome \

  -H "Content-Type: application/json" \

  -d '{"request_id": "YOUR_REQUEST_ID", "passed": true}'

curl "http://localhost:8000/feedback/stats?question=monthly%20order%20count%20in%201997"

```



Response fields from `/ingest/jobs/{id}`: `status`, `dispatch` (`worker` / `background_task`), `logical_doc_id`, `revision_id`, `version_number`, `skipped_duplicate`, `logs[]`, `error`.



---



## Authentication & roles



### How identity is resolved



```mermaid

flowchart LR

  subgraph chat [Chat /query]

    G[Google JWT] --> C[claims + AUTH_EMAIL_ROLE_MAP]

    C --> JIT[Neo4j User HAS_ROLE]

    JIT --> RBAC[can_query_knowledge_area]

    B[Body user_id/role] -.->|only if no JWT and AUTH_ALLOW_BODY_FALLBACK| RBAC

  end

  subgraph ingest [Ingest /upload]

    G2[Google JWT] --> A{role = admin?}

    A -->|yes| UP[/ingest/* /admin/*]

    A -->|no| DENY[403]

  end

```



| Surface | Auth | Role required |

|---------|------|----------------|

| `/chat`, `POST /query`, `POST /query/stream` | JWT recommended; body fallback optional | Any role with data access (`compliance_officer`+ for both graphs) |

| `/upload`, `POST /ingest/*`, `GET /ingest/*` | **JWT required** (no body fallback) | **`admin`** only |

| `POST /admin/reset-neo4j` | **JWT required** | **`admin`** (+ `ALLOW_DB_RESET=true`) |



### RBAC by role (Neo4j knowledge areas)



| Role | Documents (`esg`) | Structured (`structured`) | Ingestion |

|------|-------------------|---------------------------|-----------|

| `public` | ✅ | ❌ | ❌ |

| `regular_office` | ❌ | ✅ | ❌ |

| `compliance_officer` | ✅ | ✅ | ❌ |

| `admin` | ✅ | ✅ | ✅ |



### Seeded demo users (eval / `AUTH_ALLOW_BODY_FALLBACK`)



| User ID | Role | Documents | Structured |

|---------|------|-----------|------------|

| `public_001` | `public` | ✅ | ❌ |

| `regular_001` | `regular_office` | ❌ | ✅ |

| `compliance_001` | `compliance_officer` | ✅ | ✅ |

| `admin_001` | `admin` | ✅ | ✅ |



Google sign-in creates JIT users in Neo4j (`AUTH_JIT_PROVISION=true`). Role is taken from `AUTH_EMAIL_ROLE_MAP` first, else `AUTH_DEFAULT_ROLE`, and re-synced on each login.



**Follow-up memory (`thread_id`):** scoped per user as `{user_id}:{session_uuid}` on the server. Two different Google users never share follow-up context; **New chat** only clears the current user's thread. Today this is a **single last-turn** snapshot (`conversation/thread_memory.py`). Per-user **short** and **long** memory are on the [roadmap](#roadmap-future).



**Google OAuth `origin_mismatch`:** the browser origin must exactly match an **Authorized JavaScript origin** (e.g. `http://localhost:8000`, not `127.0.0.1` unless both are registered).



---



## Neo4j



| Purpose | Value |

|---------|-------|

| Browser | http://localhost:17474 |

| Bolt URL (in Browser login) | `neo4j://localhost:17687` |

| Username / Password | `neo4j` / `password123` |



Ports 17474 / 17687 avoid clashing with a local Neo4j on 7474 / 7687.



```bash

# Shell access

docker exec -it graphrag-neo4j cypher-shell -u neo4j -p password123

```



---



## Project structure



```

agentic_graph_rag/

├── sample_data_to_test/

│   ├── unstructured/          # rag_document.pdf, rag_document_2.pdf

│   └── structured/            # northwind-data.cypher

├── src/

│   ├── api.py                 # FastAPI routes, dispatch, job list, queue status

│   ├── config/settings.py     # All env-var settings

│   ├── ingestion/

│   │   ├── service.py         # IngestionManager (store-backed, per-doc lock)

│   │   ├── job_store.py       # RedisJobStore / InMemoryJobStore

│   │   ├── queue.py           # RQ queue helpers

│   │   ├── tasks.py           # run_ingest_job() — RQ worker callable

│   │   └── models.py          # IngestionStatus enum

│   ├── document/

│   │   ├── parser.py          # LightPdfParser (PyMuPDF + pdfplumber)

│   │   ├── page_vision.py     # Optional vision enrichment

│   │   └── versioning.py      # Logical doc ID, revision plans, hashing

│   ├── exporter/exporter.py   # Neo4jExporter — UNWIND batched writes

│   ├── semantic/axis2.py      # Axis 2 (parallel NER + LLM relationship pass)

│   ├── retrieval/

│   │   ├── unstructured/        # DocumentRAGRetriever (facade + mixins)

│   │   │   ├── retriever.py     # Public API + backward-compat exports

│   │   │   ├── mixins/          # hybrid, graph_seeds, ranking, lexical, TOC/page/box strategies

│   │   │   ├── query_intent.py  # Question-shape routing (TOC, page, synthesis, …)

│   │   │   ├── toc_retrieval.py, visual_retrieval.py, executor.py

│   │   └── structured/          # StructuredRetriever (facade)

│   │       ├── retriever.py

│   │       ├── cypher/          # generate, validate, repair, pipeline

│   │       ├── multistep/       # planner, executor, context

│   │       ├── schema/ · policies/ · formatting/

│   ├── graph/                 # Neo4j constants, lifecycle helpers

│   ├── presentation/          # UI blocks (markdown, tables, charts)

│   ├── conversation/          # Thread memory + clarification

│   ├── feedback_loop/         # Observe → label → learn → optional routing apply

│   │   ├── pattern.py · profile.py · store.py · record.py · hints.py · dashboard.py

│   │   ├── resolver.py        # Shared MCP tool resolution (router + stream)

│   │   └── routing/           # Policy-based FeedbackRoutingService

│   ├── static/

│   │   ├── chat.html · upload.html · feedback.html   # Feedback ops monitor

│   ├── auth/                  # RBAC + OIDC (Google JWT, JIT provision, deps)

│   ├── streaming/             # NDJSON /query/stream orchestrator

│   └── prompts/               # LLM prompts

├── eval/                      # JSON smoke suites + validators

├── scripts/run_rag_eval.py    # Regression eval against /query

├── tests/

│   ├── test_retrieval_feedback_unit.py

│   ├── test_scalable_pipeline_unit.py

│   ├── test_document_versioning_unit.py

│   ├── test_toc_retrieval_unit.py

│   └── test_rag_eval_validators.py

├── docker-compose.yml         # Neo4j + Redis + API + worker

├── Dockerfile

└── .env.example

```



---



## Troubleshooting



**App not loading (port 8000 refused)**

```bash

docker ps --filter name=graphrag

docker logs graphrag-app --tail 50

# Common cause: missing OPENAI_API_KEY, or NEO4J_URI set to localhost in .env

docker compose up -d app

```



**Neo4j Browser: "Connection failed"** — use `neo4j://localhost:17687`, not `localhost:7687`.



**Worker not picking up jobs**

```bash

docker ps --filter name=worker

docker logs $(docker ps --filter name=worker -q | head -1) --tail 30

docker exec graphrag-redis redis-cli ping        # should return PONG

curl http://localhost:8000/ingest/queue/status   # check failed_jobs[]

```



**Job status lost after restart** — set `REDIS_URL` for durable storage; without it state lives only in the API process.



**Access denied on structured queries** — with Google sign-in, use `compliance_officer` or `admin` (default: `AUTH_DEFAULT_ROLE=compliance_officer`). In dev sidebar mode: structured needs `regular_001` / `regular_office`; documents need `public_001` / `public`; both graphs need `compliance_001` or `admin_001`.



**Ingestion returns 401/403** — sign in on `/upload` with an email listed in `AUTH_EMAIL_ROLE_MAP=…=admin`. Body `role`/`user_id` fields are **not** accepted on ingest routes.



**Google sign-in: Error 400 `origin_mismatch`** — add `http://localhost:8000` to Authorized JavaScript origins in Google Cloud Console (match the exact URL you open in the browser).



**Rebuild slow** — only rebuild the changed service:

```bash

docker compose up -d --build app

```



---



## Local development (without Docker)



```bash

python -m venv venv && source venv/bin/activate

pip install -r requirements.txt

# .env: set OPENAI_API_KEY, NEO4J_URI=bolt://localhost:7687, NEO4J_PASSWORD

uvicorn src.api:app --reload --host 0.0.0.0 --port 8000

```



---



## Further reading



**Medium article:** [Agentic Graph RAG — architecture and walkthrough](https://medium.com/p/0ee1f6baae26)



---



## Security



- Never commit `.env` — it is gitignored

- **Production checklist:**

  - `AUTH_ENABLED=true`, `AUTH_ALLOW_BODY_FALLBACK=false` (no impersonation via JSON body)

  - `AUTH_EMAIL_ROLE_MAP=your-admin@company.com=admin` — only listed emails can ingest

  - `AUTH_DEFAULT_ROLE=compliance_officer` (or tighter) for everyone else

  - `ALLOW_CYPHER_INGEST=false`, `ALLOW_DB_RESET=false`

  - Do not publish Neo4j (17474/17687) or Redis (6379) to the public internet

- Ingest and admin routes require a verified Google JWT + `admin` role — never trust form `role`/`user_id`

- Rotate your OpenAI key if it was ever exposed
