## MPPI with Control Barrier Functions (Shield MPPI) for F1Tenth car
### Building:
1. Clone this repo
2. This repo uses some custom message types for communication, defined here: https://github.com/vaithak/f1tenth_icra_race_msgs
```
git clone git@github.com:vaithak/f1tenth_icra_race_msgs.git
colcon build --packages-select=f1tenth_icra_race_msgs
```
3. Build the package
```
colcon build
source install/local_setup.bash
```
### Running
- Launch the object and tracking subsystems
`ros2 launch f1tenth_icra_race r3.oo.launch.py`
- Launch the spliner and state machine
`ros2 launch f1tenth_icra_race r3.ss.launch.py`
- Launch the shield mppi controller
`ros2 launch f1tenth_icra_race r3.c.launch.py`
### Subsystems and workings
- **Opponent Detection and tracking:**
- It uses a clustering method with an adaptive breakpoint algorithm to create bounding box
rectangles for obstacles.
- Uses a simplified Extended Kalman Filter for Velocity tracking (assumes a single obstacle).
- Implemented in C++ for realtime performance of 50Hz.
- Reference: https://github.com/kostaskonkk/datmo
- **Spline-based real-time planner and state machine:**
- Real-time updating of local waypoints if an obstacle is detected in front of the car.
- Decides which side to overtake from and fits a cubic spline to update the waypoints.
- State machine to decide when to trail vs when to overtake
- Reference from ForzaETH: https://arxiv.org/abs/2403.11784
- **Shield MPPI-based controller:**
- MPPI with control barrier functions for following the raceline and avoiding obstacles.
- Local repair minimization step using CBFs is only done when the trajectory follows undesired behavior.
- Reference of Shield MPPI: https://arxiv.org/abs/2302.11719
### Working demo on sim
[shield mppi](https://github.com/user-attachments/assets/b5d3f740-e091-4092-b12f-3779751e319c)

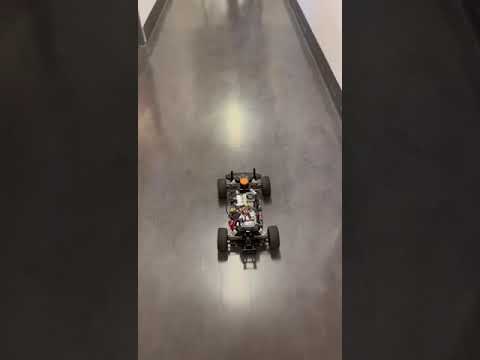

### Working version on a real car
[](https://www.youtube.com/watch?v=V5UYKdPNC0Q)
