# Radio Transmitter

This is a simple radio transmitter project. You can try the simulation files with ``LTspice`` and you can check the demo video too. Whit this circuit can you test an old radio. Let's try it, have a fun!

## How it works

The LTspice simulation file contains this circuit. The **first transistor stage** is a mixer and oscillator, the **second** is a small and simple amplifier stage. In first stage I use an AF transformer from an old radio (NEYWA 402) for the audio signal, but you can use other type too. Not critical.

![alt text](https://vargalaszlo.com/images/out/weekend_mw_rf_transmitter_01.jpg)

Oscillogram from LTSpice:

![alt text](https://vargalaszlo.com/images/out/weekend_mw_rf_transmitter_02.jpg)

FFT signal is here, it works on ~730kHz (so on Medium wave):

![alt text](https://vargalaszlo.com/images/out/weekend_mw_rf_transmitter_03.jpg)

## Demo

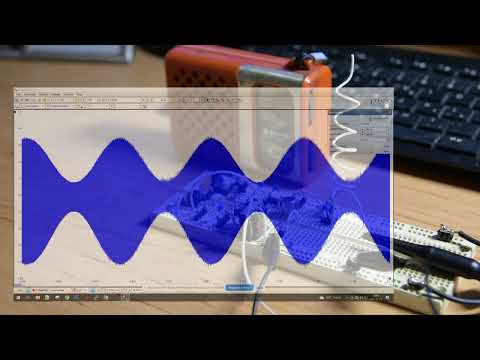

[![IMAGE ALT TEXT HERE](https://img.youtube.com/vi/jfwVguCQNgU/0.jpg)](https://youtu.be/jfwVguCQNgU)

## License

See `LICENSE.txt` for more information.

## Contact

Varga Laszlo - https://vargalaszlo.com - [email protected]

Project Link: https://github.com/vargalaszlo87/radio-transmitter
