README
# DPatch: An Adversarial Patch Attack on Object Detectors
This is a [PyTorch](https://github.com/pytorch/pytorch)
implementation of DPATCH.
Please refer to the paper https://arxiv.org/abs/1806.02299
## Installation
1. Please install PyTorch following the instuctions on the official website. The version here should be 0.4.0
```bash
conda install pytorch torchvision -c pytorch
```
2. The yolo codes are referred to https://github.com/longcw/yolo2-pytorch. Download the pretrained yolo model [yolo-voc.weights.h5](https://drive.google.com/open?id=0B4pXCfnYmG1WUUdtRHNnLWdaMEU)
3. Download the dataset VOCdevkit
```bash
wget http://host.robots.ox.ac.uk/pascal/VOC/voc2007/VOCtrainval_06-Nov-2007.tar
wget http://host.robots.ox.ac.uk/pascal/VOC/voc2007/VOCtest_06-Nov-2007.tar
wget http://host.robots.ox.ac.uk/pascal/VOC/voc2007/VOCdevkit_08-Jun-2007.tar
```
2. Extract all of these tars into one directory named `VOCdevkit`
```bash
tar xvf VOCtrainval_06-Nov-2007.tar
tar xvf VOCtest_06-Nov-2007.tar
tar xvf VOCdevkit_08-Jun-2007.tar
```
3. It should have this basic structure
```bash
$VOCdevkit/ # development kit
$VOCdevkit/VOCcode/ # VOC utility code
$VOCdevkit/VOC2007 # image sets, annotations, etc.
# ... and several other directories ...
```
4. Since the program loading the data in `DPatch/data` by default,
you can set the data path as following.
```bash
cd DPatch
mkdir data
cd data
ln -s $VOCdevkit VOCdevkit2007
```
## Train a DPatch
The trained DPATCH are saved in trained_patch/${target_class}/
```bash
python train.py
```
## Test
Download a trained DPATCH https://drive.google.com/open?id=1_G5xXWIJWNGuss4KZbBQ9pMvuthmL_wc , or you can test your trained DPatch and set the path in cfgs/config.py (Line 102)
```bash
python test.py –-attack untargeted
python test.py –-attack targeted
```
## Demo
The demo pictures are saved in demo/patch, the detection results are saved in demo/
```bash
python demo.py
```

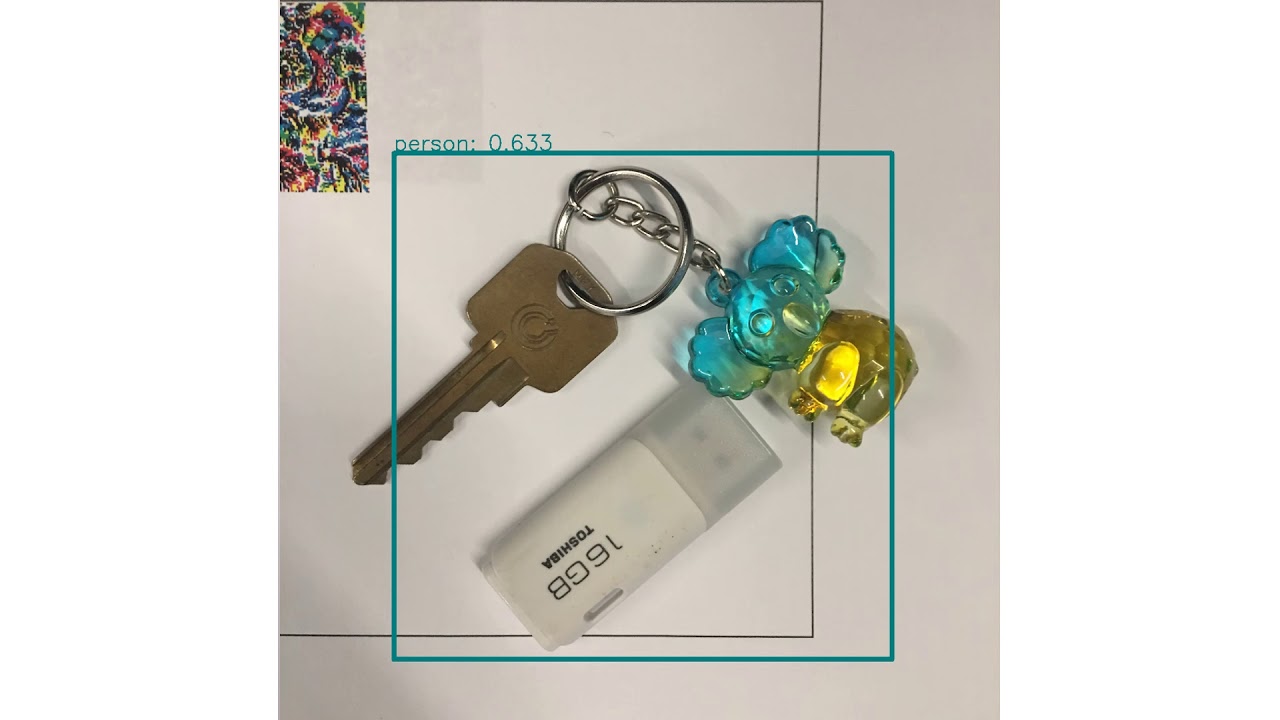

Click the following picture to watch the video demo.
[](https://youtu.be/-aPbU9q1gFU)
