melafit: High-precision 24h melatonin profile analysis. Features bimodal skewed baseline cosine fitting (Van Someren & Nagtegaal, 2007) and a robust cost function (Gabel et al., 2017) for superior convergence, even with sparse data.

Awesome Lists containing this project

README


# melafit



Python package for **high-precision circadian melatonin profile analysis.**

Features a variety of baseline cosine functions for curve fitting

([Van Someren & Nagtegaal, 2007](https://doi.org/10.1016/j.sleep.2007.03.012))

and a robust cost function for superior convergence, even with sparse data

([Gabel et al., 2017](https://doi.org/10.1038/s41598-017-07060-8)).



## Overview



[melafit](https://github.com/vitaliy-ch25/melafit) is a Python package

designed for high-precision modeling of 24-hour melatonin secretion. While

standard cosinor or harmonic analyses fail to capture the physiological

nuances of the melatonin "wave,"

[melafit](https://github.com/vitaliy-ch25/melafit) implements several

**baseline cosine functions** including bimodal, skewed and bimodal-skewed

modifications. This approach accounts for the characteristic baseline,

asymmetry and dual peaks often seen in high-resolution circadian melatonin

data.



Furthermore, the library utilizes a **specialized cost function** developed

to overcome common optimization hurdles (trivial all-zero solutions),

ensuring stable convergence even when working with sparse or incomplete

time series.



## Key Features



* **Bimodal Waveform Fitting:** Implementation of the

  [Van Someren & Nagtegaal (2007)](https://doi.org/10.1016/j.sleep.2007.03.012)

  model for superior physiological accuracy.

* **Optimized Convergence:** Leverages the robust cost function described in

  [Gabel et al. (2017)](https://doi.org/10.1038/s41598-017-07060-8) to ensure

  reliable fits across diverse datasets.

* **Sparse Data Support:** Capable of reconstructing full profiles and

  estimating circadian phase from limited data points, as well as

  determining dim light melatonin onset (DLMO) with partial data.

* **Research-Ready:** Direct derivation of `Amplitude`, `DLMOn`,

  `DLMOff`, `Midpoint`, `Area` and `COG` markers from continuous,

  fitted waveforms.



## Installation



`melafit` is available on [PyPI](https://pypi.org/project/melafit/) and can be

installed with `pip`. However, installing directly into your system Python

environment without a virtual environment is strongly discouraged, as it may

cause conflicts with other packages. The recommended approach is to use

[miniforge](https://conda-forge.org/download/) as the package and environment

manager to create a dedicated virtual environment, as described below.



### Standard installation



Download file

[`melafit.yml`](https://github.com/vitaliy-ch25/melafit/blob/main/melafit.yml)

to a directory of your choice (``). Navigate to the directory,

create and activate the conda environment:



```bash

cd

conda env create -f melafit.yml

conda activate melafit

```



The environment configuration file

[`melafit.yml`](https://github.com/vitaliy-ch25/melafit/blob/main/melafit.yml)

uses `conda-forge` as the sole package channel, ensuring reproducibility and

avoiding potential conflicts between packages from different channels.

`melafit` itself is installed from [PyPI](https://pypi.org/project/melafit/)

via `pip` as part of the environment setup. This will create a fully

functional analysis environment, including all supporting packages (`numpy`,

`scipy`, `pandas`, `openpyxl` and `matplotlib`).



### Developer installation



Click to expand



If you intend to follow the development closely or contribute to the

package, clone the repository first to a dedicated directory

``. Navigate to it and clone the repository as follows:



```bash

cd

git clone https://github.com/vitaliy-ch25/melafit.git

cd melafit

```



Then create and activate the conda environment using the developer

configuration file

[`melafit-dev.yml`](https://github.com/vitaliy-ch25/melafit/blob/main/melafit-dev.yml),

which installs `melafit` directly from the cloned directory in editable mode:



```bash

conda env create -f melafit-dev.yml

conda activate melafit

```



With an editable install, any changes to the source code in the cloned

directory take effect immediately without reinstalling the package.



## Updating



### Standard update



Download the latest

[`melafit.yml`](https://github.com/vitaliy-ch25/melafit/blob/main/melafit.yml)

to ``. Navigate to it and run the update command as follows:



```bash

cd

conda env update -f melafit.yml --prune

```



This updates both the dependencies and `melafit` itself to the latest

released version.



### Developer update



Click to expand



Navigate to the cloned repository directory and pull the latest version

from the main branch:



```bash

cd /melafit

git pull

```



The editable install picks up the changes immediately. If dependencies in

[`melafit-dev.yml`](https://github.com/vitaliy-ch25/melafit/blob/main/melafit-dev.yml)

have changed, also run:



```bash

conda env update -f melafit-dev.yml --prune

```



This updates both the dependencies and the `melafit` package itself to

the latest version.



## Getting Started



Code examples and some dummy data demonstrating melatonin profile curve

fitting with this package are included in

[./examples/](https://github.com/vitaliy-ch25/melafit/blob/main/examples/) and

[./data/](https://github.com/vitaliy-ch25/melafit/blob/main/data/). Copy

sample scripts and datasets to your working directory and start from there. If

you have performed the steps above as described, your script will 'see' all

the required packages from any location. Simply make sure to use the virtual

environment `melafit` you created.



### Minimal example — fit a single participant and compute area/COG



Click to expand



```python

import os

import matplotlib.pyplot as plt

from matplotlib import dates

import melafit as mf



# Read full profile data from Excel spreadsheet

data = mf.read_data("./data/dummy_data_full.xlsx")



# Prepare results directory and collector

result_path = "./results/one_fit/"

os.makedirs(result_path, exist_ok=True)

collector = mf.ResultsCollector()



participant = 1



# Prepare data for the participant

p_data = mf.prepare_part_data(data, participant)



# Fit curve and compute resampled waveform

res = mf.fit(p_data.Timestamp, p_data.Mel, mf.bsbcf)

resampled_t = mf.gen_time_range(p_data.Timestamp, step="1min")

resampled_f = mf.bsbcf(t=resampled_t, p=res)



# Compute area and COG

ac = mf.area_cog(resampled_t, resampled_f)



# Collect all results for this participant

meta = mf.SessionInfo(p_data)

collector.add(meta, ac)



# Print summary

print(meta)

print(res)

print(ac)



# Visualize results

title_str = (f"{meta}, {ac}, R²={res.r2:.3f}")



plt.close("all")

plt.figure(figsize=(12, 5))

plt.scatter(p_data.Timestamp, p_data.Mel, c='b')

plt.plot(resampled_t, resampled_f, 'g')

plt.xlabel("Time, hh:mm")

plt.gca().xaxis.set_major_formatter(dates.DateFormatter('%H:%M'))

plt.ylabel("Concentration, pg/ml")

plt.title(title_str)

plt.legend(["Melatonin data", "BSBCF curve"])

plt.savefig(result_path + f"mel_data_{participant}_BSBCF.png")



# Keep the figure open until a button is pressed

plt.waitforbuttonpress()



# Save results to Excel file

collector.save(result_path, "results_one_fit_BSBCF.xlsx")

```



Running this code contained in [example_one_fit.py](https://github.com/vitaliy-ch25/melafit/blob/main/examples/example_one_fit.py) produces the following text output in the terminal



```bash

Participant=1, 2026-03-19 12:00 – 2026-03-20 12:00

Fitted function: BSBCF, parameters: phi=0.108, b=1.650, H=65.766, c=0.235, v=0.185, m=0.198, R²=0.9978

```

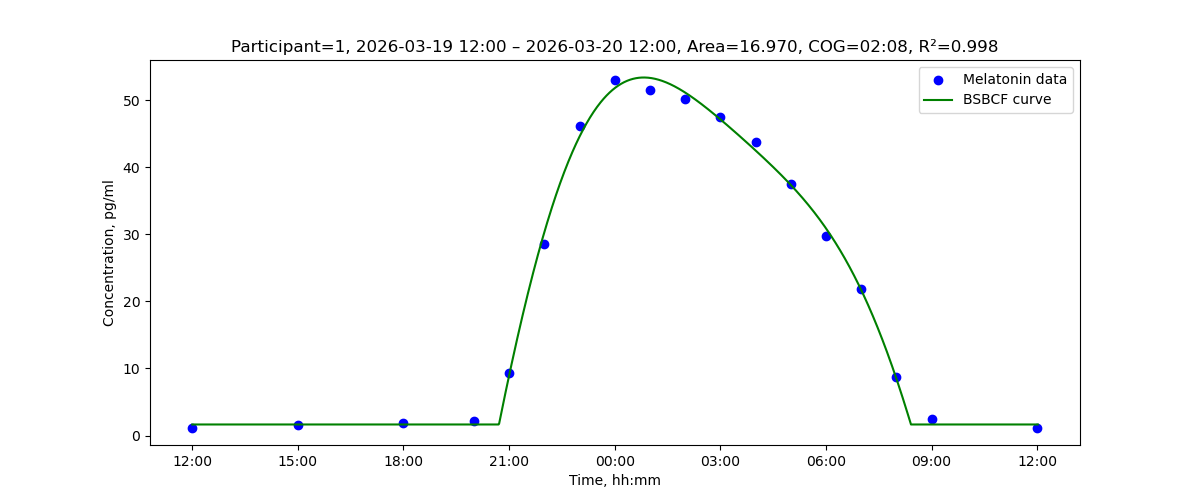

and the following figure is displayed with a fitted BSBCF waveform and the data it was fitted to. Besides that, the results are stored to an Excel table `results_one_fit_BSBCF.xlsx` under `./results/one_fit/`.



![Example output](https://raw.githubusercontent.com/vitaliy-ch25/melafit/main/assets/example_one_fit.png)



### Data preparation



Follow the Excel table format and column naming conventions as in

[./data/](https://github.com/vitaliy-ch25/melafit/blob/main/data/):

* *Participant* for study participant ID

* *Date* for dates of the respective samples

* *Time* for sample timestamps

* *Mel* for melatonin level values



## Scientific Foundations



If you use [melafit](https://github.com/vitaliy-ch25/melafit) in your

research, please cite the following foundational publications:



### Human-Readable

1. [Van Someren, E. J., & Nagtegaal, E. (2007). Improving melatonin circadian phase estimates. Sleep Medicine, 8(6), 590-601.](https://doi.org/10.1016/j.sleep.2007.03.012)

2. [Gabel, V., et al. (2017). Differential impact in young and older individuals of blue-enriched white light on circadian physiology and alertness during sustained wakefulness. Scientific Reports, 7, 7620.](https://doi.org/10.1038/s41598-017-07060-8)



### BibTeX



Click to expand



```bibtex

@article{vansomeren2007,

  title={Improving melatonin circadian phase estimates},

  author={Van Someren, Eus JW and Nagtegaal, Elsbeth},

  journal={Sleep Medicine},

  volume={8},

  number={6},

  pages={590--601},

  year={2007},

  publisher={Elsevier}

}



@article{gabel2017,

  title={Differential impact in young and older individuals of

         blue-enriched white light on circadian physiology and alertness

         during sustained wakefulness},

  author={Gabel, Virginie and Reichert, Carolin F and Maire, Micheline

          and Schmidt, Christina and Schlangen, Luc JM

          and Kolodyazhniy, Vitaliy and Garbazza, Corrado

          and Cajochen, Christian and Viola, Antoine U},

  journal={Scientific Reports},

  volume={7},

  pages={7620},

  year={2017},

  publisher={Nature Publishing Group}

}

```



If there is no associated publication on `melafit` yet, please cite the

package directly using the following reference:



```text

Kolodyazhniy, V., Cajochen, C. (2026). melafit: High-precision circadian

melatonin profile analysis (Version x.y.z). [Computer software].

Available at https://github.com/vitaliy-ch25/melafit (Accessed: dd mmm yyyy).

```



## Authors



* Vitaliy Kolodyazhniy – Lead Developer

* Christian Cajochen – Scientific Lead



## Revision History



Click to expand



### [v0.4.1](https://github.com/vitaliy-ch25/melafit/releases/tag/v0.4.1) - Bugfix and documentation polish

- `ResultsCollector.save()` now appends `.xlsx` only when the supplied

  filename does not already end with `.xlsx`, preventing double-extension

  filenames such as `results.xlsx.xlsx`

- Unit test `test_save_filename_with_xlsx_extension` added to verify that a

  filename passed with `.xlsx` already present is written without modification

- Docstrings improved in `markers.py` and `results.py`

- README: collapsible sections added for BibTeX citation block, Revision

  History, Developer installation, and Developer update; section captions and

  markup refined; recommended package/environment manager updated to

  [Miniforge](https://github.com/conda-forge/miniforge)

- `midpoint()` now raises `ValueError` with a descriptive message (data range

  and threshold value included) when the threshold is never crossed, replacing

  a silent `IndexError`

- `area_cog()` now raises `ValueError` with a descriptive message when the

  baseline is never crossed from below, or when the area under the curve is

  zero

- `prepare_part_data()` issues `warnings.warn()` instead of `print()` when

  correcting a duplicate timestamp, so the message integrates with standard

  Python warning filters

- Unused imports removed from `markers.py` (`phase_to_string`) and

  `utils.py` (`os`, `scipy.optimize`)

- Unit tests added: `test_threshold_never_crossed_raises` (`TestMidpoint`),

  `test_baseline_never_crossed_raises` and `test_zero_area_raises`

  (`TestAreaCog`)

- `pyproject.toml`: `keywords`, `classifiers`, and `Documentation` URL added



### [v0.4.0](https://github.com/vitaliy-ch25/melafit/releases/tag/v0.4.0) - Improved API and examples

- `AmplitudeResult` now includes a `baseline` field (waveform minimum)

- `ResultsCollector` records and Excel output now include the `baseline` column

- `__str__()` added to all `AnalysisRecord` subclasses for human-readable

  `print()` output:

  - `SessionInfo`: participant name and session date/time range

  - `AmplitudeResult`: amplitude and baseline values

  - `MidpointResult`: DLMOn, DLMOff and Midpoint times

  - `AreaCogResult`: area and COG time

  - `FitResult`: function name, parameters and R²

  - `AnalysisRecord` base: generic fallback derived from `to_dict()`

- Example scripts updated to use `print(meta)`, `print(res)`,

  `print(mid, ac)` directly via the new `__str__` representations

- Unit tests extended to cover the new `baseline` field and `ResultsCollector`

  column

- All example scripts simplified to `import melafit as mf` (single top-level

  import replaces multiple `from melafit.xxx import ...` lines)

- New minimal getting-started example `example_one_fit.py`: single-participant

  fit with `bsbcf`, `area_cog`, result collection, plot and Excel export

- `os.makedirs(result_path, exist_ok=True)` added to `example_dlmo.py` and

  `example_full_profile.py` so result directories are created automatically

- README: collapsible getting-started example with output figure added to the

  Getting Started section

- Version is now managed in a single source of truth: `melafit/_version.py`

  contains `__version__`; `pyproject.toml` uses `dynamic = ["version"]` with

  `[tool.setuptools.dynamic]` pointing to `melafit._version.__version__`;

  `melafit/__init__.py` imports and re-exports `__version__` from `._version`

- Fixed citation author in module docstring: "Ruf et al. (1992)" → "Ruf (1992)"



### [v0.3.0](https://github.com/vitaliy-ch25/melafit/releases/tag/v0.3.0) - Cleaner API

- `AnalysisResult` renamed to `AnalysisRecord`

- `AnalysisInfo` renamed to `SessionInfo`; describes the data acquisition

  session only (`participant`, `start`, `end`); `func` and `r2` removed

- `SessionInfo` constructor simplified: accepts a single `p_data` DataFrame

  (as returned by `prepare_part_data()`); `participant`, `start` and `end`

  are derived automatically

- `FitResult.to_dict()` now includes `func` (waveform function name) and `r2`

  (R² goodness of fit), both computed automatically at the end of `fit()`

- `r2` is no longer a field of `SessionInfo`; `fit()` computes and stores it

  in `FitResult` directly

- `compute_wave()` eliminated; replaced by the `gen_time_range()` +

  waveform-function pattern: `gen_time_range()` accepts a Timestamp series or

  explicit `tmin`/`tmax` bounds and a pandas offset string for `step`, and

  returns a time axis as float days since the Unix UTC epoch, which is

  then passed directly to the waveform function (e.g.

  `bsbcf(t=gen_time_range(series, step="1min"), p=fit_result)`)

- New helper `to_days()` converts timestamps to float days since the Unix UTC

  epoch; timezone-naive input is treated as UTC, timezone-aware input is

  converted to UTC first

- New helper `from_days()` is the inverse of `to_days()`; returns a

  UTC-aware `pd.DatetimeIndex`

- `day_profile()`, `midpoint()` and `area_cog()` now accept a float days

  array (as returned by `gen_time_range()`) in addition to `pd.DatetimeIndex`

- `fit()` now accepts a `datetime64` array or pandas `Timestamp` Series for

  `time_fit`; conversion via `to_days()` is automatic

- `prepare_part_data()` no longer adds a `Timedays` column to the returned

  DataFrame; time handling is done internally via `to_days()`

- `prepare_part_data()` returns an independent copy of the participant's data;

  mutations to the returned DataFrame do not affect the original; redundant

  `Date` and `Time` columns are dropped (both are combined in `Timestamp`)



### [v0.2.0](https://github.com/vitaliy-ch25/melafit/releases/tag/v0.2.0) - Simplified API

- New module `results.py` with classes: `AnalysisResult` (abstract

  base), `AnalysisInfo`, `AmplitudeResult`, `MidpointResult`, `AreaCogResult`,

  `FitResult` and `ResultsCollector` for result management

- `FitResult` wraps `scipy.optimize.OptimizeResult` in its `result` field;

  `fit()` now returns `FitResult`

- `FitResult` can be passed directly to waveform functions and `compute_wave`

- `amplitude()`, `midpoint()` and `area_cog()` now return their respective

  result classes instead of tuples/floats

- `to_dict()` on all result classes: timing fields returned as `HH:MM`

  strings, other fields as native types

- `AnalysisInfo.r2` defaults to `NaN` for convenience in DLMO workflows

- New `string_to_phase()` utility function in `utils.py` (inverse of

  `phase_to_string`)

- `day_profile()` accepts separate times and values parameters

- `PARAM_NAMES` renamed to `BUILTIN_PARAM_NAMES`

- Example scripts simplified via `ResultsCollector` and result classes

- Unit tests for all new classes and methods



### [v0.1.3](https://github.com/vitaliy-ch25/melafit/releases/tag/v0.1.3)

- Improved documentation

- Developer installation option



### [v0.1.2](https://github.com/vitaliy-ch25/melafit/releases/tag/v0.1.2)

- Improved documentation



### [v0.1.1](https://github.com/vitaliy-ch25/melafit/releases/tag/v0.1.1) - First PyPI release

- Enhanced function `fit()` to support custom waveform functions with

  user-defined initial parameters and bounds

- Changed named parameter order in `fit()`: `cost_f` and `cost_p` are

  now the last two parameters

- Fixed returned type hints in `func_defaults()`

- Additional unit tests for new functionality

- Improved README

- Package registered in Python Package Index PyPI



### [v0.1.0](https://github.com/vitaliy-ch25/melafit/releases/tag/v0.1.0) - First public release

- Dictionary support for waveform function parameters throughout the

  package: all functions accept both `dict` and `np.ndarray` for

  parameter input

- Named parameter constants: `BCF_PARAM_NAMES`, `SBCF_PARAM_NAMES`,

  `BBCF_PARAM_NAMES`, `BSBCF_PARAM_NAMES` and `PARAM_NAMES` lookup

- New utility functions `params_to_array()` and `array_to_params()` for

  conversion between array and named dictionary representations

- `fit()` now returns named parameter dictionary as `res.p` in addition

  to the standard scipy `res.x` array

- `fit()` now accepts `cost_p` dictionary for passing parameters to the

  cost function (e.g. `{"eps": 1e-6}`)

- New utility function `params_to_string()` for human-readable parameter output

- Fixed `area_cog()`: baseline subtraction and bin size normalization

- Unit tests for all public functions in `fitting`, `markers` and `utils`



### Initial revisions (v0.0.1 – v0.0.9)

- Full implementation of melatonin profile analysis as described in

  [Gabel et al. (2017)](https://doi.org/10.1038/s41598-017-07060-8)

- Waveform functions: `bcf`, `sbcf`, `bbcf`, `bsbcf`

- Markers: `amplitude`, `midpoint`, `DLMOn`, `DLMOff`, `area`, `cog`

- Utilities: `read_data`, `prepare_part_data`, `compute_wave`,

  `day_profile`, `abs_threshold`, `time_to_phase`, `phase_to_string`,

  `phase_diff`

- Example scripts: `example_dlmo.py` (DLMO from partial data) and

  `example_full_profile.py` (full profile analysis)

- MIT license, packaging metadata and README



## License



This project is licensed under the MIT License. See the

[LICENSE](https://github.com/vitaliy-ch25/melafit/blob/main/LICENSE) file for

details.
