https://github.com/web-infra-dev/webpack-inspector
Devtool for webpack.
https://github.com/web-infra-dev/webpack-inspector
Last synced: 12 days ago
JSON representation
Devtool for webpack.
- Host: GitHub
- URL: https://github.com/web-infra-dev/webpack-inspector
- Owner: web-infra-dev
- Created: 2022-08-09T06:50:54.000Z (over 2 years ago)
- Default Branch: main
- Last Pushed: 2023-02-10T08:37:16.000Z (almost 2 years ago)
- Last Synced: 2024-08-01T19:57:10.894Z (3 months ago)
- Language: TypeScript
- Homepage:
- Size: 626 KB
- Stars: 96
- Watchers: 5
- Forks: 8
- Open Issues: 2
-
Metadata Files:
- Readme: README.md
Awesome Lists containing this project
README
# Webpack Inspector
## Introduction
Webpack dev tools to make performance analysis, error investigation and loader development more convenient. Provide the following functions:

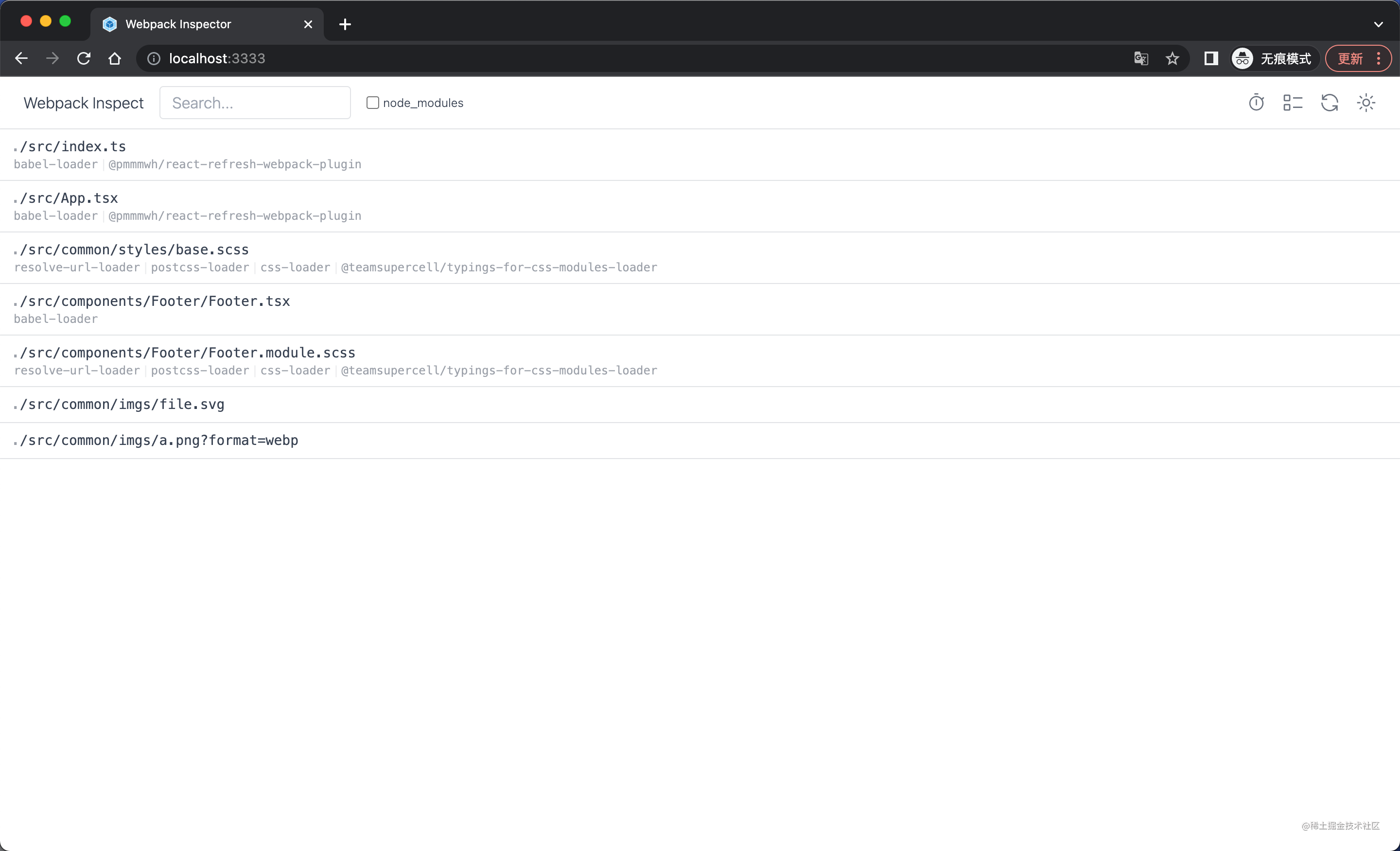

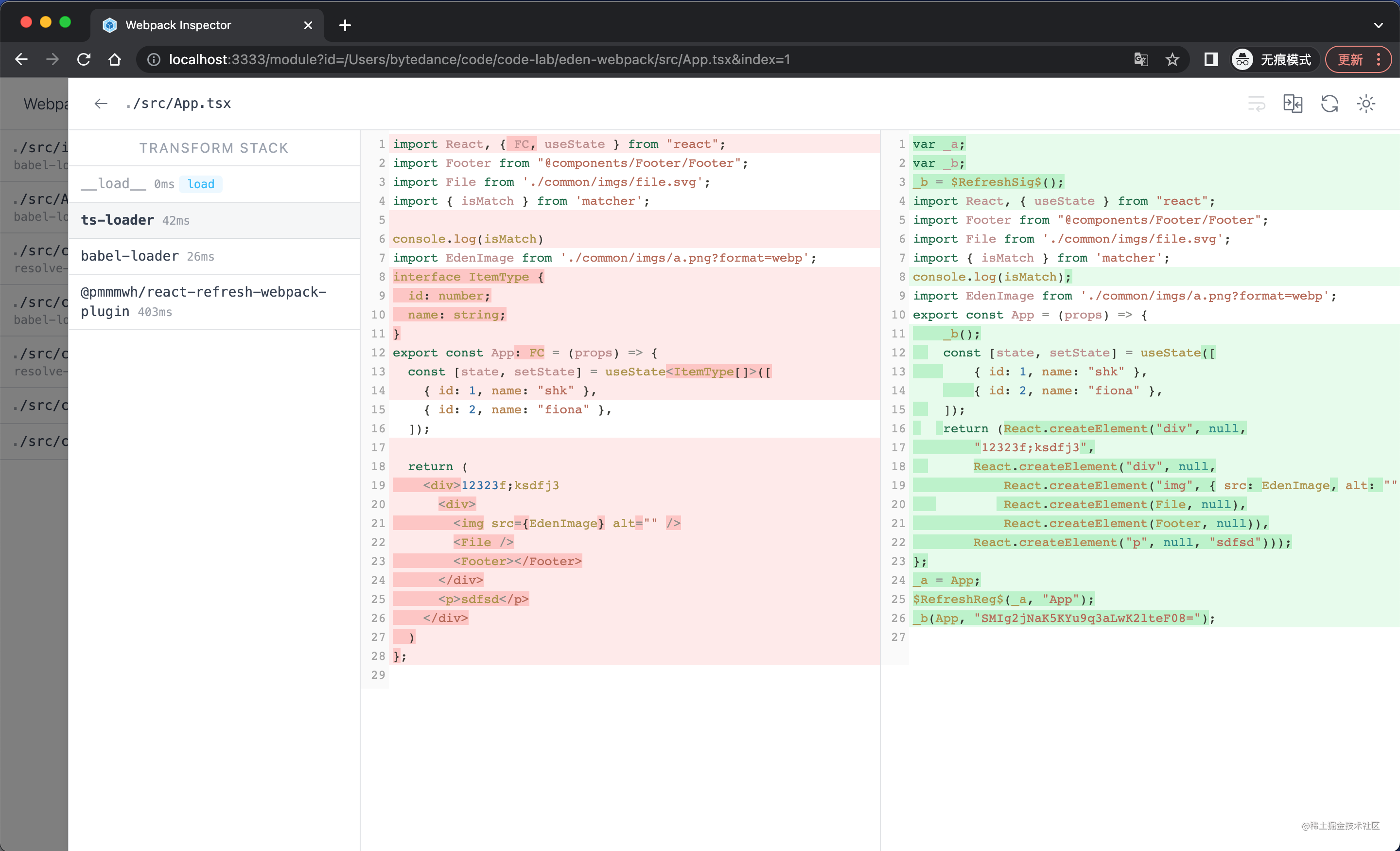

1. All modules and intermediate compilation results passed by the loaders.
![devtool-0.png](https://p1-juejin.byteimg.com/tos-cn-i-k3u1fbpfcp/4deb18a92b8245caa1eeba9c0843db71~tplv-k3u1fbpfcp-watermark.image?)
![devtool-1.png](https://p6-juejin.byteimg.com/tos-cn-i-k3u1fbpfcp/f8f994016e3e4a22be5339c43a0817fc~tplv-k3u1fbpfcp-watermark.image?)

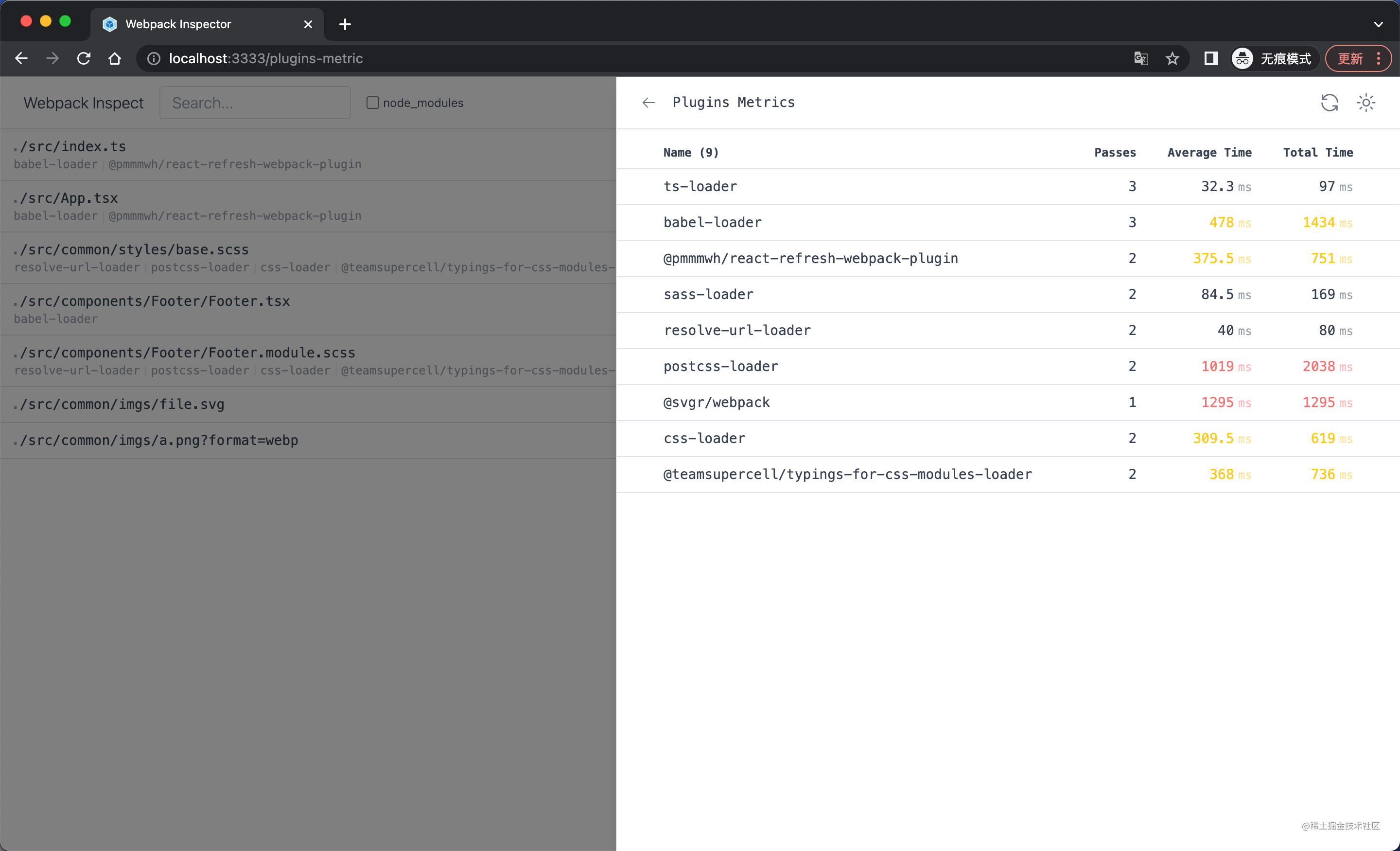

2. The time consuming of all loaders and the number of files they compile.
![devtool-3.png](https://p3-juejin.byteimg.com/tos-cn-i-k3u1fbpfcp/a617af7a430d4100ab177bb2da614b1c~tplv-k3u1fbpfcp-watermark.image?)

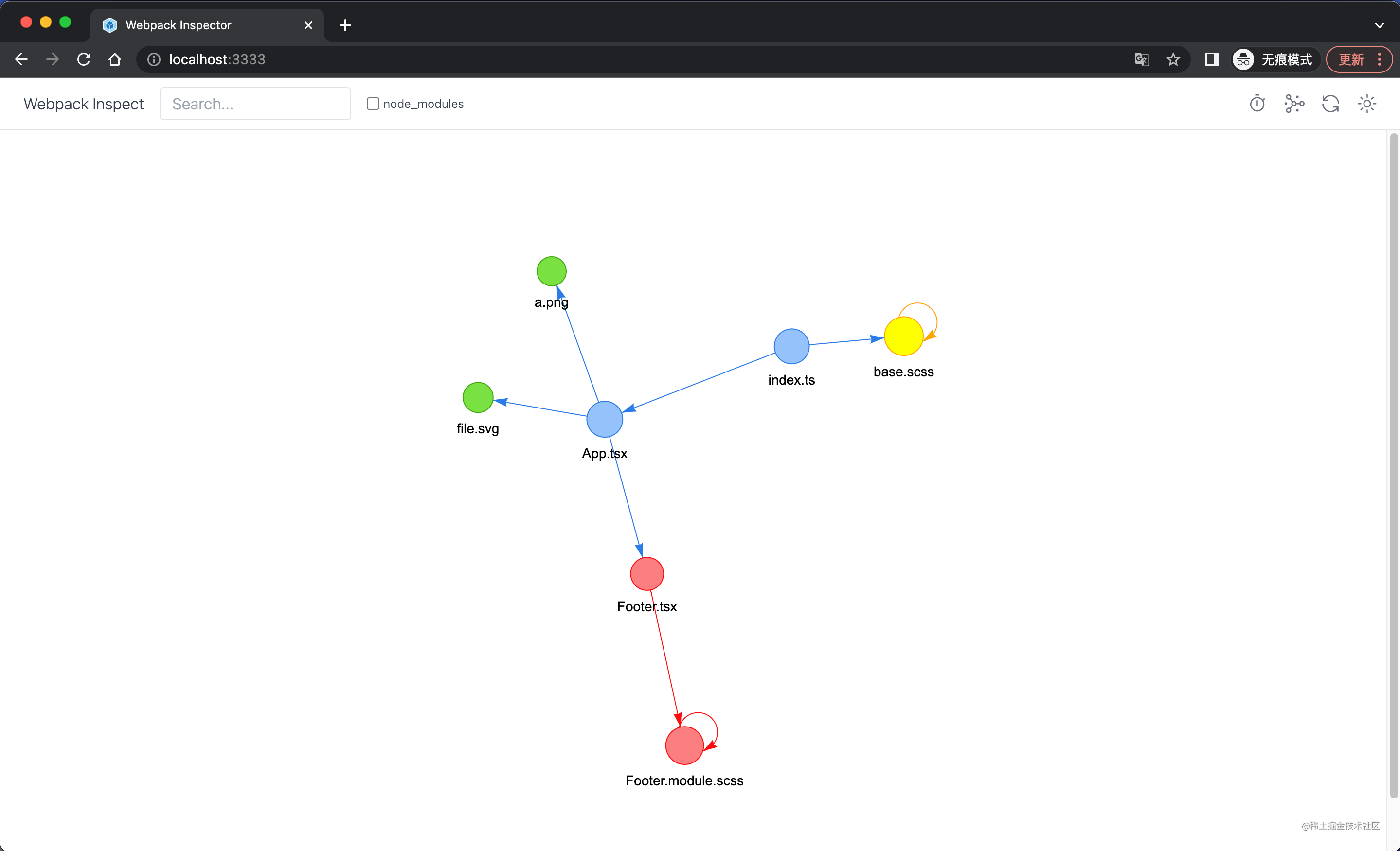

3. Module dependency graph structure visualization.(Think of performance, the function will be closed when the number of modules is greater than 100)
![devtool-4.png](https://p6-juejin.byteimg.com/tos-cn-i-k3u1fbpfcp/52c85f669cf843d1901868363cf04843~tplv-k3u1fbpfcp-watermark.image?)

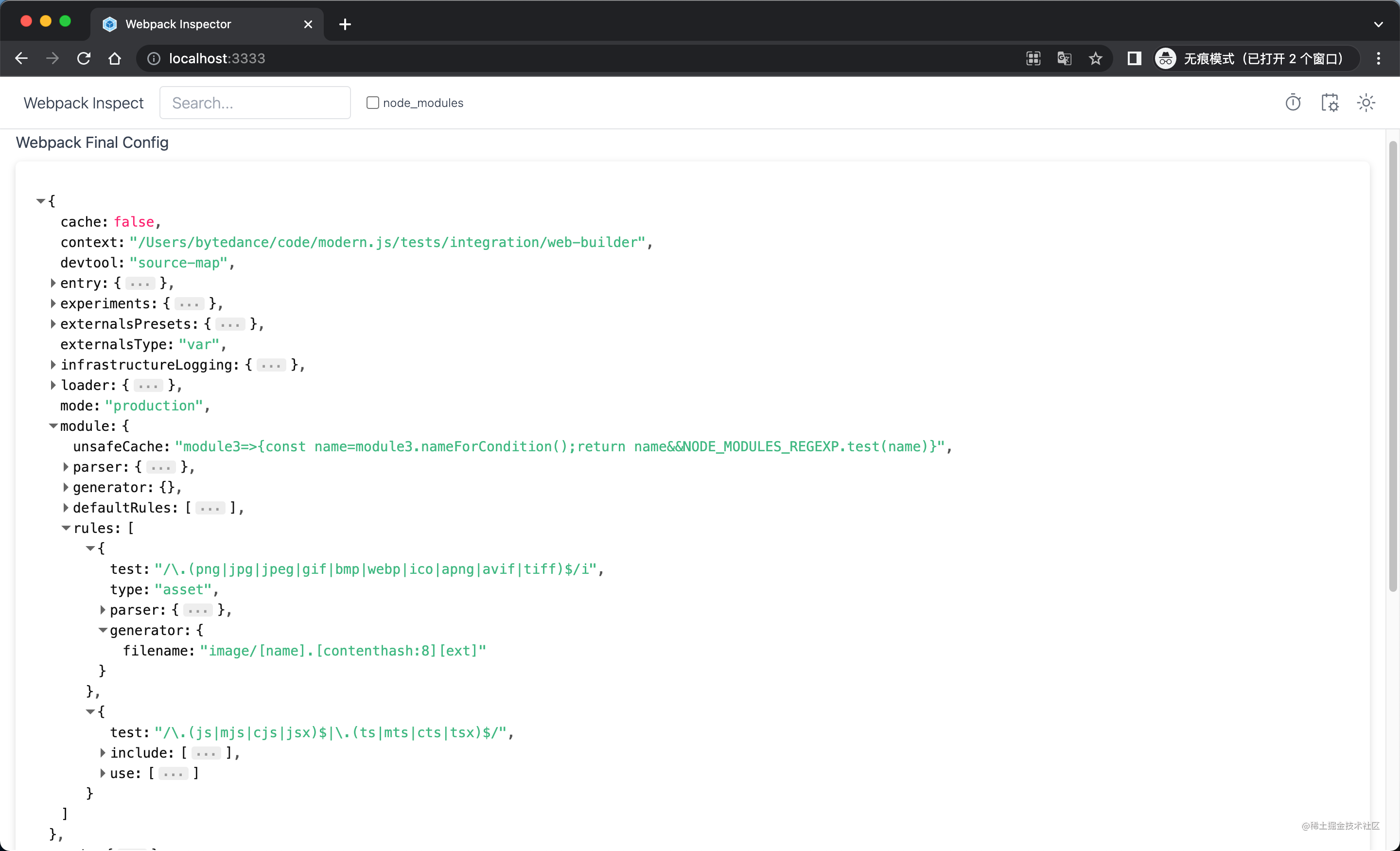

4. View the final config of webpack.
![devtool-5.png](https://p6-juejin.byteimg.com/tos-cn-i-k3u1fbpfcp/328cfdff36034cd1bbf1e14c40a30772~tplv-k3u1fbpfcp-watermark.image?)

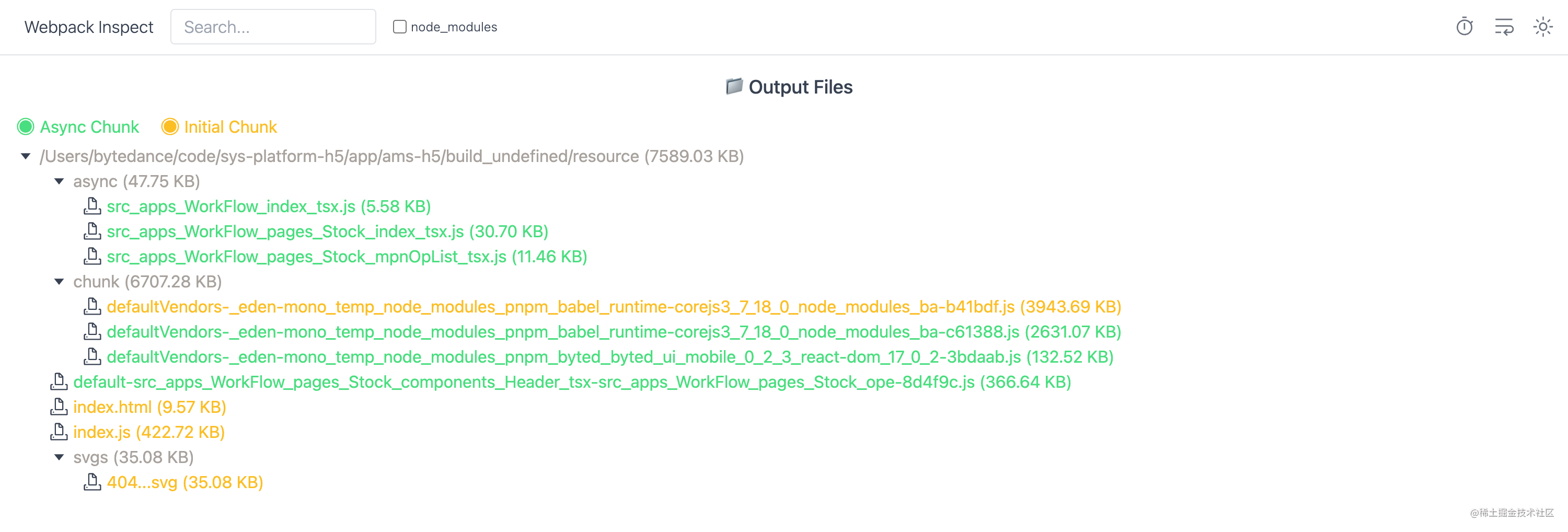

5. View the webpack output chunk.
![devtool-6.png](https://p6-juejin.byteimg.com/tos-cn-i-k3u1fbpfcp/000a454c179d451fb8156ae8f9bcc434~tplv-k3u1fbpfcp-watermark.image?)
## Usage### 1. Install
```bash
pnpm install @modern-js/inspector-webpack-plugin -D
```### 2. Use in webpack
```ts
// webpack.config.ts
import { InspectorWebpackPlugin } from '@modern-js/inspector-webpack-plugin'// Add plugin
export default {
plugins: [new InspectorWebpackPlugin()]
}
```### 3. Custom Options
```ts
export default {
plugins: [new InspectorWebpackPlugin({
// Custom the port of devtool page, which is 3333 by default.
port: 3456,
// Config the module that need to be ignored, ignore will not work by default.
ignorePattern: /node_modules/
})]
}
```## Credits
The UI interface implementation of inspector is modified from existing project [`vite-plugin-inspect`](https://github.com/antfu/vite-plugin-inspect).At the same time, webpack loader in the inspect got inspired by [`speed-measure-webpack-plugin`](https://github.com/stephencookdev/speed-measure-webpack-plugin).Thanks for them.
