        # barcode-generator

 p5.js app to generate barcodes given some data

[![P5.js](https://img.shields.io/badge/P5.js-Enabled-pink.svg)](https://shields.io/)[![License: MIT](https://img.shields.io/badge/License-MIT-yellow.svg)](https://opensource.org/licenses/MIT)

```

by oran collins

github.com/wisehackermonkey

[email protected]

20200625

```

# Live Demo

# [click here](#)

# Dev Log

- [EAN-13](https://en.wikipedia.org/wiki/International_Article_Number)

- [UPC-A](https://en.wikipedia.org/wiki/Universal_Product_Code)

# semi-working barcode untested

![](./Screenshot_3.png)

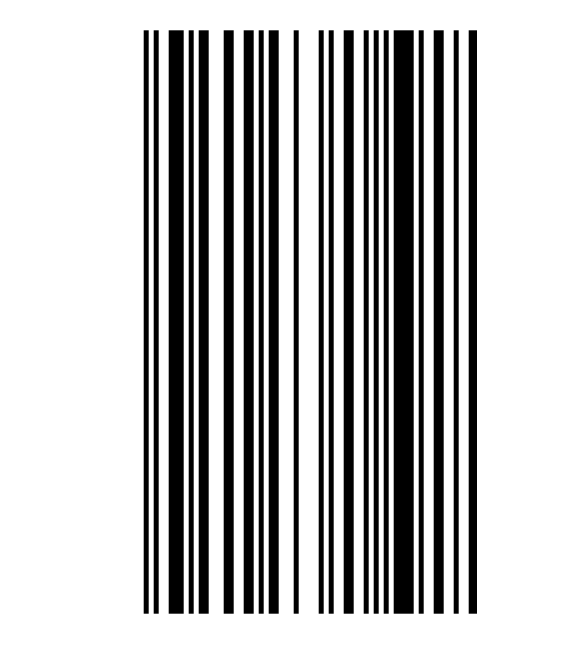

# try 2

![](https://i.postimg.cc/NFGQYcWQ/screenshot-3.png)

#### great example

- [EAN-13 BACKGROUND INFORMATION](http://www.barcodeisland.com/ean13.phtml)

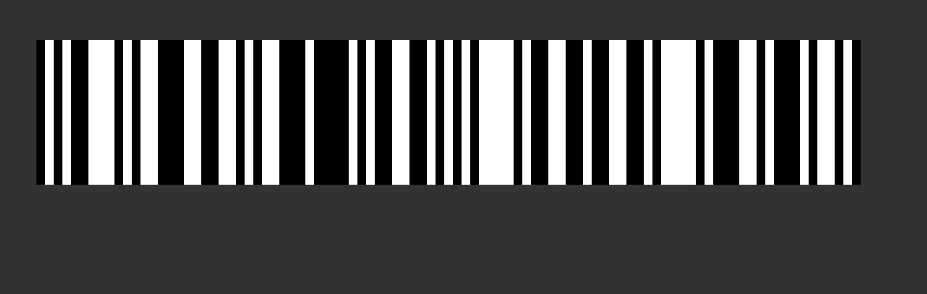

# Try v3 still not working for some reason!

![](https://i.postimg.cc/DZ6mcsZ2/screenshot-6.png)

#### what its supposed to look like

![](http://www.barcodeisland.com/ean13-2.gif)

# update figured out why id didnt scan the aspect ration was way off!

#### i overlayed the refrence with mine and it showed the issue

![](./Screenshot_2.png)

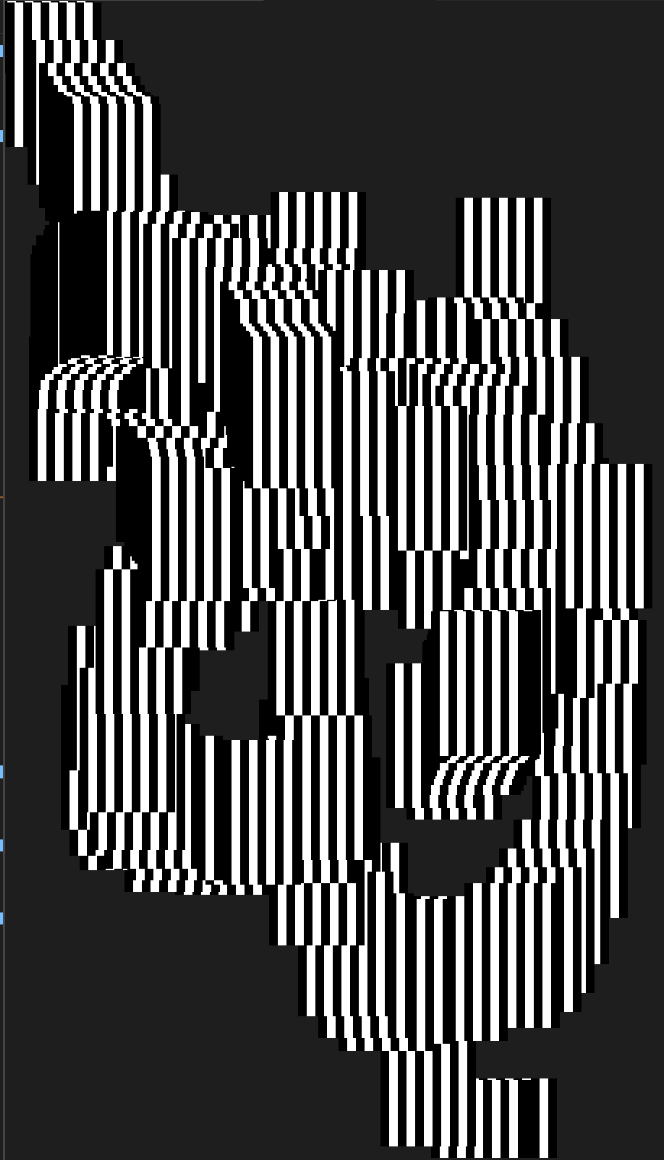

# funny mistake

#### [P5.js web editor link](https://editor.p5js.org/wisemonkey/present/3BL7cmc4a)

![](https://i.postimg.cc/ChX2FtLs/screenshot-5.png)

# brain storming

- map array of bits to pixels

- map array to lines

- test barcode with scanner

    - to test array to pixel use example data

- helper function that turns numbers into [l,g,r]-digits (encoded) bit pattern

- combine multiple digits into one array

- way to indicate start, center and end markers

### example of a barcode v1

```

start    data        center                 end

101  | <42 digits> | 01010 |  <42 digits> | 101

```

```

open questions what are arias?

how does parity work for this thing?

is it actaull 13 digit max

```

pattern mapping

```

first digit = 13

mapping is LLGLGG

L for digit 5

is 0110001

8 = LGLGGL and RRRRRR

8 711253 001202

expands to

011101101100110011001001101101110010111101

simple case

101 01010 101

```

# Working out a case for 111111111111 (111-111-111-111) len 12

```text

first digit is 1 so encode second group with RRRRRR

[if digit is 0 then encode with pattern      LLLLLL]

number    encoding

111-111 =

111-111 = RRRRRR

Check digit (CRC) is = 6

Encoding of the digits

      ODD    all     even

Num L-code	G-code	R-code

0	0001101	0100111	1110010

1	0011001	0110011	1100110

2	0010011	0011011	1101100

3	0111101	0100001	1000010

4	0100011	0011101	1011100

5	0110001	0111001	1001110

6	0101111	0000101	1010000

7	0111011	0010001	1000100

8	0110111	0001001	1001000

9	0001011	0010111	1110100



DIGIT

         LEFT        RIGHT

     ODD      EVEN |  ALL

0	0001101	0100111	1110010

1	0011001	0110011	1100110

2	0010011	0011011	1101100

3	0111101	0100001	1000010

4	0100011	0011101	1011100

5	0110001	0111001	1001110

6	0101111	0000101	1010000

7	0111011	0010001	1000100

8	0110111	0001001	1001000

9	0001011	0010111	1110100

number breakdown

11 country code

11111 manaugature code

11111 right hand side

6 check digit

More detail

EAN PARITY ENCODING TABLE

Encoding of the digits

                      1   2   3    4    5   6

0: 1 is the pattern Odd|Odd|Even|Odd|Even|Even (is implied and not actually rendered weird but par for the system)

Left guard:                          101

LEFT hand encoded

1: 1 (odd): odd code for number 1 is 0011001

2: 1 (odd): odd code for number 1 is 0011001

3: 1(Even):even code for number 1 is 0110011

4: 1 (Odd): odd code for number 1 is 0011001

5: 1(Even):even code for number 1 is 0110011

6: 1(Even):even code for number 1 is 0110011

CENTER Guard:                        01010

LEFT hand encoded

7: 1(ALL):even code for number 1 is 1100110

8: 1(ALL):even code for number 1 is 1100110

9: 1(ALL):even code for number 1 is 1100110

10:1(ALL):even code for number 1 is 1100110

11:1(ALL):even code for number 1 is 1100110

Check digit

12:6(ALL):even code for number 6 is 1010000

Right Guards:                       101

Full Encoding

101      left guard

0011001 0011001 0110011 0011001 0110011 0110011

01010    center

1100110 1100110 1100110 1100110 1100110

1010000  check

101      right guard

GOAL

write code that converts the whole train for 1 digit

```

# Update got it working! (20201001)

![download (6)](/assets/download%20(6).png)

### note

#### still issue with scanning from phone. weird but works with www.onlinebarcodereader.com

#also added node tests!

# testing

```bash

npm install --save-dev tape faucet

npx tape test/**/*.js

nodemon --exec npx tape test/**/*.js

```

# TODO

- ~~render a actual example barcode and have it read correctly~~

    - ~~issue with example check if each bit is correct~~

- ~~debug improvements: for start middle and end sentinals render them longer than the other bars like shown in example~~

 ![](http://www.barcodeisland.com/ean13-2.gif)

- ~~debug using photoshop overly exapcted with actual~~

- ~~arbitray number enter to render barcode~~

    - ~~implement crc calculation~~

    - ~~map first number string[0] to LGGLLG thing~~

- add input box for new barcode numbers

- fix phone not reading issue

- publish to ghpages
