README

# Prometheus AlertManager
[Prometheus](https://prometheus.io/) is a powerful, open-source monitoring solution. This integration to xMatters extends the alerting capabilities of AlertManager to notify the right people at the right time.

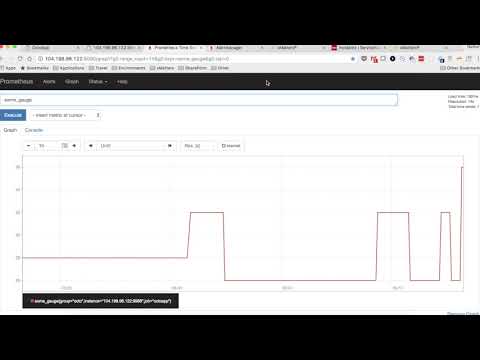

[![Prometheus video](https://img.youtube.com/vi/cBP7w_NhkBA/0.jpg)](https://youtu.be/cBP7w_NhkBA)

---------

An updated version of this integration is available. You can install the new one-way version right from the Workflow Templates directory within your xMatters instance. [Learn more](https://help.xmatters.com/integrations/#cshid=PrometheusAlertmanager).

---------

# Pre-Requisites
* Prometheus with [AlertManager](https://github.com/prometheus/alertmanager) set up and running.
* An application to monitor
* xMatters account - If you don't have one, [get one](https://www.xmatters.com)!
* An [xMatters Agent](https://help.xmatters.com/ondemand/xmodwelcome/xmattersagent/xmatters-agent-topic.htm) or an open port to AlertManager that xMatters can access from the cloud.

# Files
* [Prometheus.zip](Prometheus.zip) - Workflow for the integration builder script and notification form templates.

# How it works
[Alerting rules](https://prometheus.io/docs/prometheus/latest/configuration/alerting_rules/) are defined in Prometheus and sent to AlertManager for further processing. The AlertManager [config file](https://prometheus.io/docs/alerting/configuration/#configuration-file) defines what happens after the alerts are sent to AlertManager. A webhook points to an HTTP trigger in xMatters. Once the alert reaches xMatters, the integration builder script transforms the content and builds the event, sets the recipient to the receiver and creates the event.

# Installation

## xMatters set up
1. Login to the xMatters UI and navigate to the Workflows page.
2. Click the Import Workflow and select the [Prometheus.zip](Prometheus.zip) file.
3. Update the Alert Manager Endpoint to the address of your alertmanager, i.e. `http://localhost:9093/api/v2/`
4. Edit the Run Location for the two silence steps to point to an agent, or the open port for AlertManager.

Steps:

Run Location:

## Prometheus set up
1. Open the `alertmanager.yml` file and navigate to the `receivers` section. The location of the file and the section will depend on the details of the installation.
2. Add a new receiver. The name of the receiver will be the recipients of the event. The webhook url is found in the **Inbound from Alertmanager** step in your xMatters workflow. For example, to target the `Database` group:

```yaml
- name: 'Database'
webhook_configs:
- url: 'https://acme.xmatters.com/api/integration/1/functions/UUID/triggers?apiKey=KEY'
```
Note: By storing the API Key in the URL it is visible in the UI. If you would like to keep the API Key out of the UI, use http_config and basic authentication to connect with xMatters.

3. Edit the route that should target the new receiver. For example, to notifiy this `Database` receiver for the `octoapp` service:

```yaml
routes:
- match_re:
service: ^(octoapp)$
receiver: Database
```

4. Repeat as needed for new routes and new receivers.

5. Edit any alert rules (referenced in the file(s) defined in the `rule_files` section of the `prometheus.yml` file) to include a priority annotation, or to include any additional fields required for processing. For example:

```
groups:
- name: alert.rules
rules:
- alert: octo_alert
expr: some_gauge > 30
for: 20s
labels:
service: octoapp
severity: page_octo
annotations:
description: The description goes here
summary: The summary goes here
recipient: bob
```

The fields inside the `ANNOTATIONS` section are put inside the `annotation_contents` output.

**Include an annotation called recipient for xMatters to know who to alert**

# Testing
Create or edit an Alert Rule in the alert rules file (defined in the `prometheus.yml` file) that is easy to fire. For example, to fire when the `widget_gauge` is greater than 30 for 1 minute:

Then in the monitored application, get the `some_gauge` value above 30 for 1 minute. This will trigger an alert in AlertManager, and then will be fired off to xMatters. Make sure you have a `Database` group with a user.

A notification will be sent out targeting the Database group:

# Troubleshooting
Check the AlertManager log (This depends on installation details) for any errors making the call to xMatters. Then check the Activity Stream in the `Inbound from Prometheus` section for errors.

Make sure a recipient annotation is set in the alert rule that is triggered.

Check that the HTTP trigger in xMatters is associated with the receiver in your `alertmanager.yml` file.

## Example
This is the example flow provided in the [Prometheus.zip](Prometheus.zip) Workflow file.
