MTR Database for PHP
====================
MTR centralized monitoring dashboard with agent deployment
[](https://packagist.org/packages/yidas/mtr-database)
[](https://packagist.org/packages/yidas/mtr-database)
OUTLINE
-------
- [Demonstration](#demonstration)
- [Introduction](#introduction)
- [Requirements](#requirements)
- [Installation](#installation)
- [Download](#download)
- [Setup](#setup)
- [Database Setup](#database-setup)
- [Agent Setup & Launch](#agent-setup--launch)
- [API for collector & agents](#api-for-collector--agents)
- [Dashboard](#dashboard)
- [Advanced Usage](#advanced-usage)
- [Agent Configuration](#agent-configuration)
- [Purge](#purge)
- [References](#references)
---
DEMONSTRATION
-------------
---
INTRODUCTION
------------
Easy to deploy agents and collect MTR data into a database for monitoring via a web dashboard with charts.
---
REQUIREMENTS
------------
This library requires the following:
- MTR library (CLI) 0.9+
- PHP 5.4.0+\|7.0+
---
INSTALLATION
------------
### Download
#### Composer Installation
Using Composer to install is the easiest way with auto-installer:
```shell
composer create-project --prefer-dist yidas/mtr-database
```
#### Wget Installation
You could see [Release](https://github.com/yidas/mtr-database-php/releases) for picking up the package with version, for example:
```shell
$ wget https://github.com/yidas/mtr-database-php/archive/master.tar.gz -O mtr-database-phpi.tar.gz
```
After download, uncompress the package:
```shell
$ tar -zxvf mtr-database-php.tar.gz
```
SETUP
-----------
### Database Setup
After the download, you could start to set up the `config.inc.php` with your database connection:
```php
...
'database' => [
'host' => '',
'driver' => 'mysql',
'database' => 'mtr_database',
'username' => '',
'password' => '',
'table' => 'records',
'charset' => 'utf8',
'collation' => 'utf8_unicode_ci',
],
...
```
Then run `install.php` which will help you to install the database & table:
```shell
$ php install.php
Installation completed
```
### Agent Setup & Launch
The default setting of the agent can be configurated in `config.inc.php`:
```php
...
'general' => [
'mtrCmd' => 'mtr',
'timezone' => 'Asia/Taipei',
'category' => 'agent-01', // Category mark for distinguishing
],
'mtr' => [
'host' => 'your.host',
'period' => 10, // Minute
'count' => 60, // Report-cycles
'tcp' => false, // TCP mode
'port' => 443, // Port number for TCP mode
],
'api' => [
'key' => '', // API key must be the same bewteen agent and collector
'agent' => [
'enabled' => false, // To send MTR data to collector via API Agent (deafult is database)
'reportUrl' => '', // Collector's API URL
],
'collector' => [
'enabled' => false, // To receive MTR data from agent via API
],
],
...
```
After the setting, enjoy to run or set `launch.php` with your prefered arguments in crontab:
```shell
$php launch.php
Process success
```
Set crontab into `/etc/cron.d/mtr-database`:
```shell
# Launch and record MTR every 10 miniutes by default ('period' => 10)
*/10 * * * * root php /var/www/html/mtr-database/launch.php >/dev/null 2>&1
# Purge data before 90 days by default (Optional)
00 00 * * * root php /var/www/html/mtr-database/purge.php >/dev/null 2>&1
```
> The default batch period is configured to be 10 minutes, so we can set the batch to be executed every 10 minutes.
### API for collector & agents

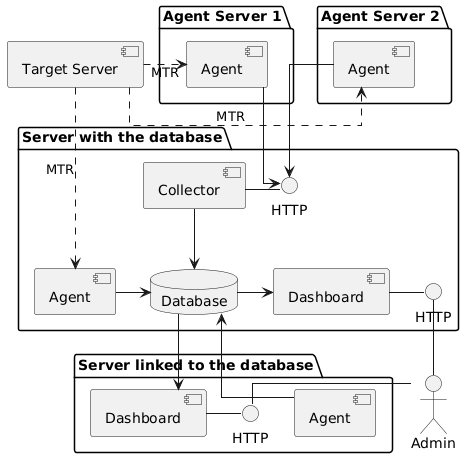

Regarding the introduction structure diagram, it's better to collect agents' MTR data via API (Default is database).
The endpoint path of collector (`reportUrl`) is `/collect.php`, you could place the project in the web path such as `/var/www/html/mtr-database/index.php`.
Configuration for collector, the database setting is required:
```php
'api' => [
'key' => 'your-own-api-key', // API key must be the same bewteen agent and collector
'agent' => [
'enabled' => false, // To send MTR data to collector via API Agent (deafult is database)
'reportUrl' => '', // Collector's API URL
],
'collector' => [
'enabled' => true, // To receive MTR data from agent via API
],
],
'database' => [
```
Configuration for agents:
```php
'api' => [
'key' => 'your-own-api-key', // API key must be the same bewteen agent and collector
'agent' => [
'enabled' => true, // To send MTR data to collector via API Agent (deafult is database)
'reportUrl' => 'https://your.host/mtr-database/collect.php', // Collector's API URL
],
'collector' => [
'enabled' => false, // To receive MTR data from agent via API
],
],
```
### Dashboard
The endpoint path of MTR Dashboard is `/index.php` and it's disable by default, you could place the project in the web path such as `/var/www/html/mtr-database/index.php`.
Turn the `enabled` on and set the username and password for the authentication in `config.ini.php`, the database setting is required:
```php
...
'dashboard' => [
'enabled' => true,
'username' => '',
'password' => '',
'categories' => [''], // Category list for selection
],
'database' => [
...
```
> `categories` will enable you to query specific data by category settings or query all data with default blank values.
---
ADVANCED USAGE
-----
### Agent Configuration
The configuration file `config.inc.php` allows you to set the default settings for MTR launching. However, you can also specify parameters immediately in the command to be run.
#### Host
Host parameter allows you to specify the target host to be tracked with `-h --host` parameter:
```shell
php launch.php --host="yourhost.local"
```
#### Period
Period argument allocate the number of minutes between crontab intervals with `-p --period` parameter:
```shell
# Launch and record MTR every 5 miniutes
*/5 * * * * root php /var/www/html/mtr-database/launch.php --period=5 >/dev/null 2>&1
```
In addition, Count argument will distribute the sending count between the interval according to the Period setting with `-c --report-cycles` parameter:
```shell
# Launch and record MTR every 1 miniutes, and each report will send 10 count (send every 6 seconds)
*/1 * * * * root php /var/www/html/mtr-database/launch.php --period=1 --report-cycles=10 >/dev/null 2>&1
```
#### TCP
TCP argument allows you to use MTR TCP mode with specified port, `-T --tcp` for enabling TCP mode and `-P --port` for setting port:
```shell
php launch.php --tcp -port=443
```
#### Category
Category allows to categorize each monitor command and supports filtering from the dashboard, which also can be achieved by using the `--category` parameter:
```shell
php launch.php --category="Monitor-A1"
```
### Purge
Running `purge.php` will delete old records older than the given number of days. You can use the `-d --days` parameter to set with (default is 90 days):
```shell
00 00 * * * root php /var/www/html/mtr-database/purge.php --days=30 >/dev/null 2>&1
```
---
REFERENCES
----------
- [MTR - Github](https://github.com/traviscross/mtr)
