# link
- Arm Assembly는 여기에 정리중
- https://github.com/YoungHaKim7/Arm64_Assembly_Language
- Arm CheatSheet
- https://github.com/oowekyala/arm-cheatsheet

- x86_64 Assembly Tutorial
- [x86_64_assembly-language-programming-with-ubuntu](#x86_64_assembly-language-programming-with-ubuntu)

- 어셈블리 비교하기 (x86_64 vs arm vs NASM 기타 등등)
- [어셈블러의-비교](#어셈블러의-비교)
- [NASM넷와이드 어셈블러(Netwide Assembler, NASM)](https://ko.wikipedia.org/wiki/%EB%84%B7%EC%99%80%EC%9D%B4%EB%93%9C_%EC%96%B4%EC%85%88%EB%B8%94%EB%9F%AC)
- [WebAssembly??WASM(오픈 왓콤 어셈블러 (WASM)](https://en.wikipedia.org/wiki/WebAssembly)
- [요즘 핫한 RISC-V](https://en.wikipedia.org/wiki/RISC-V)

# x86_64_Assembly Language Programming with Ubuntu(eBook)

- http://www.egr.unlv.edu/~ed/assembly64.pdf

## 어셈블러의 비교
- https://ko.wikipedia.org/wiki/%EC%96%B4%EC%85%88%EB%B8%94%EB%9F%AC%EC%9D%98_%EB%B9%84%EA%B5%90

# CPU Instructions

- 출처 (29분 14초)
- https://youtu.be/krmxFEOaHss?si=HY4V-TzRjNQbdewx

# Mara Bos
@m_ou_se

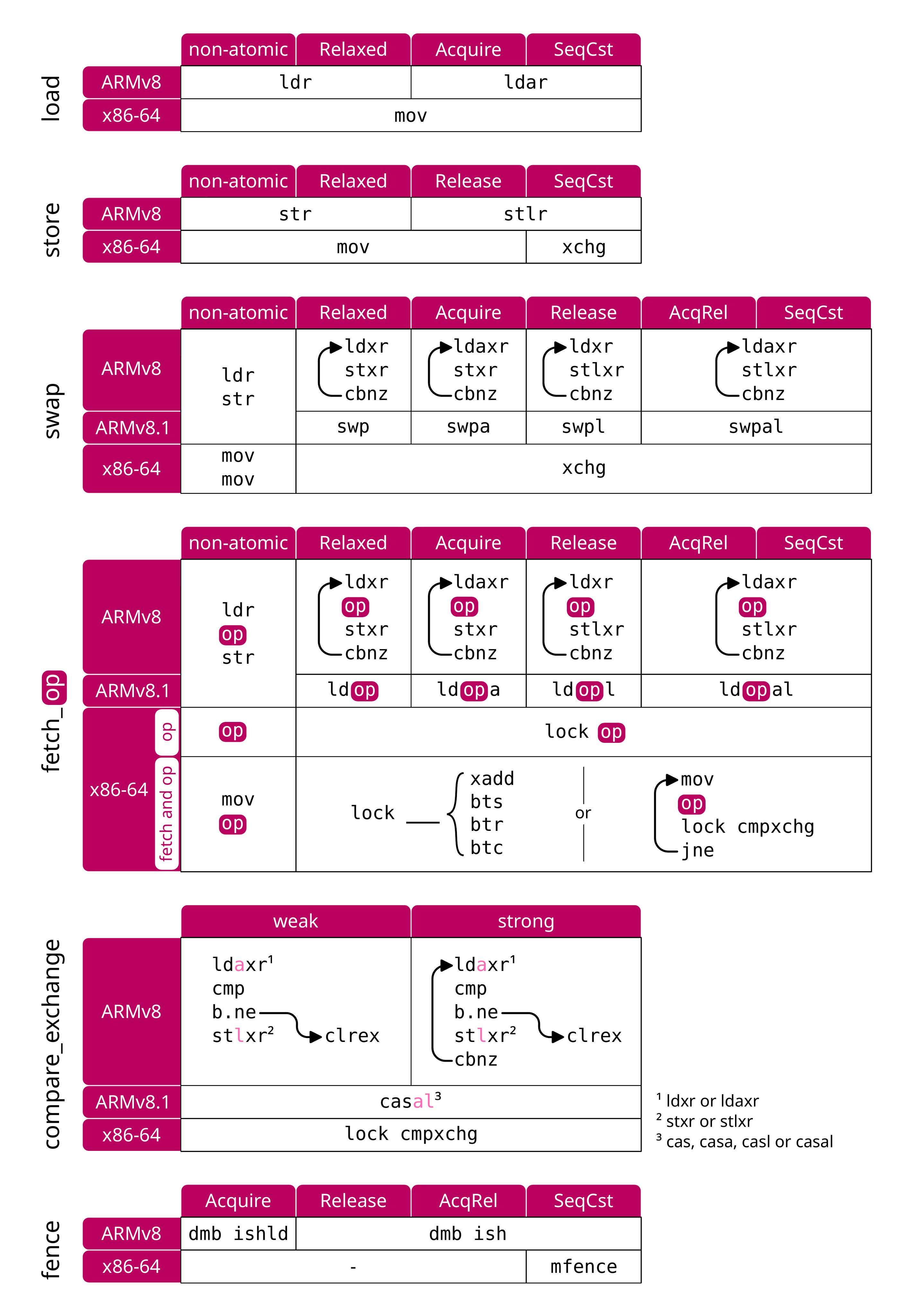

⚛️📋 I made an overview of the ARMv8 and x86-64 machine instructions for all the common atomic operations:

https://twitter.com/m_ou_se/status/1590333332012662784/photo/1

# Assembly Debugging

https://www.gnu.org/software/ddd/manual/

https://github.com/BetelGeuseee/x86-assembly-yasm

# 내가 공부하려고 정리중(x86_64_Assembly)

https://youtube.com/playlist?list=PLcMveqN_07mb4_M06LrKJK5LHVKGFyICB&si=7PUFD9S4OuLJQCHv

# rust_웹으로 어셈블리 보기Assembly

https://rust.godbolt.org/

- 뒤에 최적화 옵션

```
-C opt-level=3 --target i686-unknown-linux-gnu
```

# vim tab setting

```
set tabstop=4
set shiftwidth=4
```
# Vim \_ Assembly Highlight Syntax

```

:set ft=nasm " assembly highlight syntax

```

# NeoVim(asm-lsp)

- https://www.reddit.com/r/neovim/s/XAuQM98VY6

- https://github.com/bergercookie/asm-lsp
- Using cargo
- Install using the cargo package manager, either from crates.io or from github:
```
cargo install asm-lsp
# or to get the latest version from github
cargo install --git https://github.com/bergercookie/asm-lsp
```

# x86 and x86_64 Assembly(VSCode Extension)

- https://marketplace.visualstudio.com/items?itemName=13xforever.language-x86-64-assembly

- ASM Code Lens
- https://marketplace.visualstudio.com/items?itemName=maziac.asm-code-lens

# To debug NASM you might want to use DDD.

To debug NASM you might want to use DDD. The following course teaches assembly for Intel/Linux using NASM and DDD, you might want to have a look at it as you might find it helpful:

Getting started with NASM and DDD --> https://www.youtube.com/watch?v=YyovCxsMVio

Assembly integer arithmetic --> https://www.youtube.com/watch?v=-KfZaJclqk4

Assembly floating-point arithmetic --> https://www.youtube.com/watch?v=n1gIv40VSgA

Assembly control instructions --> https://www.youtube.com/watch?v=s38DcLv1wYk

Assembly and process stack --> https://www.youtube.com/watch?v=7nPru8b7SjY

Assembly functions --> https://www.youtube.com/watch?v=QOPOeDPlNZo

Stack buffer overflow --> https://www.youtube.com/watch?v=BW2obfJtkPw

System services --> https://www.youtube.com/watch?v=qzTlkJsq3Xo

https://www.reddit.com/r/asm/comments/ba4qi9/debugging_nasm/

# 외국 사람이 만든 x86_64 설명서 github 예시 좋다.!

https://github.com/compilepeace/SHELLCODING_INTEL_x86-64/

# Debugging BIOS Assembly Visually with Visual Studio Code and GDB [Ep 13]

https://youtu.be/aMSFaAcup50?si=91Qr4sMRqIsa5_TT

# 3분안에 설명하는 Assembly Language

- Assembly Language in 100 Seconds
- https://youtu.be/4gwYkEK0gOk?si=Eey3U0MpndLj1zPF

# 10분안에 익히는 x86 Assembly | x86 Assembly Crash Course | HackUCF

https://youtu.be/75gBFiFtAb8?si=skDTgz3WiarSaKbY

# x86asm.net

http://ref.x86asm.net/coder64.html

# x86-x64 명령어 레퍼런스 읽는 법

https://modoocode.com/316

# The Go tools for Windows + Assembler

http://godevtool.com/

# 1.4.4.1 YASM References

http://yasm.tortall.net/

1.4.4.1 YASM References
The YASM assembler is an open source assembler commonly available on Linux-based
systems.
The YASM references are as follows:

- Yasm Web Site http://yasm.tortall.net/
- Yasm Documentation http://yasm.tortall.net/Guide.html

Additional information regarding YASM may be available a number of assembly
language sites and can be found through an Internet search.

# 1.4.4.2 DDD Debugger References

The DDD debugger is an open source debugger capable of supporting assembly
language.

- DDD Web Site https://www.gnu.org/software/ddd/
- DDD Documentation https://www.gnu.org/software/ddd/manual/

Additional information regarding DDD may be at a number of assembly language sites
and can be found through an Internet search.

# Assembly Language

https://github.com/EbookFoundation/free-programming-books/blob/main/books/free-programming-books-langs.md#non-x86

# x86 Assembly : Hello World

https://youtu.be/HgEGAaYdABA

# x86_64_Assembly_my_project

- x86_64_Assembly Language Programming with Ubuntu

http://www.egr.unlv.edu/~ed/assembly64.pdf

# apt install(Linux OS)

```
$ sudo apt install nasm
Reading package lists... Done
Building dependency tree... Done
Reading state information... Done
The following NEW packages will be installed:
nasm
0 upgraded, 1 newly installed, 0 to remove and 11 not upgraded.
Need to get 375 kB of archives.
After this operation, 3,345 kB of additional disk space will be used.
Get:1 http://us.archive.ubuntu.com/ubuntu jammy/universe amd64 nasm amd64 2.15.05-1 [375 kB]
Fetched 375 kB in 2s (217 kB/s)
Selecting previously unselected package nasm.
(Reading database ... 263485 files and directories currently installed.)
Preparing to unpack .../nasm_2.15.05-1_amd64.deb ...
Unpacking nasm (2.15.05-1) ...
Setting up nasm (2.15.05-1) ...
Processing triggers for man-db (2.10.2-1) ...
```

# ASM Build & Execution

- elf64
```
nasm -felf64 add.asm && ld add.o && ./a.out
```

- elf32
```
$ nasm -f elf32 -o hello.o hello.asm

$ ls
hello.asm hello.o

$ ld -m elf_i386 -o hello hello.o

$ ls
hello hello.asm hello.o

$ ./hello
Hello World!

```
- Nasm Tutorial
- https://cs.lmu.edu/~ray/notes/nasmtutorial/

# ASM hello.asm

```asm
; World World x86_64 Intel Cpu Assembly
; hello.asm

global _start

section .text:

_start:
mov eax, 0x4 ; use the write syscall
mov ebx, 1 ; use stdout as the fd
mov ecx, message ; use the message as the buffer
mov edx, message_length ; and supply the length
int 0x80 ; invoke the syscall

; now gracefully exit

mov eax, 0x1
mov ebx, 0
int 0x80

section .data:
message: db "Hello World!", 0xA
message_length equ $-message

```

# Windows OS

```
choco install nasm

```

- This package uses the official nasm Windows installer, which doesn't add nasm to PATH. You may voice out your request in the nasm issue tracker, in which there is an existing issue filed

- PATH설정해줘야함. 나 같은 경우는
"C:\Program Files\NASM"
여기 PATH 설정함.

[https://community.chocolatey.org/packages/nasm](https://community.chocolatey.org/packages/nasm)

# Rust Languages & Assembly

# RustLang inline-assembly

https://doc.rust-lang.org/reference/inline-assembly.html

https://doc.rust-lang.org/rust-by-example/unsafe/asm.html

## Rust ~~~~~~~~~ ~~~~~~~

# Assembly 기초 basic

# Bootsector Game From Scratch - Space Invaders (x86 asm) Game만들기(Assembly로)

[https://youtu.be/TVvTDjMph1M](https://youtu.be/TVvTDjMph1M)

# ASCII Table

https://www.asciitable.com/

```
$ python

Python 3.11.0 (main, Oct 24 2022, 18:26:48) [MSC v.1933 64 bit (AMD64)] on win32
Type "help", "copyright", "credits" or "license" for more information.

>>> 0x0a
10

>>> chr(0x0a)
'\n'

>>>

```

====================================================

# x86_64_Assembly Language Programming with Ubuntu

# Data Storage Sizes(page 8.)

Data Storage Sizes

Storage
Size(bits)
Size(bytes)

Byte
8-bits
1 byte

Word
16-bits
2 bytes

Double-word
32-bits
4 bytes

Quadword
64-bits
8 bytes

Double quadword
128-bits
16 bytes

http://www.egr.unlv.edu/~ed/assembly64.pdf

Data Storage Sizes(page9.)
C/C++ declarations are mapped as follows:

C/C++
Declaration
Storage
Size(bits)
Size(bytes)

char
Byte
8-bits
1 byte

Word
16-bits
2 bytes

Double-word
32-bits
4 bytes

Quadword
64-bits
8 bytes

Double quadword
128-bits
16 bytes

# General Purpose Registers(GPRs) page 10

- General-purpose register layout
- The x86-64 general-purpose registers are
- aliased: each has multiple names, which refer to overlapping bytes in the register.

General-purpose register layout

rax
<-- 64 bits -->

8bit
8bit
8bit
8bit
eax
(Lowest 32-bits
<---------------- ---------------------->

8bit
8bit
8bit
8bit
8bit
8bit
<--- ax --->
Lowest 16-bits

8bit
8bit
8bit
8bit
8bit
8bit
ah
<-- 8-bits -->
al
<-- 8-bits -->

Byte 7
Byte 6
Byte 5
Byte 4
Byte 3
Byte 2
Byte 1
Byte 0

General Purpose Registers(GPRs)

64-bit register
Lowest
32-bits
Lowest
16-bits
Lowest
8-bits

rax
eax
ax
al

rbx
ebx
bx
bl

rcx
ecx
cx
cl

rdx
edx
dx
dl

rsi
esi
si
sil

rdi
edi
di
dil

rbp
ebp
bp
bpl

rsp
esp
sp
spl

r8
r8d
r8w
r8b

r9
r9d
r9w
r9b

r10
r10d
r10w
r10b

r11
r11d
r11w
r11b

r12
r12d
r12w
r12b

r13
r13d
r13w
r13b

r14
r14d
r14w
r14b

r15
r15d
r15w
r15b

http://www.egr.unlv.edu/~ed/assembly64.pdf

# Stack Pointer Register (RSP)

- Stack Pointer Register

Stack Pointer Register

RSP

- One of the CPU registers, rsp, is used to point to the current top of the stack. The rsp
register should not be used for data or other uses. Additional information regarding the
stack and stack operations is provided in Chapter 9, Process Stack.

# Base Pointer Register (RBP)

Base Pointer Register

RBP

- One of the CPU registers, rbp, is used as a base pointer during function calls. The rbp
register should not be used for data or other uses. Additional information regarding the
functions and function calls is provided in Chapter 12, Functions.

# Instruction Pointer Register (RIP)

Instruction Pointer Register

RIP

- In addition to the GPRs, there is a special register, rip, which is used by the CPU to
point to the next instruction to be executed. Specifically, since the rip points to the
next instruction, that means the instruction being pointed to by rip, and shown in the
debugger, has not yet been executed. This is an important distinction which can be
confusing when reviewing code in a debugger.

# Flag Register (rFlags)

- Assembly Language & Computer Architecture | MIT OpenCourseWare(33min05sec)
- https://youtu.be/L1ung0wil9Y?si=rPsC0iQicpE7iy2i

- The flag register, rFlags, is used for status and CPU control information

- This register stores status information about the instruction that was just
executed. Of the 64-bits in the rFlag register, many are reserved for future use.

- Arithmetic and logic operations update status flags in the RFLAGS register.

```s
decq %rbx
jne .LBB7_1
```
- ```decq %rbx ```; Decrement ```%rbx```, and set ZF if the result is 0.

Flag Register (rFlags)
RFLAGS Register

Name
Description
Symbol
or
(Abbreviation)
Bit(s)
Use

Carry
CF
0
Used to indicate if the previous operation
resulted in a carry.

Reserved

1

Parity
PF
2
Used to indicate if the last byte has an even
number of 1's (i.e., even parity).

Reserved

3

Adjust
AF
4
Used to support Binary Coded Decimal
operations.

Reserved

5

Zero
ZF
6
Used to indicate if the previous operation
resulted in a zero result.

Sign
SF
7
Used to indicate if the result of the
previous operation resulted in a 1 in the
most significant bit (indicating negative in
the context of signed data).

Trap
TF
8

Interrupt
enable
IF
9

Direction
DF
10
Used to specify the direction (increment or
decrement) for some string operations.

Overflow
OF
11
Used to indicate if the previous operation
resulted in an overflow.

System flags or
reserved

12 - 63

# Common x86-64 Registers
- Assembly Language & Computer Architecture(15min33sec)
- https://youtu.be/L1ung0wil9Y?si=GCVZvxM4-omcrNM-

Number
Width
(bits)
Names(s)
Purpose
★

16
64
(many)
General-purpose registers
★

6
16
%ss,%[c-g]s
Segment registers

1
64
RFLAGS
Flags register
★

1
64
%rip
Instruction pointer register
★

7
64
%cr[0-4,8], %xcr0
Control registers

8
64
%mm[0-7]
MMX registers

1
32
mxcsr
SSE2 control register

16
128
%xmm[0-15]
XMM registers (for SSE)
★

256
%ymm[0-15]
YMM registers (for AVX)
★

8
80
%st([0-7])
x87 FPU data registers

1
16
x87 CW
x87 FPU control register

1
16
x87 SW
x87 FPU status register

1
48

x87 FPU instruction
pointer register

1
48

x87 FPU data operand
pointer register

1
16

x87 FPU tag register

1
11

x87 FPU opcode register

# x86-64 Data Types

x86-64 Data Types

C declaration
C
constant
x86-64
size
(bytes)
Assembly
suffix
x-86-64
data type

char
'c'
1
b
Byte

short
172
2
w
Word

int
172
4
l or d
Double word

unsigned
int
172U
4
l or d
Double word

long
172L
8
q
Quad word

unsigned long
172UL
8
q
Quad word

char *
"6.172"
8
q
Quad word

float
6.172F
4
s
Single precision

double
6.172
8
d
Double precision

long double
6.172L
16(10)
t
Extended precision

28min30sec
https://youtu.be/L1ung0wil9Y?si=XEBdCmwbP48LLYOE

# Computer Architecture(Page 7)

![1](https://user-images.githubusercontent.com/67513038/217710708-7140b1d9-2685-4a33-966d-3c19ca9af463.png)

# Common x86-64 Opcodes
- Assembly Language & Computer Architecture(25min33sec)
- https://youtu.be/L1ung0wil9Y?si=GCVZvxM4-omcrNM-

Opcodes

Type of peration
Example

Data
movement
Move
mov

Conditional
move
cmov

Sign or
zero extension
movs, movz

Stack
push, pop

Arithmetic
and logic
Integer
arithmetric
add, sub, mul, imul,div, idiv,
lea,sal, sar, shl, shr, rol,
ror, inc, dec,neg

Binary logic
and, or, xor, not

Boolean logic
test, cmp

Control
transfer
Unconditional
jump
jmp

Conditional
jump
j<condition>

Subroutines
call, ret

# Condition Codes

Condition Codes

Condition code
Translation
RFLAGS status flags
checked

a
if above
CF = 0 and ZF = 0

ae
if above or equal
CF = 0

c
on carry
CF = 1

e
if equal
ZF = 1

ge
if greater or equal
SF = OF

ne
if not equal
ZF = 0

o
on overflow
OF = 1

z
if zero
ZF = 1

# CPU Block Diagram(Page 15)

```mermaid

stateDiagram-v2

state CPU__Chip {
Core__0 --> L1_Cache
Core__1 --> L1_Cache_
L1_Cache --> L2_Cache
L1_Cache_ --> L2_Cache
}

L2_Cache --> BUS

```

# Memory Layout(Page17)

General Memory Layout

high memory

low memory
stack
.
.
.
heap

BSS - uninitialized data

data

text (code)

reserved

http://www.egr.unlv.edu/~ed/assembly64.pdf

# Memory Hierarchy(Page18)

Memory Hierarchy

Smaller, faster,
and more expensive

Larger,slower,
and less expensive
CPU
Registers

Cache

Primary Storage
Main Memory(RAM)

Secondary Storage
(disk drives, SSD's, etc.)

Tertiary Storage
(remote storage, optical, backups,etc.)

http://www.egr.unlv.edu/~ed/assembly64.pdf

# Some typical performance and size characteristics (Page19)

Memory Unit
Example Size
Typical Speed

Registers
16, 64-bit registers
~1 nanoseconds¹³

Cache Memory
4 - 8+ Megabytes¹⁴
(L1 and L2)
~5-60 nanoseconds

Primary Storage
(i.e., main memory)
2 - 32+ Gigabytes¹⁵
~100-150 nanoseconds

Secondary Storage
(i.e., disk, SSD's, etc.)
500 Gigabytes -
4+ Terabytes¹⁶
~3-15 milliseconds¹⁷

# Data Section(Page34) - All initialized variables & constants

Refer to the following sections for a series of examples using various data types.

The supported data types are as follows:

section .data
All initialized variables and constants

Declaration

db
8-bit variable(s)

dw
16-bit variable(s)

dd
32-bit variable(s)

dq
64-bit variable(s)

ddq
128-bit variable(s) -> integer

dt
128-bit variable(s) -> float

http://www.egr.unlv.edu/~ed/assembly64.pdf

ex)

```asm

; The general format is:

;

section .data

bVar db 10 ; byte variable
cVar db "H" ; single character
strng db "Hello World" ; string
wVar dw 5000 ; 16-bit variable
dVar dd 50000 ; 32-bit variable
arr dd 100, 200, 300 ; 3 element array
flt1 dd 3.14159 ; 32-bit float
qVar dq 1000000000 ; 64-bit variable

```

The value specified must be able to fit in the specified data type. For example, if the
value of a byte sized variables is defined as 500, it would generate an assembler error.

# BSS Section(Page35) - All uninitialized variables

Uninitialized data is declared in the "section .bss" section.

The supported data types are as follows:

section .bss
Uninitialized data

Declaration

resb
8-bit variable(s)

resw
16-bit variable(s)

resd
32-bit variable(s)

resq
64-bit variable(s)

resdq
128-bit variable(s)

ex)

```asm
; The general format is:

;

section .bbs

bArr resb 10 ; 10 element byte array
wArr resw 50 ; 50 element word array
dArr resd 100 ; 100 element double array
qArr resq 200 ; 200 element quad array

; The allocated array is not initialized to any specific value.

```

http://www.egr.unlv.edu/~ed/assembly64.pdf

# Text Section(Page36)

```asm

; Code Section
section .text

global _start
_start:

```

# 4.7 Example Program(page37)

```asm
; Simple example demonstrating basic program format and layout.
; Ed Jorgensen
; July 18, 2014
; ************************************************************
; Some basic data declarations
section .data
; -----
; Define constants
EXIT_SUCCESS equ 0 ; successful operation
SYS_exit equ 60 ; call code for terminate
; -----
; Byte (8-bit) variable declarations
bVar1 db 17
bVar2 db 9
bResult db 0
; -----
; Word (16-bit) variable declarations
wVar1 dw 17000
wVar2 dw 9000
wResult dw 0
; -----
; Double-word (32-bit) variable declarations
dVar1 dd 17000000
dVar2 dd 9000000
dResult dd 0

; -----
; quadword (64-bit) variable declarations
qVar1 dq 170000000
qVar2 dq 90000000
qResult dq 0
; ************************************************************

; Code Section
section .text
global _start
_start:

; Performs a series of very basic addition operations
; to demonstrate basic program format.
; ----------
; Byte example
; bResult = bVar1 + bVar2
mov al, byte [bVar1]
add al, byte [bVar2]
mov byte [bResult], al

; ----------
; Word example
; wResult = wVar1 + wVar2
mov ax, word [wVar1]
add ax, word [wVar2]
mov word [wResult], ax

; ----------
; Double-word example
; dResult = dVar1 + dVar2
mov eax, dword [dVar1]
add eax, dword [dVar2]
mov dword [dResult], eax

; ----------
; Quadword example
; qResult = qVar1 + qVar2
mov rax, qword [qVar1]
add rax, qword [qVar2]
mov qword [qResult], rax
; ************************************************************
; Done, terminate program.
last:
mov rax, SYS_exit ; Call code for exit
mov rdi, EXIT_SUCCESS ; Exit program with success
syscall
```

http://www.egr.unlv.edu/~ed/assembly64.pdf
