# IKNet: Inverse kinematics neural networks
IKNet is an inverse kinematics estimation with simple neural networks.
This repository also contains the training and test dataset by manually moving the 4 DoF manipulator [ROBOTIS Open Manipulator X](https://emanual.robotis.com/docs/en/platform/openmanipulator_x/overview/).
IKNet can be trained on tested on [NVIDIA Jetson Nano 2GB](https://nvda.ws/2HQcb1Y), [Jetson family](https://developer.nvidia.com/EMBEDDED/Jetson-modules) or PC with/without NVIDIA GPU.
The training needs 900MB of GPU memory under default options.
## Data collection
### Set up
Install ROS 2 on Ubuntu 18.04 by following the ROBOTIS e-Manual.
[https://emanual.robotis.com/docs/en/platform/openmanipulator_x/ros2_setup/#ros-setup](https://emanual.robotis.com/docs/en/platform/openmanipulator_x/ros2_setup/#ros-setup)
Then build some additional packages to modify a message `open_manipulator_msgs/msg/KinematicsPose` to add timestamp.
```shell
$ mkdir -p ~/ros2/src && cd ~/ros2/src
$ git clone https://github.com/youtalk/open_manipulator.git -b kinematics-pose-header
$ git clone https://github.com/youtalk/open_manipulator_msgs.git -b kinematics-pose-header
$ cd ~/ros2
$ colcon build
$ . install/setup.bash
```
### Demo

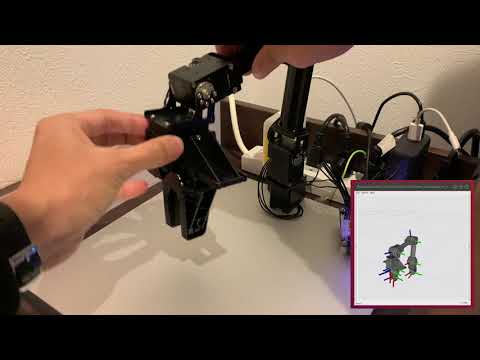

First launch Open Manipulator X controller and turn the servo off to manually move it around.
```shell
$ ros2 launch open_manipulator_x_controller open_manipulator_x_controller.launch.py
```
```shell
$ ros2 service call /set_actuator_state open_manipulator_msgs/srv/SetActuatorState
```
Then collect the pair of the kinematics pose and the joint angles by recording `/kinematics_pose` and `/joint_states` topics under csv format.
```shell
$ ros2 topic echo --csv /kinematics_pose > kinematics_pose.csv & \
ros2 topic echo --csv /joint_states > joint_states.csv
```
Finally append the headers into them to load by Pandas `DataFrame`.
```shell
$ sed -i "1s/^/sec,nanosec,frame_id,position_x,position_y,position_z,orientation_x,orientation_y,orientation_z,orientation_w,max_accelerations_scaling_factor,max_velocity_scaling_factor,tolerance\n/" kinematics_pose.csv
$ sed -i "1s/^/sec,nanosec,frame_id,name0,name1,name2,name3,name4,position0,position1,position2,position3,position4,velocity0,velocity1,velocity2,velocity3,velocity4,effort0,effort1,effort2,effort3,effort4\n/" joint_states.csv
```
[](https://www.youtube.com/watch?v=dsHGYwkQ5Ag)
## Training
### Set up
Install PyTorch and the related packages.
```shell
$ conda install pytorch cudatoolkit=11.0 -c pytorch
$ pip3 install pytorch-pfn-extras matplotlib
```
### Demo
Train IKNet with training dataset which is inside dataset/train directory or prepared by yourself. The dataset/train dataset contains a 5-minutes movement at 100 [Hz] sampling.
The training may be stopped before maximum epochs by the early stopping trigger.
```shell
$ python3 iknet_training.py --help
usage: iknet_training.py [-h] [--kinematics-pose-csv KINEMATICS_POSE_CSV]
[--joint-states-csv JOINT_STATES_CSV] [--train-val-ratio TRAIN_VAL_RATIO]
[--batch-size BATCH_SIZE] [--epochs EPOCHS] [--lr LR] [--save-model]
optional arguments:
-h, --help show this help message and exit
--kinematics-pose-csv KINEMATICS_POSE_CSV
--joint-states-csv JOINT_STATES_CSV
--train-val-ratio TRAIN_VAL_RATIO
--batch-size BATCH_SIZE
--epochs EPOCHS
--lr LR
--save-model
$ python3 iknet_training.py
epoch iteration train/loss lr val/loss
1 3 0.0188889 0.01 0.0130676
2 6 0.0165503 0.01 0.0132546
3 9 0.0167138 0.01 0.0134633
...
61 183 0.00267084 0.01 0.00428417
62 186 0.00266047 0.01 0.00461381
63 189 0.00260262 0.01 0.00461737
```
The training can be run on NVIDIA Jetson Nano 2GB.
[](https://www.youtube.com/watch?v=R_RtWAhCt8o)
The loss indicates the L1 norm of the joint angles. So the final networks solved 0.00461737 [rad] accuracy on average.
## Test
### Demo
Evaluate accuracy of IKNet with test dataset which is inside dataset/test directory or prepared by yourself.
The dataset/test dataset contains a 1-minute movement at 100 [Hz] sampling.
```shell
$ python3 iknet_test.py --help
usage: iknet_test.py [-h] [--kinematics-pose-csv KINEMATICS_POSE_CSV]
[--joint-states-csv JOINT_STATES_CSV] [--batch-size BATCH_SIZE]
optional arguments:
-h, --help show this help message and exit
--kinematics-pose-csv KINEMATICS_POSE_CSV
--joint-states-csv JOINT_STATES_CSV
--batch-size BATCH_SIZE
$ python3 iknet_test.py
Total loss = 0.006885118103027344
```
## Inference
### Demo

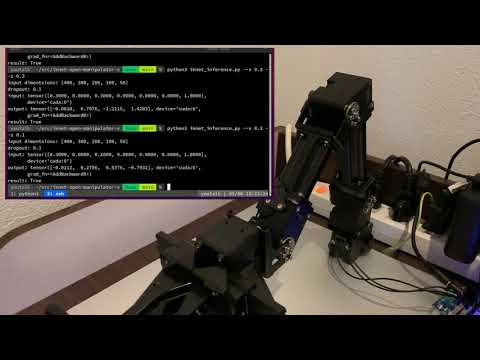

Estimate the inverse kinematics of IKNet using Open Manipulator X.
First launch Open Manipulator X controller.
```shell
$ ros2 launch open_manipulator_x_controller open_manipulator_x_controller.launch.py
```
Then run `iknet_inference.py` to input the pose (position and orientation) and move the robot.
Note that the orientation is described by quaternion (`qx`, `qy`, `qz`, `qw`).
```shell
$ . ~/ros2/install/setup.bash
$ python3 iknet_inference.py --help
usage: iknet_inference.py [-h] [--model MODEL] [--trt] [--x X] [--y Y] [--z Z]
[--qx QX] [--qy QY] [--qz QZ] [--qw QW]
optional arguments:
-h, --help show this help message and exit
--model MODEL
--trt
--x X
--y Y
--z Z
--qx QX
--qy QY
--qz QZ
--qw QW
$ python3 iknet_inference.py --x 0.1 --z 0.1
input dimentsions: [400, 300, 200, 100, 50]
dropout: 0.1
input: tensor([0.1000, 0.0000, 0.1000, 0.0000, 0.0000, 0.0000, 1.0000],
device='cuda:0')
output: tensor([-0.0769, -0.9976, 1.3582, -0.2827], device='cuda:0',
grad_fn=)
```
[](https://www.youtube.com/watch?v=62_zIF_PvxU)
### Demo with TensorRT
If you would like to use the inference with [TensorRT](https://developer.nvidia.com/tensorrt), first convert the PyTorch model to TensorRT enabled model using [torch2trt](https://github.com/NVIDIA-AI-IOT/torch2trt).
```shell
$ python3 iknet_trt_export.py --help
usage: iknet_trt_export.py [-h] [--input-model INPUT_MODEL] [--output-model OUTPUT_MODEL]
optional arguments:
-h, --help show this help message and exit
--input-model INPUT_MODEL
--output-model OUTPUT_MODEL
```
Then run the `iknet_inference.py` mentioned above with the options.
```shell
$ python3 iknet_inference.py --trt --model iknet-trt.pth --x 0.1 --z 0.1
input dimentsions: [400, 300, 200, 100, 50]
dropout: 0.1
input: tensor([0.1000, 0.0000, 0.1000, 0.0000, 0.0000, 0.0000, 1.0000],
device='cuda:0')
output: tensor([-0.0769, -0.9976, 1.3582, -0.2827], device='cuda:0',
grad_fn=)
```
## Reference
- Theofanidis, Michail & Sayed, Saif & Cloud, Joe & Brady, James & Makedon, Fillia. (2018). Kinematic Estimation with Neural Networks for Robotic Manipulators: 27th International Conference on Artificial Neural Networks, Rhodes, Greece, October 4–7, 2018, Proceedings, Part III. 10.1007/978-3-030-01424-7_77.
- Duka, Adrian-Vasile. (2014). Neural Network based Inverse Kinematics Solution for Trajectory Tracking of a Robotic Arm. Procedia Technology. 12. 20–27. 10.1016/j.protcy.2013.12.451.
