# Catalog/目錄
## English
[GettingStarted](#GettingStarted)
[RoomList](#RoomList)
[GameRoom](#GameRoom)
[AI](#AI)
## 中文
[啟動](#啟動)
[房間清單列表](#房間清單列表)
[棋局房間](#棋局房間)
[AIGame](#AIGame)
# GettingStarted
This is online gomoku website. Players can enjoy with others.
Developed by Node/Express.
You need to install modules.
```
$ npm install
```
Run server.
```
$ npm run dev
```

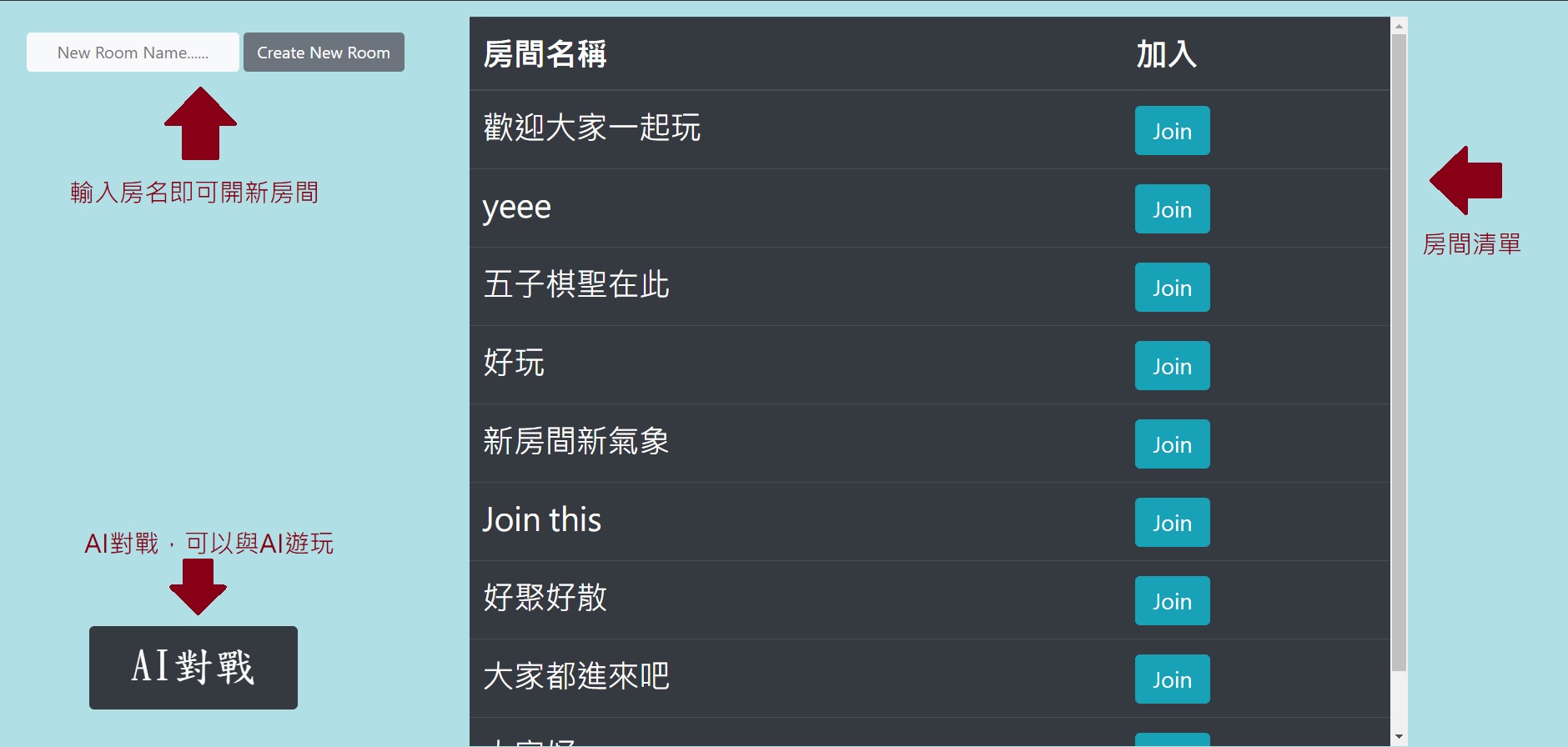

# RoomList
Node renders the ejs template to show the page with server data.
## Hint:
```
1.If the room name already exists, the player will be back to the list of rooms.
2.If the room is full, the player will back to the roomlist page.
```

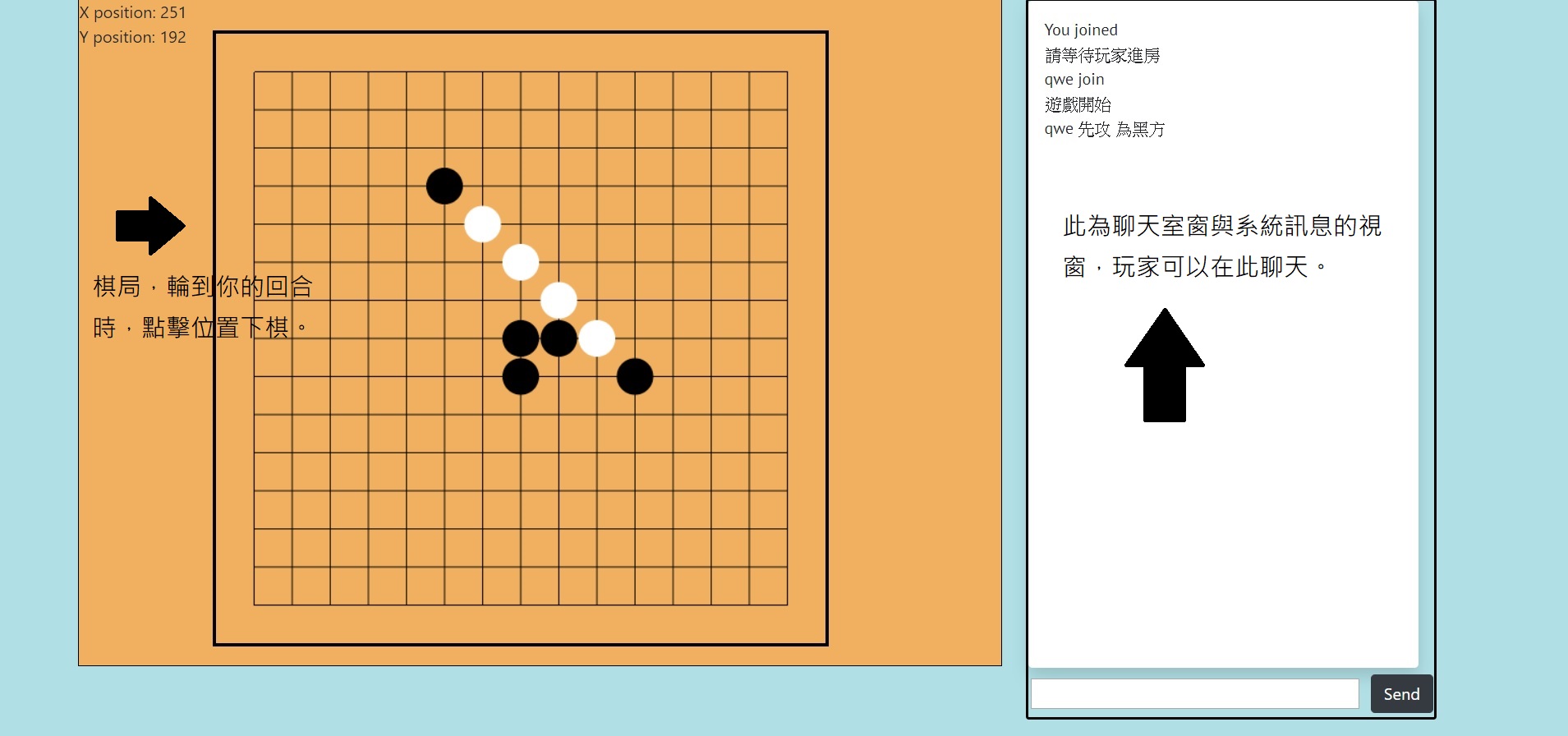

# GameRoom
I set the 2d array to save the chess board record.
1 means black. 2 means white.
Canvas displays the piece and board.
```
var gameBoard = [
[0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0],
[0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0],
[0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0],
[0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0],
[0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0],
[0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0],
[0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0],
[0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0],
[0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0],
[0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0],
[0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0],
[0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0],
[0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0],
[0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0],
[0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0],
[0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0],
[0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0]
];
```
Socket.io sent and receives the message about room, username, chess board.
Server listens victory and player leaving condition, if situation occur, Server will send messages to client.
Example socket.io settings:
```
client:
socket.on("waiting", waitmessage => {
appendMsg(waitmessage);
});
server:
socket.emit("waiting", waitmessage);
```
If player leaves the room, client will send disconnect message to server, then server will response and send messages which client need to execute, like reset board.
If player wins, the situation is like leaving room.
# AI
I use Minimax and Alpha-Beta to build the tree. Then search to get the maximun and minimun score and
optimization steps.
```
Score settings:
# 5 10000
# 4 80
# 3 30
# 2 5
# 1(piece) 0 score
```
```
Minimax Alpha-Beta conception :
# When alpha>=beta,cut-off the node.
function alphabeta(node, depth, α, β, maximizingPlayer)
if depth = 0 or the terminal node
return the score calculated from the board
if maximizingPlayer
for child of the all child node
α := max(α, alphabeta(child, depth - 1, α, β, FALSE))
if β ≤ α
break (* β cut-off *)
return α
else
for child of the all child node
β := min(β, alphabeta(child, depth - 1, α, β, TRUE))
if β ≤ α
break (* α cut-off *)
return β
```
# 啟動
使用 Node/Express 開發。
請先安裝 Node 與 Npm。
並輸入下面的指令安裝 modules。
```
npm install
```
啟動伺服器
```
$ npm run dev
```
預設 Port 為 3000，位於 localhost。
# 房間清單列表
在這裡使用 ejs 作為模板 views，ejs 經由 Server 渲染頁面，Server 的相關資訊會影響渲染的相關資料。
## 注意:
```
1.開啟新房間後，玩家即會進入新房間，如房間名已存在，則玩家會被引導回房間清單列表。
2.加入房間時，如果玩家進入的房間已有兩人，Server會偵測到房間人數已達上限，則玩家會被引導回房間清單的頁面。
```
# 棋局房間
首先我會先定義一個二維陣列來設立基本棋譜，並由 1 代表黑棋，2 代表白棋。
使用 Canvas 來繪製棋子以及棋盤。
```
var gameBoard = [
[0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0],
[0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0],
[0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0],
[0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0],
[0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0],
[0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0],
[0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0],
[0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0],
[0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0],
[0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0],
[0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0],
[0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0],
[0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0],
[0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0],
[0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0],
[0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0],
[0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0]
];
```
在這裡使用 socket.io 來進行即時的資料傳遞，將棋譜在 Server 以及 client 進行資料的雙向流，即時更新棋盤資訊，並且判斷是否勝利。
以下為 socket.io 使用的範例
```
client:
socket.on("waiting", waitmessage => {
appendMsg(waitmessage);
});
server:
socket.emit("waiting", waitmessage);
```
每個房間都是獨立的，是使用 socket.io 的 room。
如果棋局有玩家勝利或玩家離開房間，將會重置棋盤。
離開了的玩家會重新等待新玩家的到來。
# AIGame
AI 是藉由評估函數評估棋盤，使用卷積判斷 AI 適合下的位置，在藉極大-極小搜尋最佳值，Alpha-Beta 剪枝來減去不必要的節點，使用這些演算法，找出適合的位置下棋。
```
Score:
# 5 10000
# 4 80
# 3 30
# 2 5
# 1(顆) 0分
```
極大-極小 與 Alpha-Beta 剪枝 概念:
```
Minimax Alpha-Beta conception :
# When alpha>=beta,cut-off the node.
function alphabeta(node, depth, α, β, maximizingPlayer)
if depth = 0 or the terminal node
return the score calculated from the board
if maximizingPlayer
for child of the all child node
α := max(α, alphabeta(child, depth - 1, α, β, FALSE))
if β ≤ α
break (* β cut-off *)
return α
else
for child of the all child node
β := min(β, alphabeta(child, depth - 1, α, β, TRUE))
if β ≤ α
break (* α cut-off *)
return β
```
AI 目前仍在優化階段，敬請包含。
