# Pianika-IOT

The Pianika IOT project emulates a simple digital piano using an Arduino microcontroller. It allows you to play musical notes (DO, RE, MI, FA, SOL, LA, SI) by pressing physical buttons, which trigger sound output through a connected speaker or buzzer.

---

You can play the following musical notes:

- **DO**

- **RE**

- **MI**

- **FA**

- **SOL**

- **LA**

- **SI**

## Features

- **Play Notes**: Seven musical notes (DO, RE, MI, FA, SOL, LA, SI) triggered by buttons.

- **Customizable Frequencies**: Adjust note frequencies in the code for specific sounds.

- **Minimalist Design**: Easy-to-assemble circuit suitable for beginners.

## Components

- Arduino Board

- Push Buttons (7 units for each musical note)

- Resistors (or use Arduino's internal pull-up resistors)

- Speaker/Buzzer

- Jumper Wires

- Breadboard

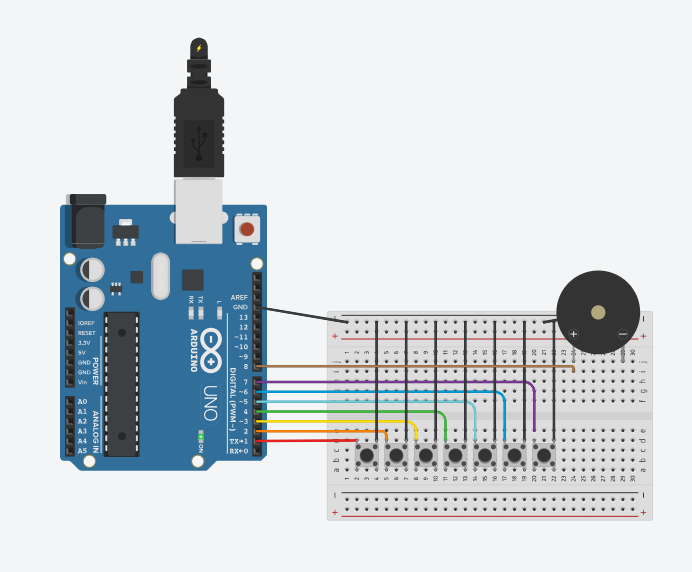

## Circuit Diagram

![Circuit Diagram](https://a.top4top.io/p_3280xktwu1.png)

## How to Use

1. **Build the Circuit**: Follow the circuit diagram to connect the components properly.

2. **Upload the Code**: Flash the provided Arduino code to your board.

3. **Test and Play**: Press each button to play its corresponding musical note.

## Notes

- Double-check your wiring to avoid short circuits or incorrect connections.

- Modify note frequencies or delay times in the code for different behaviors.

## Future Improvements

- **Extended Octave**: Add more keys to cover a full musical octave.

- **Keypad Input**: Use a keypad to reduce the number of physical connections.

- **Volume Control**: Integrate a potentiometer for adjustable volume.

- **Visual Feedback**: Add LEDs to indicate the pressed note visually.

---

## License

This project is licensed under the MIT License - see the [LICENSE](LICENSE) file for details.

---

Feel free to modify the code or improve the project as needed!

©️ 2024 Rechan Dinata
