Electrical Calculations Wizard



Daily assistant in the life of an electronic engineer












**Implemented functionality:**

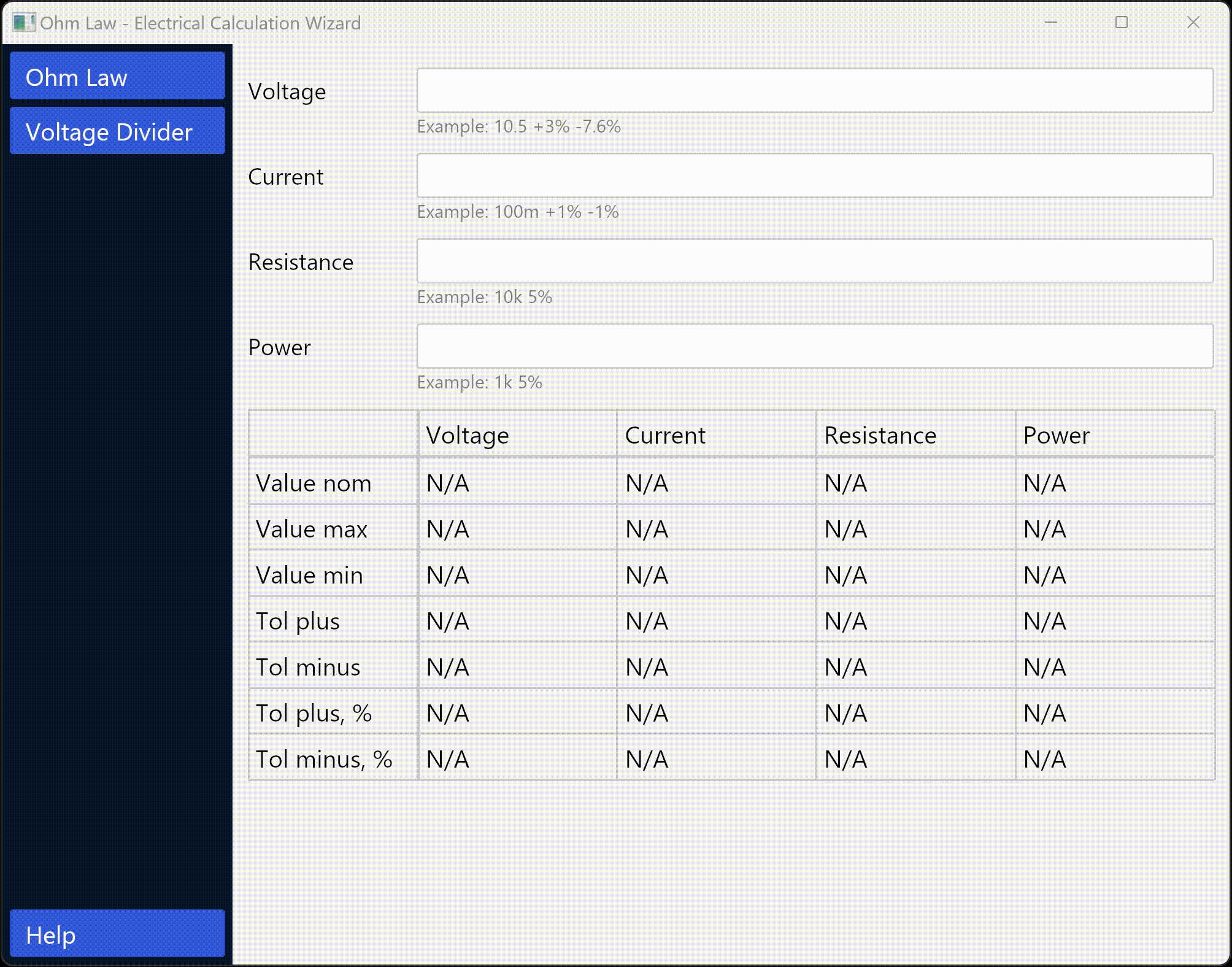

- ohm's law

- resistive divider

The key feature is the ability to perform calculations taking into account the tolerance of each entered value.

**Planned functionality:**

- in a resistive divider, selection of the closest resistances from a series of nominal resistances and comparison of results

- in a resistive divider, accounting for or calculation of the load in each arm

- add calculation of losses in all types of transistors and comparison of results for selection of the optimal transistor for the task

- add a multilingual interface

- add calculation of chokes and transformers

- add calculation of pulse power supplies

- add calculation of tracks and vias on printed circuit boards

**Installation, use and modification**

The program works without installation, it is enough to compile for your operating system or download the compiled file.

Latest release https://github.com/zvladimir/ecw/releases/tag/Release-0.1a
