# iot-door-lock

## Components

| No | Name                 | Qty | Required |

|----|----------------------|-----|----------|

| 1  | NodeMCU ESP8266      | 1   | ✅       |

| 2  | Magentic Door(MC-38) | 1   | ✅       |

| 3  | LED                  | 3   | ✅       |

| 4  | Resistor             | 3   | ✅       |

| 5  | Wire                 | >=21| ✅       |

| 6  | Toggle Switch        | 1   | ✅       |

| 7  | Buzzer               | 1   | ✅       |

| 8  | Relay 1 Channel      | 1   | ✅       |

| 9  | Solenoid Lock        | 1   | ✅       |

| 10 | Touch Sensor(TTP223) | 1   | ✅       |

| 11 | Battery 18650        | 3   | ✅       |

| 12 | Battery Holder       | 1   | ✅       |

| 13 | Jack Power Female    | 1   | ❌       |

| 14 | Power Adaptor 12V    | 1   | ❌       |

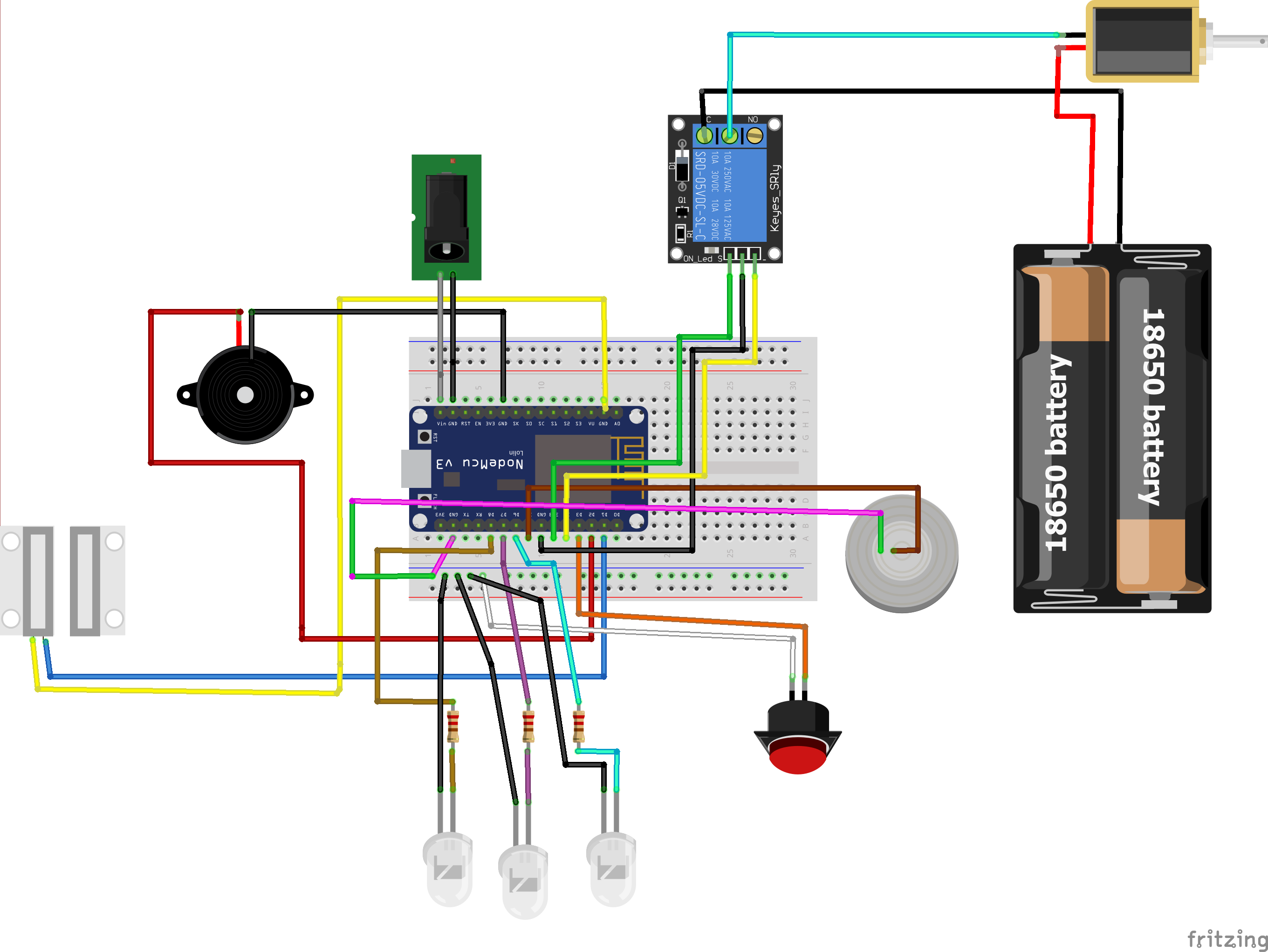

## Wiring

![wiring_bb3](https://user-images.githubusercontent.com/62506582/181712133-73ed0039-51d6-45cc-8932-eaef1c5d62c1.png)
