# Hexapod Botolomaeus

## Description

Project in collaboration of five students to successfully design and develop a six-legged robot (Hexapod), controllable through an Android device.

## Video

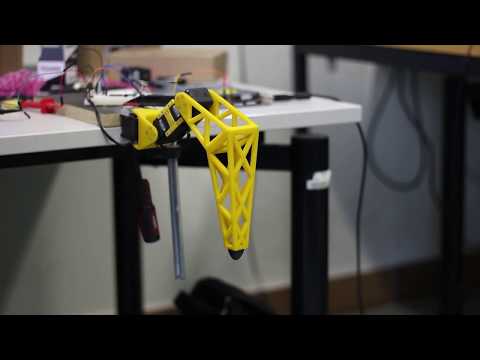

[![Hexapod Botolomaeus Video](https://img.youtube.com/vi/FhSNV5rlMkg/0.jpg)](https://www.youtube.com/watch?v=FhSNV5rlMkg "Hexapod Botolomaeus Video")

## Version

v1.0.0

All basic functions are implemented. Robot can be controlled by an android device. It can move in X, Y direction and rotate around the Z axis.

## Hardware Specification

Hardware that is being used:

-Dynamixel AX-18A (http://emanual.robotis.com/docs/en/dxl/ax/ax-18a/)

-Arduino 2560

## Additional Software Requirements

### Additionally Files

Servo_EEPROM_INIT/Servo_EEPROM_INIT.ino  -->File is used for the very first initialization of the servos e.g. setting ID's.

### Libraries needed

https://github.com/ThingType/AX-12A-servo-library

## Architecture

Rough class structure from 16.06.2018

![class_diagram](class_diagram.PNG)

## Team References

Team member:

Hardware design and manufacturing:

    Jan Homann, Joel Seelinger, Sameer Al-Qadasi

Software design and implementation:

    Tomislav Romic, Philine Stark, Henri Hildebrand
