# Gimbal for Phantom

This is a quick and dirty gimbal that I made for the DJI Phantom 1.

You will need two 9g servos.  I used Towerpro SG90 – they were a bit

jerky, but worked surprisingly well in flight.

These connect directly to the flight controller.  I don't have the

documentation for that handy, but it wasn't hard to figure out.

The software needed to configure and tune gimbal, as well as some

documentation, should be available from [DJI's Phantom 1 website](https://www.dji.com/product/phantom/download?viewClass=Print&www=v1&pbc=mF6h4ZTt)

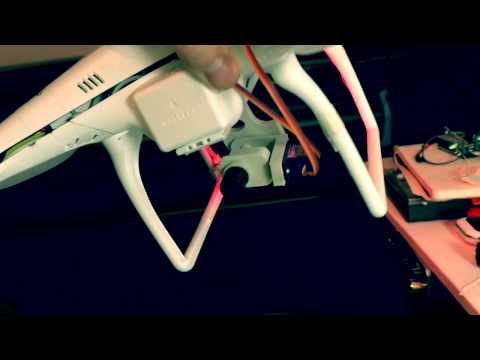

[![Gimbal](http://img.youtube.com/vi/6mbOqgZHl3Q/0.jpg)](https://youtu.be/6mbOqgZHl3Q)

![Side Front](pics/side-front.png)

![Bottom](pics/bottom.png) ![Rear View](pics/rear-view.png)
