LDR Atoms Viewer
[](readme/README_ZH.md) [](README.md)
## 🚀 Get Started
- Visit [Web: Ldr-Atoms-Viewer](https://ldrfy.github.io/atoms_viewer/)
- Upload your own model file (formats listed in [Multi-Format Support](#multi-format-support))
## Overview

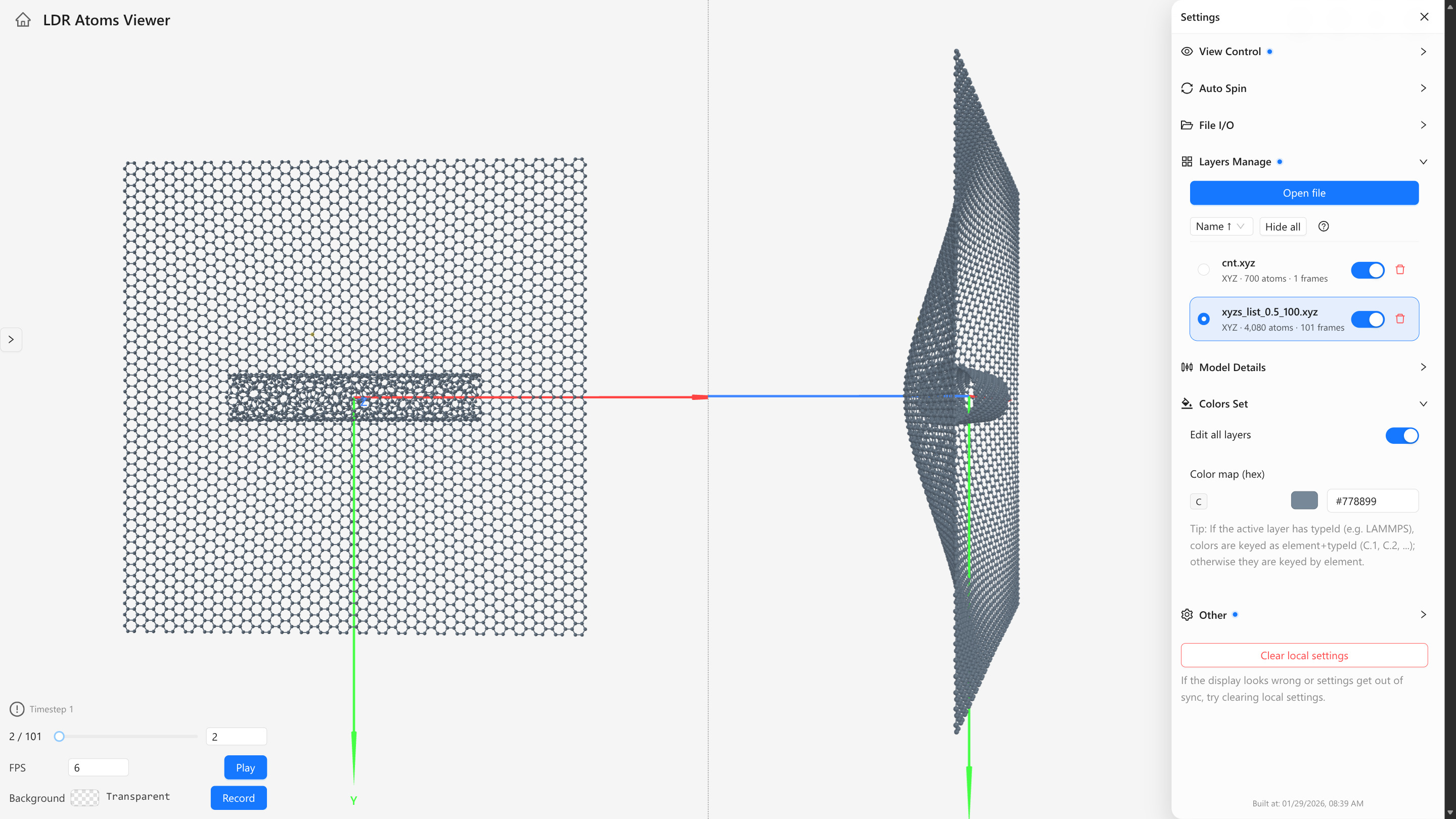

LDR Atoms Viewer is a web-based atomic structure visualization tool. Upload atomic coordinate files to generate 3D structures, then fine-tune the display (rotation, atom size, atom color, bond thickness, etc.). It supports one-click export of transparent or colored, auto-cropped high-resolution PNGs, and can record animations.
Built with a modern front-end stack, the experience is smooth and performance-focused.
## Features
### Multi-Layer
Drag in multiple coordinate files to display multiple structures at once, and show or hide layers as needed.
### Video Recording
Models can auto-rotate around different symmetry axes. Record the rotation process or motion trajectory, with customizable recording regions and background colors.
### File Export
- Image export: transparent or colored background, adjustable resolution, auto-cropped bounding box
- Format conversion: export to formats such as `xyz` from supported inputs
- Project package: bundle models plus all layer settings for sharing and restoring
- Settings export: export layers, background, view, and camera distance in one file
### Smooth Performance & Multi-Device Support
Supports loading hundreds of thousands of atoms, and works on mobile and desktop.
### Multi-Format Support
Supported formats: `lammps-data`, `lammps-dump`, `pdb`, `mol`, `sdf`, `xyz`. Both `xyz` and `lammps-dump` support trajectory playback.
Multiple model files can also be packaged into a single `zip` and dragged into the viewer for batch loading.
### Rich Customization
Multi-language, dark/light themes, precise rotation control, atom size, atom color, bond thickness, visibility toggles, axes display, and more.
## 🏗️ Development Testing
### Prerequisites
- node25
- pnpm10
### Install & Run
```bash
pnpm install
pnpm dev
```
### Build
```bash
pnpm build
pnpm preview
```
## Reference & Credits
This project is inspired by the following online viewer in interaction design and goals, but is more modern in implementation, with better performance and smoother interaction:
[openmx-viewer](https://www.openmx-square.org/viewer/index.html)
